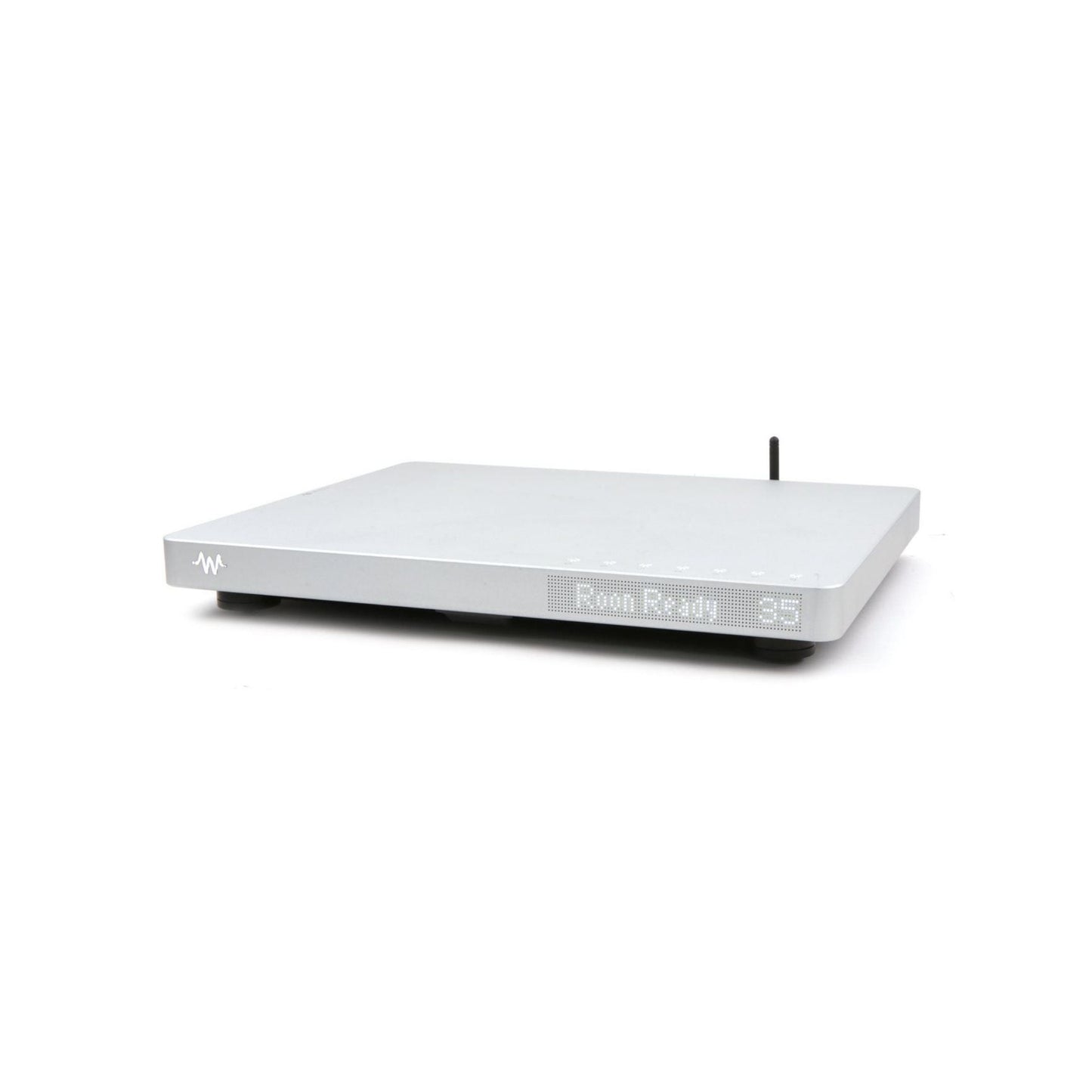

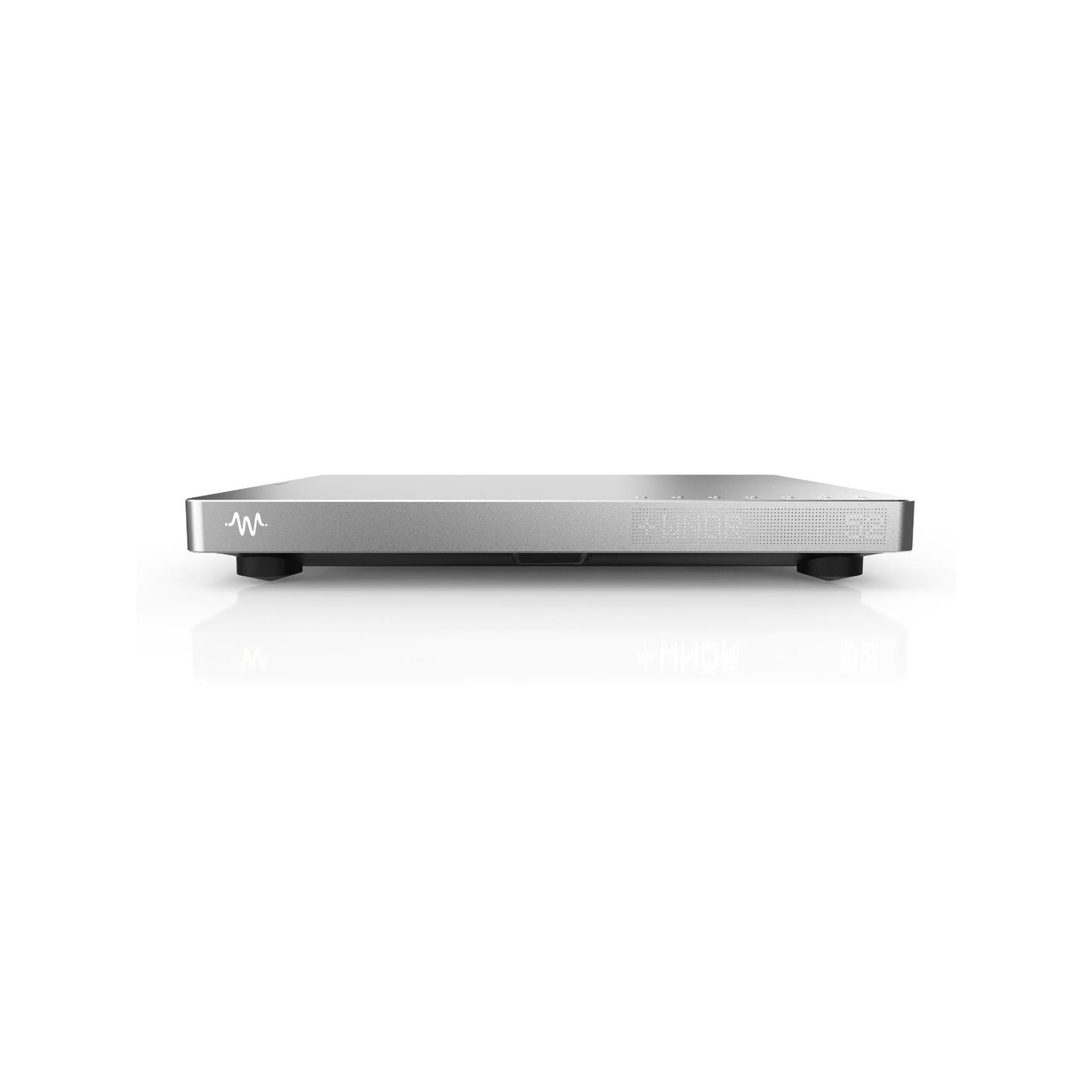

Waversa Systems WSlim Pro Integrated Amplifier with Streamer

The Waversa Systems WSlim PRO Amplifier Hub is a fully-featured integrated amplifier offering 200w per channel and the ability to run with a second WSlim PRO in mono mode, offering 400W per channel.

The power amp section is just the tip of the iceberg. This product also offers streaming via DLNA, Airplay, Bluetooth and is Roon Ready, includes a phono stage, an FM tuner and slots for the addition of up to 3 MSATA drives and a slot for a 2.5″ SSD drive.

All these features are underpinned by the Waversa WAP and WAP-X technology which is at the heart of all Waversa products.

In terms of lowering the noise floor, this unit offers noise isolators on every digital input.

Main features

• Digital Streaming Dual Mono Amplifier
• Mono operation
• 1×2.5”SSD/3xMSATAStorage
• Roon Ready
• DLNA Media Server
• Airplay
• Bluetooth
• Wifi (Ethernet dongle required)
• FM Tuner (Includes Aerial)
• MM/MC Phono

Exclusive technology

• High-precision 32 bit / 384 kHz A/D converter
• Quadruple PBTL Amplifier
• WAP – Waversa System Processor 32bit 1.5MHz
• WAP-X 1- 3
• Noise Isolator per digital input
• Dynamic Range 1 – 5
• WLPS Power Supply per module

Physical characteristics

• Chassis: Aluminium
• Colour: Silver

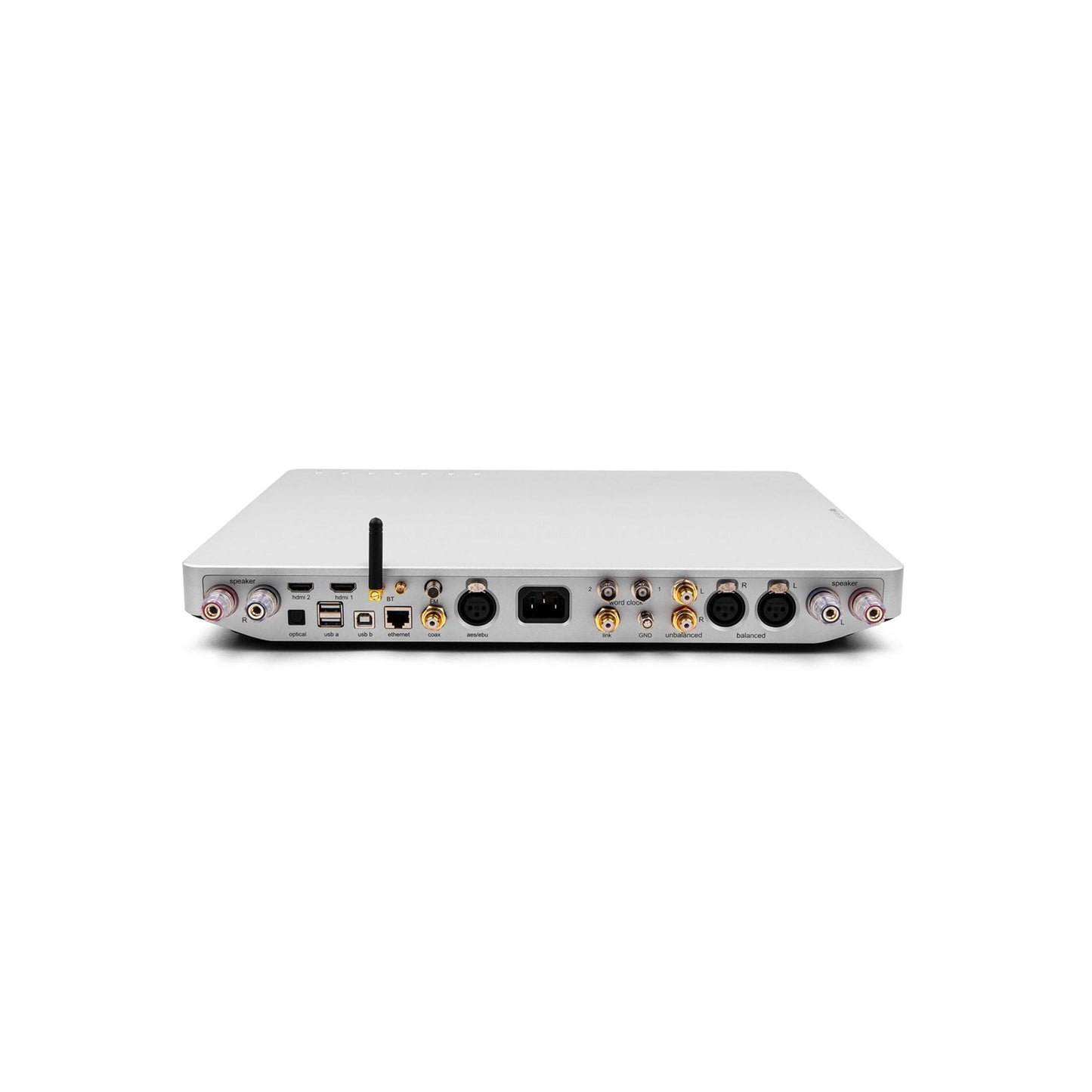

• Inputs: 2 x Balanced XLR, 2 x Single Ended RCA, 1 x Coaxial Digital, 2 x USB-A, 1 x USB-B, 1 x HDMI (ARC), 1 x HDMI Std, 1 x AES/EBU, 1 x Toslink, 1 x FM, 1 x Bluetooth, 2 x Word Clock, 1 x GND
• Outputs: 1 x Coaxial (link), 2 x 5 Way Binding Post
• Dimension:W430 x D375 x H54mm
• Weight: 9.3 kg / 20.5 Ibs
• Power supply: Built in 180~240 VAC @ 50~60Hz

Supported audio / video formats

• COAX: up to 24/192KHz
• USB/NET: PCM 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
• DSD64,DSD128, DSD256
• ROON: FLAC, WAV, DSF, DFF, AIFF, ALAC, AAC, MQA
• DLNA Renderer: WAV, AIFF, OGG, FLAC up to 24 bits / 192 kHz
• High precision 64bit ADC and PWM processing
• FPGA based Waversa Audio Processor (WAP)
• Ultra Low Power Universal Serial Bus Audio with High Precision Clock
• Digital PWM based class D amplifier, 200W per channel 8 Ohm
• Mono operation, 400w per channel 8 Ohm

Specs

Physical characteristics

• Chassis: Aluminium
• Colour: Silver
• Inputs: HDMI ARC, Balanced XLR, Unbalanced RCA, MM/MC RCA Phono
• Outputs: HDMI, Unbalanced RCA (Digital link), Headphone 6.3mm
• I/O: USB-A (Control), Ground
• Dimension:W300xD220xH20mm
• Weight: 4 kg / 8.8 lbs.
• Power supply: 24V Adapter 90-120V AC / 180-240 VAC @ 50Hz

Supported audio / video formats

• COAX: up to 24/192KHz
• USB/NET: PCM 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz
• DSD64
• DLNA Renderer: WAV, AIFF, OGG, FLAC up to 24 bits / 192 kHz

Specifications

• Linux 4.0x with 1GHz ARM Cortex A7 Processor
• Ultra Low Power Universal Serial Bus Audio Class 2.0 • High Precision Clock Dual MEMS 44.1/48
