Waversa Systems WNAS3 NAS with CD Ripping/Replay

NAS with CD Ripping/Replay, DAC, Roon Ready, DLNA, AirPlay, WNDR, 5 x 2.5” SSD Bays option

Main Features

• Digital Source
• 7” LCD Display
• CD Ripping / Replay
• NAS
• 5 x 2.5” SDD Bays
• Roon Ready
• DLNA Media Server
• Airplay
• FM Tuner (RDS)
• Fully Discrete Headphone Amplifier
• Fully Discrete Output Buffer

Exclusive Technologies

• WAP – Waversa System Processor (3 Level)
• WAP-X – Waversa System Processor Extension (3 Mode)
• WNDR – Waversa Network Direct Rendering
• WMLET – Waversa Multi-Layer Energy Transfer
• WUS – Waversa Ultra Sound
• RES – PCM Enhancement up to x8

Physical Characteristics

• Chassis: Aluminium
• Colour: Silver

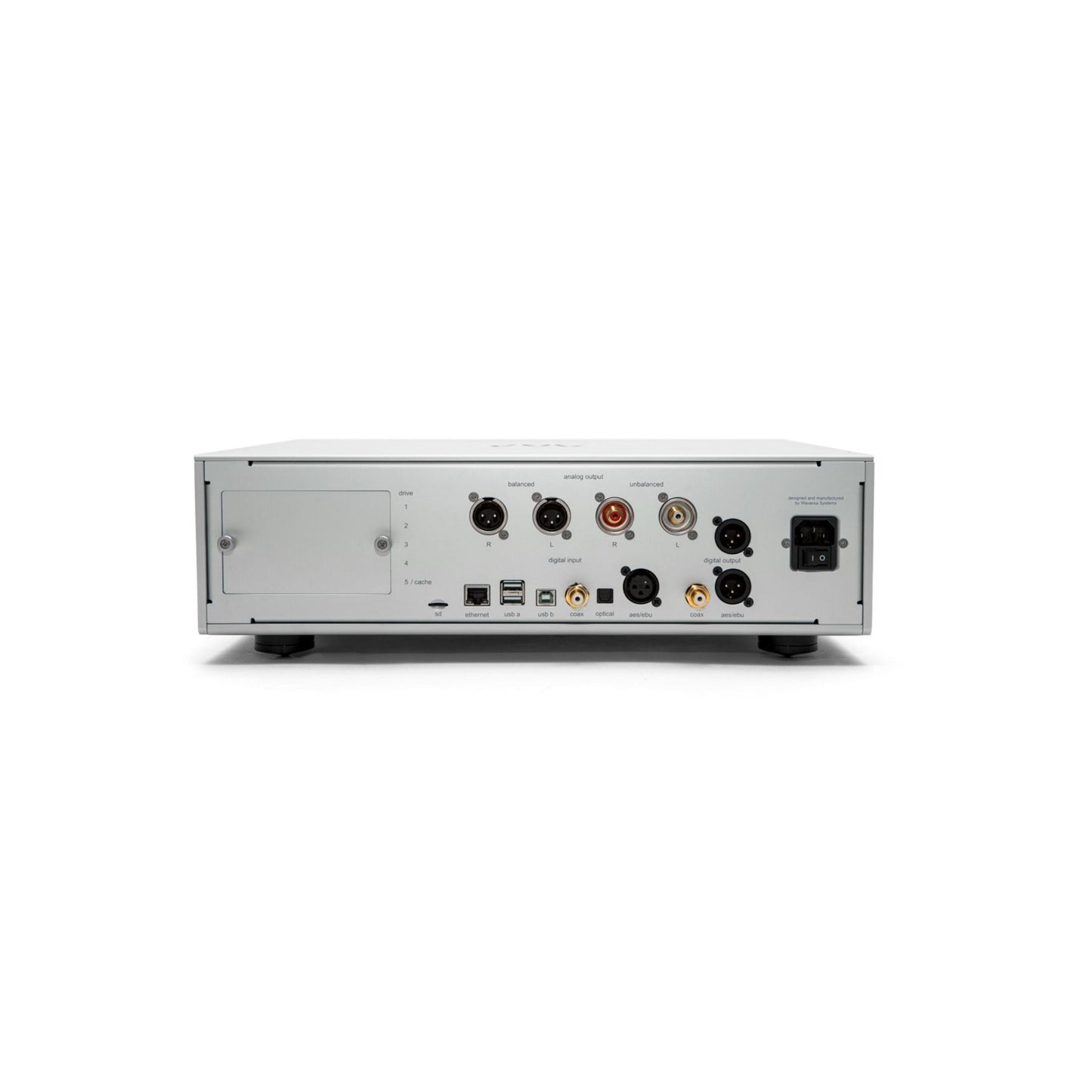

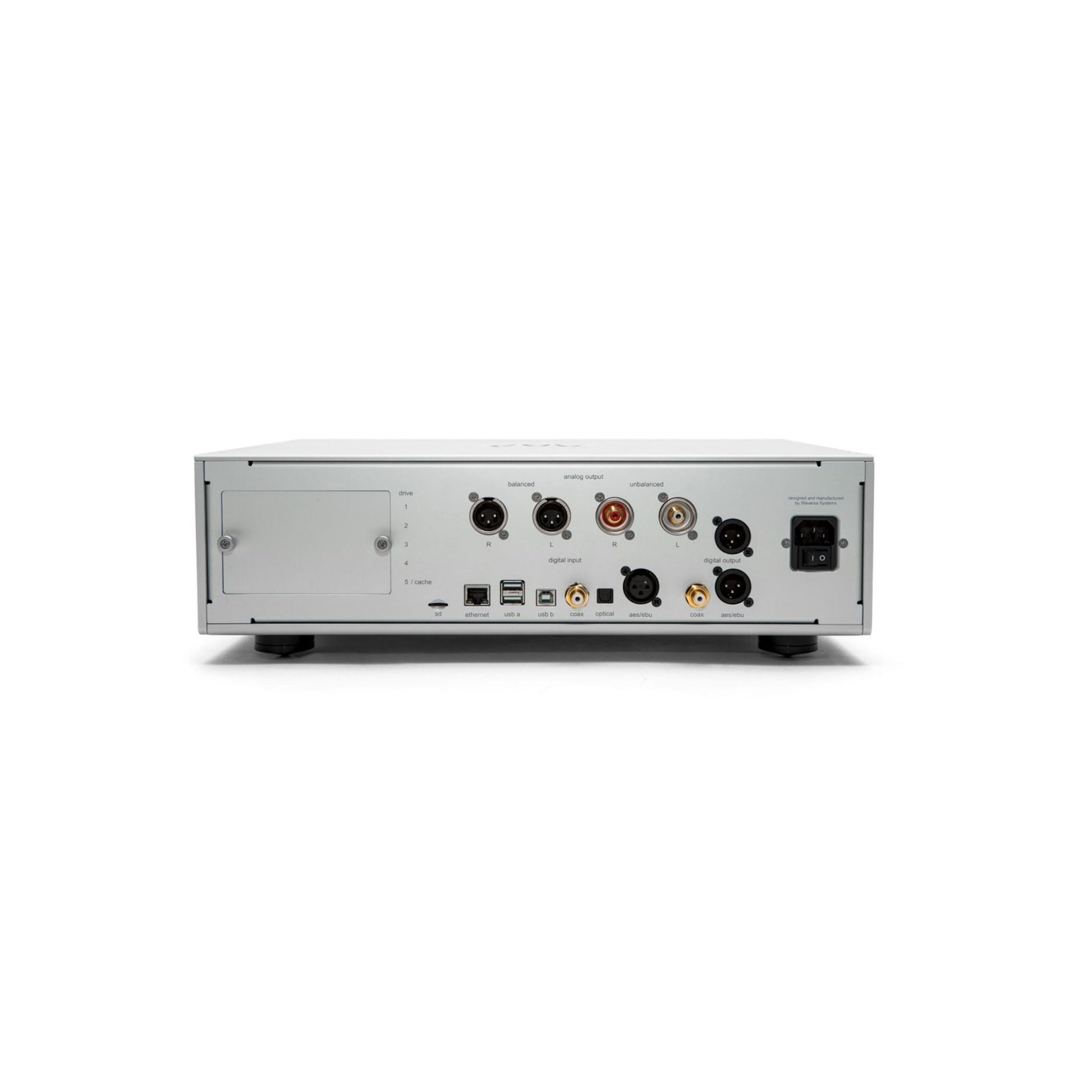

• Input: Ethernet (with Native DSD), USB B, Digital Coaxial, Toslink, AES/EBU
• Output: Balanced XLR, Single Ended RCA, USB-A, Digital Coaxial, FM Antenna, Phones
• I/O: USB-A, FM Aerial, Micro SD
• Dimension: W440xD330xH150mm
• Weight: – 10.5kg / 23.1 lbs.
• Power supply: Inbuilt 90~240 VAC@ 50~60Hz

Supported Audio/Video Formats

• COAX: up to 192KHz
• USB/NET: PCM 32/44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 KHz, DSD64, DSD128, DSD 256 (DSD Conversion 3 level)
• ROON: FLAC, WAV, DSF, DFF, AIFF, ALAC, AAC, MQA
• UPnP/DLNA Renderer: WAV, AIFF, OGG, FLAC up to 24 bits / 192 kHz
• FM – 88.0kHz – 108.0kHz

Specs

• Linux 3.2 with ARM Cortex A9/Memory 2GB
• ESS9038 PRO Based DAC with Full Discrete Analog Output
• Ultra Low Power Universal Serial Bus Audio Class 2.0
• High Precision TCXO Clock
• 3 x Power Supplies: D/A section, CD drive, HDD Drive
• 4 Analog Output Level Settings
• 8 Level Display Setting
