To maintain the very high standards of quality all manufacturing and processing is carried out in house. Engineering commences with design and toolmaking through all aspects of production including CNC machining, pressure die-casting, injection moulding, metal finishing, electro-plating, anodising.
With the immense care taken in the design and manufacture of our components, an SME Turntable is the key to lasting musical enjoyment.

SME Model 12A Turntable
Free Gift

  • Sale
  • Regular price £8,549.00
  • Available Worldwide Shipping


The 12A has the same chassis as the Synergy turntable and comes with a model 309 tonearm that has Crystal Cable internal wiring.

The turntable is supported on four large polymer isolators inside adjustable feet, which allow for levelling. Machined from a single billet of aluminium, the trilateral sub-chassis, which holds the main bearing and tonearm, is mounted on three suspension columns. The main spindle is 19mm machined from chrome tool steel.  It is machine ground and supported in a sealed housing with individually matched bronze bearings needed to support the platter.

MAIN CHASSIS

With a compact footprint, the main chassis is precision machined from a solid billet of premium grade aerospace aluminium, ensuring an inert and stable base for the suspension and sub-chassis to reside on.  With multiple CNC machining processes of this crucial component, once machined the main chassis goes through an extensive handcrafted finishing programme to reach the standards SME are famous for.

DAMPING

The turntable is supported on four large polymer isolators inside adjustable feet, which allow for quick and easy levelling. Machined from a single billet of aluminium, the trilateral sub-chassis, which firmly holds the close tolerance main bearing and tonearm, is mounted on three suspension columns, providing impressive isolation.

SPINDLE

The main spindle is 19 mm (3/4″) machined from high chrome tool steel.  It is machine ground, super finished and supported in a sealed housing with individually matched sintered bronze bearings of generous proportions needed to support the platter.

PLATTER

Machined from aluminium alloy and weighing over 4.6 kg (10 lbs), the platter is perfectly dampened with an ultra-specialist space grade isodamp material unique to SME. The top surface is diamond-turned with a fine scroll carefully calculated for firmly engaging records to the platter. The substantial chrome-plated and logo engraved reflex clamp ensures the largest possible platter contact, even when an appreciable record warp is present.

MOTOR

The turntable is driven by a 3 phase, brushless out runner motor with 8-pole Neodymium magnets and three integrated hall effect sensors.  Contained within a precision-machined housing, the total motor assembly is virtually vibration-less, as its 2.5 kg (5.5lbs) weight is isolated from the sub chassis by urethane mounts and spikes.

SPEED CONTROL

The electronic control unit uses a high-performance microprocessor, optimised for motor control. Closed loop speed control is implemented using a proportional plus integral (PI) algorithm. Speed ranges are 33.3, 45 & 78 rpm, with fine pitch speed adjustment allowing increments/decrements of +/-0.01% of the selected speed.

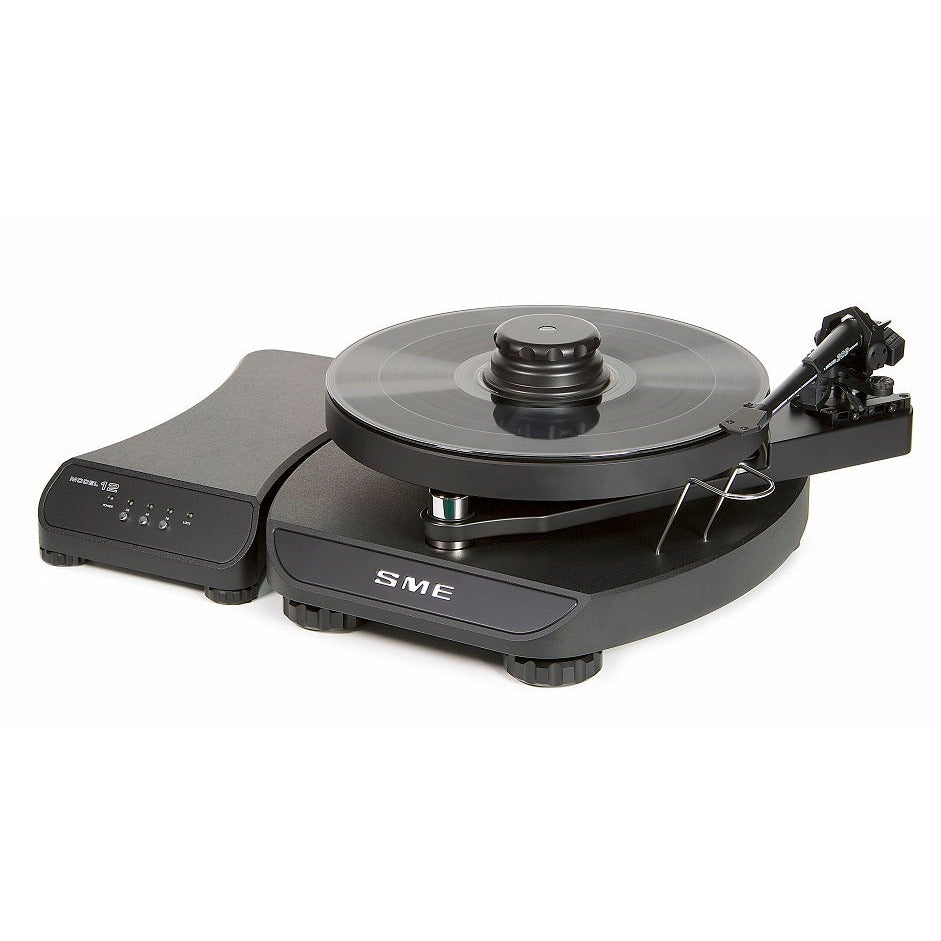

The electronic control circuitry and power supply unit are housed in an external one-piece CNC machined case. This new design offers complete isolation and support and is the perfect environment for the electronics.  Speed selection controls are mounted on the front facia panel with LED indicators.

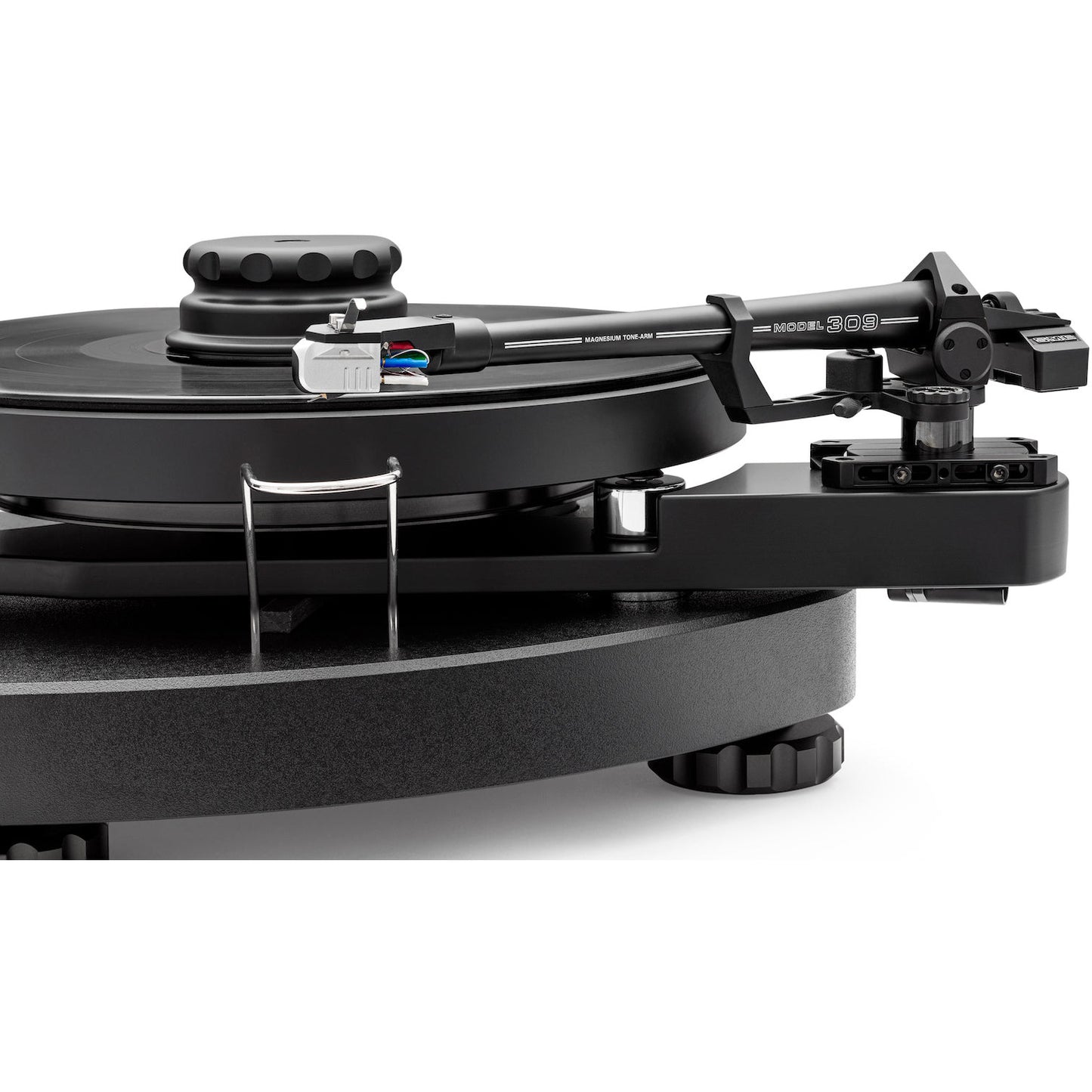

TONEARM

The Model 12A comes equipped with an SME Model 309 one-piece magnesium tonearm that uses advanced metal techniques to produce an exceptionally rigid arm. With a detachable magnesium headshell that features an advanced style coupling, the Series 309 tonearm offers the convenience of rapid cartridge interchange without any reduction when it comes to rigidity. Constrained layers within the tonearm work to dampen any minute residual vibrations through the SME Series 309 Tonearm, making it one of the most acoustically inert tonearms available on the market. Internal wiring is supplied by specialist high end audio cable manufacturer Crystal Cable.

With the new Model 12A, SME have once again demonstrated audio engineering excellence delivering a world class precision turntable for the discerning audiophile and high end audio enthusiast.
