Skyanalog

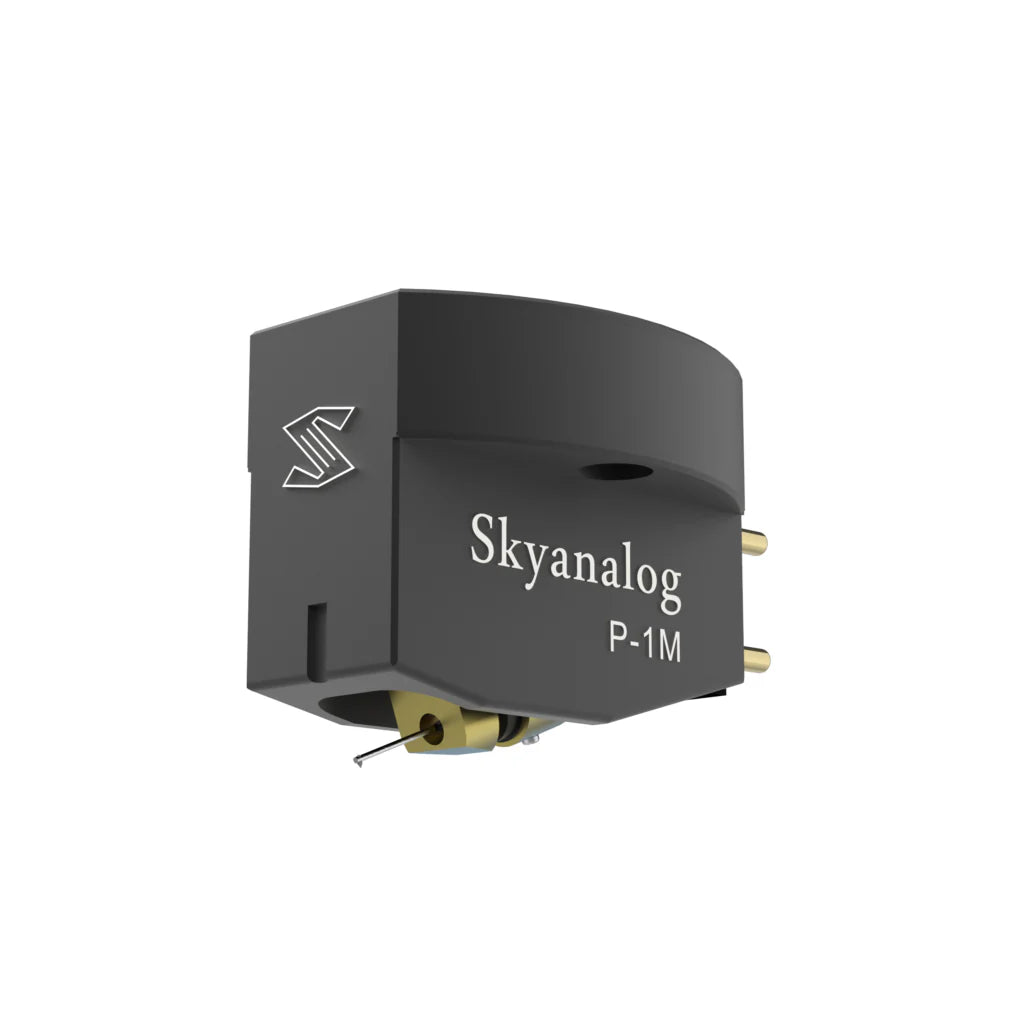

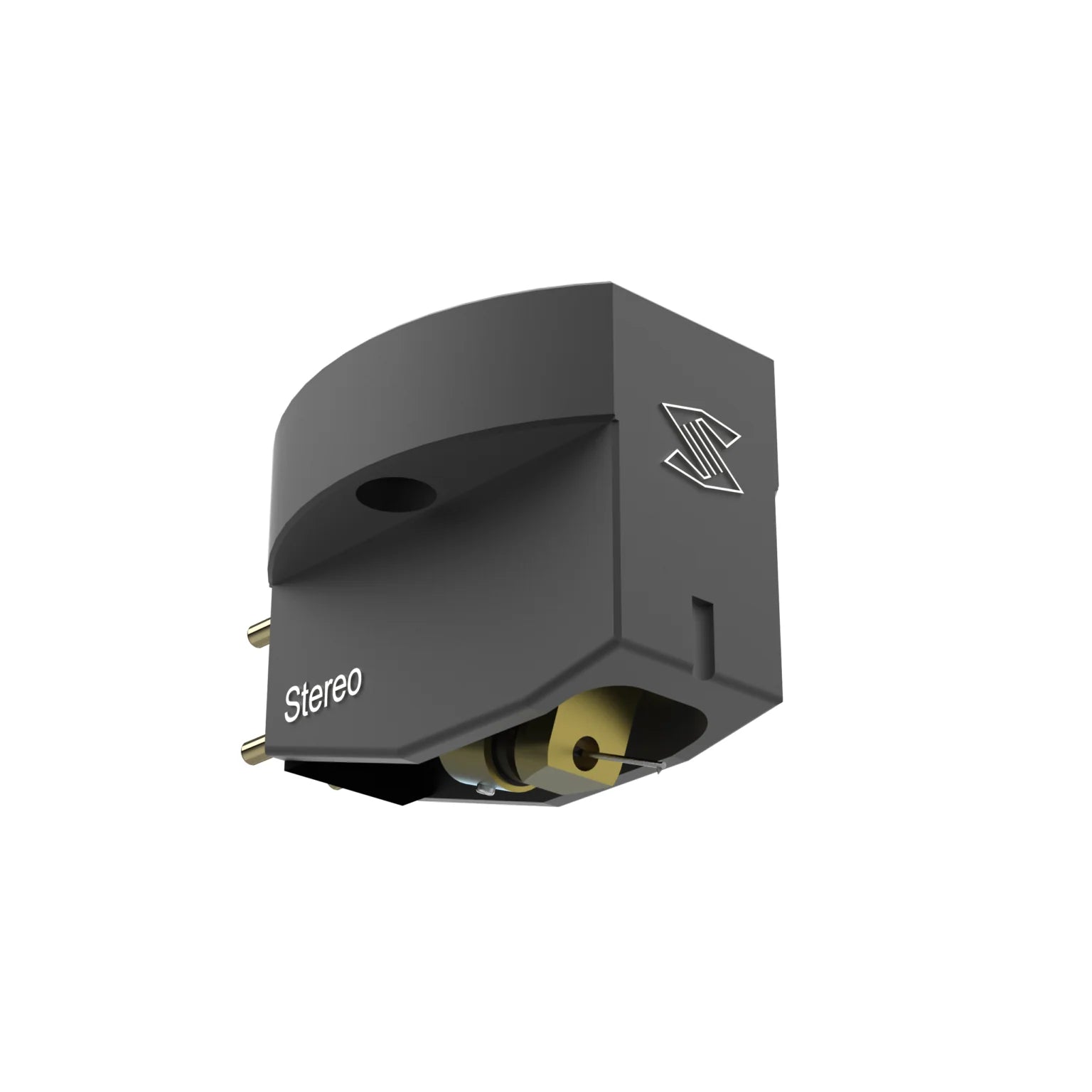

Skyanalog P1-M MC Cartridge
Skyanalog P1-M MC Cartridge
Regular price
£349.00
Regular price
Sale price
£349.00
Unit price
per
VAT included.
Couldn't load pickup availability
Part Exchange / Trade In Quote?
Part Exchange / Trade In Quote?
SkyAnalog initially started designing tube amplifiers, much later they started designing High-End MC pickups. The G-series has, among other things, a unique aluminum body and a cantilever of Borium, Ruby or Sapphire.
Specs
MODEL G-2 SPECIFICATIONS
| PHYSICAL | |
| Cantilever | Ruby |
| Stylus | Diamond |
| Stylus Tip Radius | 5 x 150 µm |
| VTA Vertical Tracking Angle | 20˚ |
| Coil | Pure Iron Cross Coil |
| Weight | 10 grams |
| ELECTRICAL | |
| Output Voltage | 0.35 mV @ 3.54 cm/s |
| Internal Impedance | 8 Ω |
| Frequency Respons | 20 – 30.000 Hz +/- 1 dB |
| Channel Separation | ˃ 30 dB at 1 kHz |
| Channel Balance | < 0.5 dB |
| DYNAMIC | |
| Tracking Ability @ 315 Hz / 2 grams | 80 µm |
| Dynamic Compliance | 10 µm / mN |
| SETUP INSTRUCTION | |
| Recommended Load | 200 – 470 Ω |
| Recommended Tracking Force | 1.5 – 1.7 grams |
| Optimum Tracking Force | 1.6 grams |
| Recommended Tonearm Mass | Medium |
| Optimum Working Temperature | 23 ˚C |
| Break-In Period | 30 hours |
