Reiki Audio SuperSwitch X with Pro X PSU Network Switch

The SuperSwitch X is a dual-shielded audiophile network switch optimised for pre-streamer installation. Building on our experience of developing the multi award winning SuperSwitch Pro platform, the X series ruthlessly eliminates EMI/RFI noise before it ever reaches your DAC.

• As the Roman numeral X suggests, the case has doubled in thickness from 5mm to 10mm, providing even greater rigidity, almost double the weight and even better shielding from radiated RFI compared to the SuperSwitch

• The SuperSwitch X’s high performance circuitry is encased in a non-conductive resin for further suppression of micro-vibrations

• High quality aluminium/silicone feet further aid vibration control and stability (4 on the Pro X and 3 on the SuperSwitch X with provision for installation of 4 if a customer wishes)

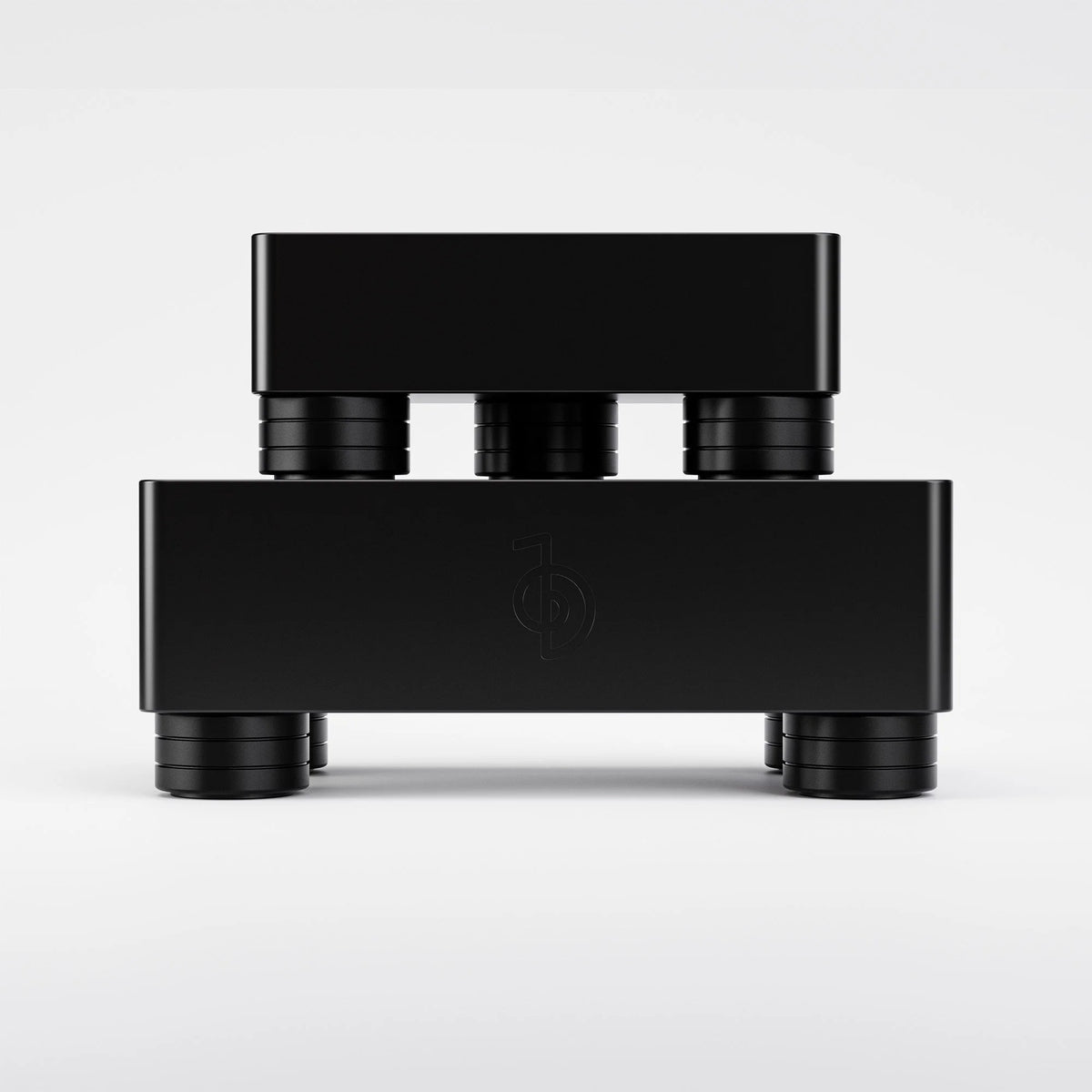

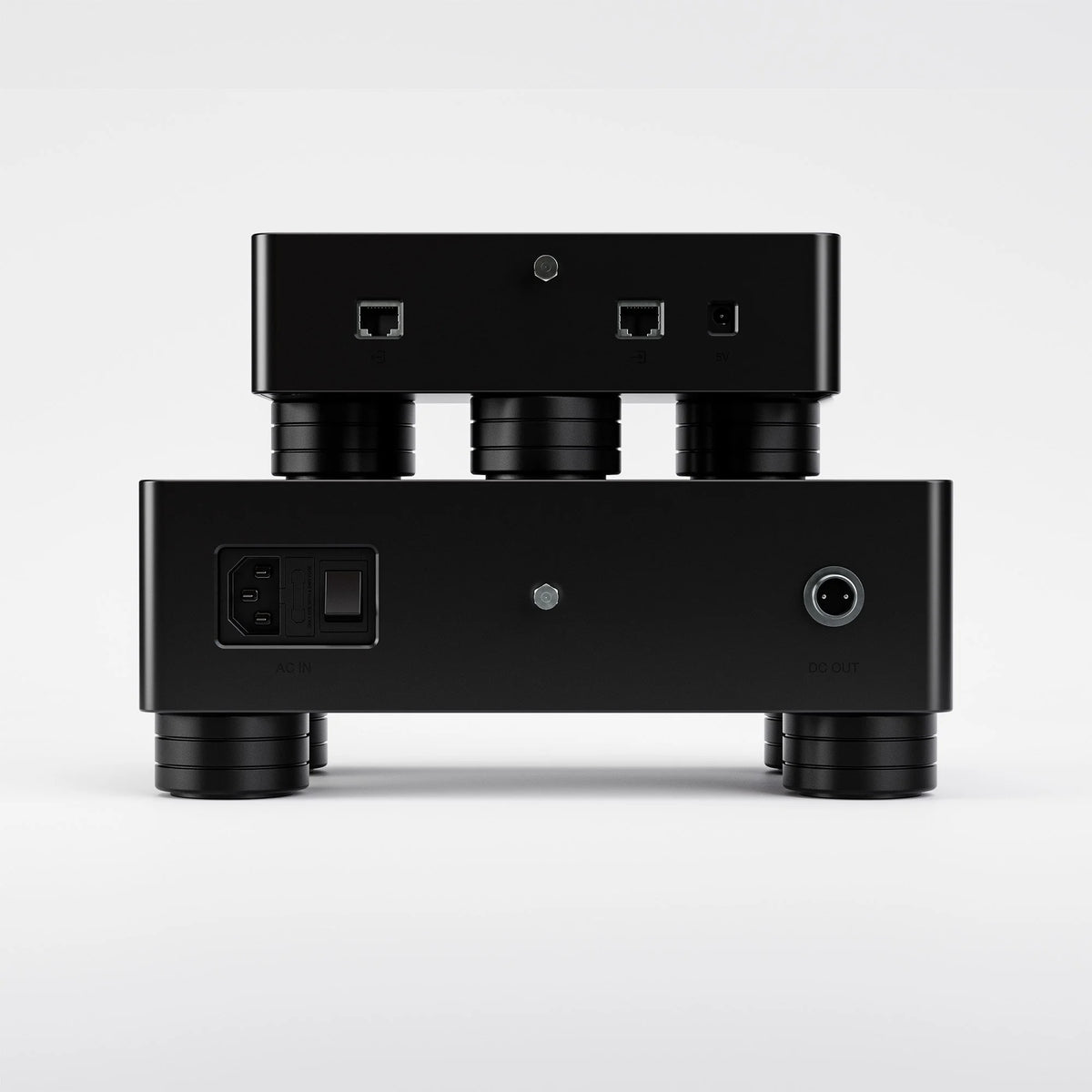

• As the result of an exciting new partnership with Stack Audio, we are now able to offer an upgrade to a specially commissioned threaded version of the excellent Auva EQ isolators.

• DC cable: formerly an optional upgrade, every Pro X PSU is now supplied as standard with a 60cm RakuDC PRO cable to connect your Pro X PSU to your SuperSwitch X. Other lengths are available at RakuDC PRO.

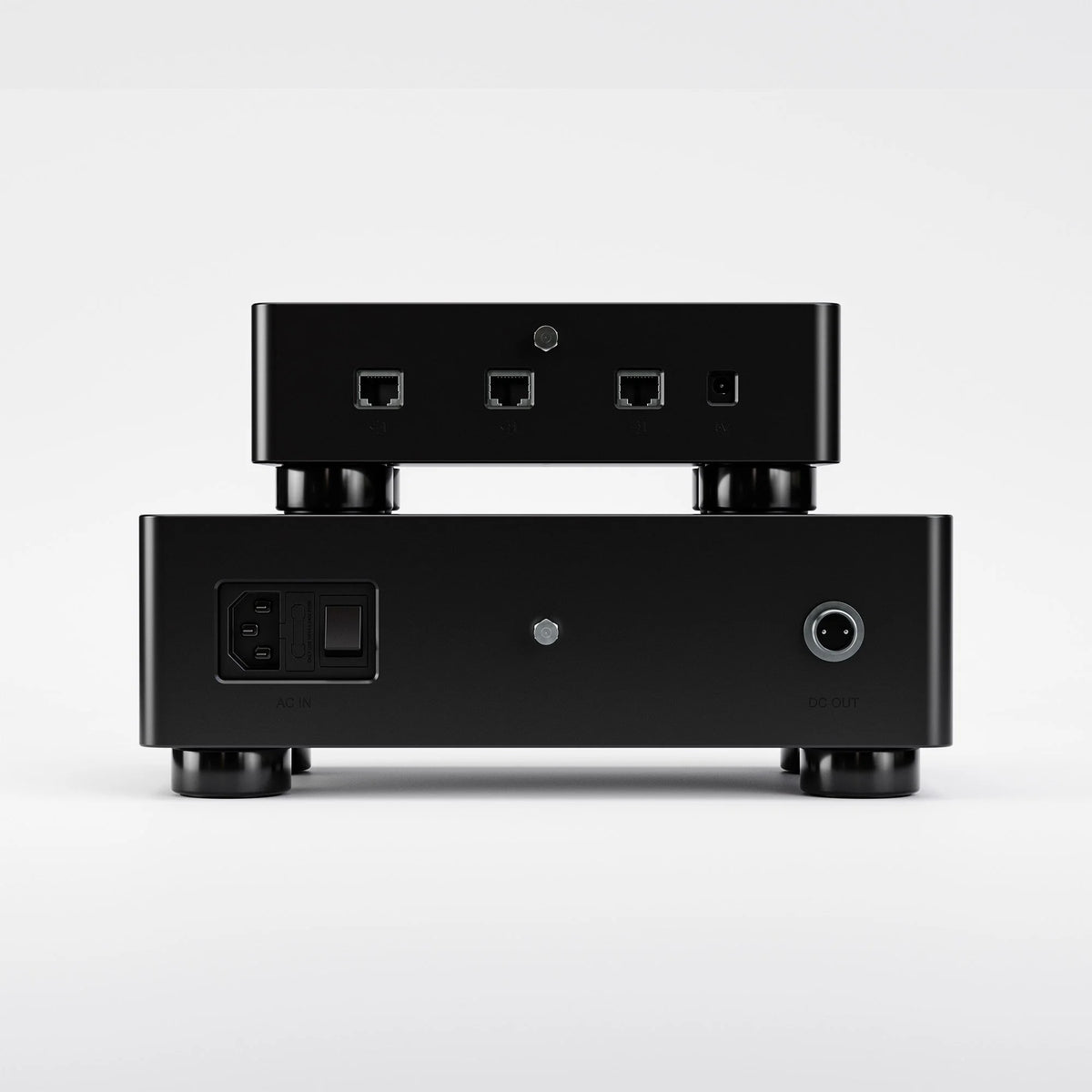

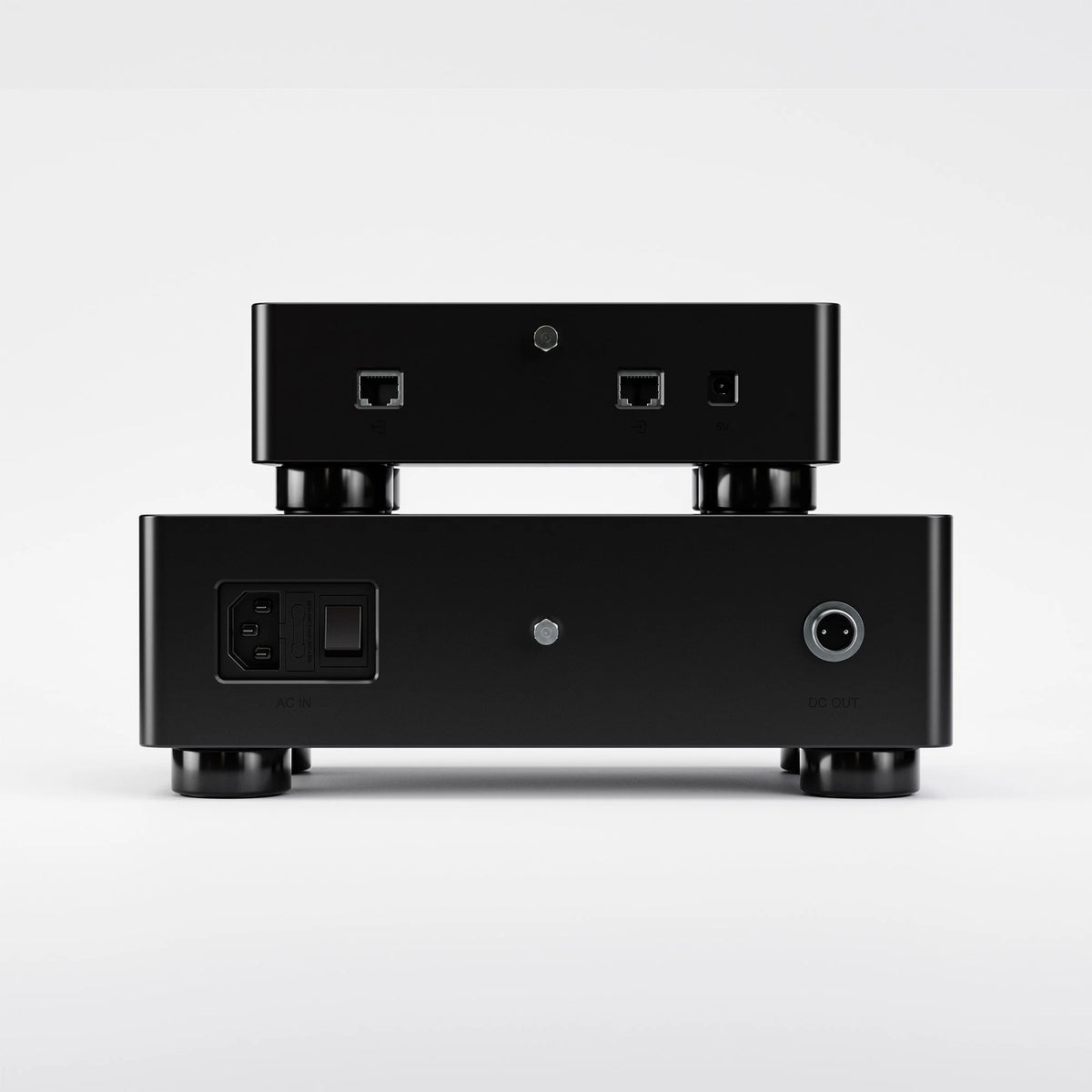

The SuperSwitch X is available in a twin port configuration and as a 3 port (dual output) model. For optimal performance we advise against leaving open ports, so unless you need the additional connectivity offered, we recommend purchasing a single output (2-port) SuperSwitch.

The SuperSwitch X is supplied with the new Pro X PSU, a similarly upgraded version of our superb fully linear PRO PSU with a matching 10mm thick case, the same footer options, and a 25% larger Audio Grade transformer. The class-leading low impedance design using high quality components to provide the SuperSwitch X with stable, clean, low ripple, low noise DC power to release its true potential. Echoing the Superswitch X’s superb aesthetics, our fully linear Pro X combines class-leading custom-designed low noise circuitry with classic Reiki Audio attention to detail. The Pro X’s 10mm aluminium top plate perfectly accommodates the Superswitch X; together with the copper-lined 10mm aluminium base plate of the Superswitch X, there is 20mm of aluminium isolating the Superswitch X circuitry from the PSU’s circuitry and transformer.

Technical details

• Gigabit switch

• 10mm aluminium case, copper-lined

• Vibration damped circuit board

• Case grounding post (4mm spade)

• Requires 5v DC (2.1mm barrel)

Dimmensions

SuperSwitch X:

Width: 192mm
Depth: 115mm
Height: 69mm (Standard Feet) 80mm (Stack Auva Upgrade)

Weight: 1.8kg (Standard Feet) 1.98kg (Stack Auva Upgrade)

Pro X PSU:

Width: 260mm
Depth: 1148mm
Height: 97mm (Standard Feet) 108mm (Stack Auva Upgrade)

Weight: 4.85kg (Standard Feet) 5.11kg (Stack Auva Upgrade)
