Quad

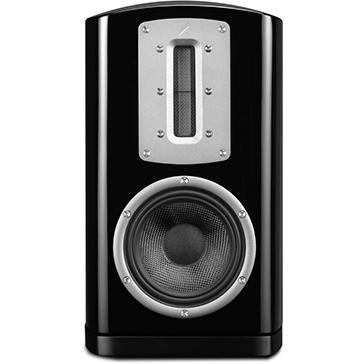

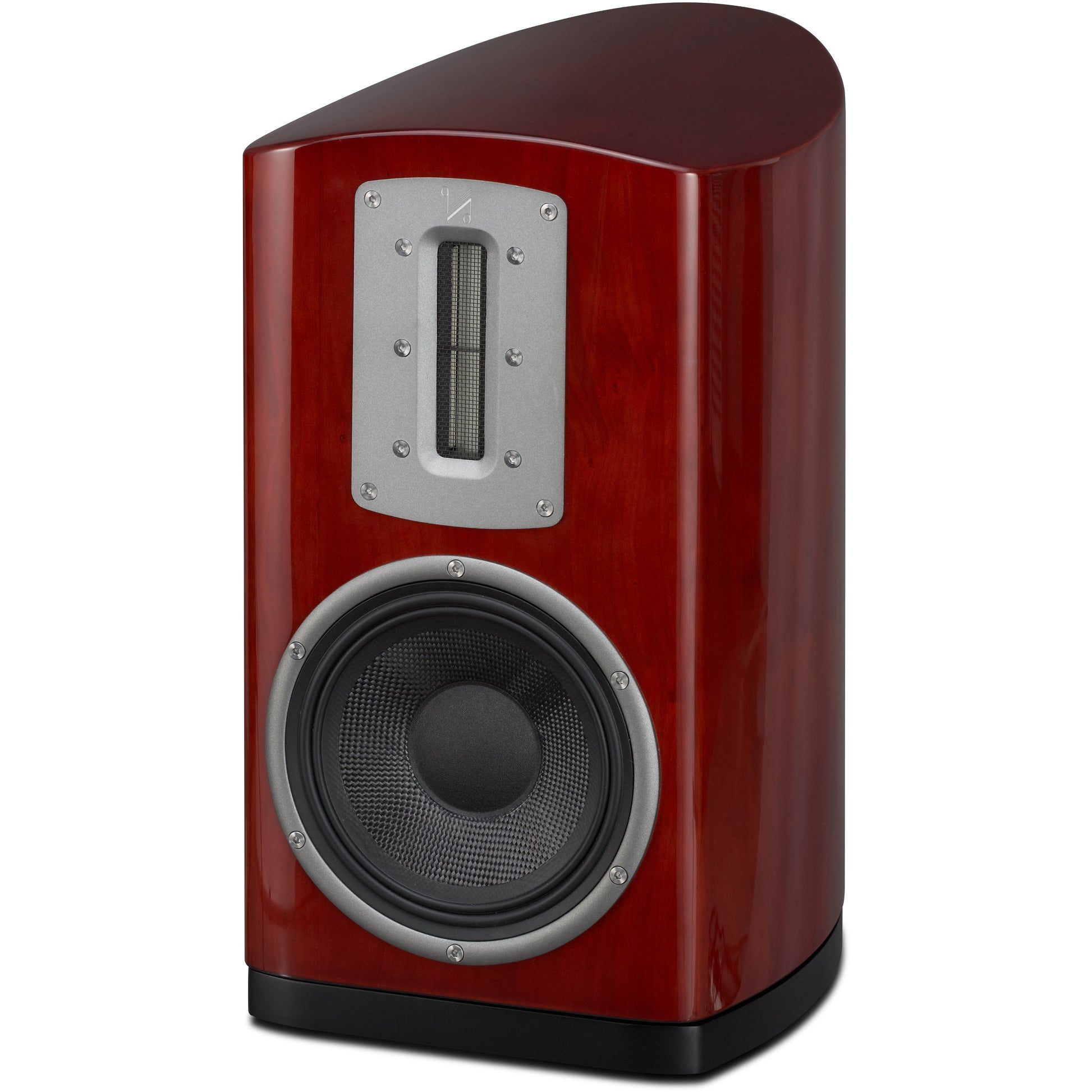

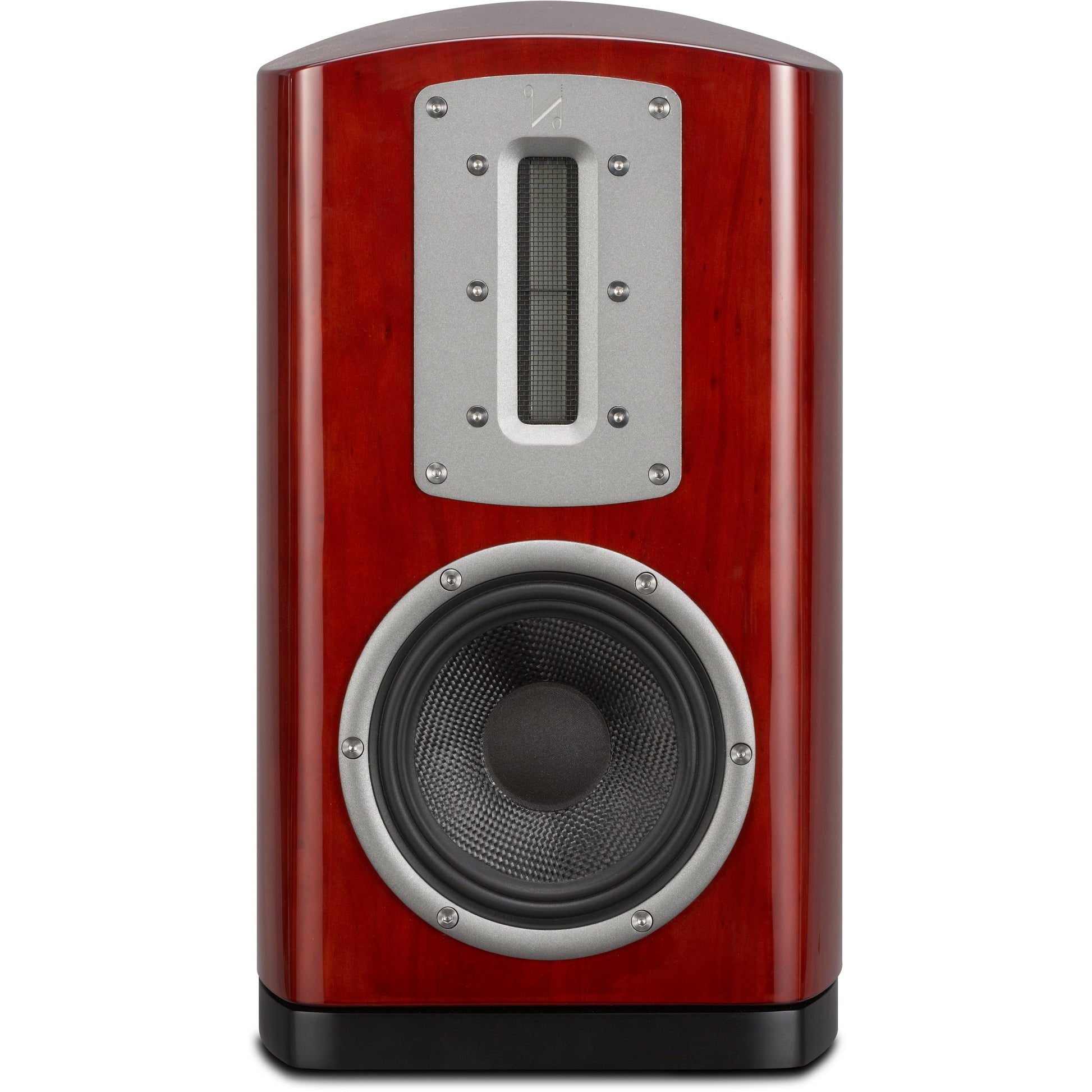

Quad Z-1 Standmount Speakers
-
Sale
- Regular price £1,299.00
Worldwide Shipping
- Description
- Specs
- Shipping Information (domestic & international)
- Want to hear it?
- Express Delivery
- Trade In
Bookshelf Speaker
QUAD proudly announce Z Series, our new flagship ribbon loudspeaker range. After taking a new approach to ribbon tweeter design using a unique sandwich formation, an exceptionally robust, high power speaker has been engineered, yet with the delicate sound, conventional ribbon speakers are known for. Z Series is housed beautifully curved piano lacquered cabinets, available in black, white and rosewood.| General description | bookshelf |
| Enclosure type | bass reflex |
| Transducer complement | 2-way |
| Bass driver | 150mm glass fibre |
| Treble driver | 90x12mm true ribbon |
| AV shield | No |
| Sensitivity (1W @ 1m) | 86db |
| Recommended amplifier power | 40-150w |
| Peak SPL | 102dB |
| Nominal impedance | 8Ω |
| Minimum impedance | 4.6Ω |
| Frequency response (+/-3dB) | 56Hz - 20kHz |
| Bass extension (-6dB) | 48Hz |
| Crossover frequency | 3.4kHz |
| Cabinet Volume (in litres) | 10L |
| Dimensions | 383 x 219 x 283 |
| Weight | 6.5kg |
