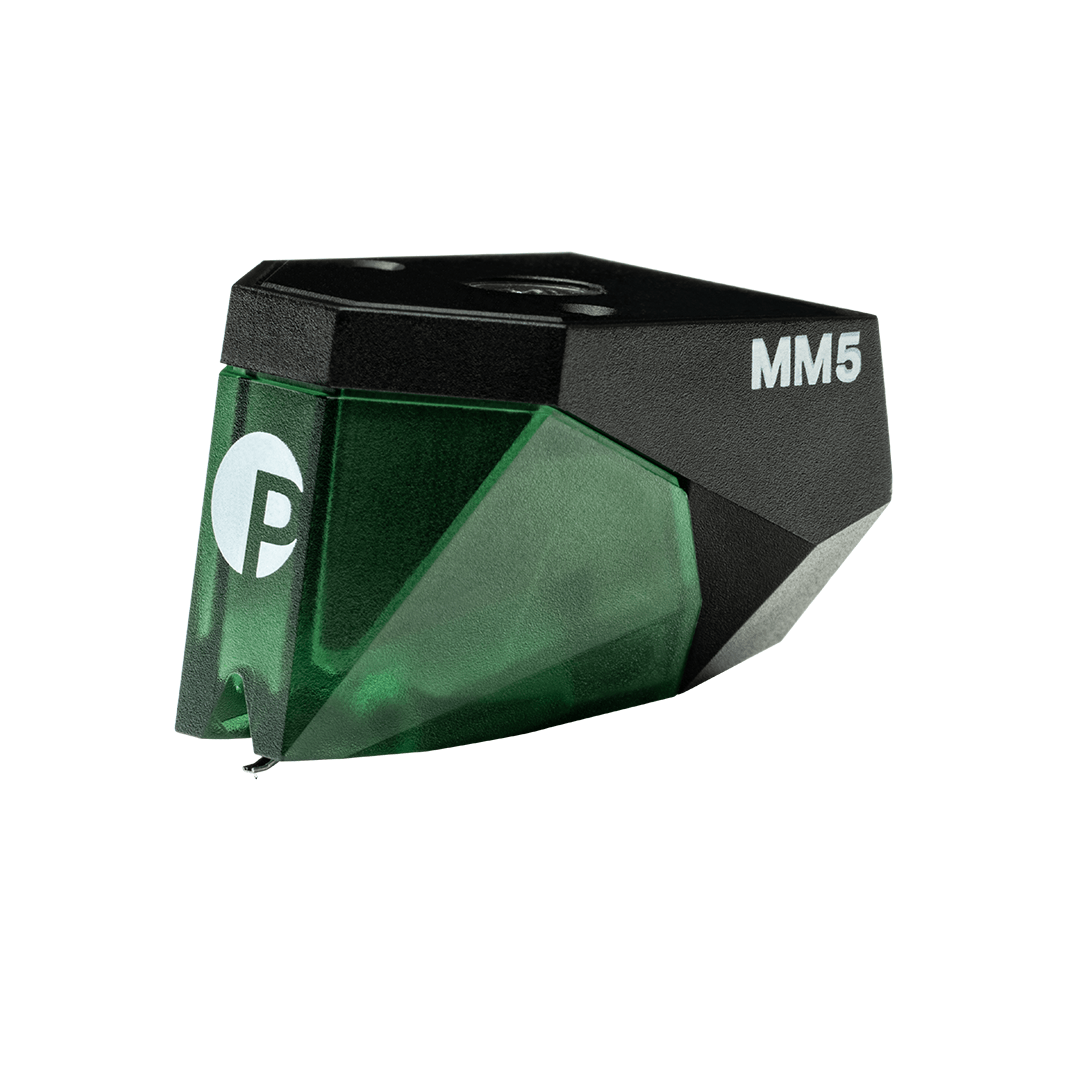

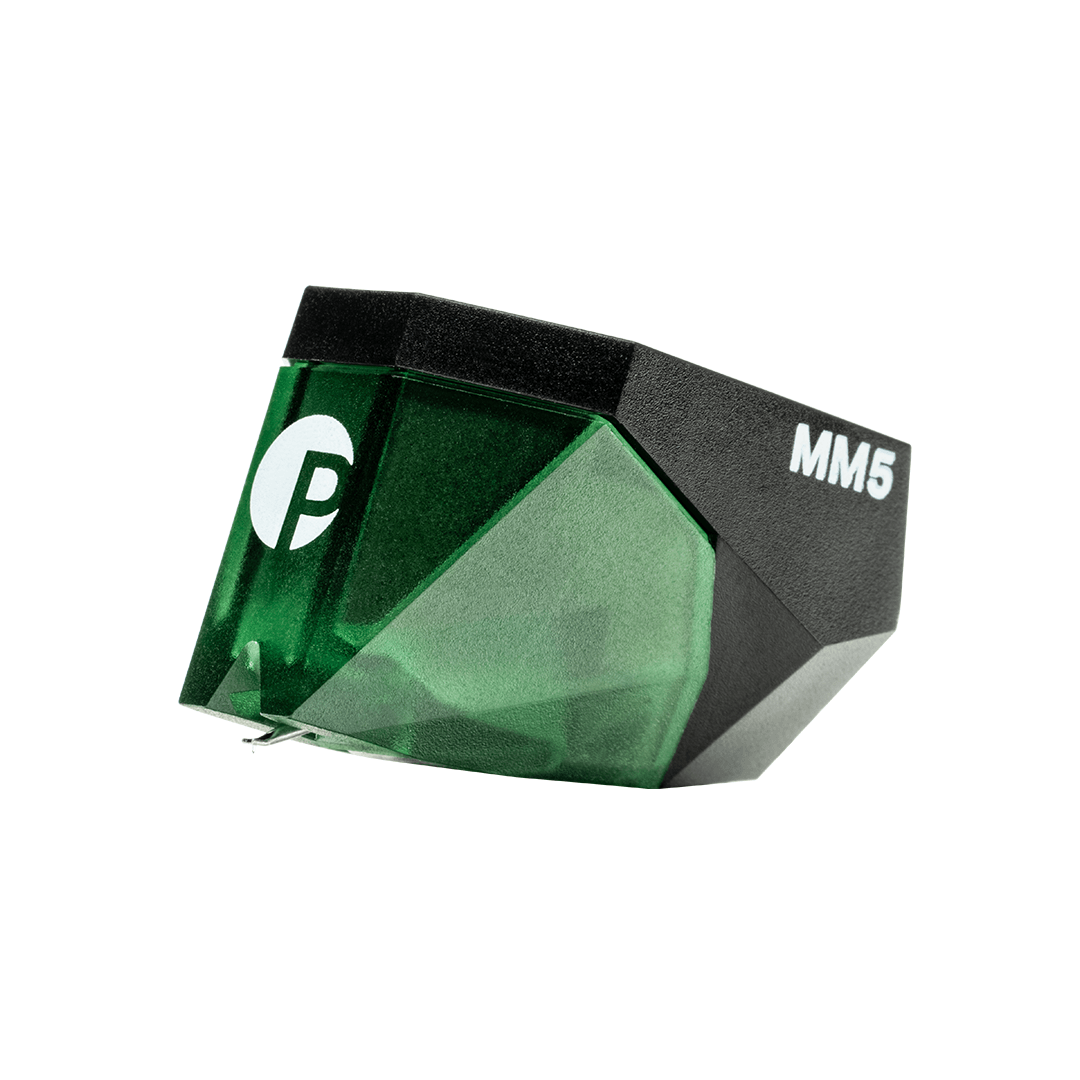

Pro-Ject Pick It MM 5 Cartridge

Pro-Ject Pick It MM 5 Cartridge

BUY WITH CONFIDENCE We are a 3 x Global Award Winning Retailer
Read More
FREE 6 YEAR WARRANTY INCLUDED FREE 6 year warranty included on this item
GET 5% OFF YOUR ORDER Click here to sign up to our newsletter to get a discount code!
Regular price £349.00
Regular price Sale price £349.00
Sale Sold out
VAT included.

Part Exchange / Trade In Quote?

Manufactured by the phono cartridge experts at Ortofon and carefully voiced by the design team at Pro-Ject Audio Systems.

  • Nude Elliptical diamond stylus profile
  • Overhead mounting cartridge for installing into a headshell
  • Moving magnet cartridge with removable stylus
  • Utilises Ortofon's split-pole pin technology to reduce the eddy current and to get a flat frequency response, like with an MC cartridge
  • Anti-resonant Hopelex body

The Pick it MM 5 is equipped with a nude elliptical stylus tip, resulting in a highly detailed sound reproduction. The cartridge reveals all the micro details of a record, which are hidden by a lower quality cartridge. The instruments can be located very clearly and vocals are separated from the stereo image creating a big sound stage.

The cartridge is made from a unique combination of technologies, one of which is Ortofon‘s split pole pins in the generator system. This enables the cartridge to have a flat frequency response, which is comparable to MC cartridges.

Specs

  • Output Voltage
    4 mV
  • Channel Separation (@ 1000Hz)
    25 dB
  • Frequency Response ±2dB
    20 - 25000 Hz
  • Tracking Ability (@ 315Hz at Recommended Tracking Force)
    80 μm
  • Stylus Type
    Nude Elliptical
  • Stylus Tip Radius (r/R)
    8 / 18 μm
  • Tracking Force Range
    1.6 - 2.0 g
  • Recommended Tracking Force
    1.8 g
  • Tracking Angle
    20 °
  • Recommended Load Impedance
    47000 Ω
  • Recommended Load Capacitance
    150 - 300 pF
  • Cartridge Weight
    7.2 g
View full details
