Pathos

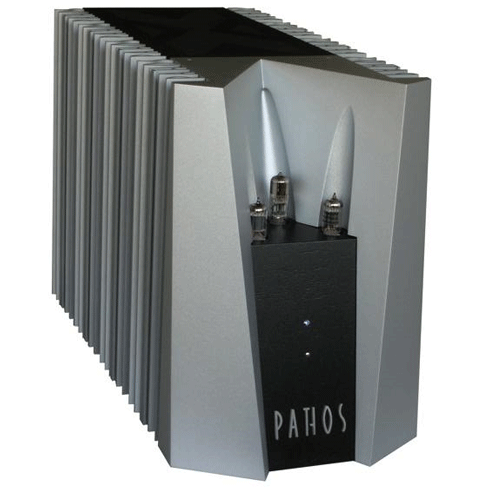

Pathos Adrenalin Power Amp Mono Block (Each)

Pathos Adrenalin Power Amp Mono Block (Each)

BUY WITH CONFIDENCE We are a 2 x Global Award Winning Retailer
Read More
FREE 5 YEAR WARRANTY INCLUDED FREE 5 year warranty included on this item
Regular price £19,499.00
Regular price Sale price £19,499.00
Sale Sold out
VAT included.
Title
Scrappage Scheme

Part Exchange / Trade In Quote?

The Adrenalin amplifier represents the point of arrival of the INPOL (“Inseguitore a Pompa Lineare” - Linear Pump Tracker) concept.

The essence of such apparatus is that of a tube amplifier featuring a very sensitive and refined timbre, combined with a surprisingly and amazing output capacity.

It really seems that Pathos designers and technicians achieved their goal: an iron fist concealed in a velvet glove.

InPol (Inseguitore Pompa Lineare - Linear Pump Follower) is a system patented by Pathos Acoustics which has enjoyed great success and won many awards.

Inpol devices have a special sonic personality obtainable only by means of this particular circuit design - fully balanced in Class A using a single solid state component in follower configuration, with high current gain and with voltage gain together. The valve amplifier amplifies the input signal voltage and InPol supplies the current to drive the loudspeakers without any further amplification. In this way the signal is entrusted to the valves and becomes a true copy of the original, with all the quality, purity and harmonic content of the original.

This technology allows an increase in the theoretical output in pure Class A of between 25% and 50% together with a low output impedance which is fundamental for the damping factor, and further improved by the double InPol.

Specs

PATHOS ADRENALIN Mono Block Power Amp
180w Pure Class A, Double INPOL® Power monoblock amplifier
1xBalanced XLR & 1xRCA Line Level inputs
High Quality Speaker Terminals

Specifications for the Pathos Adrenalin Power Amp
Type:     Monoblock balanced amplifier, double INPOL®
circuit, pure class A, zero feedback
Tubes     2x ECC83 12AX
1x 6H30
Output Power:     1x 180W @ 8Ω
Frequency response     1Hz ÷ 80KHz (-1dB @ 40KHz)
THD     0,01% @ 1W
0,2% @ 50W
Damping factor:     25
Input impedance      100 KOhm
Rise time      6µs
Fall time     6µs
Slew rate     11V/µs
Power source     230V 50Hz
Power consumption     w
Dimensions     300mm Width
440mm Height
680mm Depth
Weight     70kg
