Ortofon Stylus 40
Ortofon Stylus 40
Regular price
£379.00
Regular price
Sale price
£379.00
Unit price
per
VAT included.
Couldn't load pickup availability
Part Exchange / Trade In Quote?
Part Exchange / Trade In Quote?
OM Series

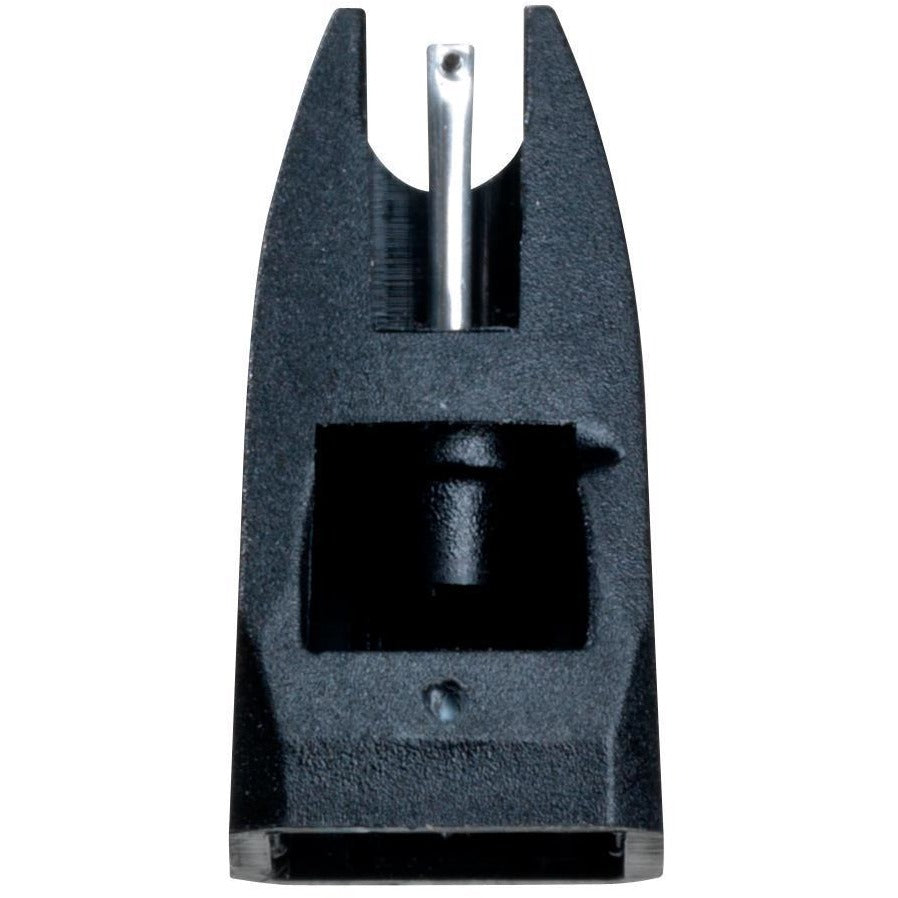

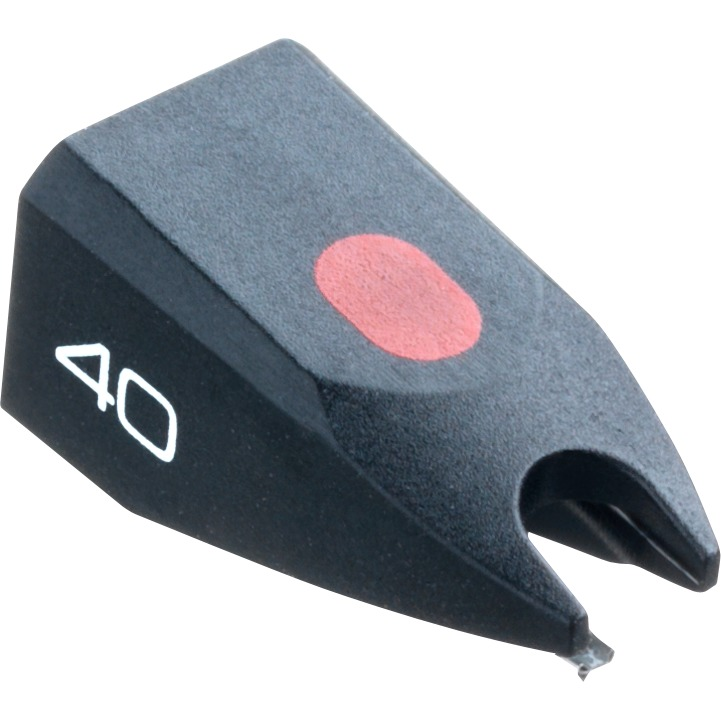

Replacement stylus, recommended for the following cartridge models:
OM 40, OM 40 GOLD
Please note, all cartridges within the OM range have the same fitting, so they can all fit the Stylus 5, Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and Stylus 78.
Key Features:
- Ultimate stylus upgrade option for the Ortofon OM cartridge
- Optimised sound reproduction
- distortion-free playback
- Nude FG70 stylus profile
Specs
| Frequency Range: | 20Hz - 30kHz |
| Frequency Response 20 - 20,000Hz: | +2 / -3dB |
| Tracking Ability at 315Hz: | Typically 90µm |
| Compliance, Dynamic, Lateral: | 25µm |
| Stylus Type: | Nude FG70 |
| Stylus Tip Radius r / R: | 5 / 70µm |
| Equivalent Stylus Tip Mass: | 0.3mg |
| Tracking Force Range: | 1.25 - 1.75g (12.5 - 17.5mN) |
| Recommended Tracking Force: | 1.5g (15mN) |
| Tracking Angle: | 20º |
| Stylus Colour: | Black |
