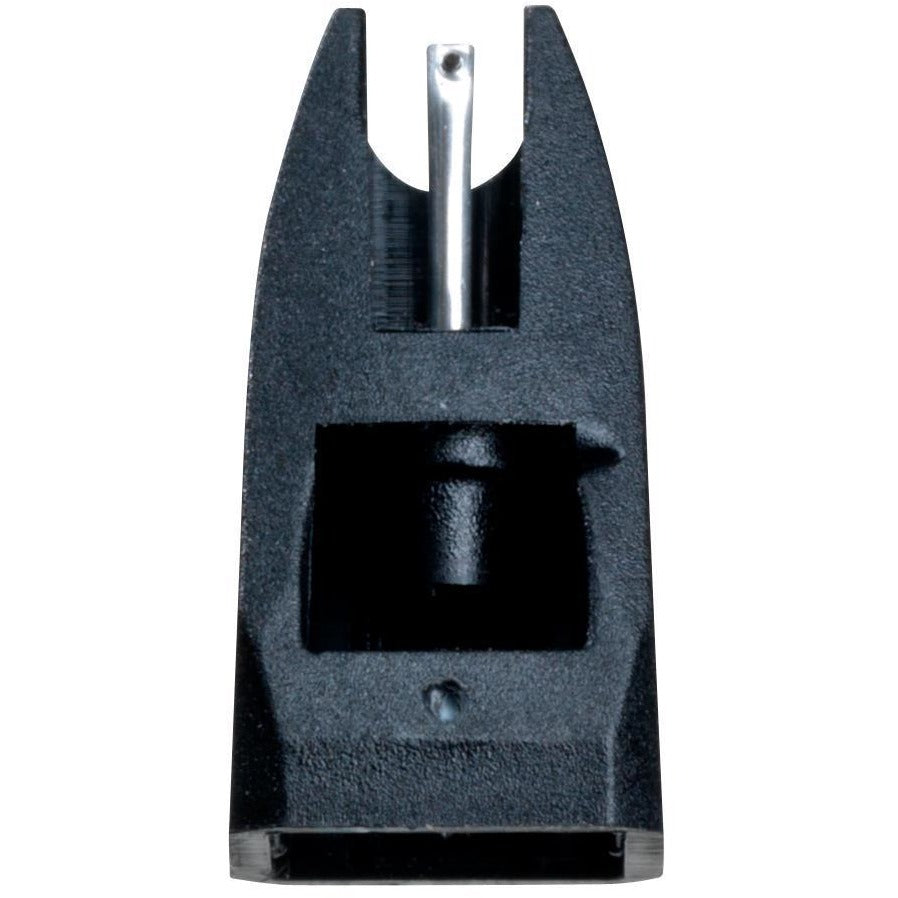

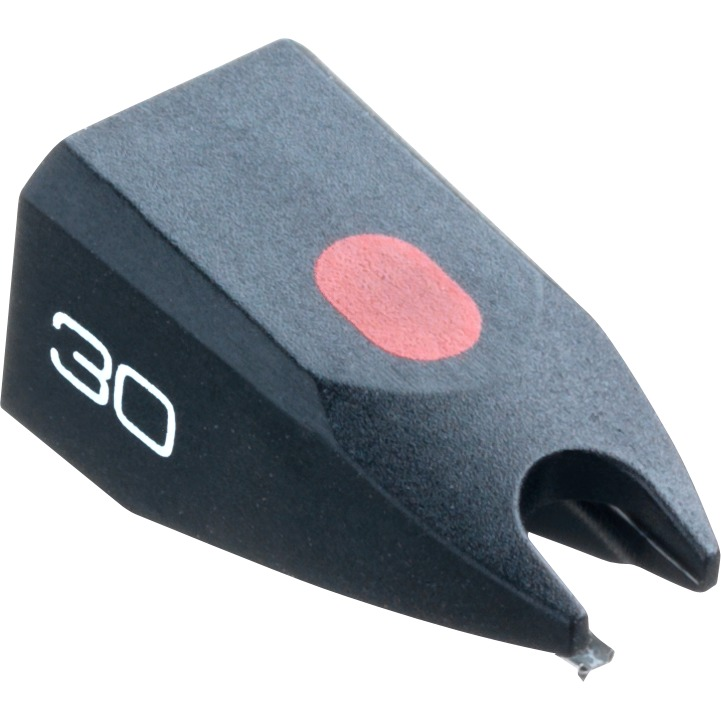

Replacement stylus, recommended for the following cartridge models:
Super OM 30, OM 30, OMP 30, OMB 30, LM 30, Concorde 30, SME 30H, LM 30H,TM 30H
Please note, all cartridges within the OM range have the same fitting, so they can all fit the Stylus 5, Stylus 5E, Stylus 10, Stylus 20, Stylus 30, Stylus 40 and Stylus 78.
Key Features:
- Perfect stylus upgrade option for the Ortofon OM cartridge
- Optimised sound reproduction
- distortion-free playback
- Superior nude fine line stylus profile
Specs
| Frequency Range: | 20Hz - 29kHz |
| Frequency Response 20 - 20,000Hz: | +2 / -3dB |
| Tracking Ability at 315Hz: | Typically 90µm |
| Compliance, Dynamic, Lateral: | 25µm |
| Stylus Type: | Nude Fine Line |
| Stylus Tip Radius r / R: | 8 / 40µm |
| Equivalent Stylus Tip Mass: | 0.3mg |
| Tracking Force Range: | 1.25 - 1.75g (12.5 - 17.5mN) |
| Recommended Tracking Force: | 1.5g (15mN) |
| Tracking Angle: | 20º |
| Stylus Colour: | Black |
