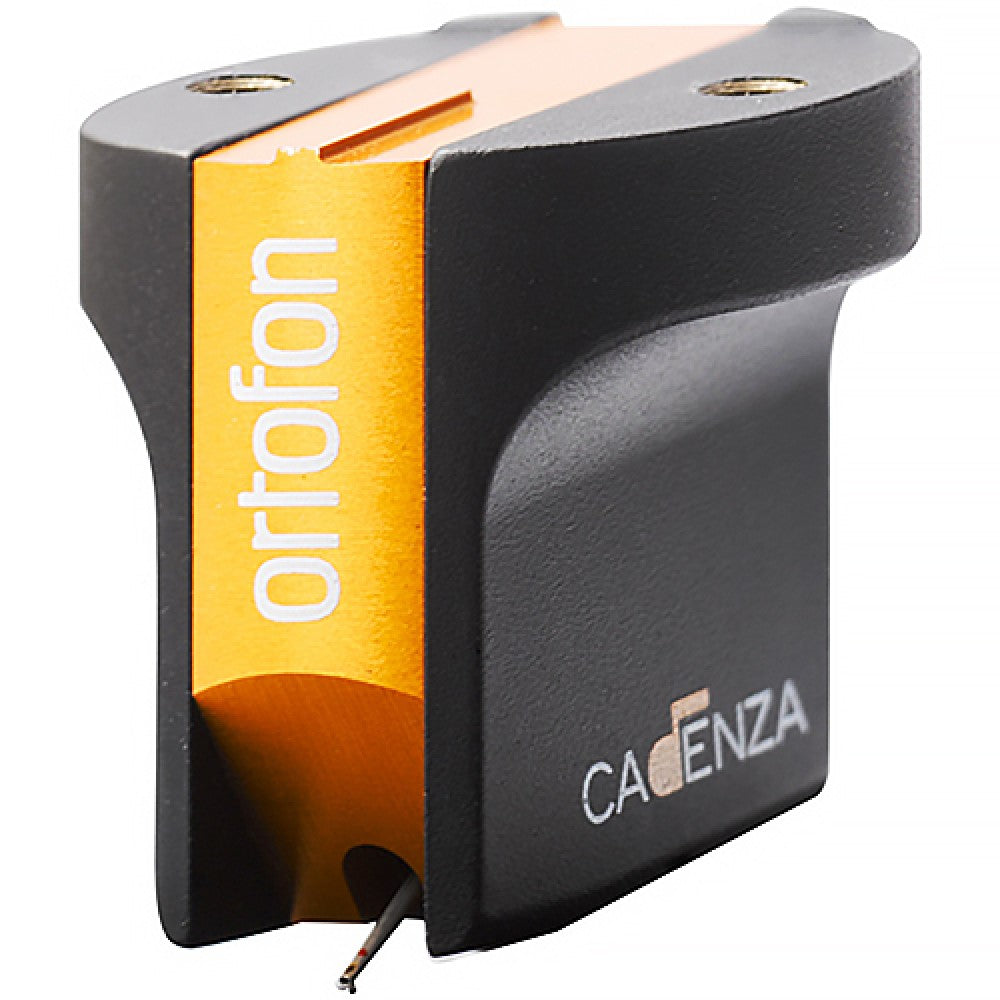

Ortofon Cadenza Bronze MC Cartridge

The Bronze model is using a Replicant 100 stylus and a conical aluminium cantilever. The coil wire is the famous Ortofon Aucurum wire, which is gold plated 6NX copper wire. A Field Stabilizing Element, FSE, is used for optimal linearity especially during complex crescendo passages. Cadenza Bronze is a true high-end reference cartridge, conveying music with supreme precision, impact and dynamics. Its stereo imaging capabilities illuminate the farthest corners of the soundstage in all three dimensions.

Technical Data:

Output voltage at 1 kHz 5cm/sec - 500µV
Channel balance - < 1.2 dB
Channel separation at 1 kHz - >23 dB
Channel separation at 15 kHz - >15 dB
Frequency range at -3 dB - 20 Hz - 55 kHz
Frequency response 20 Hz - 20 kHz - ±1.5
Tracking ability at 315 Hz at recommended tracking force * - 80µm
Compliance, dynamic, lateral - 12 µm/mN
Stylus type - Nude Ortofon Replicant
Cantilever - Conical aluminium
Stylus tip radius - r/R 5/100
Tracking force range - 2.2 - 2.7g ( 22 - 27 mN )
Tracking force recommended - 2.5g ( 25 mN )
Tracking angle - 23°
Internal impedance, DC resistance - 5 Ohm
Recommended load impedance - 50 - 200 Ohm
Cartridge body material - Stainless steel / Aluminium
Cartridge colour - Bronze / Black
Cartridge weight - 10.7g
* Typical value
