The “My” in the company name My Sonic Lab refers to the initials of its designer: Mr. Y. Matsudaira who founded the company after an illustrious career spanning over forty years designing cartridges, phono stages and tonearms . He started at Tokyo Sound Co. in 1959 and moved to Supex Co in 1967. In the 70’s, he was invited to be part of an independent development team for masterpieces by the top-brand phono cartridges like Koetsu, Miyabi etc. He joined Audio Craft Co in 1981 as chief engineer and presented such exquisite works as the AC-3 stereo cartridge, the AC-3300/4400 tonearms, the AR-110/110L turntables, the TS-200 MC transformer, the PE-6000 Signature phono amp. Mr. Matsudaira realised his long cherished dream, when he formed “My Sonic Lab” in 2003, and introduced the EMINENT high-output, low-impedance MC cartridge and the matching MC transformer Stage 202. With My Sonic Lab, Mr. Matsudaira has fulfilled his design goals of producing a moving coil cartridge with very low internal impedance. With this design, Mr. Matsudaira feels that the energy producing potential of an MC cartridge is fully realised. Mr. Matsudaira uses an ultra high-μ material that he has named SH-μX. This material allows My Sonic Lab to significantly reduce the amount of coil wire required to give a decent output level. With the reduction in the amount of coil wire comes greater low-level resolution. My Sonic Lab cartridges achieve their reputation as absolute reference standard components because of their ability to excel in all aspects of analogue sound reproduction and audiophiles often describe them as having that elusive “magic”. It’s all there …energy, dynamics, detail, nuance, liquidity. Once you have heard one of these in a well set-up system, you will realise that only someone of Mr. Matsudaira’s experience and heritage can produce something this special.

My Sonic Labs Signature Gold MC Cartridge
Free Gift

  • Sale
  • Regular price £6,599.00

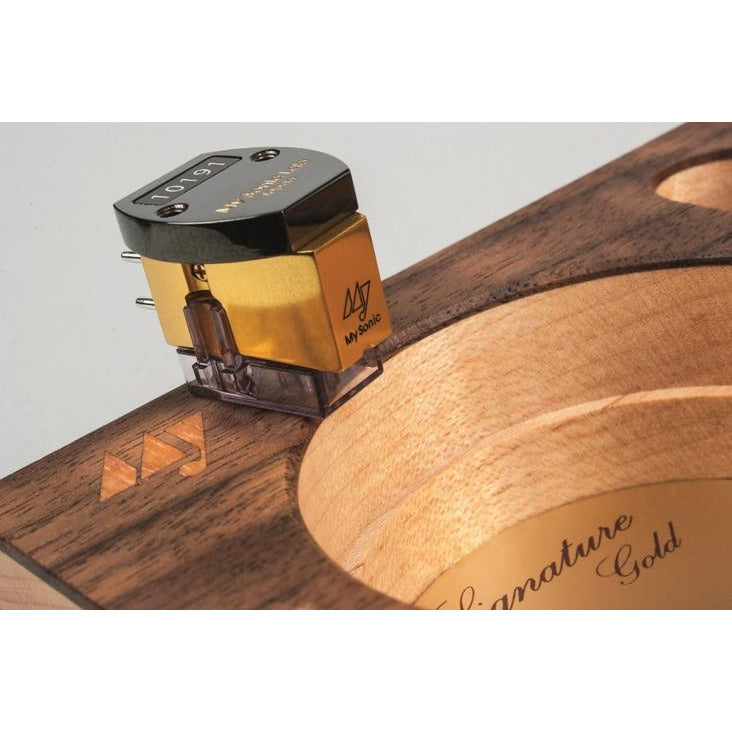

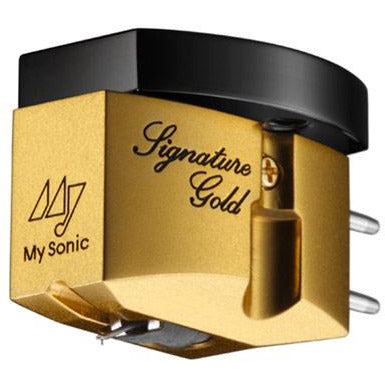

The My Sonic Lab Signature Gold MC phono cartridge

won the Gran Prix prize in 2012 (cartridge division) of the Stereo Sound magazine, the most authoritative audio magazine in Japan. When very experienced critics agree on the high quality of a product, this surely inspires confidence.

In terms of construction the MSL Signature Gold damper system has been updated, with a larger core creating a generator with a much higher efficiency.

It is a step up from the Ultra Eminent with improved sonic qualities presenting outstanding dynamics, naturalness, transparency because of it’s ability to extract the huge amount of information that lays within the vinyl surface thus imbuing the listener with an emotional connection to the music.

My Sonic Lab Signature Gold Features :

  1. SH-µX core having intrinsic ultra Hi-Bs & Hi-µ: An astounding high-efficiency output 0.5mV with 1.4O ohm internal impedance was created thanks to the elaborate high-efficiency magnetic circuitry composed of their exclusive core with minimal windings of the coil wire.
  2. Semi-line contact stylus: Outstanding trackability, without tracking distortion by means of microscopic 0.1mm-square diamond tip of 3 x 30µmm semi-line contact.
  3. Ultra-hard cantilever:  A specially hardened duralmin pipe is employed to reproduce powerful yet minute and delicate nuances of musical expression
  4. The hyper-solid duralmin base makes the cartridge totally variation-proof and free from resonances.
  5. Dramatically reinforced magnetism was obtained by means of a refined core whose cross-sectional dimensions are enlarged by as much as 10%, compared to the current versions, at the cross-sectional dimensions.

My Sonic Lab Signature Gold MC Ultra-low impedance MC cartridge

Physical

Body:

Cantilever: Double super-duraluminum.

Stylus: Semi-line contact (3μmx 30μm)

Coils/Core:

Magnet: Neodymium #50

Terminal pins: Polished Rhodium-plated

Weight: 10g

Electrical:

Output Voltage: 0.5mV at 1kHz

Internal Impedance: 1.4 ohm (DCR)

Frequency Response: 10 ~ 50kHz

Channel Balance: < 0.5dB (1kHz)

Channel Separation: > 30dB (1kHz)

Dynamic:

Tracking ability @315Hz at 2g tracking force

Dynamic Compliance:

Set Up:

Recommended loading: > 10 ohms

Recommended tracking force: 1.9 ~ 2.2g

Optimum working temperature:
