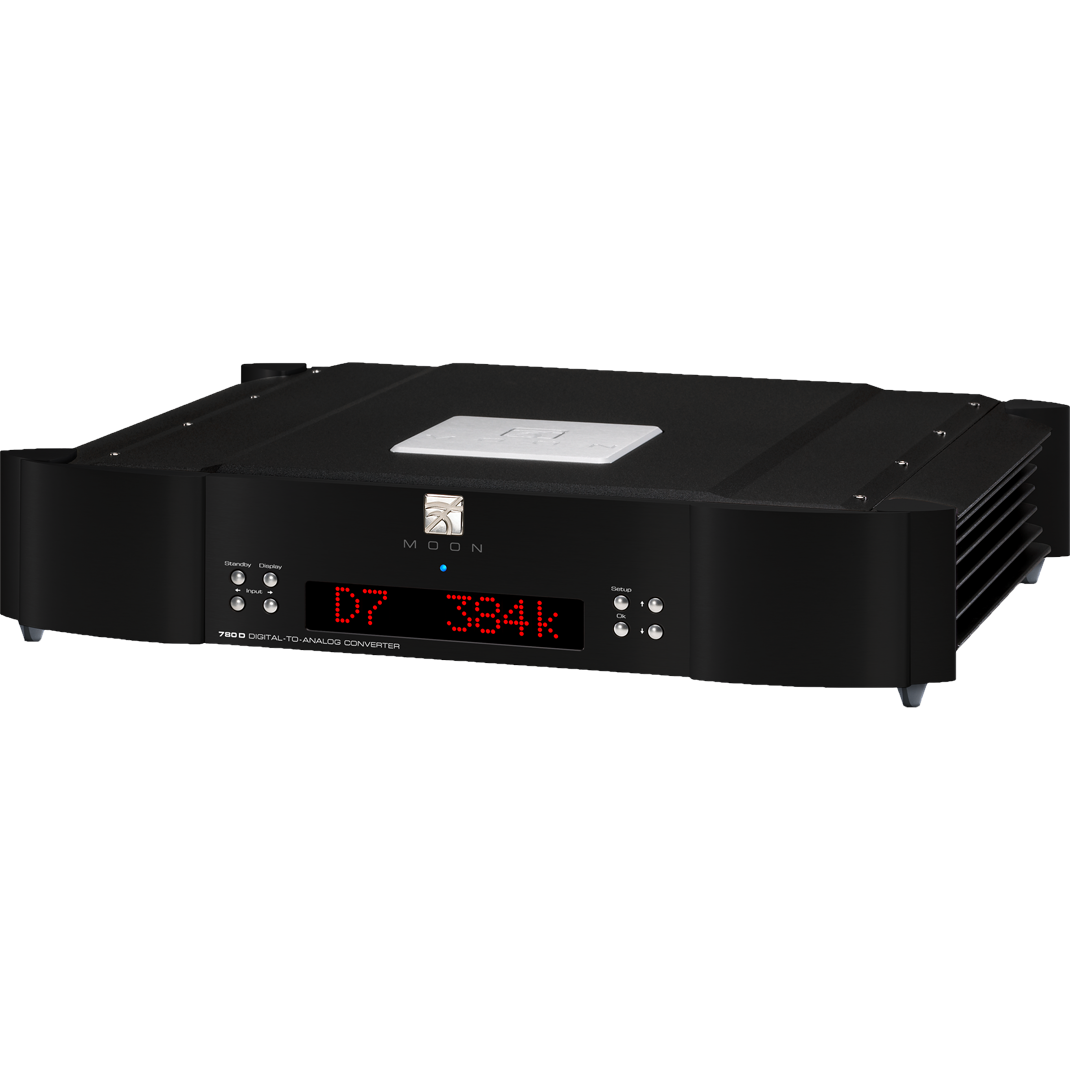

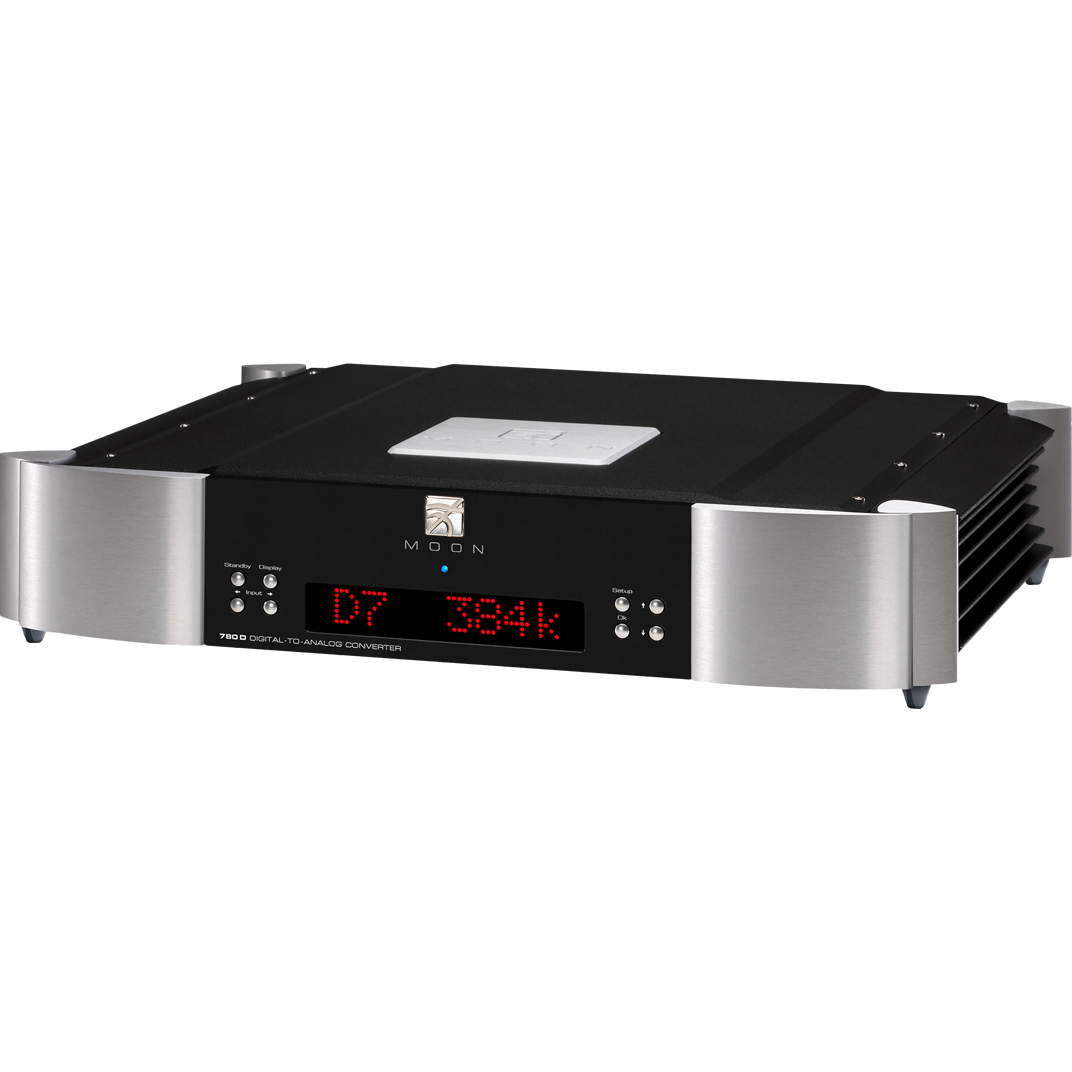

MOON 780D v2 Reference Streamer / DAC
MOON 780D v2 Reference Streamer / DAC
Couldn't load pickup availability
Part Exchange / Trade In Quote?
Part Exchange / Trade In Quote?
-
AirPlay 2 compatible
-
DSD and MQA decoding from all digital inputs
-
Spotify Connect, Tidal Masters, Deezer Hi-Fi and Qobuz Sublime+ Music Services
-
Multi-room synchronized playback
-
9 digital inputs : USB, AES/EBU, SPDIF, Optical, Ethernet, Wi-Fi and aptXTM audio for Bluetooth®
-

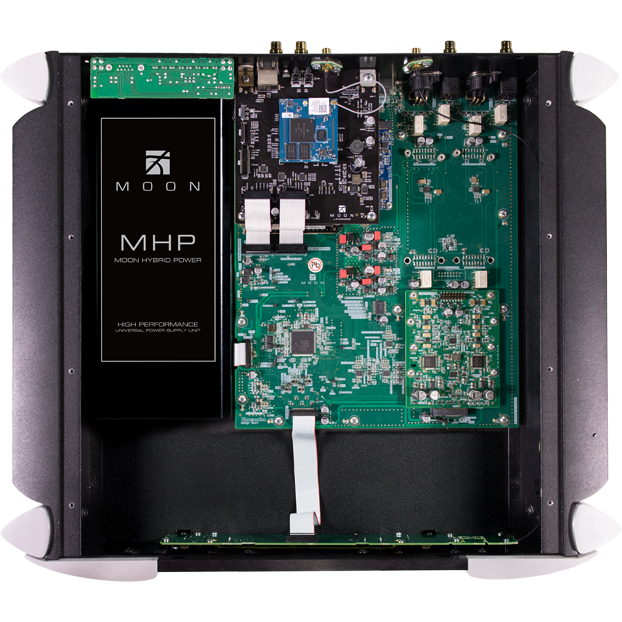

Power supply using new MOON Hybrid Power (MHP) for exceptionally stable, ultra low noise DC output
-
Femto second clock resulting in much lower jitter and consequently lower distortion
-
12 stages of DC voltage regulation which includes 2 stages of M-LoVo (MOON Low Voltage Regulation) and 4 stages of i2DCf (Independant Inductive DC Filtering)
-
Spotify Connect compatible
-
On-board programmable software for customization of the end-user interface
Specs
-
Frequency response (full range)2Hz - 100kHz +0/-3dB
-
THD @ 1kHz, 0dBFS (A-weighted)0.0001 %
-
Intermodulation distortion0.0001 %
-
Dynamic Range124 dB
-
Signal-to-noise Ratio124 dB @ full output
-
Channel Separation120 dB
-
Intrinsic Jitter150 femto seconds RMS
-
Analog Output @ 0dBFS2.0 V
-
Analog output impedance100 Ω
-
PCM Bit-depth range16 - 32 bits
-
PCM sampling frequency rates44.1 - 384 kHz
-
DSD sample ratesDSD64, DSD128 & DSD256
-
Shipping weight38 lb / 17 kg
-
Dimensions (width x height x depth)18.75 x 4.0 x 16.8 in
-
47.6 x 10.2 x 42.7 cm
