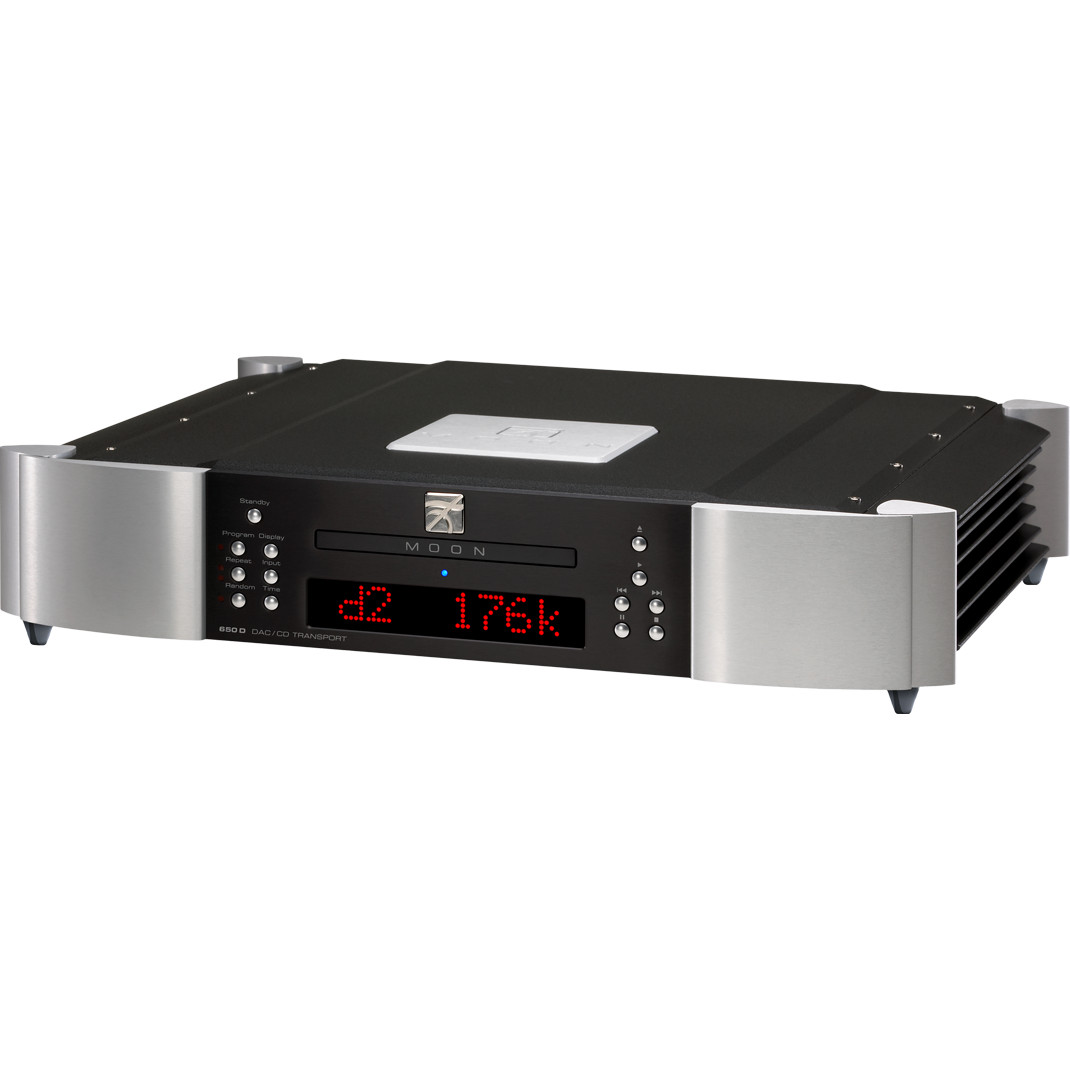

MOON 650D Reference DAC / CD Transport

MOON 650D Reference DAC / CD Transport

Why Buy From Kronos AV? Here are just a few reasons...
Read More
Regular price £9,200.00
Regular price Sale price £9,200.00
Sale Sold out
VAT included.
Finish

Part Exchange / Trade In Quote?

Design features

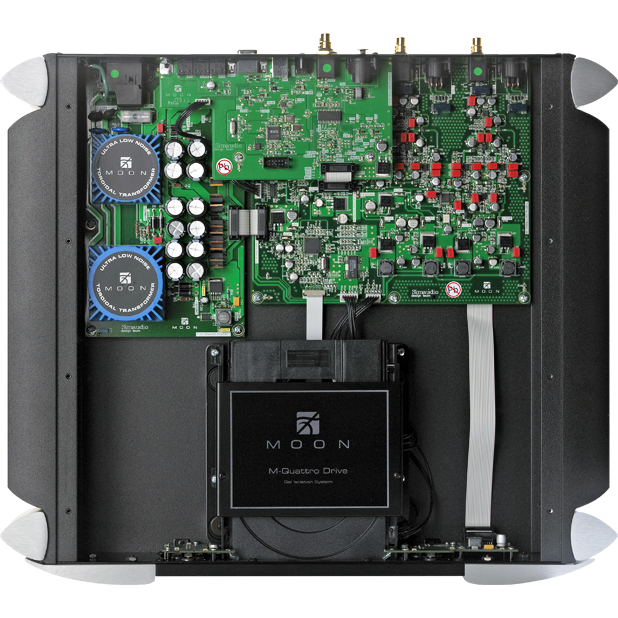

  • Proprietary CD drive system mounted on our M-Quattro gel-based 4-point floating suspension.

  • Separate digital and analog power supplies, each with their own toroidal transformer.

  • Power supply voltage regulation includes i2 DCf (Independent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 18 stages in all.

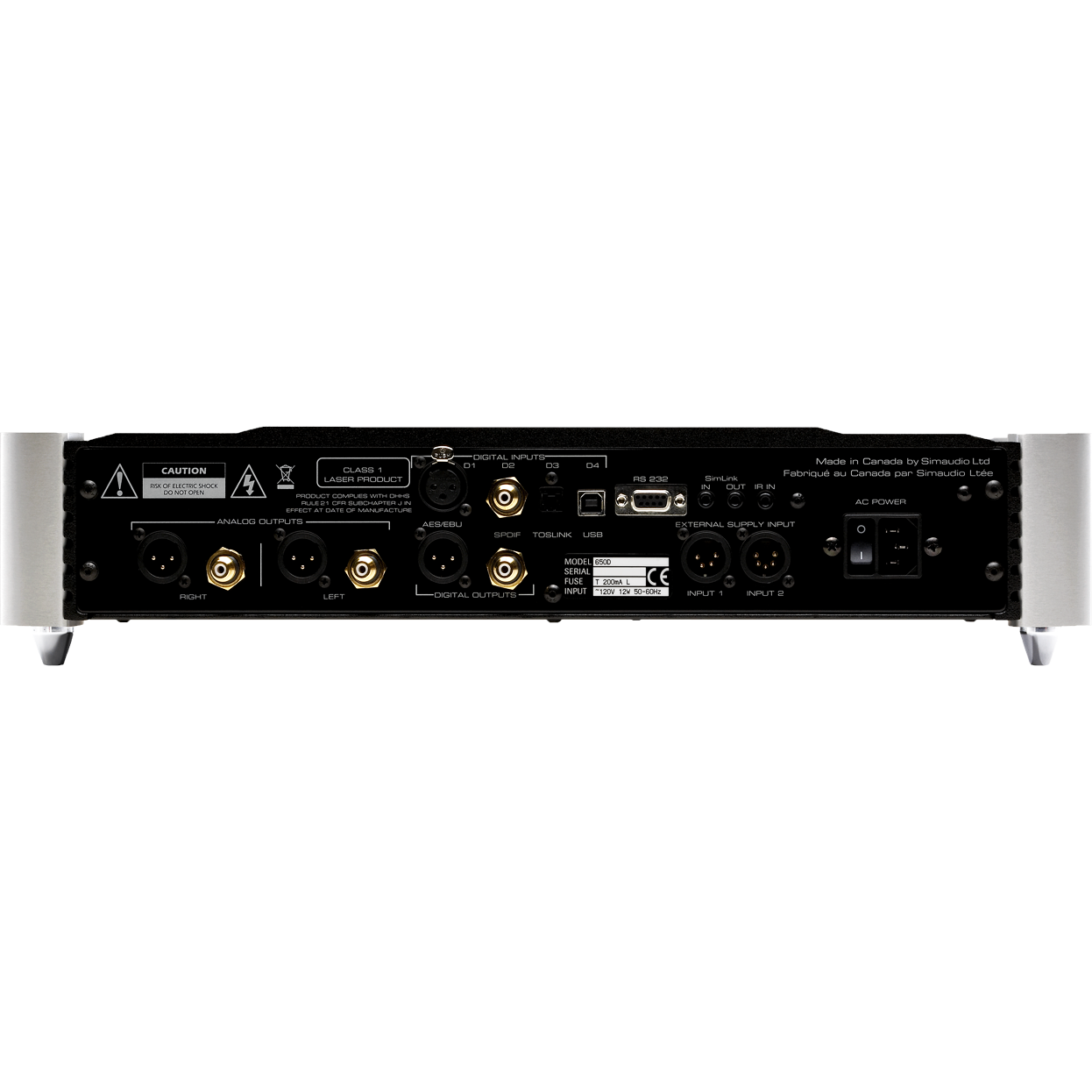

  • Four (4) digital inputs (AES/EBU, S/PDIF, TosLink and USB) allowing for a connection to virtually any digital source.

  • Two (2) digital outputs – AES/EBU and S/PDIF.

  • Fully compatible with 820S external power supply.

In the box

The following accessories should be included inside the box with your DAC/CD Transport:

  • AC power cable
  • FRM-3’ remote control with three ‘AAA’ batteries
  • SimLink™ cable with 1/8” mini plug terminations on each end
  • Owner’s manual
  • Warranty and product registration information (USA and Canada only)
Specs
  • Frequency response (full range)
    2Hz - 100kHz +0/-3dB
  • THD @ 1kHz, 0dBFS (A-weighted)
    0.0001%
  • Intermodulation distortion
    0.0001%
  • Dynamic Range
    120dB
  • Signal-to-noise Ratio
    120dB @ full output
  • Channel Separation
    116dB
  • Intrinsic Jitter
    1 picosecond RMS
  • Analog Output @ 0dBFS
    2.0 Volts
  • Analog output impedance
    100Ω
  • Bit-depth range
    16 - 24 bits
  • Sampling frequency rates
    44.1 - 192kHz
  • Shipping weight
    35 lb / 16 kg
  • Dimensions (width x height x depth)
    18.75 x 4.0 x 16.8 in

  • 47.6 x 10.2 x 42.7 cm
