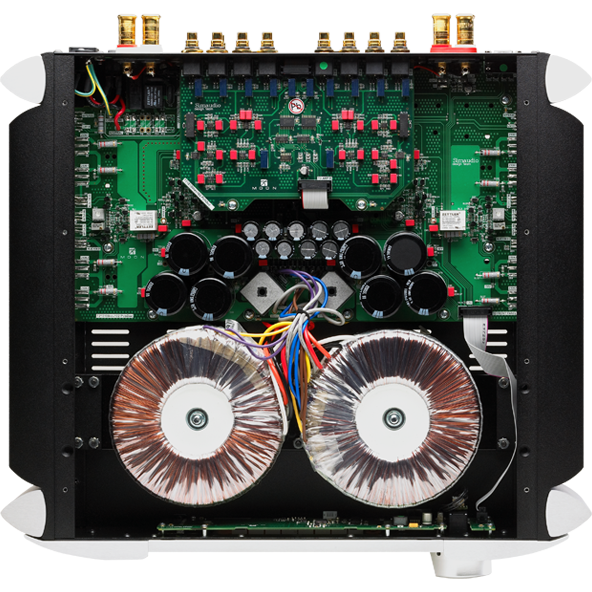

MOON 600i v2 Integrated Amplifier

• Our “no overall feedback” amplifier circuit design for more accurate musical reproduction.

• An oversized dual-mono power supply.

• “Class A” power output to 5 watts for greater efficiency.

• Gain offset adjustment of ±10dB for each line input.

• Each line input is fully configurable to be “home theater ready”, whereby the 600i’s volume control is bypassed.

In the box

The following accessories should be included inside the box with your integrated amplifier:

• AC power cable
• FRM-3 remote control with three ‘AAA’ batteries)
• SimLink™ cable with 1/8” mini plug terminations on each end
• Owner’s manual
• Warranty and product registration information (USA and Canada only)

Specs

• Output Power at 8Ω
  125 W per channel
• Output Power at 4Ω
  250 W per channel
• Input Sensitivity
  490mV - 6.0V RMS
• Input Impedance
  23,700Ω
• Inputs (RCA / XLR)
  4 pairs / 1 pair
• Gain
  37dB
• Frequency response (full range)
  10Hz - 100kHz +0/-0.1dB
• Crosstalk @ 1kHz
  -100dB
• THD (20Hz - 20kHz @ 1 W)
  0.015%
• THD (20Hz - 20kHz @ 125 W)
  0.04%
• Intermodulation distortion
  0.02%
• Shipping weight
  48 lb / 21 kg
• Dimensions (width x height x depth)
  18.75 x 4.0 x 18.1 in
•

  47,6 x 10,2 x 46,0 cm
