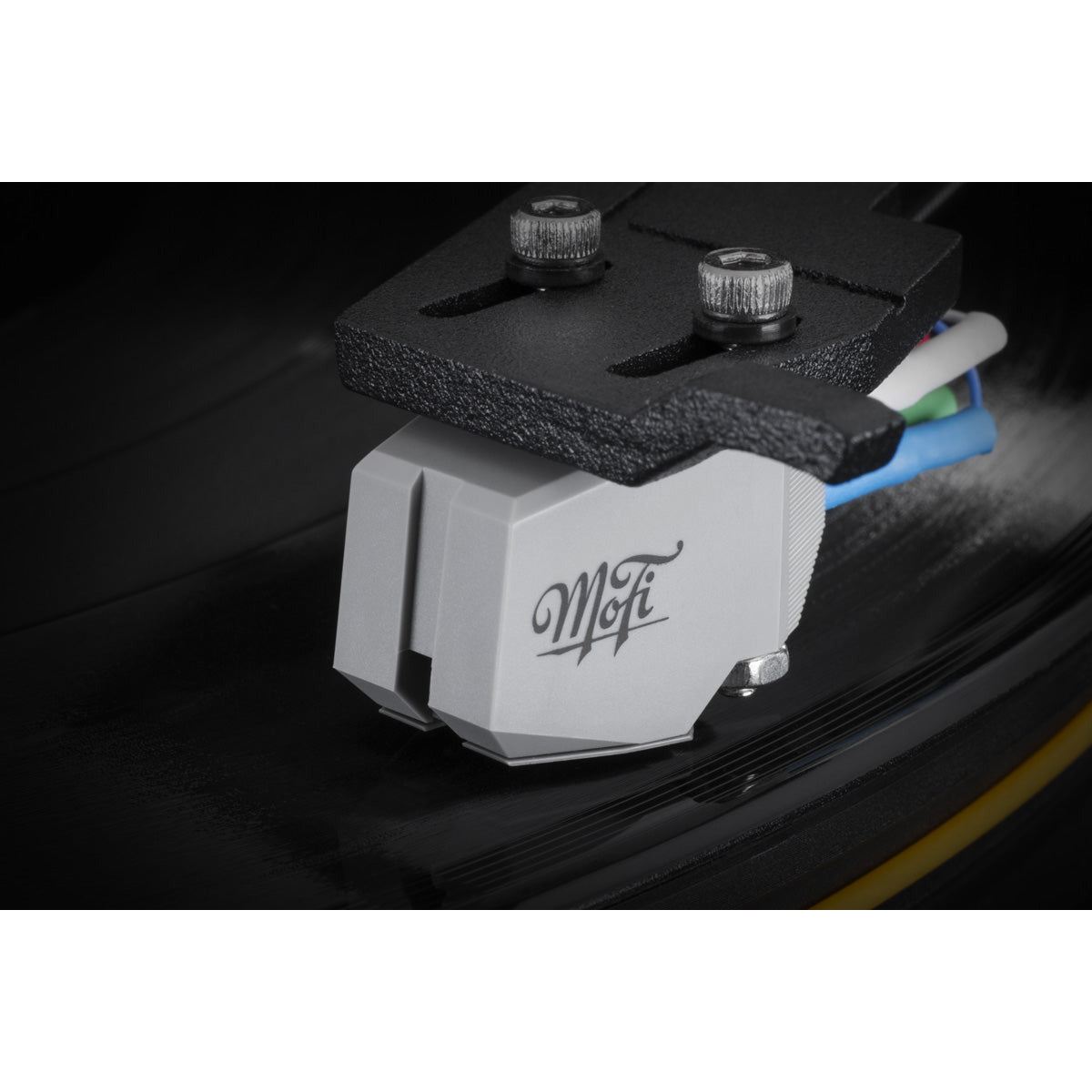

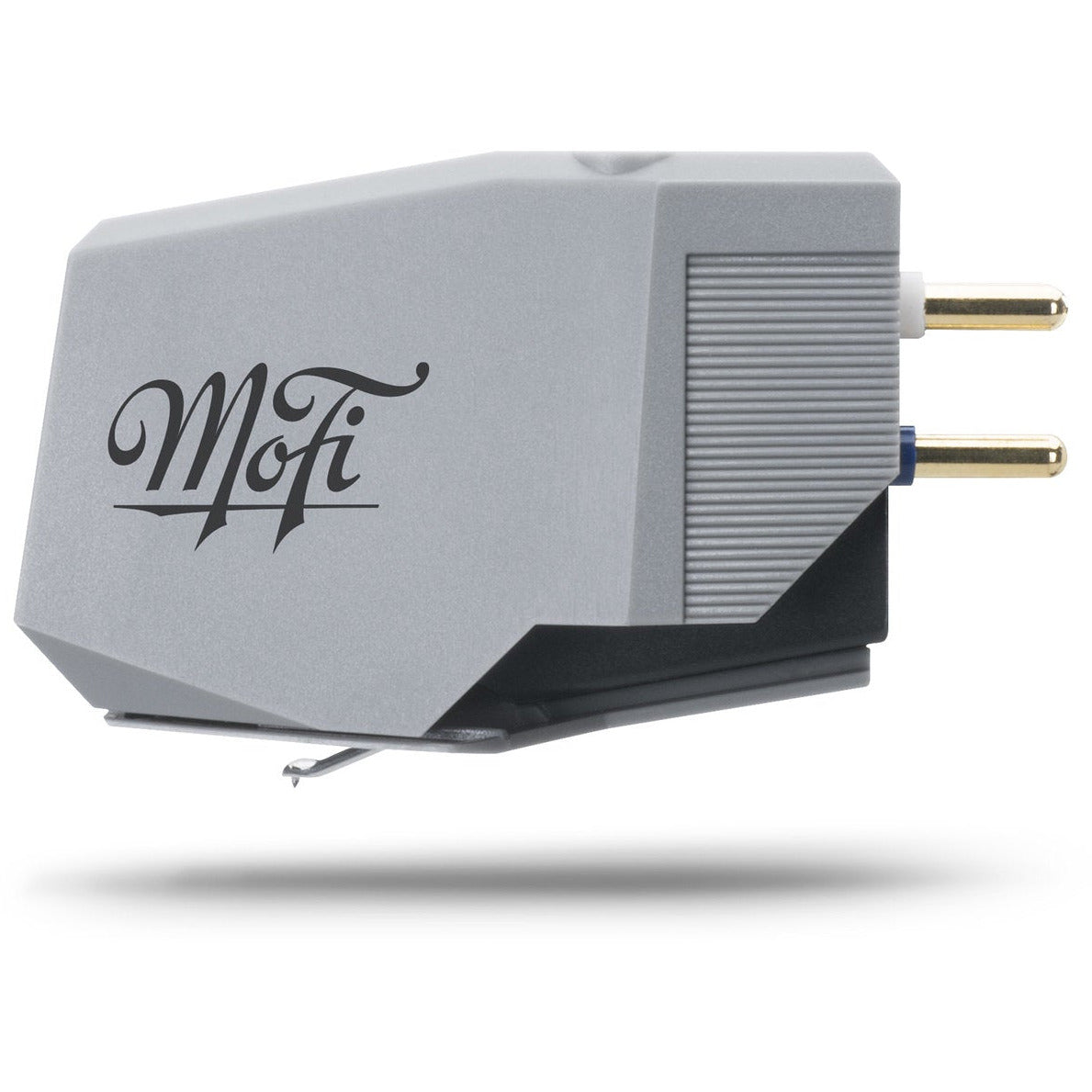

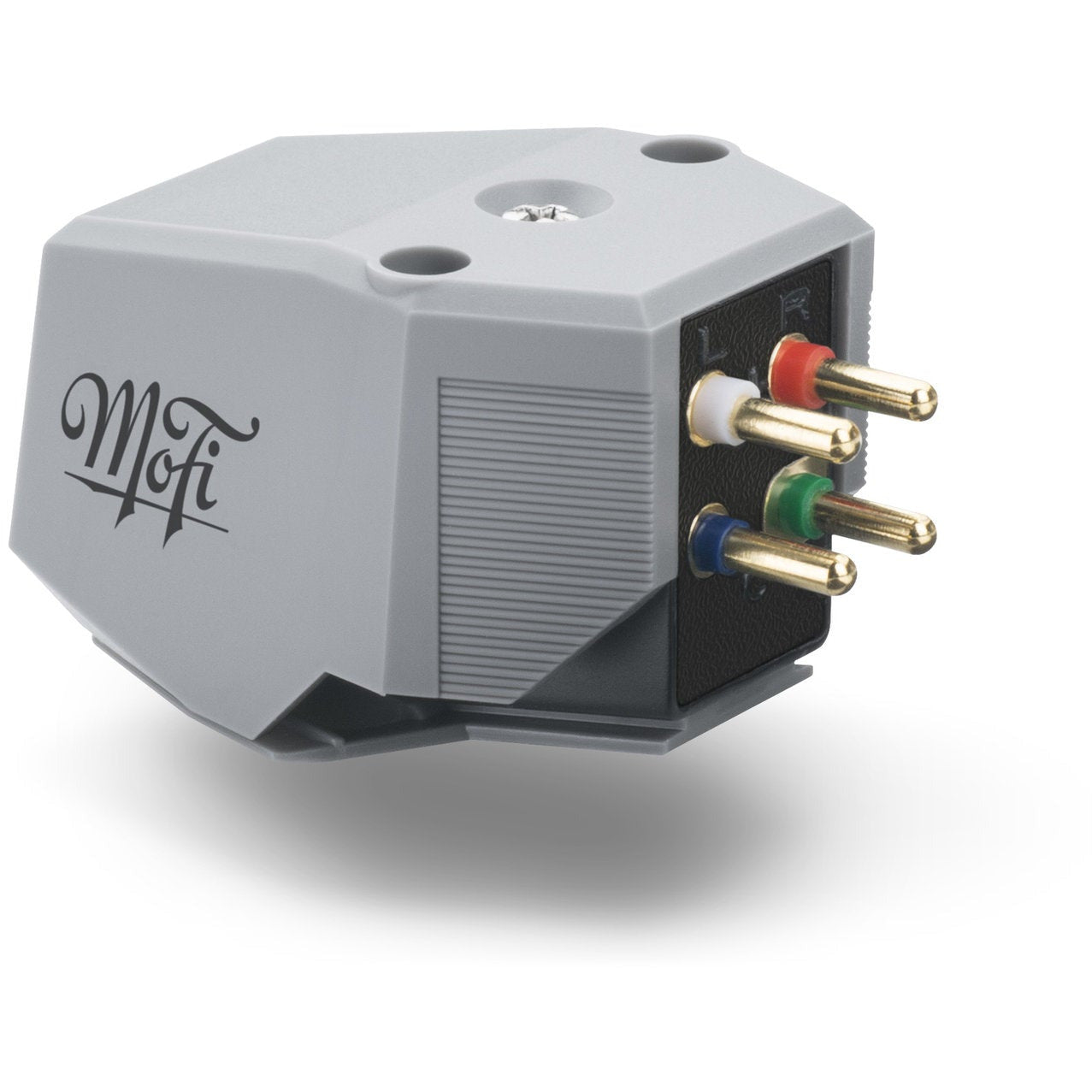

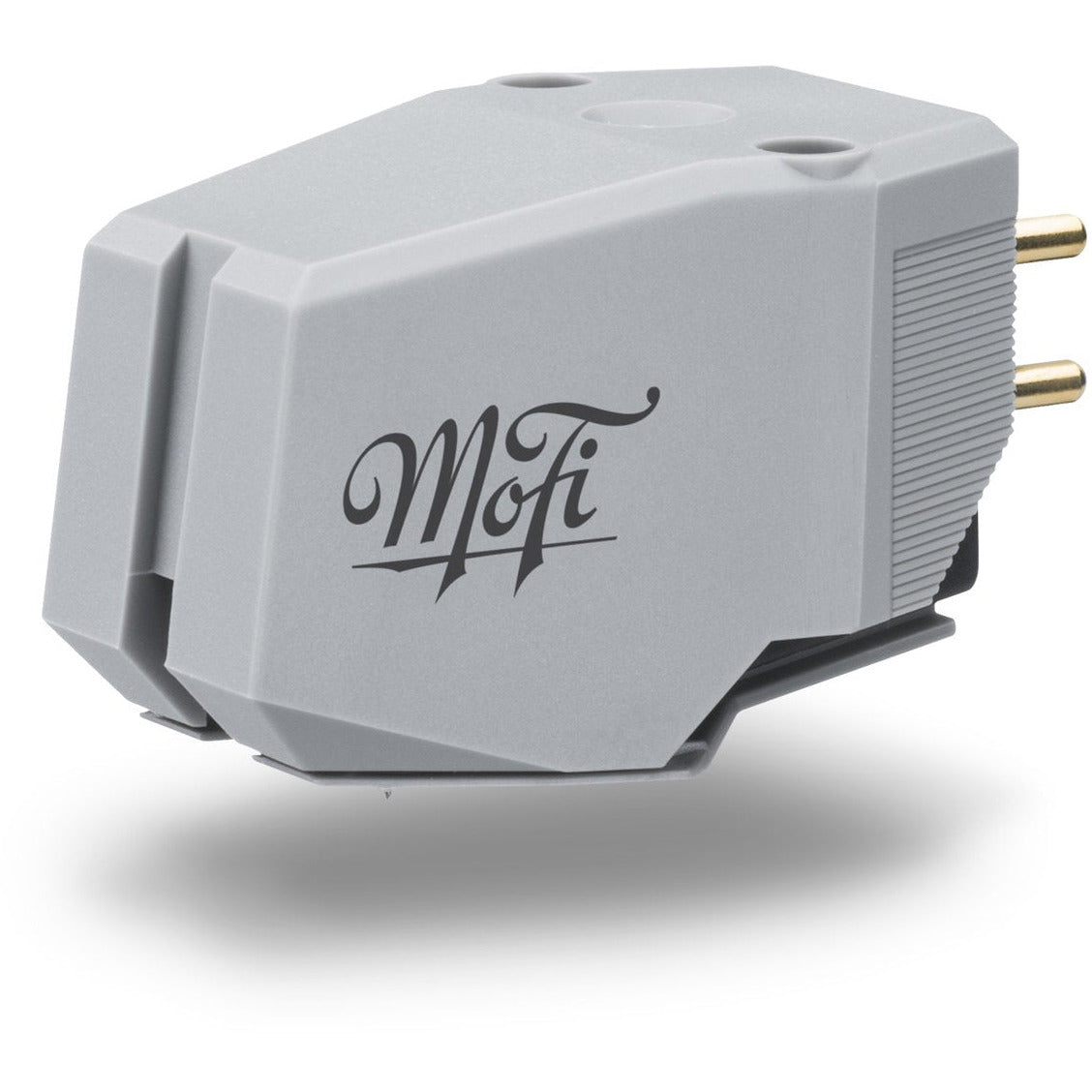

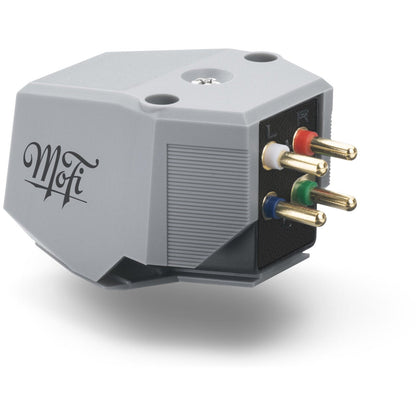

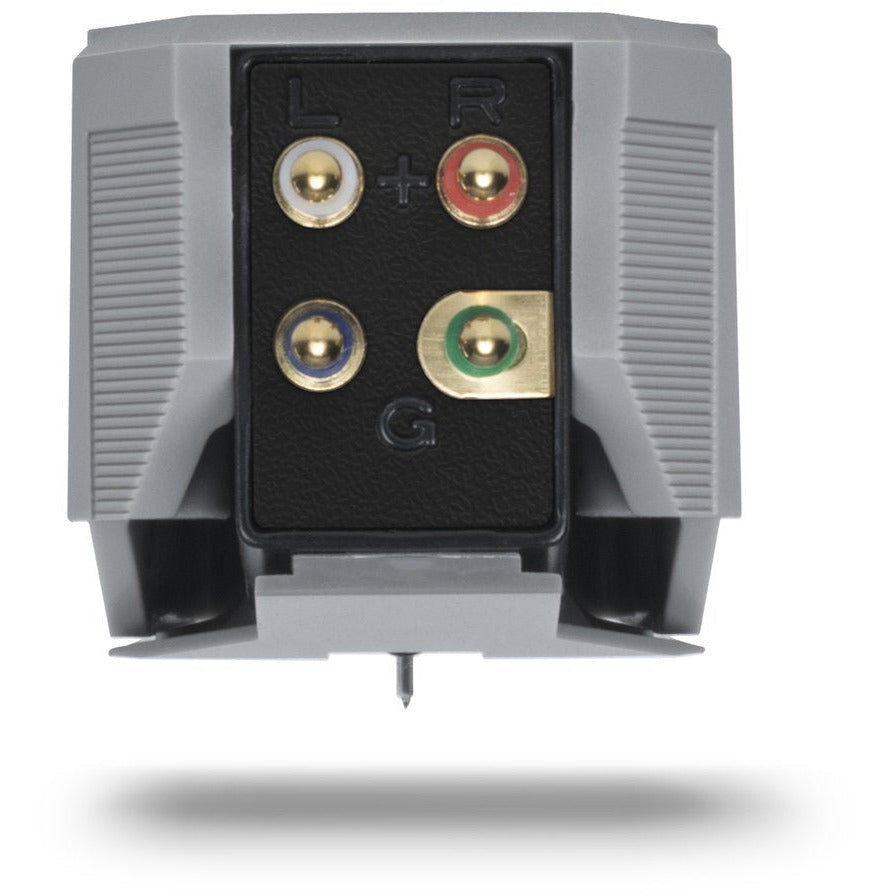

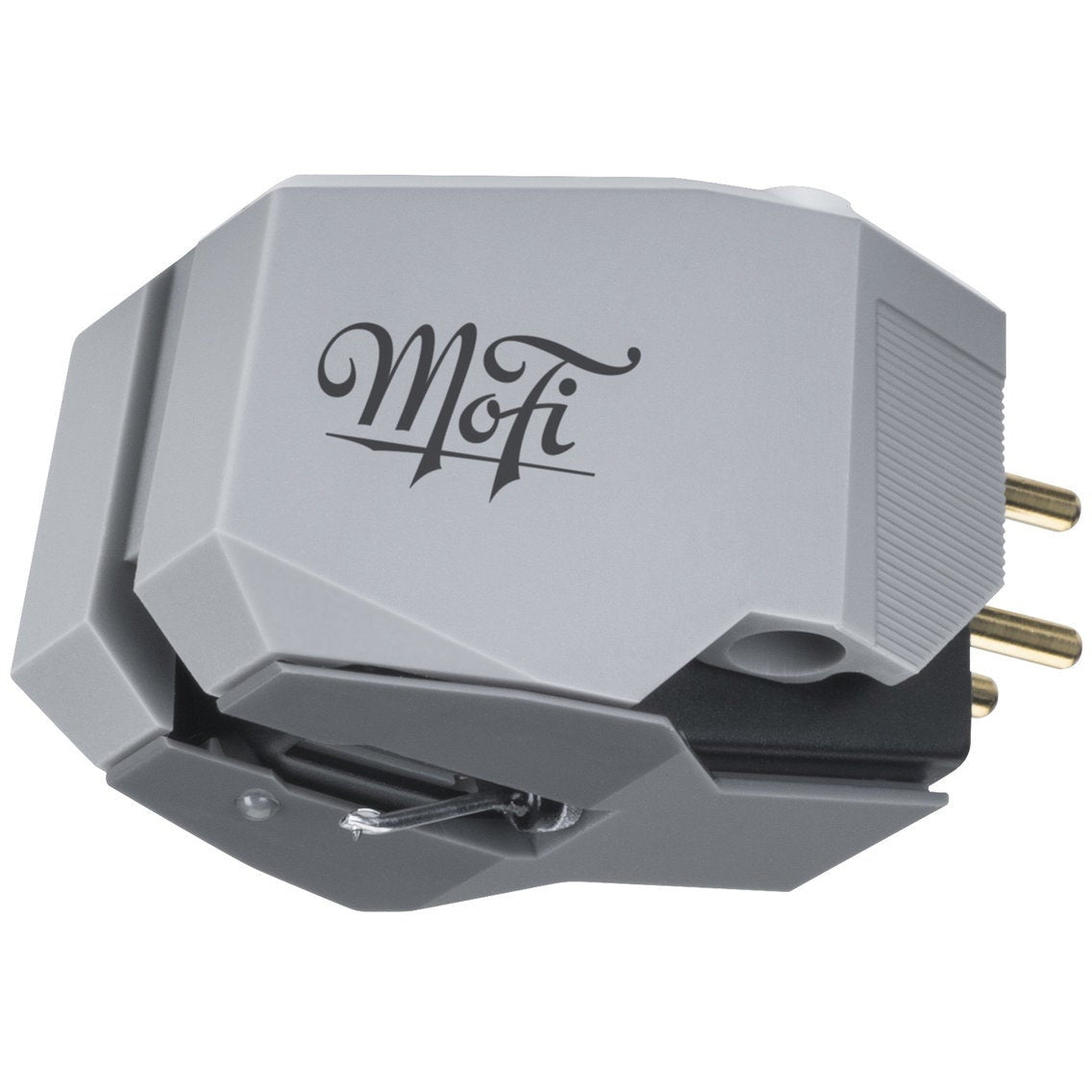

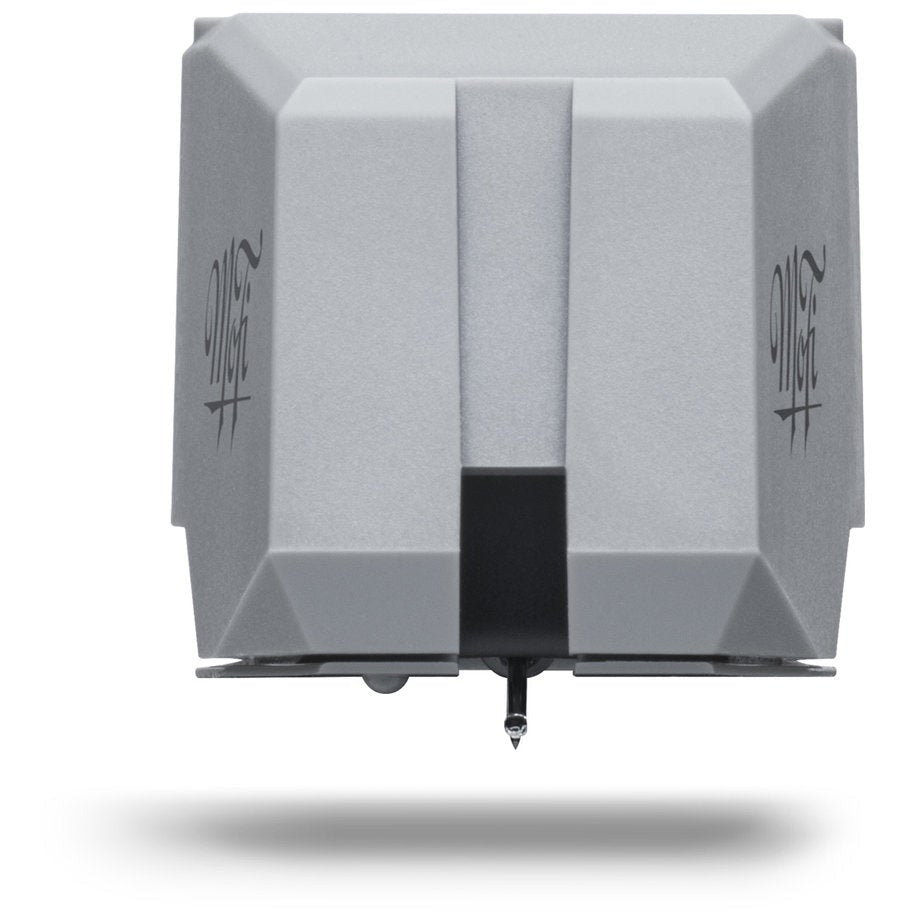

MoFi Electronics StudioTracker MM Cartridge
MoFi Electronics StudioTracker MM Cartridge
Part Exchange / Trade In Quote?
Part Exchange / Trade In Quote?
MoFi cartridges are designed by looking back at where a record starts: On a lacquer cutting lathe like the model used at Mobile Fidelity Sound Lab. StudioTracker features a V-Twin dual-magnet generator that mirrors the layout of the cutting head that originally made a record’s grooves.
V-TWIN DUAL-MAGNET GENERATOR
Employing two low-mass, powerful magnets aligned in a V formation parallel with the stereo record grooves, StudioTracker accurately extracts precious details from your LPs.

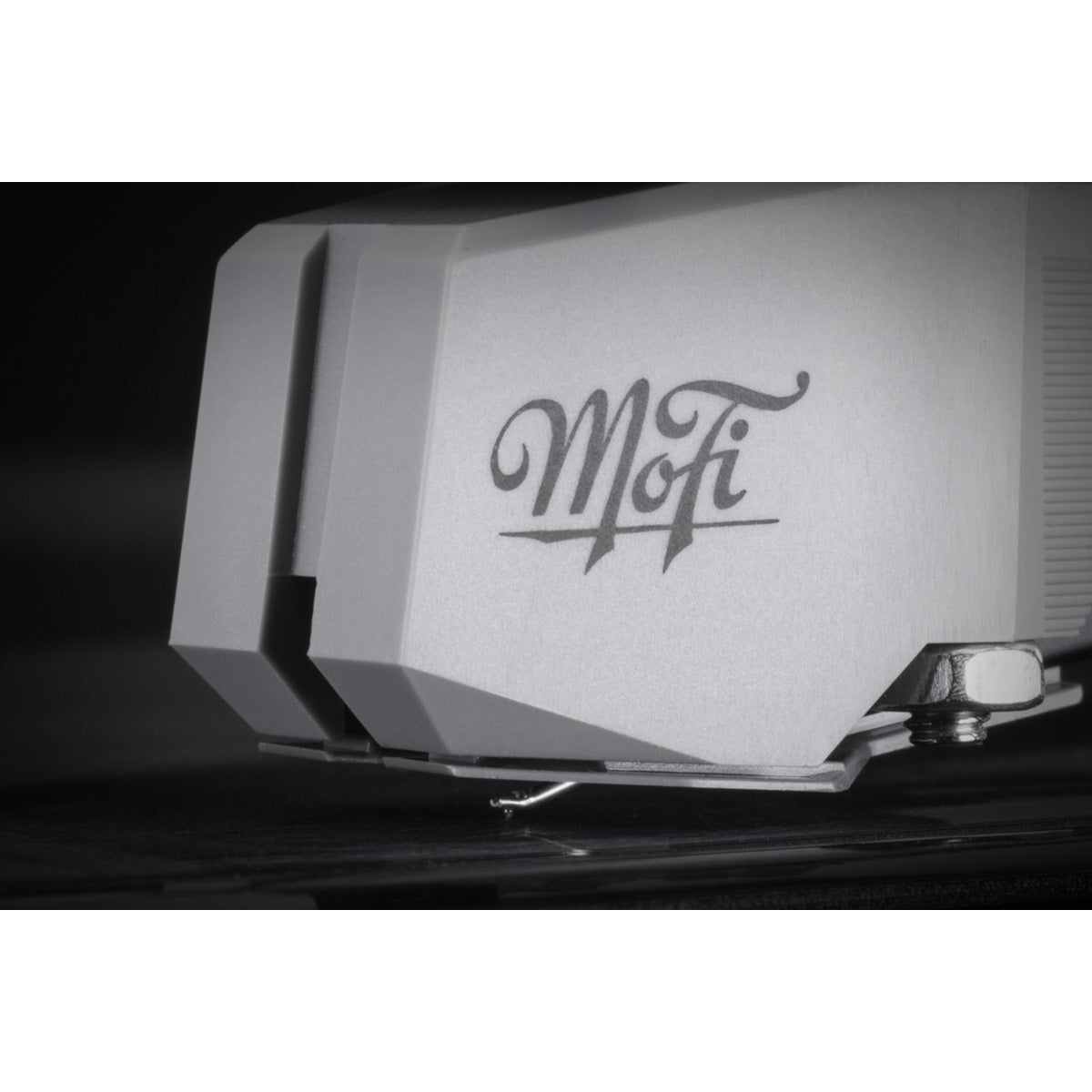

ELLIPTICAL DIAMOND STYLUS
With a polymer body and elliptical stylus, StudioTracker offers surprising bang-for-your-buck value and a rich sound distinguished with a smooth, slightly forgiving top end.
Specs
SPECIFICATIONS
Type
Dual Magnet (MM) Stereo
Stylus
Elliptical
Output Voltage
3.5mV
Frequency Response
20–20,000Hz
Weight
6.4g
Tracking Force
1.8–2.2g
Impedance
47kOhm
Capacitance
100pF
Compliance
Static compliance : 35 x 10e-6/dyne
Dynamic compliance : 8 x 10e-6/dyne
FEATURES
• V-Twin dual-magnet generator
• Elliptical stylus
• Polymer body
• 3.5mV output
