Atlas

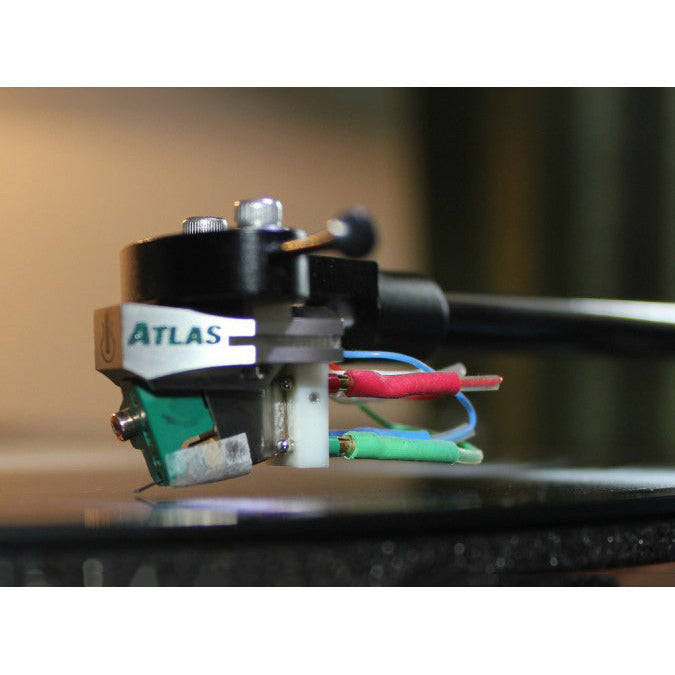

Lyra Atlas SL MC Cartridge

Lyra Atlas SL MC Cartridge

Why Buy From Kronos AV? Here are just a few reasons...
Read More
FREE 5 YEAR WARRANTY INCLUDED FREE 5 year warranty included on this item
Regular price £10,295.00
Regular price Sale price £10,295.00
Sale Sold out
VAT included.

Part Exchange / Trade In Quote?

This is a special, built-to-order, version of Atlas for expert users with very high-gain, extra low noise phono stages, or alternatively a step-up transformer designed for phono cartridges of 2 – 3 ohms or less.

Most users (and phono stages) will benefit from the regular Atlas with much higher output and considerably more energy; resulting in a much better signal-to-noise ratio. If you are in doubt about which version of Atlas that will work best in your system, please go with the regular Atlas.

The Atlas SL may provide extra pure and pristine sound from an audio system that is optimized for a low-impedance, low-output cartridge. However, this may be accompanied with a lesser level of energy and power.

Lyra nevertheless has decided to offer SL models, as built-to-order at a 10% surcharge, for those who are confident that they can extract the benefits from such a low-output MC phono cartridge

Specs
  • Designer: Jonathan Carr
  • Builder: Yoshinori Mishima (final build, testing), Akiko Ishiyama (preliminary build)
  • Type: Medium weight, medium compliance, low-impedance, low-output moving coil cartridge
  • Stylus: Lyra-designed long-footprint variable-radius line-contact nude diamond (3um x 70um profile, block dimensions 0.08 x 0.12 x 0.5mm), slot-mounted
  • Cantilever system: Diamond-coated solid boron rod with short one-point wire suspension, directly mounted into cartridge body via high-pressure knife-edge system
  • Coils: 2-layer deep, 6 N high-purity copper, chemically-purified high purity iron X-shaped former, 1.52 ohm self-impedance, 1.9μH inductance
  • Output voltage: 0.25 mV@5 cm/sec., zero to peak, 45 degrees (CBS test record, other test records may alter results)
  • Frequency range: 10 Hz-50 kHz
  • Channel separation: 35 dB or better at 1 kHz
  • Compliance: Approx. 12 X10 cm/dyne at 100 Hz
  • Vertical tracking angle: 20 degrees
  • Cartridge body: One-piece machining from solid titanium billet, with reduced-surface higher-pressure headshell contact area, predominately non-parallel and asymmetrical shaping, phase-interference resonance-controlling mechanism, and body threaded directly for mounting screws
  • Cartridge mounting screws: 2.6 mm 0.45 pitch JIS standard
  • Distance from mounting holes to stylus tip: 9.52mm
  • Cartridge weight (without stylus cover): 11.6g
  • Recommended tracking force: 1.65 ~ 1.78g (1.72g recommended)
  • Recommended load directly into MC phono input: Determine by listening,
  • Recommended load via step-up transformer: Use a step-up transformer designed for 2 – 3 ohms cartridge impedance. The transformer output must be connected to standard 47kohm MM-level RIAA input, preferably via short, low-capacitance cable
  • Recommended tonearms: High-quality pivoted or linear tangential tonearms with rigid bearing(s), adjustable anti-skating force, preferably VTA
