The Luxman PD-151 & LMC5 bundle is the perfect match! With a cartridge which is perfectly suited to the PD-151 you get a simply stunning turntable setup with that classic Luxman sound.
Not only that but you save a massive £500 off RRP when you buy these together.
PD-151. Preserving the fragile beauty of analog music reproduction.
Audiophiles love the warmth, organic texture and uncanny beauty of analog music reproduction.But that beauty is notoriously fragile. Even slight variations in platter speed can blur the musical pitch, placing the sound behind an unnatural veil. And when music lovers turn up the volume, the phono cartridge can pick up even subtle chassis vibration and resonance – distortions the cartridge cannot distinguish from the desired tracking of the record groove. At LUXMAN, we understand. And we built that understanding into the PD-151 analog player, a more accessible alternative to our highly regarded PD-171A / AL. From the 10 mm thick aluminum top plate to the high-torque motor, the ultra-wide drive belt and the 4.0 kg platter, every aspect of the PD-151 pursues just one purpose. To do full justice to the ineffable beauty of analog sound.
First time in 40 years since the launch of LMC-1 in 1981 and LMC-2 in 1982
2. Natural and extensive unified Luxman sound from the input to the output
3. The semi-open body structure helps reduce resonance and the effects of reflected sound
4. Thorough pursuit of ideal sound quality by repeating trial production considering materials and structure of cantilever, stylus, chassis

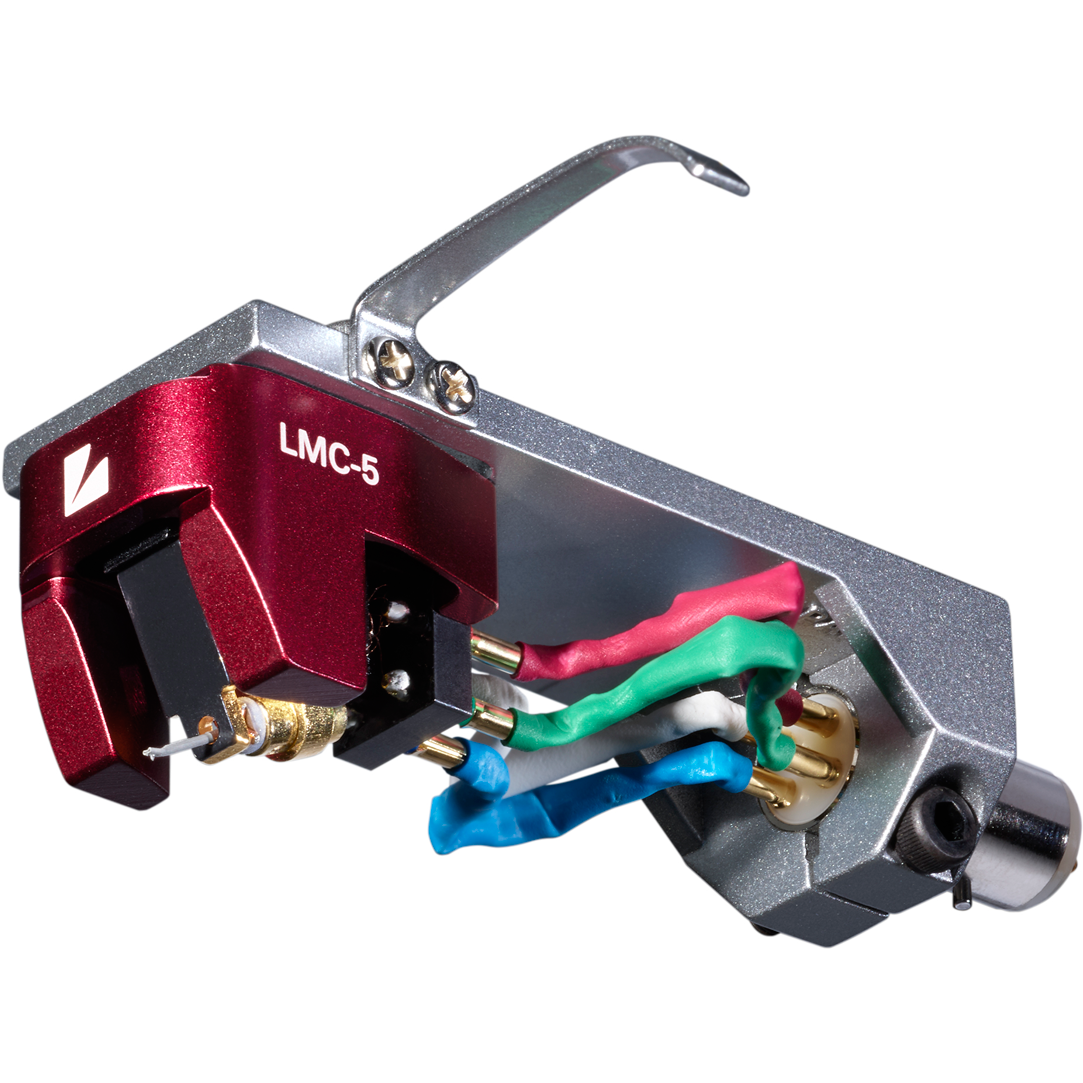

The SHIBATA needle has less audible noise while delivering full range vinyl reading
・The aluminum cantilever has a neutral tone that goes well with the SHIBATA needle
Moving coil (MC) type, reducing the weight of the armature ・Reduces cross-channel sensitivity with directly wound cross mounted coils, to which the L/R power generation coils are wound symmetrically
・The UEW coil wire has a radius of 30μm, the thinnest in the range, and is resistant
・Using a single point piano wire (Φ0.08mm) support method for accurate vibrationto breakage while ensuring coil winding direction
・Circuit structure with minimal loop area reduces external noise
A stylus unit is regarded as acoustically equivalent to a microphone, so resonance and reflected sound
from around the device should be thoroughly suppressed
・Outer walls that protect the stylus and cantilever ensure practicality are placed on both sides
・Structural chassis with inverted oval curves to reduce resonance and reflections
・A carefully pared down body structure with minimal outer wall weight as a resonance countermeasure
Drive system | Belt drive system |
---|---|
Motor | Brushless DC motor with PID control |
Platter | 30cm machined alminum plate |
Revolution | 33 1/3rpm, 45rpm, 78rpm(3 speeds selectable) |
Revolution adjustment range | ±6%(each rotation speed adjustable independently) |
Wow and flutter | 0.04% or less(W.R.M.S.) |
Weight(Platter) | 4.0kg |
Type | Static balanced, S shaped, universal type |
---|---|
Bearing | Single point cross suspension |
Effective length | 229mm |
Overhang | 15mm |
Tracking error angle | +1.9° to -1.1° |
Applicable cartridge weight | 4 to 12g (including headshell 17 to 25g) |
Adjustable height range | 38 to 60mm |
Anti-skating | 0 to 3g |
Power source | 230V~ 50Hz |
---|---|
Power consumption | 6W |
Dimensions | 465 (W) × 133(up to top face of platter)(H)× 393(D) mm |
Net weight | 15.7kg (main unit) |
Accessories | Platter, Headshell, Rubber mat Rubber belt,Platter mount handle (2pieces) EP adaptor, Counterweight Arm adjustment hex wrench set (3types) Flathead screwdriver for rotation speed adjustment phono cable (DIN→RCA : already installed on the unit), Power cable |
ype |
MC (Moving Coil) |
Internal impedance |
4.7 Ω (1 kHz) |
DC resistance |
4.7 Ω |
Tracking force |
2.1 to 2.3 g (2.2 g standard) |
Output voltage |
0.4 mV (1 kHz, 3.54 cm/sec) |
Frequency responce |
10 Hz to 35 kHz |
Channel separation |
28 dB (1 kHz) |
Channel balance |
0.5 dB (1 kHz) |
Recommended load impedance (when head amplifier connected) |
40ohms |
Recommended load impedance (when step-up transformer connected) |
2.5 to 10 ohms |
Coil inductance |
9.5 μH (1 kHz) |
Dynamic compliance |
8×10–6 cm/dyne (100 Hz) |
Stylus |
Solid diamond/SHIBATA |
Radius of curvature at tip |
7×40 μm |
Cantilever |
Di. 0.5 mm aluminum |
Vertical tracking angle |
25° |
Suspension wire |
Di. 0.08 SWP-A |
Magnet |
Samarium-cobalt BH20 |
Coil |
30 μm UEW |
Constituent material of magnetic circuit |
Pure iron |
Terminal |
Di. 1.2 mm, White: L (+) / Blue: L (–) / Red: R (+) / Green: R (–) |
Body |
Aluminum A6063 |
Recommended service temperature range |
20 to 27 °C |
Threaded hole |
M2.6 mm × 2 |
Dimensions/weight |
17.0 (W) × 18.3 (H) × 21.3 (D) mm / 8.5g (terminal excluded) |
