Luxman

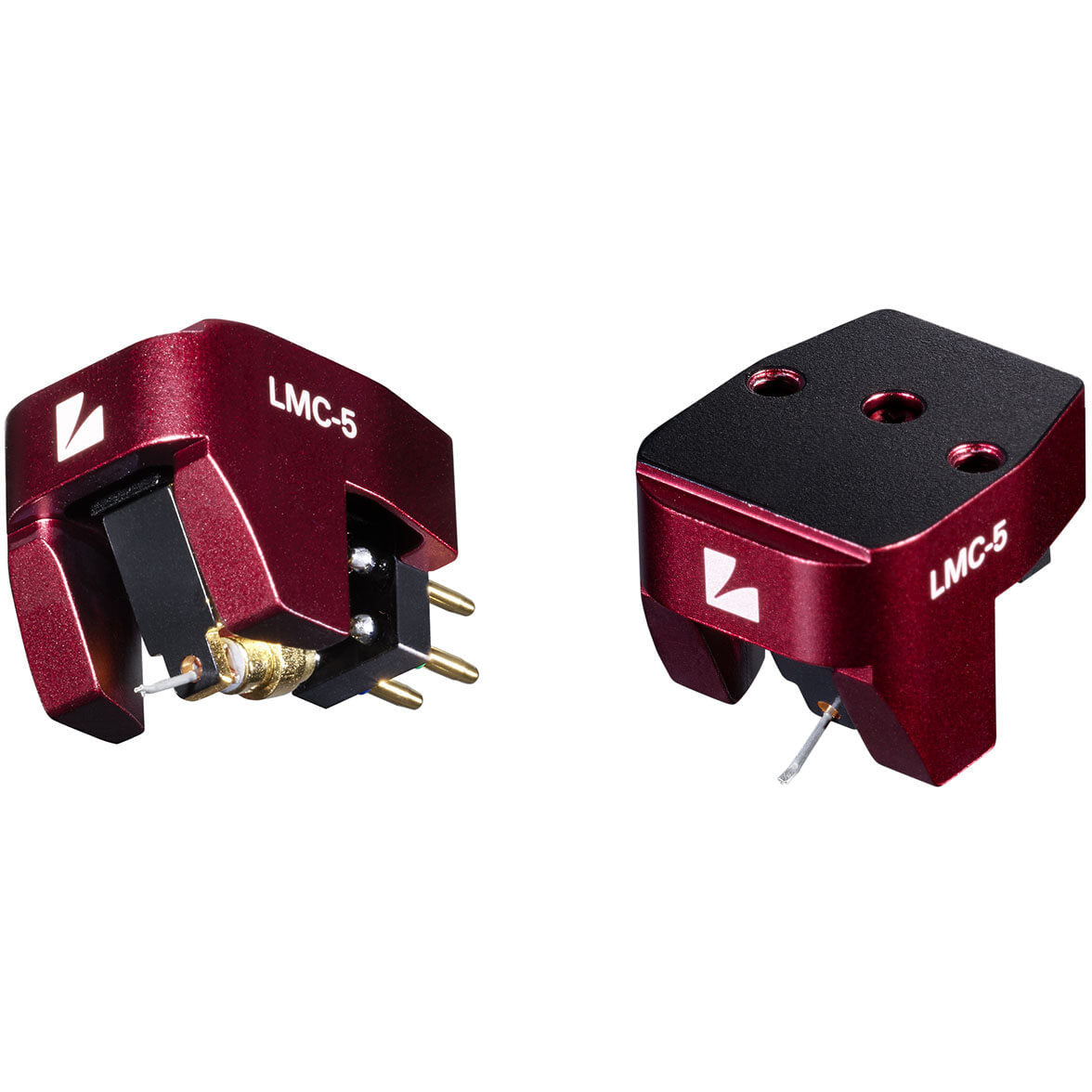

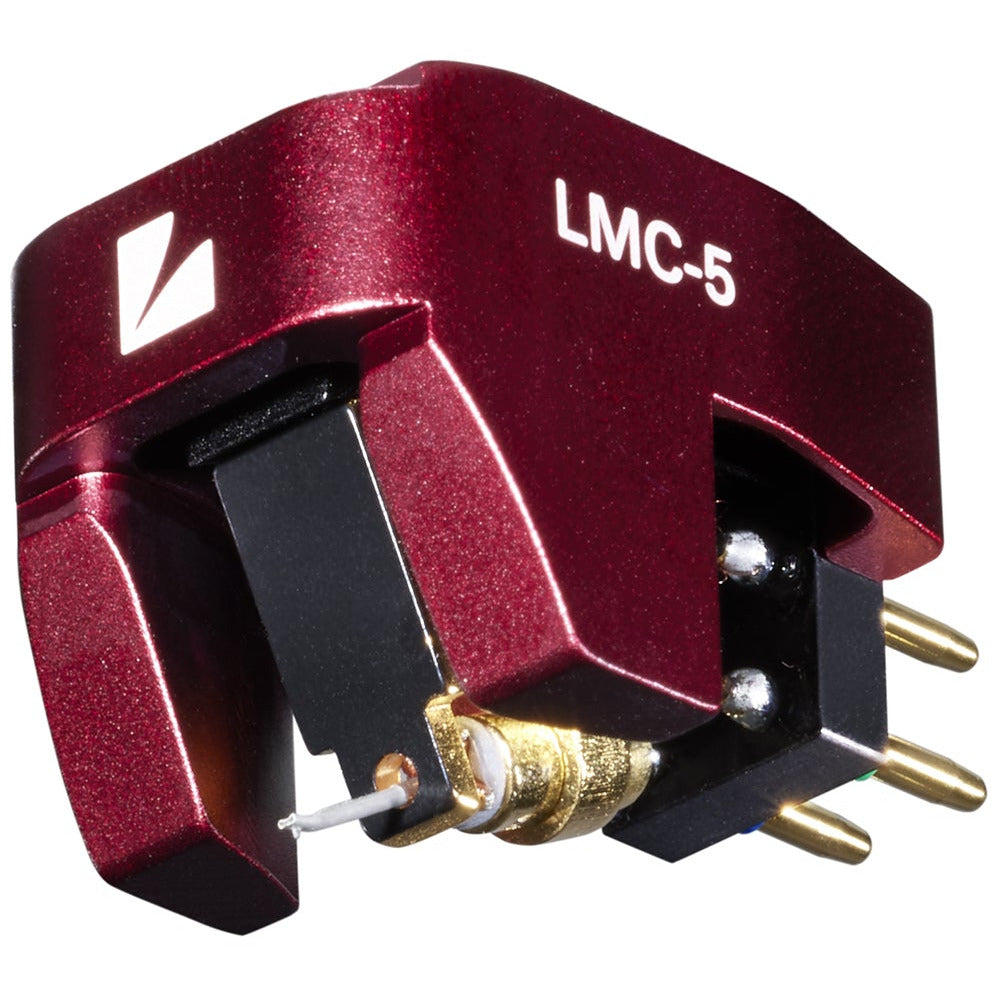

Luxman LMC-5 MC Cartridge

Luxman LMC-5 MC Cartridge

5% OFF - KROCODE5 SAVE 5% OFF YOUR FIRST ORDER
Regular price $2,154.00
Regular price Sale price $2,154.00
Sale Sold out

Part Exchange / Trade In Quote?

First time in 40 years since the launch of LMC-1 in 1981 and LMC-2 in 1982

2. Natural and extensive unified Luxman sound from the input to the output

3. The semi-open body structure helps reduce resonance and the effects of reflected sound

4. Thorough pursuit of ideal sound quality by repeating trial production considering materials and structure of cantilever, stylus, chassis

The SHIBATA needle has less audible noise while delivering full range vinyl reading

The aluminum cantilever has a neutral tone that goes well with the SHIBATA needle

Moving coil (MC) type, reducing the weight of the armature Reduces cross-channel sensitivity with directly wound cross mounted coils, to which the L/R power generation coils are wound symmetrically

The UEW coil wire has a radius of 30μm, the thinnest in the range, and is resistant

Using a single point piano wire (Φ0.08mm) support method for accurate vibrationto breakage while ensuring coil winding direction

Circuit structure with minimal loop area reduces external noise

A stylus unit is regarded as acoustically equivalent to a microphone, so resonance and reflected sound

from around the device should be thoroughly suppressed
Outer walls that protect the stylus and cantilever ensure practicality are placed on both sides

Structural chassis with inverted oval curves to reduce resonance and reflections
A carefully pared down body structure with minimal outer wall weight as a resonance countermeasure

Specs

Type

MC (Moving Coil)

Internal impedance

4.7 Ω (1 kHz)

DC resistance

4.7 Ω

Tracking force

2.1 to 2.3 g (2.2 g standard)

Output voltage

0.4 mV (1 kHz, 3.54 cm/sec)

Frequency responce

10 Hz to 35 kHz

Channel separation

28 dB (1 kHz)

Channel balance

0.5 dB (1 kHz)

Recommended load impedance (when head amplifier connected)

40ohms

Recommended load impedance (when step-up transformer connected)

2.5 to 10 ohms

Coil inductance

9.5 μH (1 kHz)

Dynamic compliance

8×106 cm/dyne (100 Hz)

Stylus

Solid diamond/SHIBATA

Radius of curvature at tip

7×40 μm

Cantilever

Di. 0.5 mm aluminum

Vertical tracking angle

25°

Suspension wire

Di. 0.08 SWP-A

Magnet

Samarium-cobalt BH20

Coil

30 μm UEW

Constituent material of magnetic circuit

Pure iron

Terminal

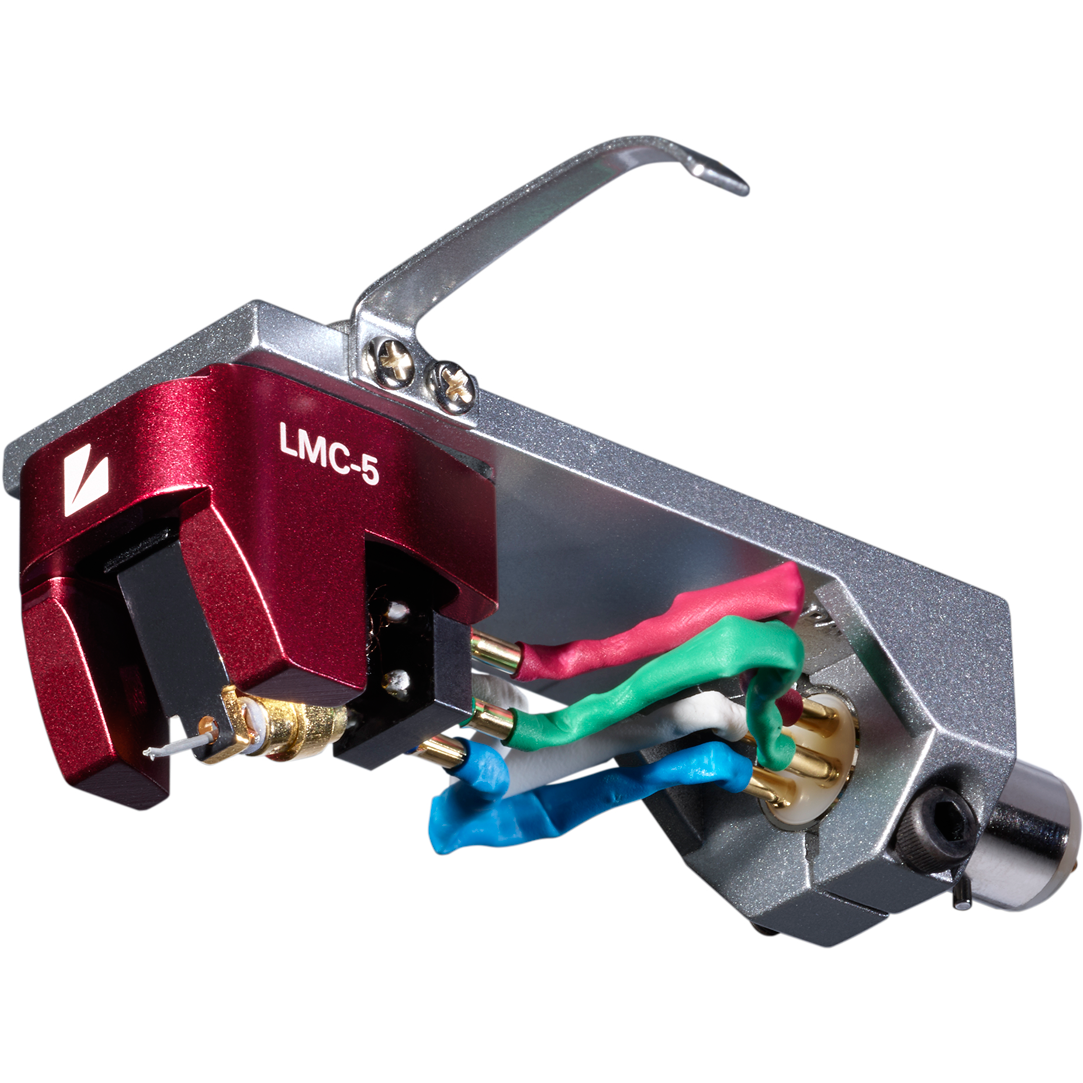

Di. 1.2 mm, White: L (+) / Blue: L () / Red: R (+) / Green: R ()

Body

Aluminum A6063

Recommended service temperature range

20 to 27 °C

Threaded hole

M2.6 mm × 2

Dimensions/weight

17.0 (W) × 18.3 (H) × 21.3 (D) mm / 8.5g (terminal excluded)
