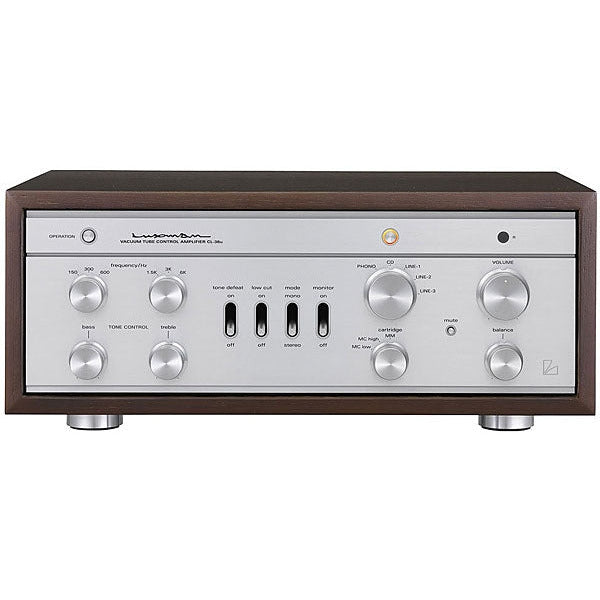

An attractive custom vacuum tube control amplifier
The CL-38uC uses SRPP (Shunt Regulated Push Pull) circuitry for all stages to achieve the highest sound quality possible.A genuine phono equalizer is included, the MC-low and MC-high impedance (gain) inputs each have independent MC transformers and are selectable using the MC impedance lever switch.Tone controls enable the listener to fine tune the sound quality.Refined exterior design and newly added balanced inputs make this vacuum tube control amp a new standard for its generation.
|PHONO (MM): 2.0mV/47kΩ
PHONO (MC high): 0.3mV/100Ω
PHONO (MC low): 0.08mV/30Ω
BAL.LINE: 190mV/20kΩ *2
|Output/output impedance||Rated 1V/300Ω|
|Frequency response||PHONO: 20Hz to 20kHz (±0.5dB)
LINE/BAL.LINE: 10Hz to 70kHz (within -3.0dB)
|Total harmonic distortion||0.006% or less (1kHz)
0.06% or less (20Hz to 20kHz)
|S/N ratio (IHF-A)||PHONO (MM): 68dB or more
PHONO (MC high): 63dB or more
PHONO (MC low): 60dB or more
LINE/BAL.LINE: 100dB or more
|Tone control||±8dB, selectable frequency range
|Vacuum tubes||ECC83S×3, ECC82×5|
|External dimensions||440(W) x 169(H) x 307(D) mm
19mm front panel knob of and 12mm rear panel
terminals are included in the depth measurement
|Net weight||13.3kg (main unit)|
|Accessories||Remote control (RA-19), Power cable|
|*2 This unit uses transformer equipped balanced inputs. Since the maximum input level at the balanced inputs is equivalent to 2.5 Volts, please be aware that the audio signal may be distorted if you connect a device with a higher output level (higher output voltage). There is no problem when using Luxman products (CD players etc.). For details, please refer to the instruction manual for the equipment to be used.|
