HiFi Rose RS520 Amplifier x Magent Signature Edelstein Bundle

HiFi Rose RS520 Amplifier x Magent Signature Edelstein Bundle

BUY WITH CONFIDENCE We are a 2 x Global Award Winning Retailer
Read More
FREE 5 YEAR WARRANTY INCLUDED FREE 5 year warranty included on this item
GET IT IN TIME FOR CHRISTMAS! Order now, have it in time for Christmas!
Regular price £3,999.00
Regular price Sale price £3,999.00
Sale Sold out
VAT included.
Amplifier Finish
Speaker Finish

Part Exchange / Trade In Quote?

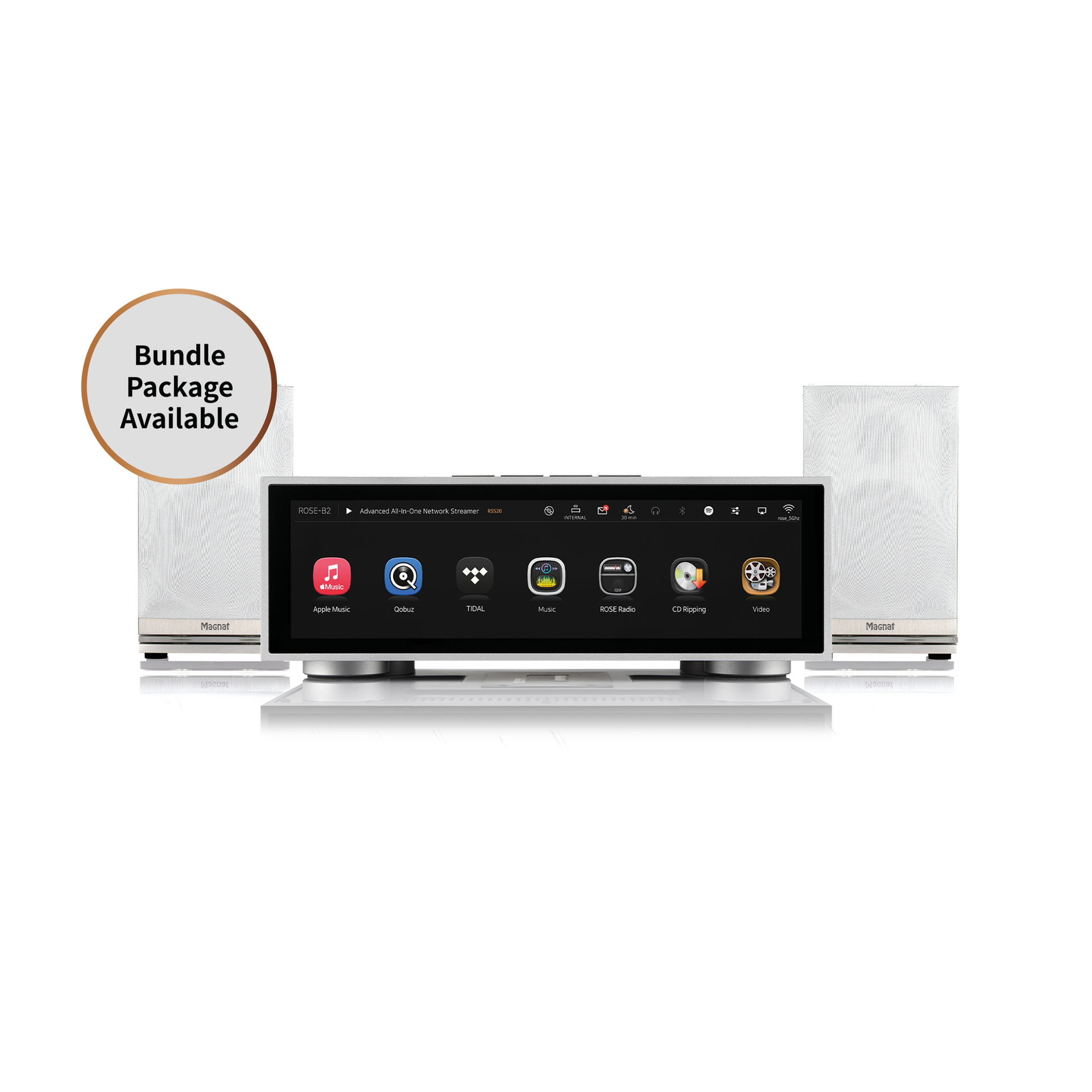

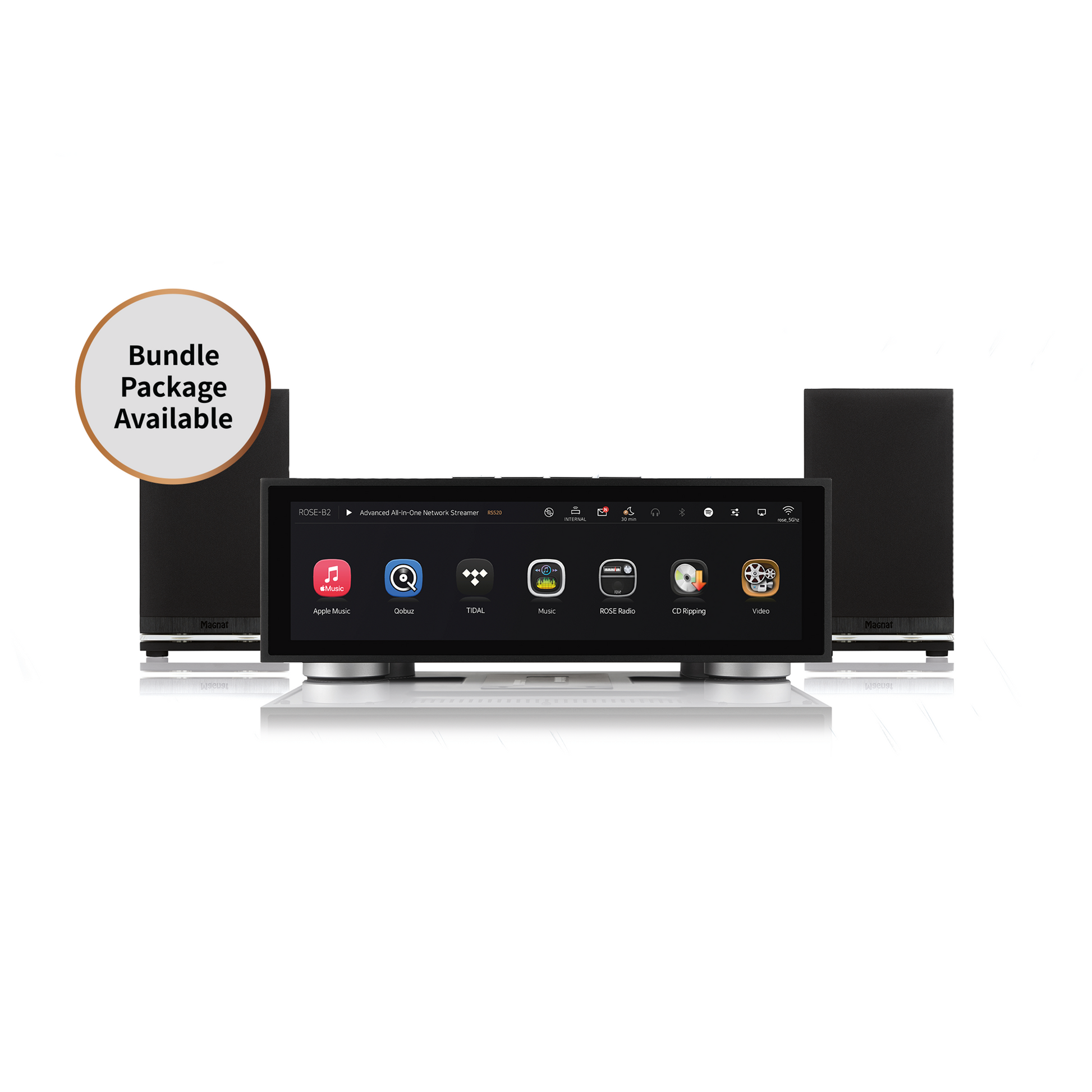

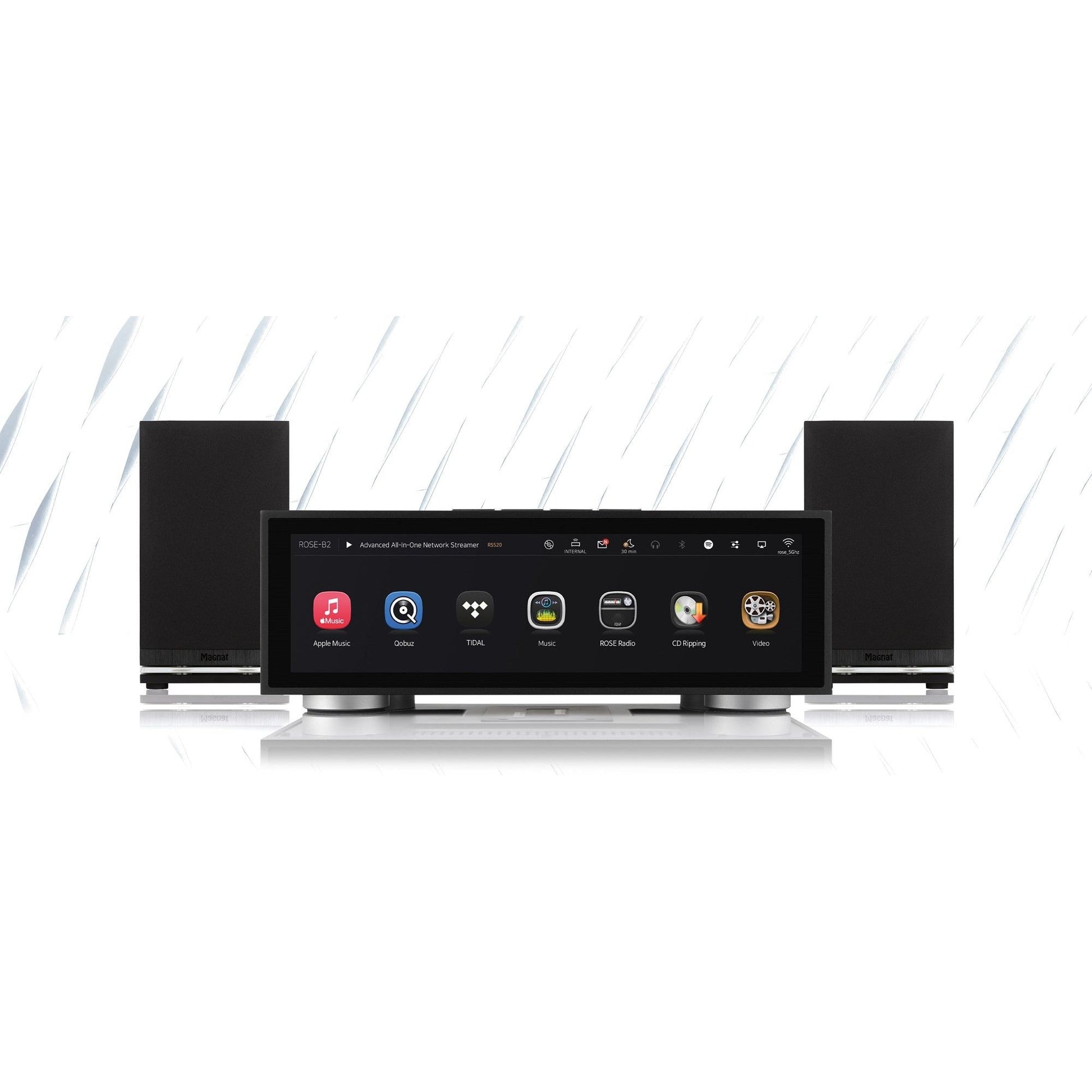

The RS520 x Signature Edelstein system is a perfect example of form and function. The compact high-performance of the integrated streamer is expertly complemented by the speaker’s own footprint and sonic prowess. Able to fill small and larger listening spaces with high-quality audio, and able to accommodate any other source devices you may have in your home, including your TV. This package is the ultimate solution for exceptional sound, ease of use and elegance in appearance.

  • Complete all-in-one streaming amplifier with 250W per-channel output
  • Full Rose OS operating system with extensive functionality
  • Next-generation Class AD (Advanced D) amplifier design taken from RA180

The RS520 is more than just a source device with a built-in amplifier. It is a true all-in-one product with each stage expertly specified to deliver a performance that rivals multi-box systems. Even when matched with larger or more “difficult” speakers, it delivers a more delicate and elegant sound quality that is controlled and uniform across the frequency range.

Solid Foundations

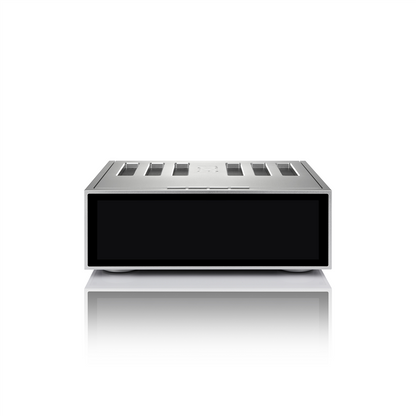

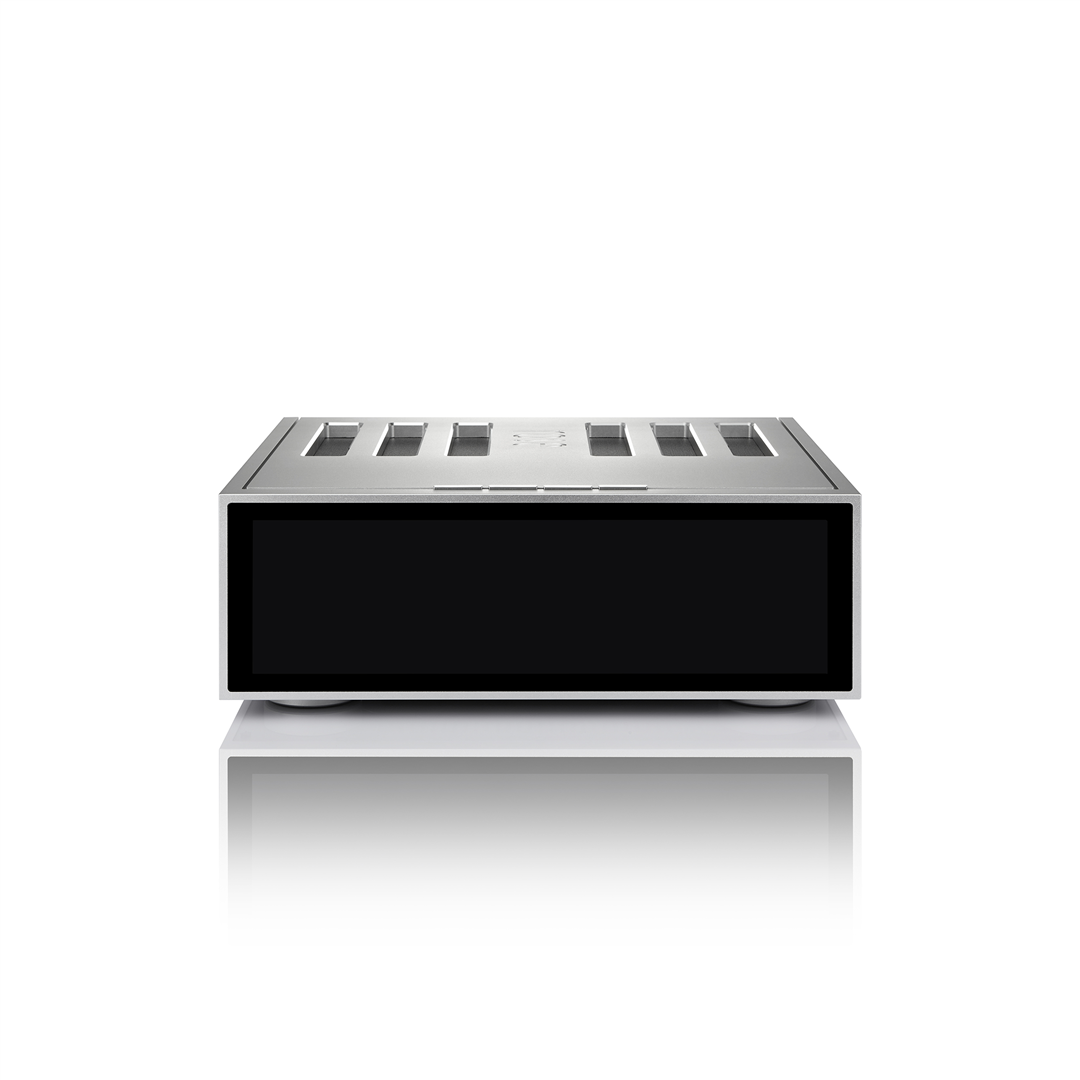

Four surfaces of the RS520’s elegant housing are made from one piece of high-durability aluminium, reducing the number of separate parts required to produce the casework. This “one piece” production method dramatically reduces the risk of vibrations transferring through the body and significantly reduces standing-waves, which can affect the end sound quality.

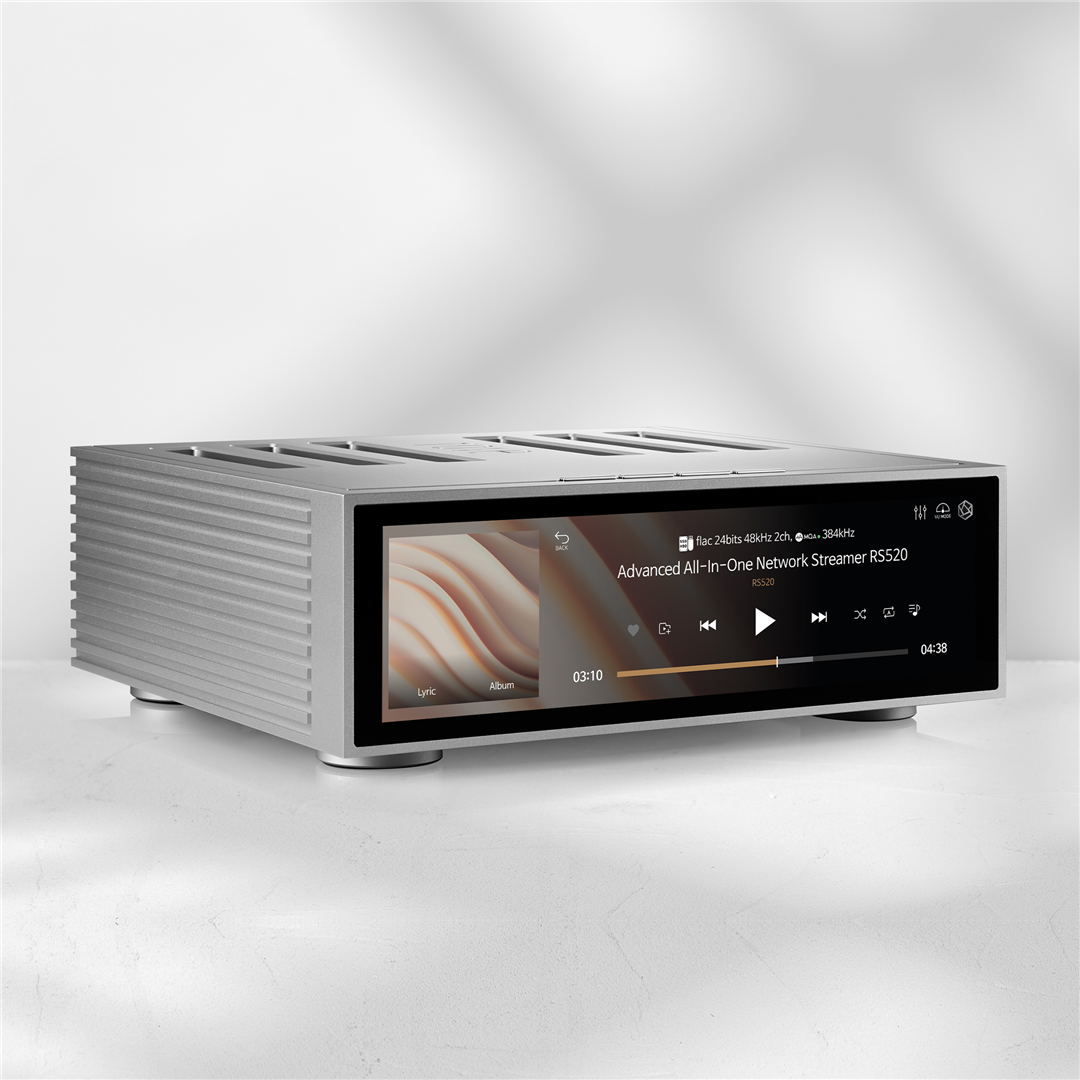

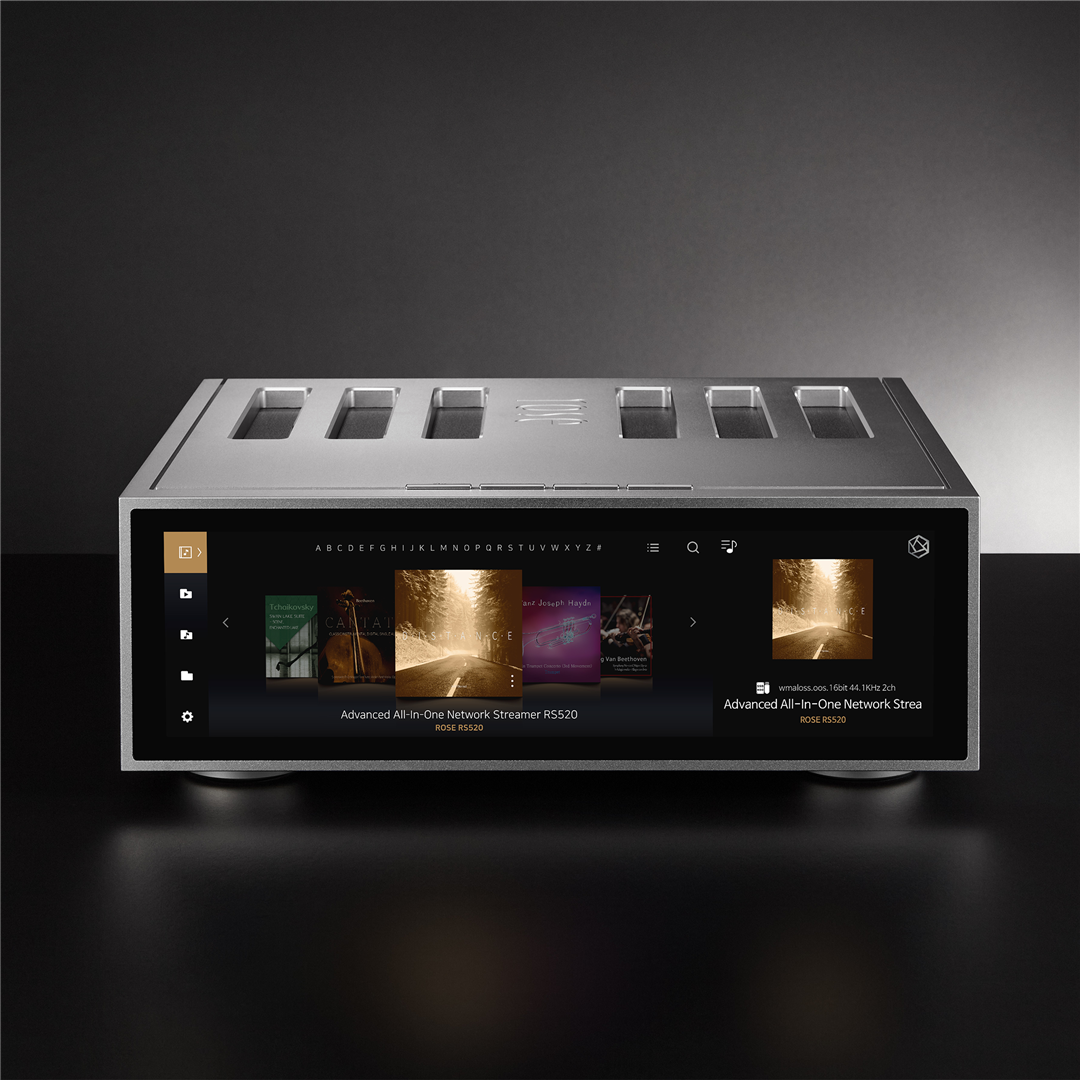

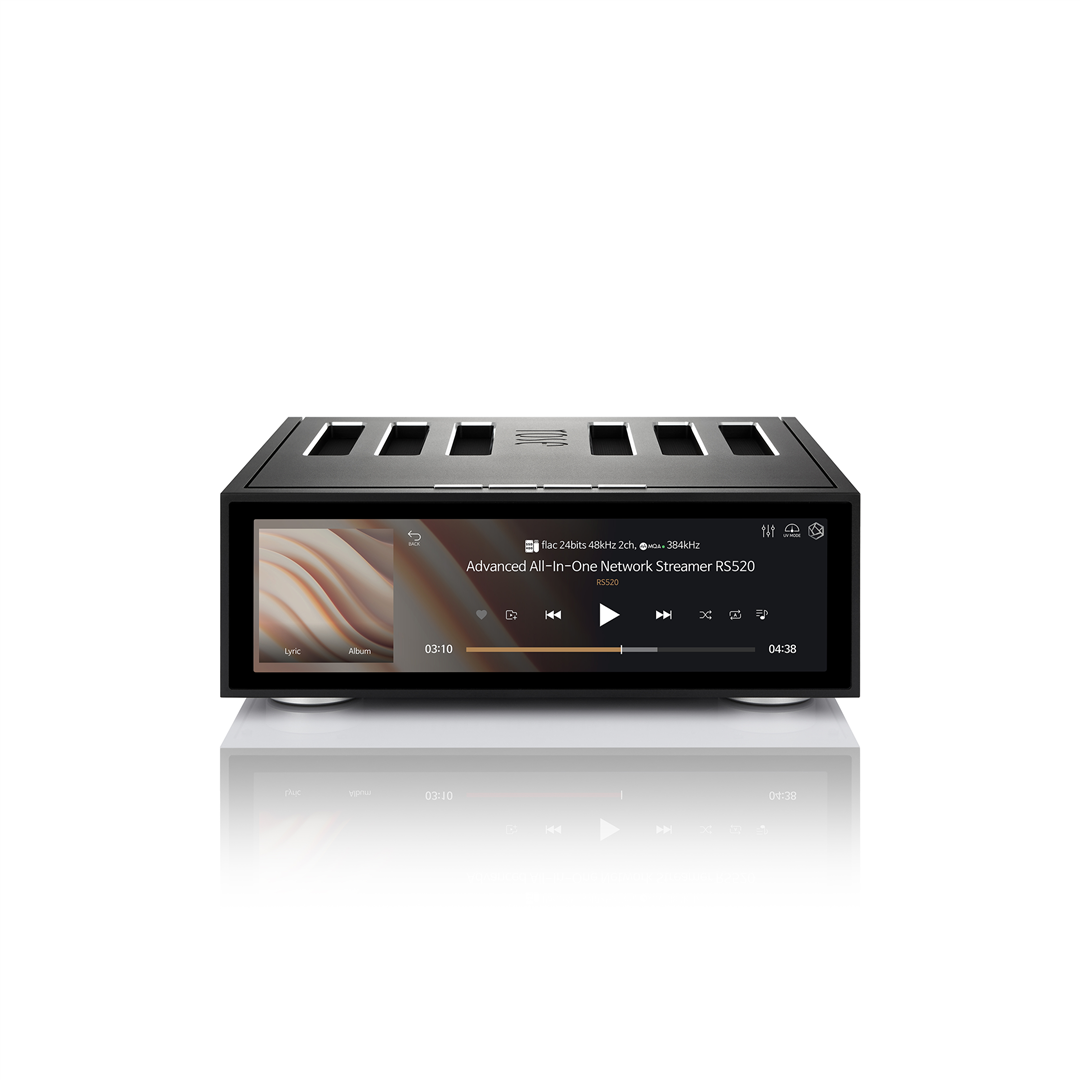

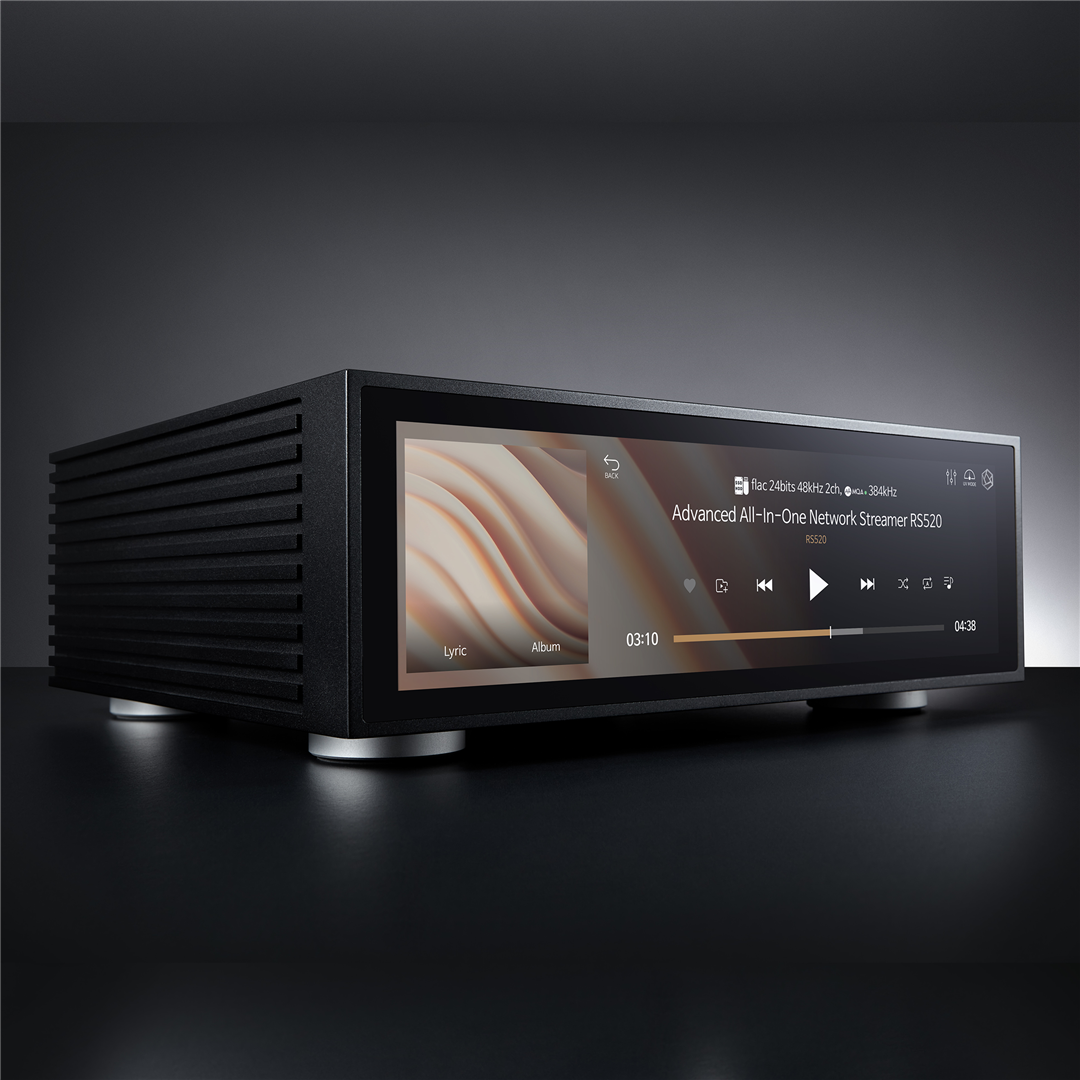

Like all Rose streamers, the RS520 is most identifiable by its large multi-touch screen. Measuring 12.6” wide, the 1920 x 515 resolution LCD panel provides a crystal-clear display that is smooth and enjoyable to interact with for complete control of your listening experience. Core transport controls can also be found on top of the RS520, for ease of use.

ROSE OS

At the centre of the RS520 is ROSE OS, HiFi Rose’s Android-based operating system, which opens up a world of music and video to your streamer.

Rose OS allows users to play music and video files from a local storage device (USB, MicroSD or SATA), or access files elsewhere on your home network with a DLNA connection to any NAS drives or other storage devices. The Music app gives a clean presentation of all your connected music sources and is easy to navigate and use. Rose OS also features built-in apps for Tidal, Qobuz and Apple Music - giving complete access to their extensive streaming libraries. The Tidal app even gives access to the service’s music video streaming content for playback on the RS520 screen or via the HDMI output. On top of this already impressive feature set, the RS520 is also an MQA decoder, for full playback of Tidal Masters tracks.

Elsewhere, the CD and CD Ripping apps allow you to attach any standard external CD-ROM drive for convenient CD playback, or to rip CDs in highest-quality to any local storage device in a quick and intuitive way, all through the touch-screen interface. The Radio and Podcast apps give you access to extensive live radio and podcast databases, while Rose Tube gives you access to YouTube for music and video playback. Rose OS also offers support for Roon Ready, Spotify Connect and AirPlay, effectively bringing your entire digital audio experience into one elegant system.

But in addition to offering extensive music access, Rose OS is also engineered for high-performance sound. The Rose Audio Architecture within Rose OS can deliver pure audio data to a DAC without loss, thanks to the RoseAudioServer, developed in-house by HiFi Rose to utilise various signal processing technologies. These technologies effectively involve separating the audio data from all other processes required to run the operating system, meaning the audio signal is never affected when you are controlling other aspects of the RS520.

Connect what you need

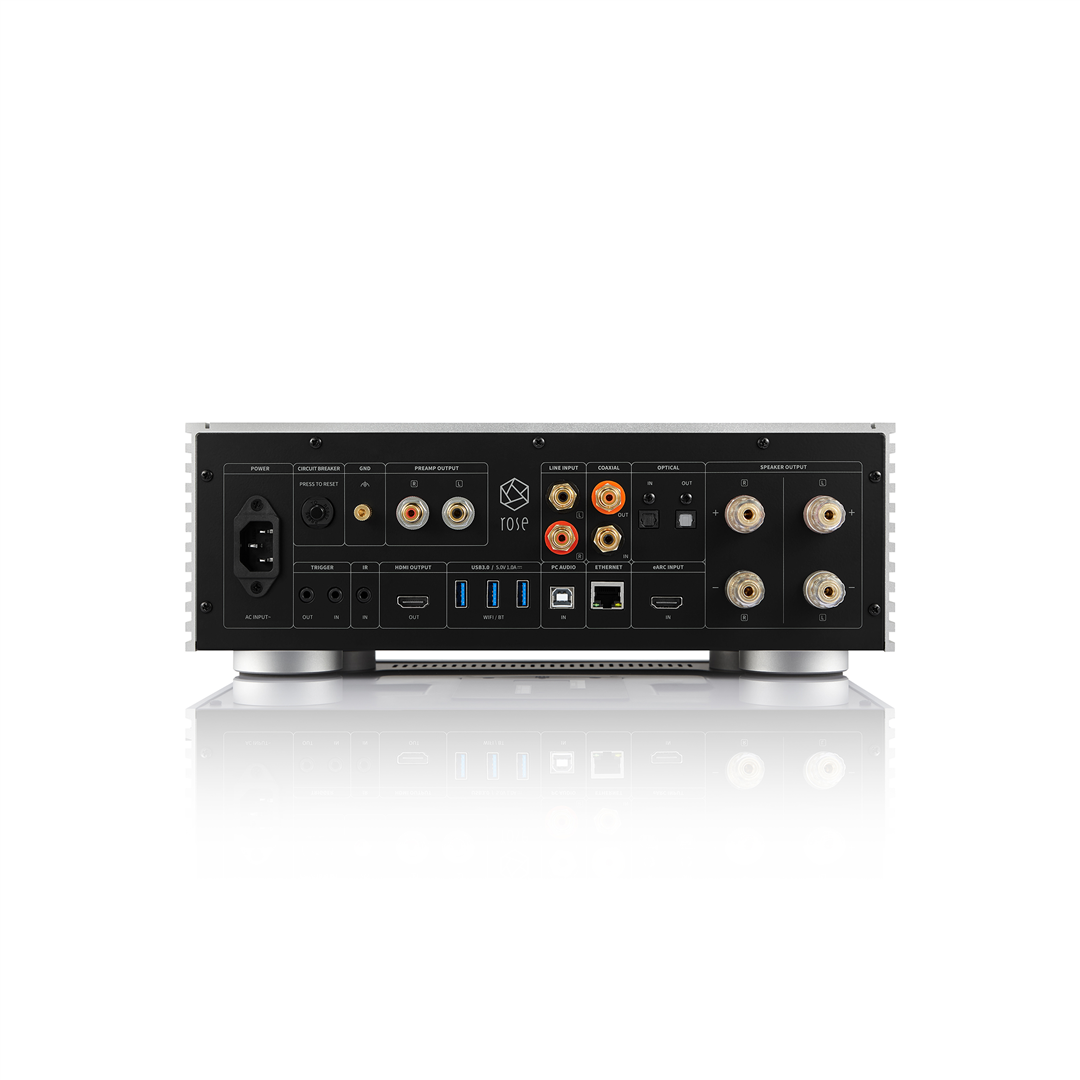

The RS520 is designed to be the centre of your audio system, and as such it boasts a variety of inputs and outputs. In addition to the Line input, there are also digital coaxial, optical and USB inputs, as well as an HDMI eARC input for connecting your TV. For connection to a wider system, in addition to the speaker binding posts, there are also options to connect to an external amp or DAC, as well as the HDMI output for watching video content on a connected screen.

Engineered for Sound

Every aspect of the RS520 is engineered for high-quality sound. Internally, key functions are split across separate boards with individual power feeds for optimised operation. Within the digital stage, the use of the class-leading ES9038PRO DAC chip alongside an ultra-precise femto clock allows for optimised conversion and signal handling. Similarly, in the IV circuit HiFi Rose have employed their own, brand new discrete operational amplifiers to deliver a sound with a wide sense of space and a warm tone. In the 250W per-channel power amplifier stage, the same Class AD technology found in the RA180 amplifier is used. By using Gallium Nitride FETs as opposed to more common Silicon FET technology the amplifier is capable of a far more natural tone, like a pure analogue amplifier.

Do it all with HiFi Rose

The RS520 is a true full-feature product, but designed in a way to deliver a pure, warm sound that can typically only be experienced from an expensive separates system. With the added benefit of Rose OS, it is not just a series of convenient features forced together, it is a meticulously engineered device that offers every feature in the highest possible quality.

Key Features:

  • Complete all-in-one streaming amplifier with 250W per-channel output
  • Connect to streaming services such as Tidal, Qobuz, Apple Music, Spotify and Roon
  • Play your own music and movies via USB, SD or internal storage, or over the local network
  • Full Rose OS operating system with extensive functionality
  • Built-in digital EQ, to help tailor your sounds
  • Multiple digital and analogue connection options including HDMI eARC
  • Sophisticated DAC built around premium ES9038PRO DAC chip
  • Next-generation Class AD (Advanced D) amplifier design taken from RA180
  • Gallium Nitride FETs in the amplification stage deliver perfect linear output
  • New HiFi Rose discrete op-amps ensure class-leading sound performance and low noise
  • Expertly engineered aluminium housing and premium connection options
  • Bluetooth remote control included, and free control apps available
Specs
Base OS: Customised Android 7.1
CPU: Hexa Core CPU
Dual-core Cortex-A72 up to 1.8GHz
Quad-core Cortex-A53 up to 1.4GHz
GPU: Mali-T864 GPU, OpenGL ES 1.1/2.0/3.0/3.1, OenVG1.1, OpenCL, DX11
Memory: LPDDR3 4GB
Max Power: 250W (THD 1%)
Input Sensitivity: 2V
Damping Factor: > 190V rms (@ 1kHz)
Input Impedance: 100kohm
Frequency Response: 10Hz – 90kHz (Speaker Outputs)
Channel Balance: 0.021dB
S/N Ratio: 105dB (@ 250W Speaker Output)
Network Connectivity: Ethernet 10/100/1000 BASE-T
Wi-Fi (802.11 ac Dualband – via dongle)
Bluetooth: Bluetooth supported (v 4.2)
Streaming Service: Bluetooth
Airplay
DLNA
Roon Ready
Spotify Connect
Music Services: Qobuz
TIDAL
ROSE Tube, ROSE Podcast, Internet Radio
Audio Inputs: Line Input x 1
Optical In x 1
COAX x 1
USB Audio In x 1
HDMI eARC x 1
Audio Outputs: Analogue Out (Unbalanced RCA) x 1
Optical Out x 1
COAX x 1
Video Output: HDMI 2.0 x 1 (up to 3840 x 2160 / 60Hz)
Media Connection: USB 3.0 x 2 (File system-NTFS/exFAT/FAT32, support up to 10TB)
SATA SSD x 1 (File System-NTFS/exFAT/FAT32, support up to 4TB)
Network Support Protocol: SMBv1 / FTP / WebDAV
Supported Audio Codecs: MQA, WAV, FLAC, AIFF, WMA, MP3, OGG, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A, ALAC
PCM: 8kHz - 768kHz (8 / 16 / 24 / 32bit sample rate)
Native DSD: DSD64 (2.8MHz) - DSD512 (22.4MHz)
Supported Video Codecs: ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4, H.263, H.264, H.265, VC-1, VP9, VP8, MVC
H.264/AVC, Base/Main/High/High10 profile@level5.1 up to 4Kx2K@30fps
H.265/HEVC, Main/Main10 profile@ level 5.1 High-tier up to 4Kx2K@60fps
Display: 12.6-inch TFT LCD & Capacitive Touch Screen (eDP)
Size: 346 x 328 x 127 mm
Weight: 8.1kg
Accessories: Power Cord x 1, Bluetooth Remote Controller x 1, Wi-Fi / Bluetooth Dongle x 1, Manual x 1, SSD Screw x 4

Amplifier Stage Data

Output Power: 250W + 250W@ 8Ω , 4Ω
Sensitivity (Line in) 2Vrms
Sensitivity (Pre Out): 2Vrms
Power Bandwith (-3Db): 10Hz~85Khz, 8Ω , 200W
THD+N (Pre Out) 0.00033%, 1kHz, 600Ω, 2Vrms
THD+N (Speaker) 0.007%, 1kHz, 8Ω,150W
Damping Factor (1kHz): 150
Input Impedance: 100KΩ
Output Impedance: 50mΩ
Frequency Response (+1/-3dB): 10Hz ~ 83kHz
Signal-to-Noise Ratio (Pre Out): 124dB, 1kHz, 8Ω, 2Vrms
Signal-to-Noise Ratio (Speaker): 109dB, 1lHz, 600Ω, 2Vrms
