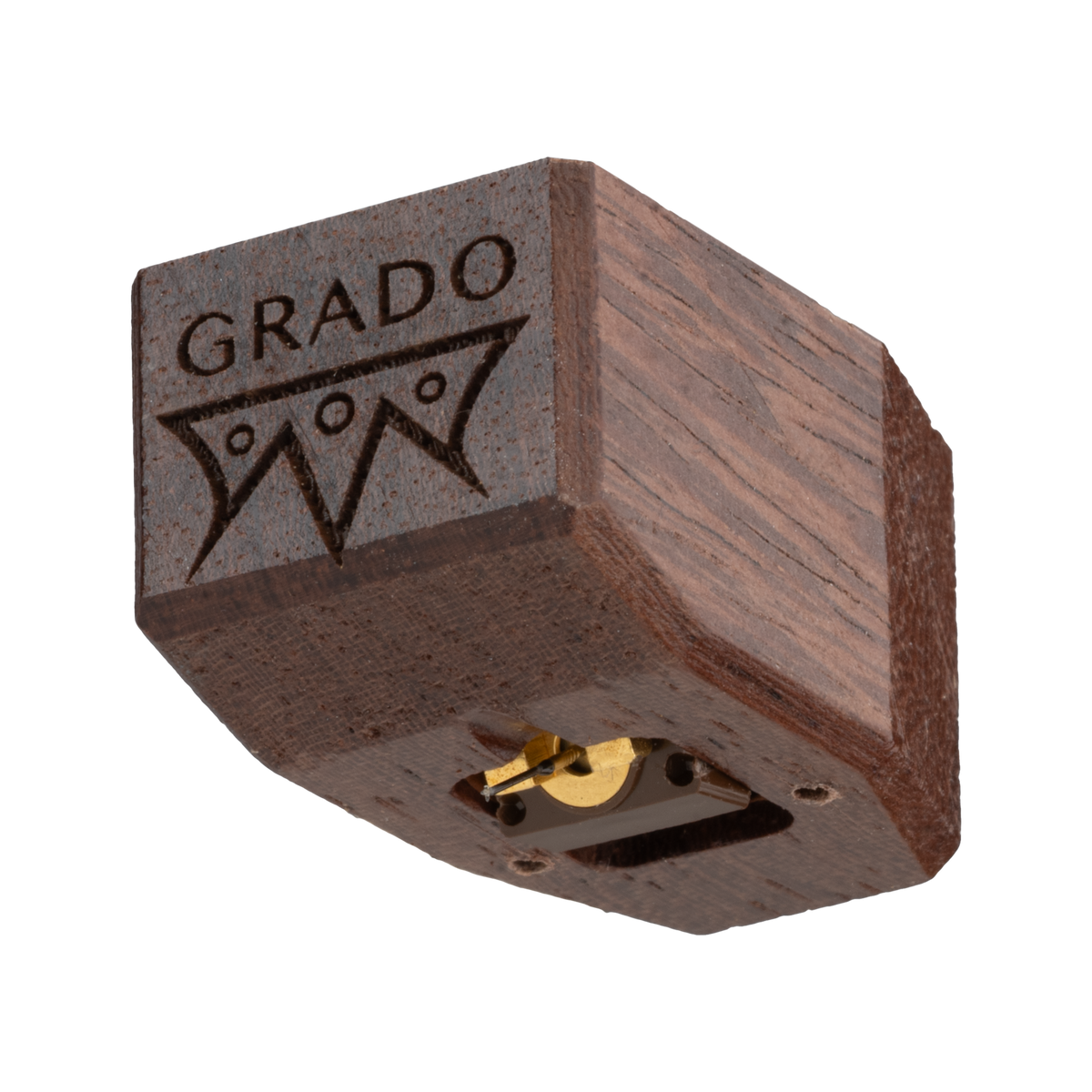

Grado Lineage Epoch4 Moving Iron Cartridge

The Grado Epoch4 represents the pinnacle of the Lineage Series. Handmade around a carefully engineered Brazilian ebony body, its low-output moving-iron system is designed for exceptional control, spatial definition and a natural musical balance. A nude Shibata diamond on a sapphire cantilever follows the groove with precision, while a gold-plated high-purity copper signal path supports the cartridge's refined presentation.

Reference-level moving-iron design

Unlike conventional moving-coil designs, the Grado flux-bridger generator uses a moving-iron element with fixed coils. The Epoch4 is a low-output model and needs an appropriately matched high-gain phono stage.

Technical specifications

• Cartridge technology: low-output moving iron
• Body: Brazilian ebony wood
• Stylus: nude Shibata diamond
• Cantilever: sapphire
• Output: 1.0mV at 5cm/s
• Frequency response: 5Hz–75kHz
• Recommended input load: 10kΩ–47kΩ
• DC resistance: 95Ω
• Inductance: 8mH
• Cartridge weight: 12g
• Tracking force: 1.6–1.9g
• Compliance: 20µm/mN
• Internal wiring: Ultra-high-purity copper with gold plating

System matching and ordering

The Epoch4 is a specialist cartridge for demanding analogue systems. Tonearm geometry, cartridge mass, mounting clearance and phono gain should be checked before purchase. Please contact Kronos AV to discuss installation, matching and special-order availability.
