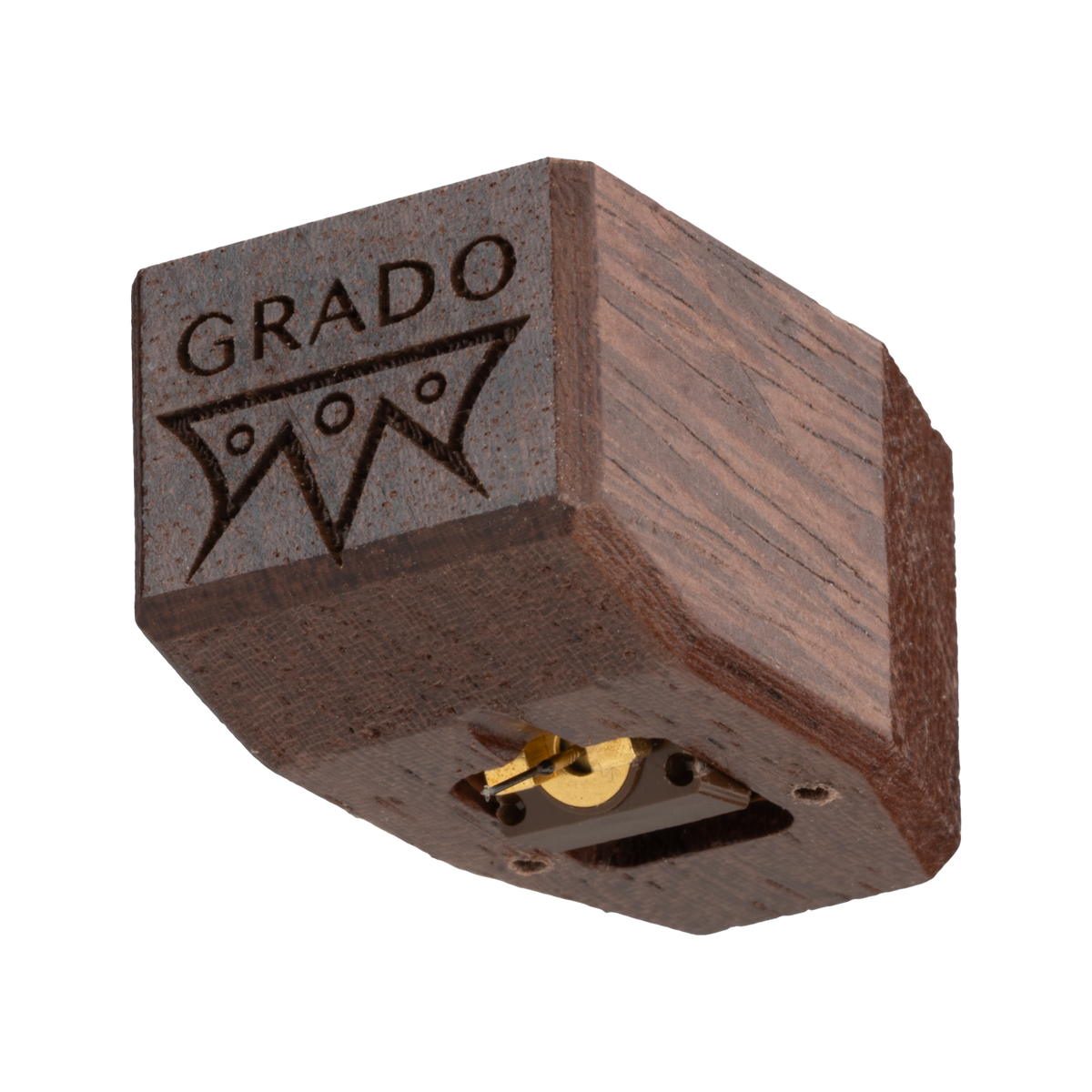

Grado Lineage Aeon4 Moving Iron Cartridge

The Grado Aeon4 combines the Lineage Series' Brazilian ebony construction with a high-resolution nude Shibata stylus mounted on a sapphire cantilever. Its patented moving-iron flux-bridger generator is designed to convey subtle detail, instrumental colour and rhythmic control without exaggeration. Internal high-purity copper wiring and meticulous resonance management complete this hand-built reference cartridge.

Reference-level moving-iron design

Unlike conventional moving-coil designs, the Grado flux-bridger generator uses a moving-iron element with fixed coils. The Aeon4 is a low-output model and needs an appropriately matched high-gain phono stage.

Technical specifications

• Cartridge technology: low-output moving iron
• Body: Brazilian ebony wood
• Stylus: nude Shibata diamond
• Cantilever: sapphire
• Output: 1.0mV at 5cm/s
• Frequency response: 5Hz–70kHz
• Recommended input load: 10kΩ–47kΩ
• DC resistance: 74Ω
• Inductance: 8mH
• Cartridge weight: 12g
• Tracking force: 1.6–1.9g
• Compliance: 20µm/mN
• Internal wiring: High-purity OCC copper

System matching and ordering

The Aeon4 is a specialist cartridge for demanding analogue systems. Tonearm geometry, cartridge mass, mounting clearance and phono gain should be checked before purchase. Please contact Kronos AV to discuss installation, matching and special-order availability.
