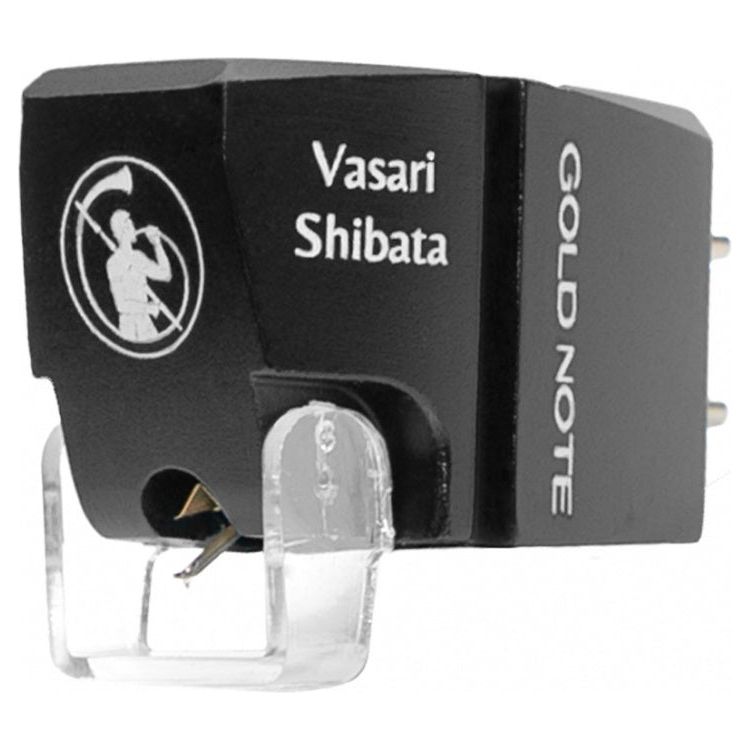

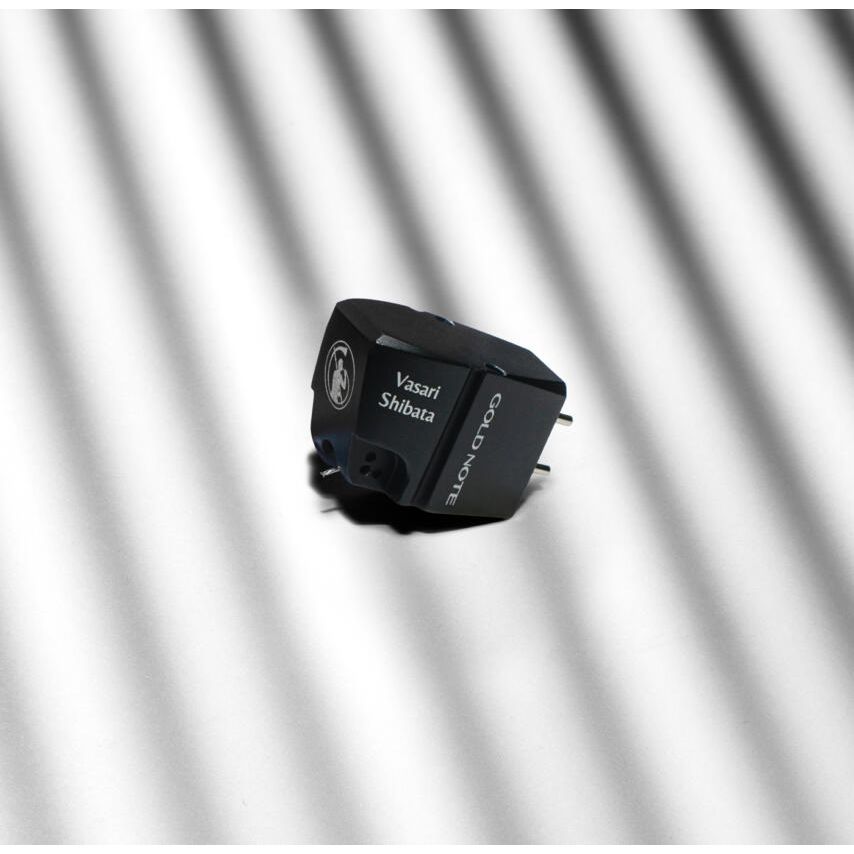

Gold Note Vasari Shibata MM Cartridge

Vasari’s innovative design is the result of a long research and development phase to create a high-performance MM cartridge. The body is made from a single machined piece of solid aluminium 7000 alloy to ensure high damping power and assisted by an ultra-light aluminium cantilever – inserted directly into the body to minimise any unwanted vibration – so that Vasari can extract even the finest details from the vinyl groove.

Vasari is available in 3 models:

The new Vasari Shibata, thanks to the peculiar shape of its stylus – an evolution of the elliptical shape with extra special facets to create an asymmetrical shape – allows for an incredible increase of the surface area contact whilst reducing significantly the pressure applied to the vinyl groove.

The result is a nearly perfect playback, with better dynamics and resolution, thanks to the deeper contact with the vinyl groove and, at the same time, low the wear of the record and the diamond.

Specs

TYPE

MM Phono Cartridge

OUTPUT LEVEL

4mV

FREQUENCY RESPONSE

10-30000Hz

IMPEDANCE

500Ω

INDUCTANCE

500mH

SUGGESTED LOAD

47kΩ

COMPLIANCE

10×10-6cm/dyne

CHANNEL SEPARATION

> 25dB

SUGGESTED TRACKING WEIGHT

2g

CANTILEVER

Aluminium

DIAMOND

Shibata

DIAMOND SIZE

3.5 x 20μm

COIL WIRE

Copper

MAGNET

Alnico

MOUNTING HOLE DIAMOND DISTANCE

9mm

WEIGHT

9.5g

BODY

Duraluminium alloy
