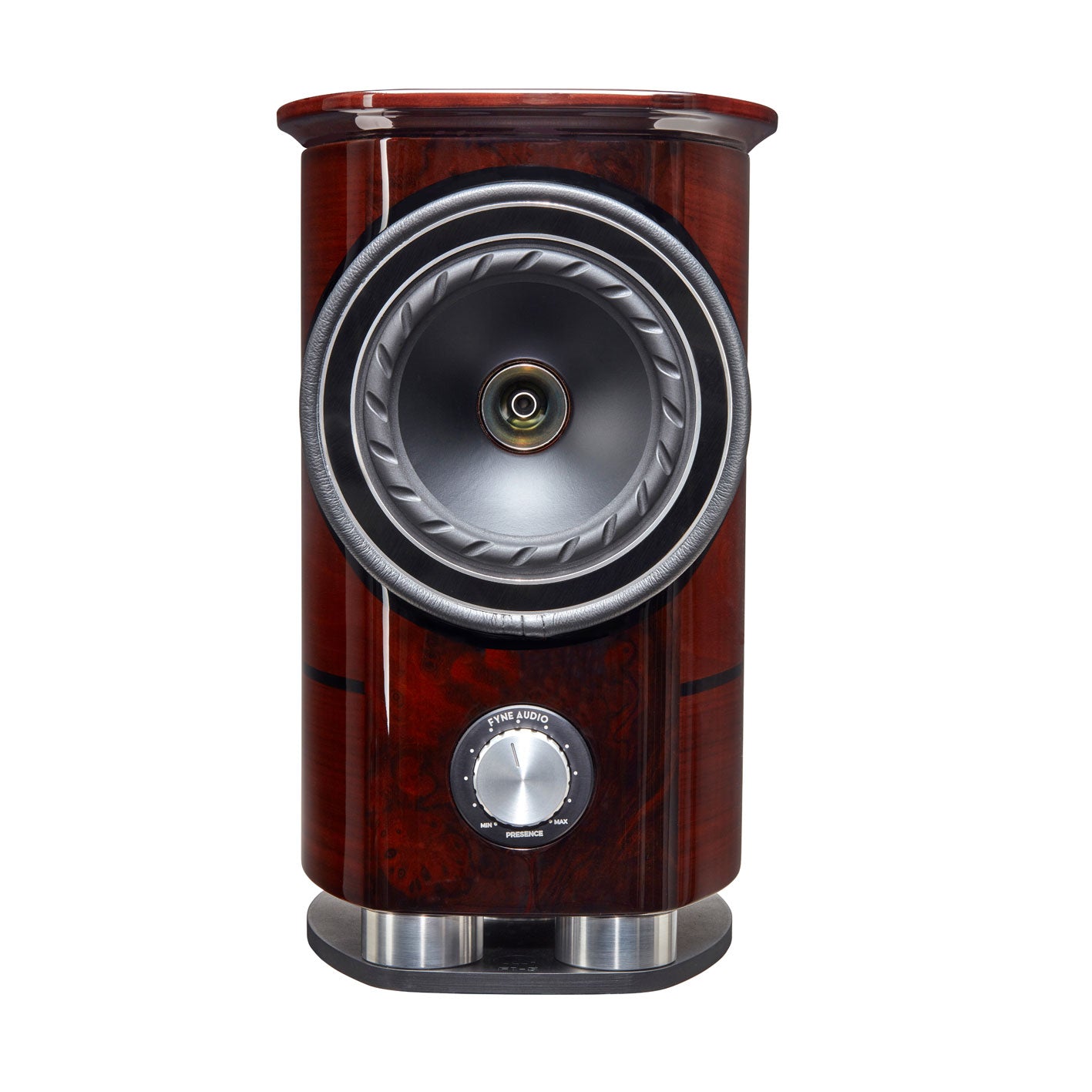

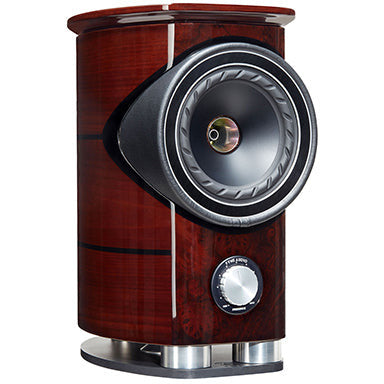

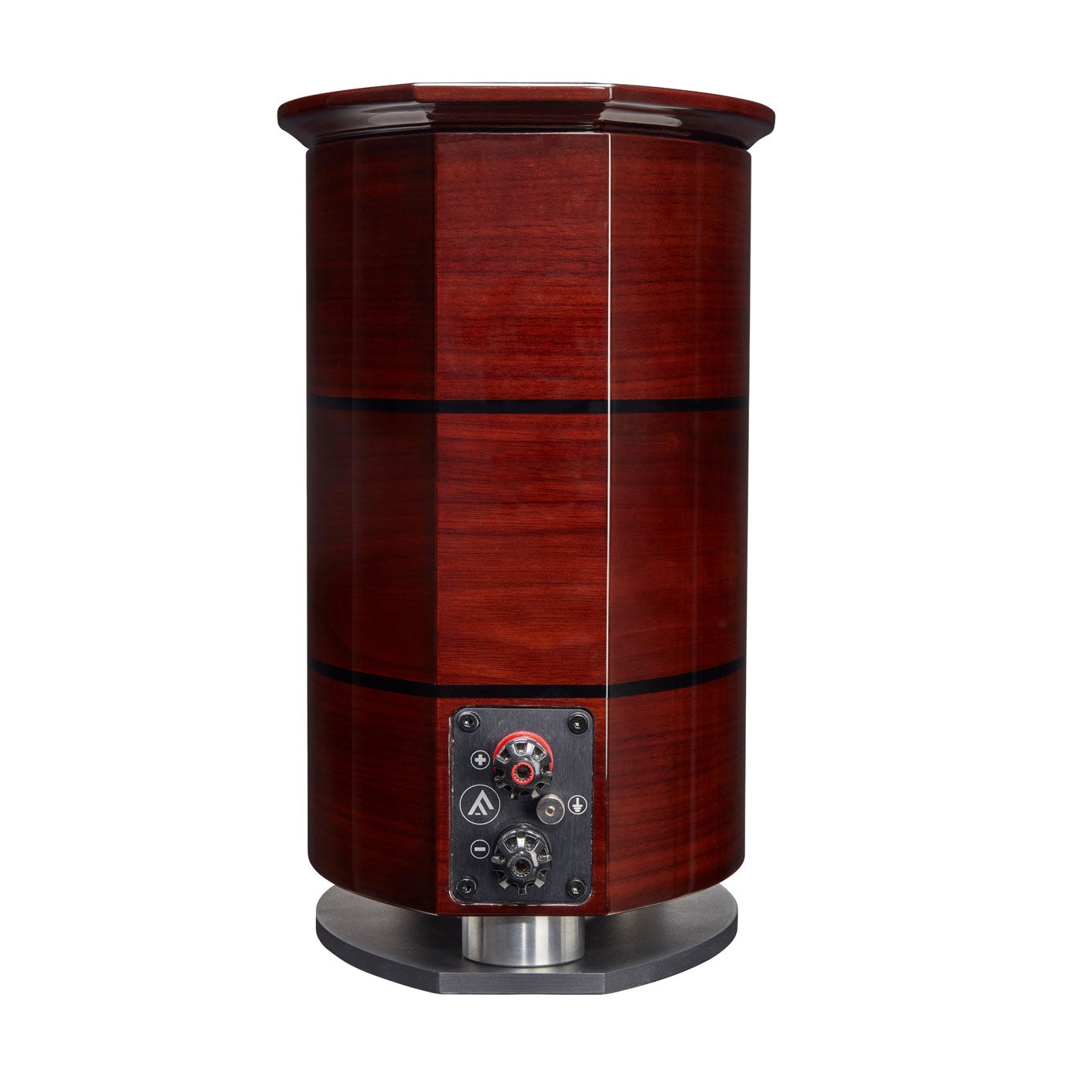

Fyne Audio F1-5 Standmount Speaker
Fyne Audio F1-5 Standmount Speaker
Part Exchange / Trade In Quote?
Part Exchange / Trade In Quote?
The F1-5 takes the same technology as the larger F1-8 sibling, distilling it into a neat bookshelf speaker design. The hand crafted cabinet is supported on compact machined aluminium plinth that houses Fyne’s state of the art BassTrax LF diffuser. Surrounded by FyneFlute rubber surround, the F1-5 features a 125mm IsoFlare low frequency driver mated to a 19mm magnesium dome compression tweeter to create a point source, time aligned transducer delivering pure isotropic radiation across the entire audio spectrum. Hand finished with care at Fyne Audio’s UK manufacturing facility in stunning real walnut veneer with burr walnut inlay, the F1-5 is the pinnacle of UK Hi-Fi loudspeaker design distilled into a sumptuous compact bookshelf speaker design.
Specs
System Type | 2 way, downwards firing port, with BassTrax Tractrix diffuser* |
Recommended amplifier power (Watt RMS) | 30 - 100 |
Peak power handling (Watt) | 200 |
Continuous power handling (Watt RMS) | 50 |
Sensitivity (2.83 Volt @ 1m) | 87dB |
Nominal impedance | 8 Ohm |
Frequency response (-6dB typical in room) | 48Hz - 38kHz |
Drive unit complement | 1 x 125mm IsoFlare point source driver, multi-fibre bass/ midrange cone, FyneFlute surround with 19mm magnesium dome compression tweeter, neodymium magnet system |
Crossover frequency | 1.9kHz |
Crossover type | Single wired passive low loss, 2nd order low pass, 1st order high pass. Deep Cryogenically Treated |
System adjustments | Presence (2.5kHz - 5.0kHz) +/- 3dB |
Dimensions - HxWxD | 321 x 186 x 289mm (12.6 x 7.3 x 11.4”) |
Weight - Each | 5.7kg (12.6lbs) |
Finishes | Piano Gloss Walnut |
Notes: Bookshelf dimensions includes grille, terminals, and any plinth, but excludes feet. Floorstand dimensions includes grille, terminals and plinth, but excludes spikes. Subwoofer dimensions include feet. All information was correct at the time of publishing. Fyne Audio Ltd reserve the right to amend details of the specification without notice in line with our policy for continuous improvements. |
