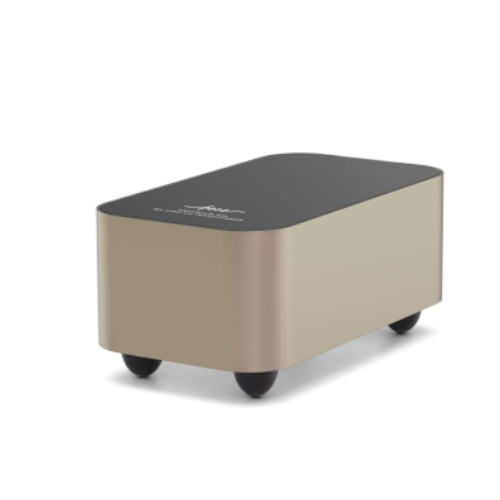

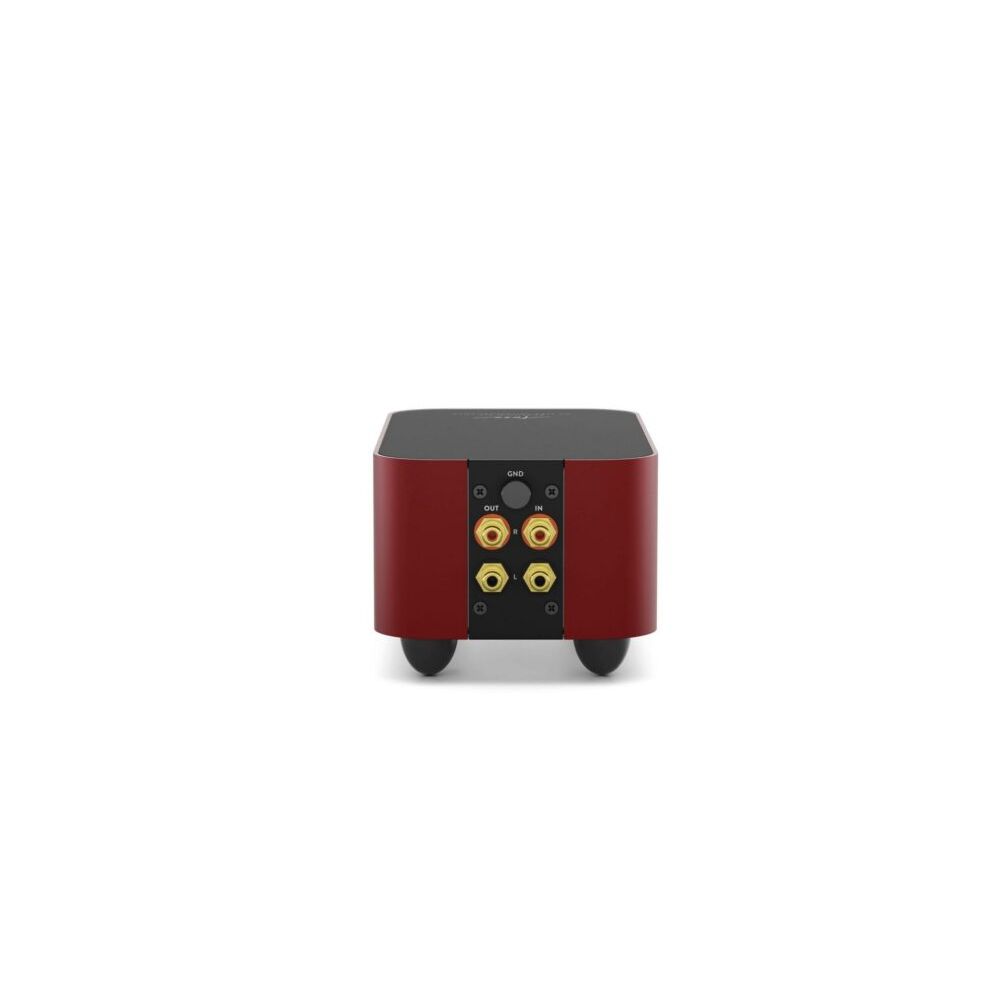

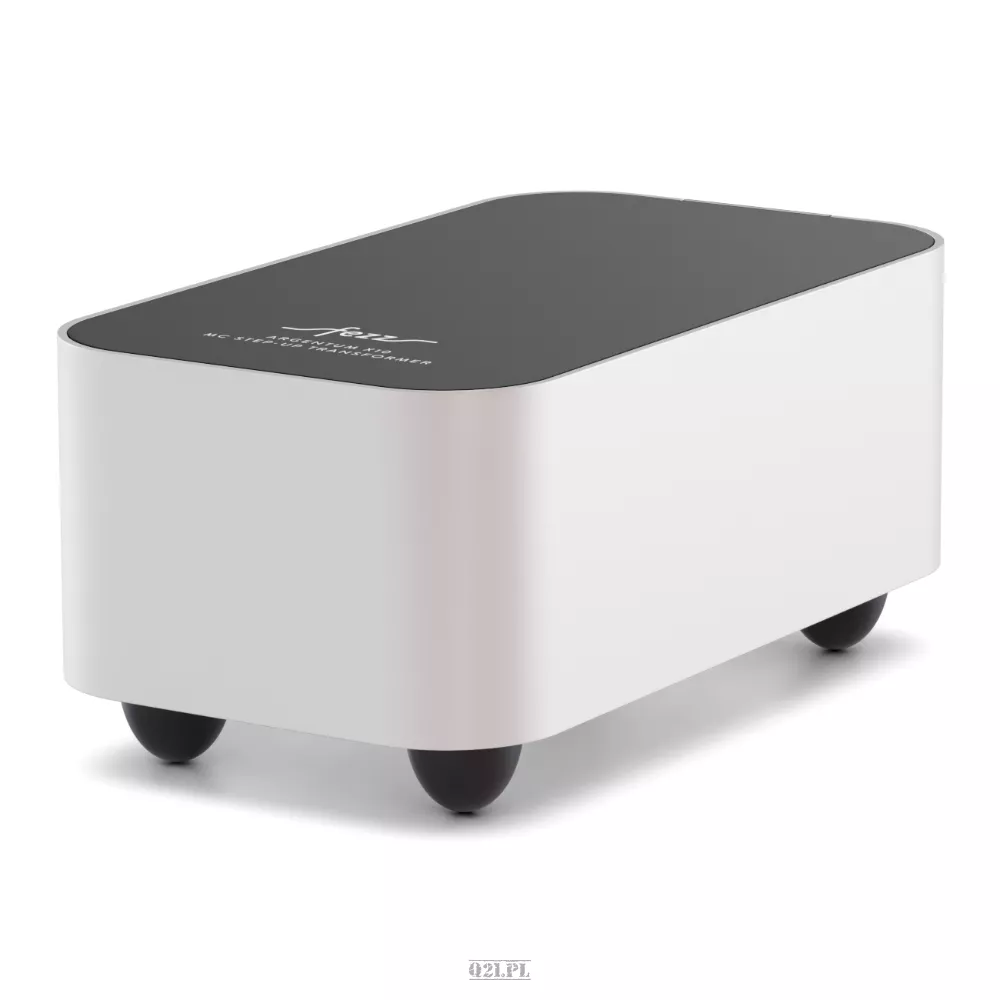

Fezz Argentum X20 step up transformer
Fezz Argentum X20 step up transformer
Regular price
£2,495.00
Regular price
Sale price
£2,495.00
Unit price
per
VAT included. (UK/Europe)
Couldn't load pickup availability
Part Exchange / Trade In Quote?
Part Exchange / Trade In Quote?
Argentum X20 is high-end MC step-up transformer. There is not a single compromise in its construction – it has been carefully designed to ensure highest fidelity possible. To create the ultimate step-up transformer we have selected the very finest materials: Argentum X20 is wound with 99,9% pure silver wire on a high permeability nanocrystalline core. To ensure noiseless performance it employs double shielding: high permeability mu-metal magnetic shielding and pure OFC copper ribbon electric shielding. With its careful design, ensuring bandwidth extending from 10 Hz to 100 kHz and THD below 0,01% at rated level it is truly beyond compare.
Fezz Argentum X20 step-up transformer is dedicated for: Ortofon Quintet Black, Quintet Blue, Quintet Bronze, Quintet Red, Quintet Mono, Cadenza Black, Cadenza Blue, Cadenza Bronze, Cadenza Red, Cadenza Mono, Diamond, Verismo, Windfeld Ti, Xpression; Goldring Elite, Eroica LX, Ethos, Legacy; Hana ML, Umami Red, Umami Blue; Dynavector DV-20X2 LO, DV-XX2 MKII, XX-2A MC, Te Kaitora Rua, DRT XV-1s; Lyra Kleos SL, Delos, Etna Lambda, Atlas SL Lambda and other cartridges with impedance 1,5-9 Ω
Technical Specification
Type:
MC step-up transformer
Model:
Argentum X20
Winding material:
99,9% pure silver
Core material:
nanocrystalline anisotropic high permeability alloy
Magnetic shield material:
high permeability mu-metal
Electric shield material:
pure OFC copper ribbon
Step-up ratio:
1:20 (26 dB)
Recommended load:
47 kΩ
Recommended cartidge impedance:
1,5-9 Ω
Total harmonic distortion:
<0,01%
Bandwidth:
10 Hz – 100 kHz (Z = 10 Ω)
Weight:
2,5 kg
Dimensions:
120 mm x 95 mm x 212 mm
