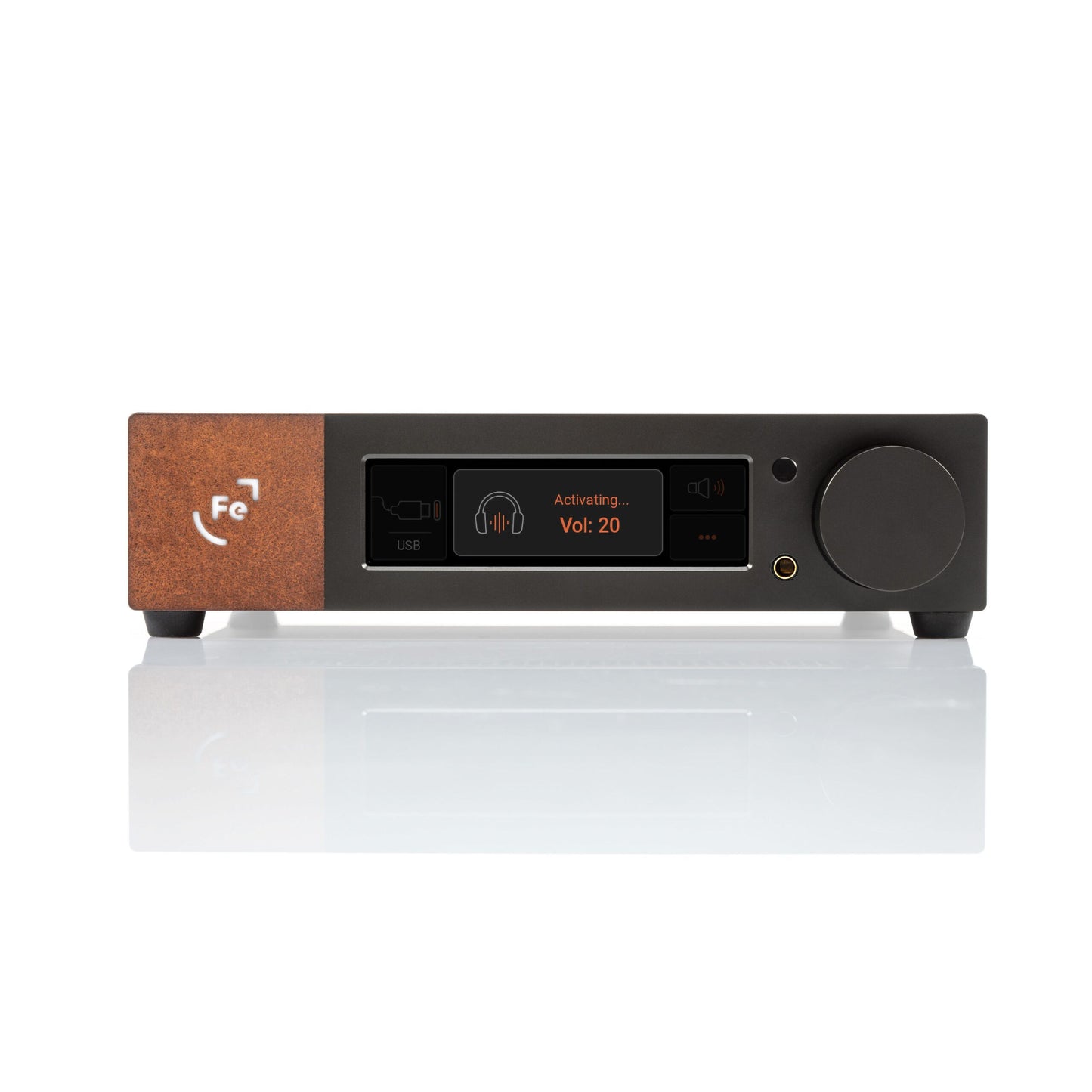

Ferrum WANDLA HP DAC/Preamp with Headphone Amplifier

Ferrum WANDLA HP DAC/Preamp with Headphone Amplifier

BUY WITH CONFIDENCE We are a 4 x Global Award Winning Retailer with 37 years in business
Learn More
FREE 6 YEAR WARRANTY INCLUDED FREE 6 year warranty included on this item
Learn More
Multi-Award Winning Advice Talk to our team to make sure you get your purchase right the first time around.
Contact Us
Delivery Information All the details you need to know about shipping your order!
Learn More
Novuna 0% Finance up to 24 months
PayPal 0% Finance up to 48 months
Klarna 3 x Finance Pay in 3 install.
Regular price £3,295.00
Regular price Sale price £3,295.00
Sale Sold out
VAT included. (UK/Europe)

Part Exchange / Trade In Quote?



  • Dual-mono design for optimal channel separation
  • High-power output: 4W into 16Ω, 2W into 32Ω
  • Compatible with various headphone impedance ranges
  • Low noise floor: -130dB
  • High gain accuracy: ±0.5dB
  • Compact, CNC-machined aluminium chassis
  • High-quality components and construction
  • Optional rack-mount kit available
  • Volume control with Alps RK27 potentiometer
  • LED indicator for power and mute status
  • Mute function for silent startup and shutdown

In the Box

  • Ferrum WANDLA HP DAC/PREAMP with Headphone Amplifier
  • Remote Control
  • 6.35mm jack to 4.4mm jack adapter
  • 24V DC power adapter



WANDLA HP – A Great-Sounding Headphone Amplifier

Ferrum introduces the latest family member of WANDLA, WANDLA HP. Ferrum’s journey up the Hifi chain brought them HYPSOS, their revolutionary hybrid power system, OOR, their flagship headphone amplifier, ERCO, their entry-level DAC, and WANDLA, their flagship DAC. What these products have in common is their upgradeability with HYPSOS. WANDLA HP resides comfortably between the entry and super flagship levels for headphone enthusiasts.

WANDLA HP essentially is WANDLA with a great-sounding headphone amplifier. It will satisfy those seeking more than ERCO has to offer but are not ready for WANDLA in combination with OOR, the super flagship option. Incorporating all great options and specifications from WANDLA, Ferrum’s engineers integrated a powerful, fully balanced composite IC headphone amplifier at quality levels that come very close to OOR’s. As with all of Ferrum’s gear, you can reach for the stars by combining WANDLA HP with HYPSOS. It has the looks, it’s all about the music, and it’s a guaranteed head-turner.

Dynamic Digital Filtering

With Dynamic Digital Filtering, DDF in short, digital filter maker Signalyst, famous for their HQPlayer app created filters exclusively for Ferrum. At the introduction, WANDLA HP will feature two special filter options. We will engage with our community to make new filters available, one by one. By doing this we create a new community of digital filter specialists by interacting with us and their WANDLA’s, in search of the best possible, tailor-made sound. This is truly unique to Ferrum, to the category of DA converters and the Hifi community in general.

Unique output cable design

Unique output cable design: two wires deliver the power and two wires provide the feedback to ensure flat voltage at every moment. We named this technique Ferrum Power Link (FPL) and it eliminates the harmful effects of the cable’s resistance effectively improving transient response. The current delivery speed at the powered device’s input is significantly improved.

Specifications Ferrum WANDLA HP

Headphone Section
THD balanced:
  • 0.00016 % / -116 dB, 10 mW into 50 Ω;
  • 0.00020 % / -114 dB, 100 mW into 50 Ω

THD unbalanced:

  • 0.00022 % / -113 dB, 10 mW into 50 Ω;
  • 0.00022 % / -113 dB, 100 mW into 50 Ω

Output Power Single Ended:

0.2 W into 300 Ω
1 W into 50 Ω
1.4 W into 32 Ω
1.5 W into 16 Ω


Output Power Balanced:

0.75 W into 300 Ω
3.5 W into 50 Ω
2.8 W into 32 Ω
1.5 W into 16 Ω


Dynamic Range: 122 dB

HP Output impedance: 0.5 Ω unbalanced
HP Output impedance: 1 Ω balanced

Other
Operation: Fully balanced, proprietary IC power amp
DAC chip: ESS Sabre ES9038PRO
DAC resolution:  768 kHz / 32 bit, DSD 512
Digital inputs:

  • AES/EBU (up to 192 kHz / 24 bit, DoP 64)
  • Optical S/PDIF (up to 96 kHz / 24 bit)
  • Coaxial S/PDIF (up to 192 kHz / 24 bit, DoP 64)
  • USB-C (up to 768 kHz / 32 bit, DSD 512, DoP 256)
  • ARC (up to 192 kHz / 24 bit), TV input with CEC
  • I2S (up to 768 kHz / 32bit, DSD 512, DoP 256), PS Audio® compatible

MQA: decoder and renderer (on all digital inputs)
Analog inputs: RCA
Analog input Vmax: 9.5 V RMS (2 – 3.5 V RMS recommended)
Analogue input imp: 47 kΩ
Line outputs: balanced XLR; unbalanced RCA
Volume control: analogue with bypass option / digital for DAC operation only
Line Output level: @0 dBFS, 1 kHz sine 10 V RMS balanced, 5 V RMS unbalanced
Line Output level (RED): @0 dBFS, 1 kHz sine 4 V RMS balanced, 2 V RMS unbalanced
Frequency response  on analog inputs: 10 Hz – 200 kHz +/- 0.1 dB
DAC THD: -121 dB (0,00009 %); THD+N: -115 dB (unweighted)
Analog input THD: -123 dB @ 2 V RMS output level
Dyn. range analog: 127 dB (A-weighted)
Dyn. range digital: 122 dB (A-weighted)
DAC Output Crosstalk: -120 dB for 1 kHz, better than -100 dB for 20 Hz – 20 kHz
Line Output impedance: 22 Ω unbalanced
Line Output impedance: 44 Ω balanced

Power consumption:

  • 13 W idle (with amp powered off)
  • 18 W idle (with amp powered on)
  • 35 W max

Power inputs: 5.5/2.5 mm DC connector center positive proprietary FPL 4-pin DC connector (FPL) 22-30 VDC
Power adapter: 100-240 VAC to 24 VDC
Dimensions: 21.7 x 20.6 x 5 cm / 8.6″ x 8.1″ x 2.0″
(WxDxH)
Remote control: included
Weight: 1.90 kg / 4.19 lb
