EverSolo AMP-F2 Stereo/Mono Power Amplifier
EverSolo AMP-F2 Stereo/Mono Power Amplifier
Part Exchange / Trade In Quote?
Part Exchange / Trade In Quote?
The AMP-F2, developed in collaboration between the Starke Sound team and the Eversolo team, is based on the innovative INS600 module created by the Starke Sound team in California. It boasts a high sampling rate of up to 600KHz.
Simultaneously, it significantly reduces noise and enhances dynamic performance through the newly designed SAPS audio-specific switch power supply. It employs an efficient Class D amplification structure, coupled with optimized circuits to maximize audio quality.
The AMP-F2 is bridgeable, allowing flexible configuration for 2-channel or mono-channel setups when needed.
The AMP-F2 is equipped with Starke Sound's NS600 amplifier module, each channel can output a constant 250W RMS (40) @ 1% THD+N.
When bridged, it can support up to 450W RMS (22) with THD+N still below 1%. This ability to handle extremely low-impedance loads ensures ample energy even in large and challenging speaker setups, particularly during high-dynamic low-frequency outputs.
Accurate Sound - Perfect Experience
The NS600 module employs PurePath™ Ultra-HD technology and advanced integrated feedback design, featuring high-speed gate driver error correction functions.
This technology achieves ultra-low distortion across the entire audio frequency range, delivering perfect high-end audio quality.

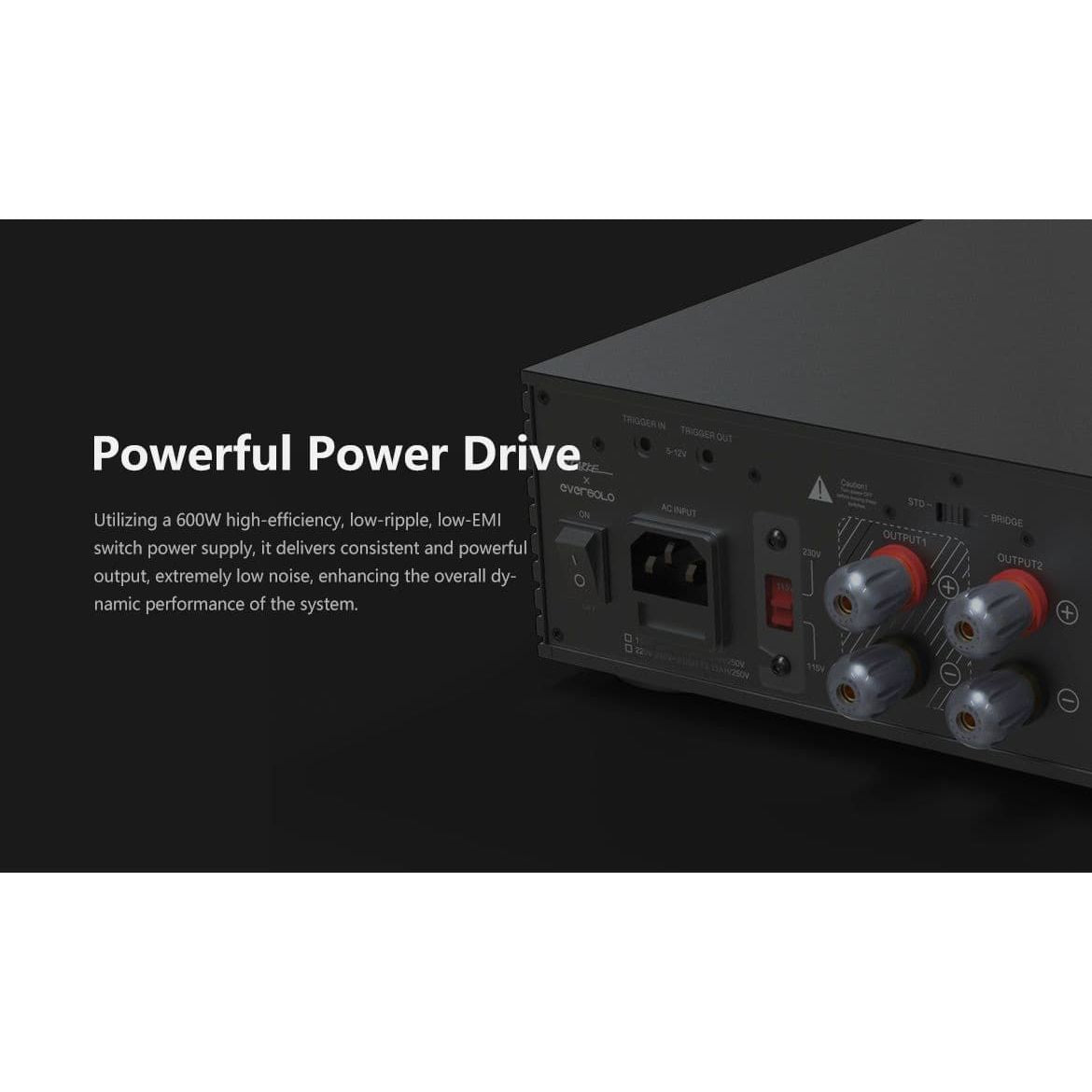

Utilizing a 600W high-efficiency, low-ripple, low-EMI switch power supply, it delivers consistent and powerful output, extremely low noise, enhancing the overall dynamic performance of the system.
The AMP-F2 has also been developed to offer the perfect system combination with DMP-A6 and DMP-A8.
Environmentally Friendly Low Power Consumption
AMP-F2 has an extremely low standby power (0.5W) and idle power consumption (14W), complying with the European Union ErP standards.
Complete self-protection and anti-interference design to avoid disturbances from various electrical environments.
Equipped with a powerful 12V trigger on the AMP-F2 amplifier, this 3.5mm mini-jack connection allows you to create a simple network between all Eversolo products and AMP-F2, ensuring a seamless power on and standby experience.
Once connected, it enables one Eversolo product to control the power supply of all other products in the system. When you power on a single device, the rest of the system will automatically turn on.
Output Power
280W RMS at 4Ω(1%THD,per channel)130W RMS at 8Ω(1%THD,per channel)
Bridge Mode Output Power
450W RMS at 2Ω(Bridge Mode)
Channel quantity
2 Channels - Stereo Mode
1 Channel - Bridge / Mono Mode
Amplifier type
Class D
Frequency Response
10Hz-20kHz -1.2dB
Maximum output current
16.5A(per channel)/ 33A(Bridge)
Signal-To-Noise Ratio(SNR)
>110dB,"A" weighted 4Ω 260W

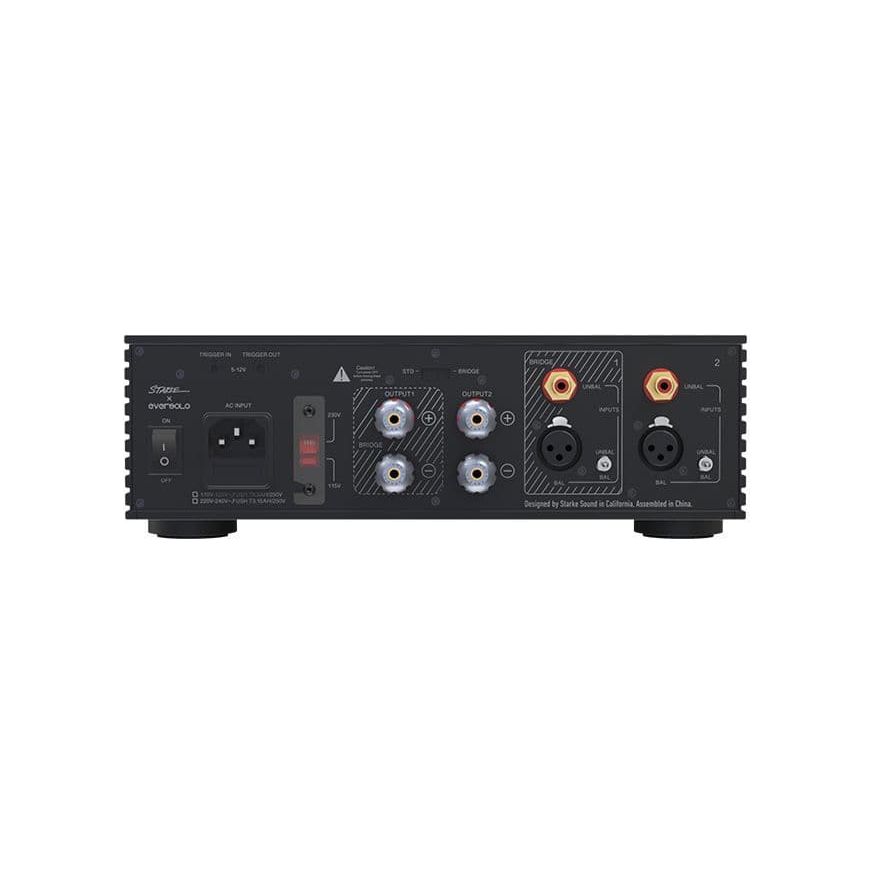

Input terminals
2-Channel RCA Input ;2-ChannelXLR Input
Input Impedance
RCA 10.5K ohm /XLR 21.7K ohm
Output terminals
2 pairs beryllium copper binding post,custom made by Starke Sound
Output Impedance
0.09 ohm 1kHz
Damping coefficient
100
Sizes
W 270 mm x D 228 mm x H 90 mm (w/ foot))
Weight
3.65Kg
