Chario

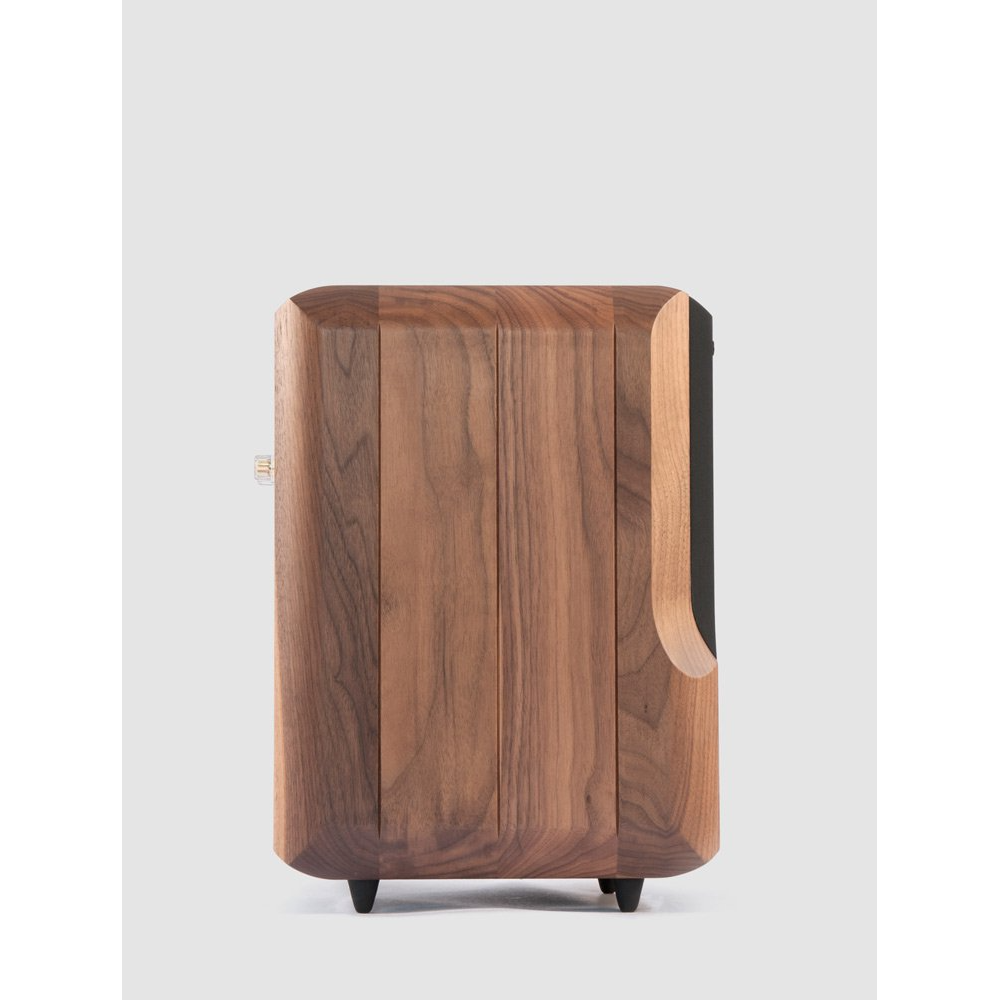

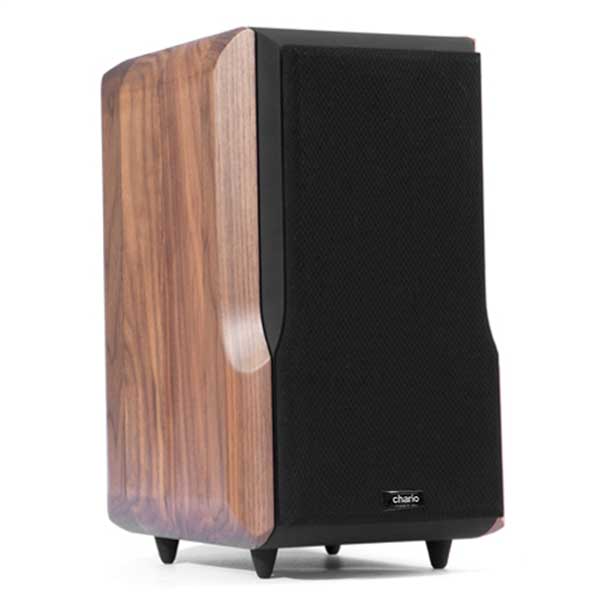

Chario Constellation Lynx Bookshelf Speaker

Chario Constellation Lynx Bookshelf Speaker

BUY WITH CONFIDENCE We are a 2 x Global Award Winning Retailer
Read More
FREE 5 YEAR WARRANTY INCLUDED FREE 5 year warranty included on this item
GET IT IN TIME FOR CHRISTMAS! Order now, have it in time for Christmas!
Regular price £1,989.00
Regular price Sale price £1,989.00
Sale Sold out
VAT included.
Stands

Part Exchange / Trade In Quote?

CONSTELLATION

LYNX MK2

2 way Bookshelf


The smallest bookshelf in the series, but expandable up to 67Hz. With a load volume of 1000cc, the Lynx will outperform many other larger and more expensive speakers. The Lynx is consistently regarded as better than its competitors in terms of sound production, fidelity and musicality.

The dynamics exceed most of the limitations of the standard bookshelf and are balanced and nuanced.

The customized rubber feet on the bottom of the cabinet structure helps to minimize vibrations by calibrating the surface-to-speaker distance to maximize the effectiveness of the low-frequency reflection system.

Details in Movement

DESIGN IS NOT JUST WHAT IT LOOKS LIKE AND FEELS LIKE. DESIGN IS HOW IT WORKS.

The pressure that pushes the air inside the reflex duct is extremely high. Consider the analogy of hydraulic lines that push water upward. As the salt loses fluid pressure, the jets lose speed and weaken. Hence the goal must be to retain the optimal pressure within the reflex duct to ensure a consistent strength in the acoustic wave, while avoiding the audible noise past pressure speeds of 130km/h. The tweeter with a soft dome of 38 mm in diameter, without coolant iron in the air gap, and a “waveguide” support, make it at the same time precise but soft, natural but resolute. Above all, it is so chaste that it can withstand high sound pressures and very low crossover frequencies of the crossover filter, for the benefit of a higher tonal cohesion between the two

Rigidity & Structure

The central part of the body is made of a resin and wood fiber material called HDF (High Density Fiberboard). Its mass and rigidity ensure the lowest vibration levels achievable with materials made from wood fibers.

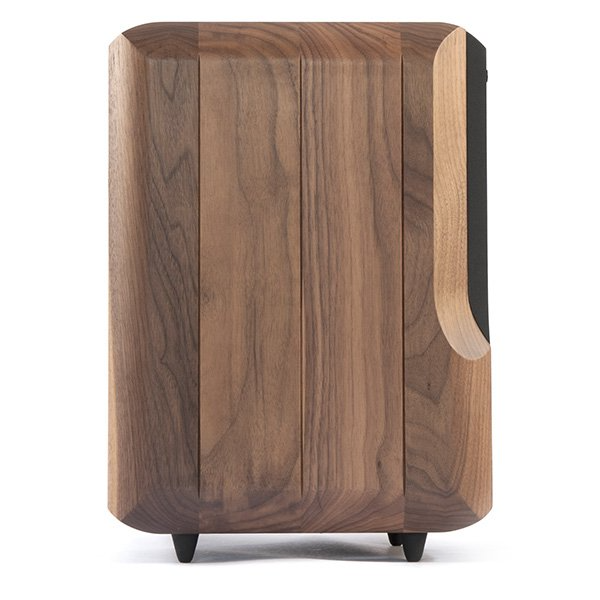

The side panels are made from solid wood.

This structure guarantees the necessary rigidity for vibration damping.

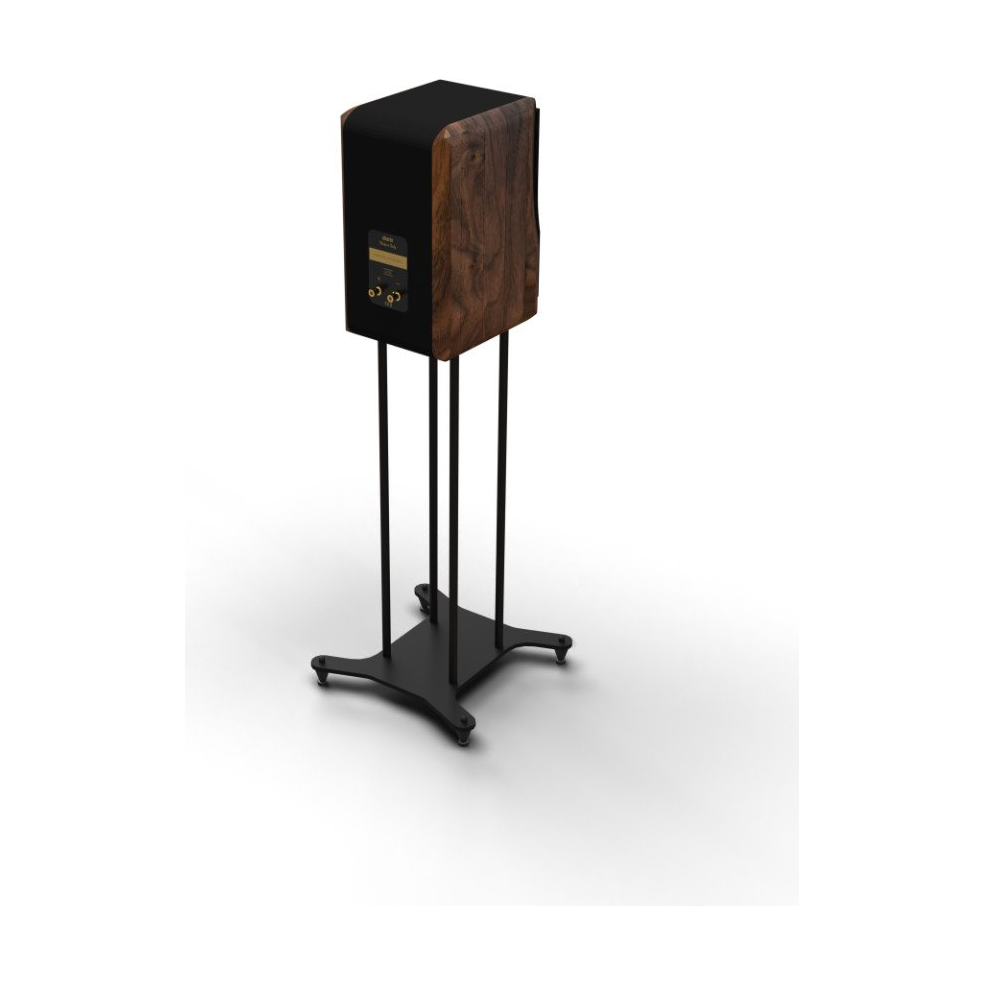

The stand is designed to place the speaker at ear level for optimal listening.

Acoustics / House

Constellation Mk2


This loudspeaker is designed to provide excellent performance even in typical home environments where acoustic performance is largely neglected.

The ideal listening environment should be at least 6 square meters and no more than 14 square meters.

Specifications

Low Frequency Load

  • Vented NRS

Configuration

  • 2 way Bookshelf

Drivers

  • 1 Tweeter 38 mm Soft Dome Wave Guide
  • 1 Woofer 130 mm Paper Compound

Sensitivity

  • 87 dB SPL / normalized to 1m / 2. 83 Vrms
  • decorrelated L/R
  • Pink Noise ITU-R BS 1116-1 compliant listening room

Low Frequency Cut Off

  • 67 Hz @ -3 dB referred to C4 WETS

Crossover Frequency

  • 1500 Hz - LKR 4th order

Rated Impedance

  • Modulus 4 Ω (min 3.0) Argument ± 36°

Cabinet & Dimensions

Cabinet

Solid walnut and HDF.

Size & Weight

360 x 200 x 260 mm (H x W x D) / 10 Kg

Acoustic Environment & Amplification

Speakers Orientation

Speakers should be tilted inward facing the listener

Listening Layout

A carpeted floor in front of the speakers is recommended

Side and Back Walls

Should be at least 1m away from the speaker front baffle

Suggested Amplifier

100 W/4 Ω Max Average Power
