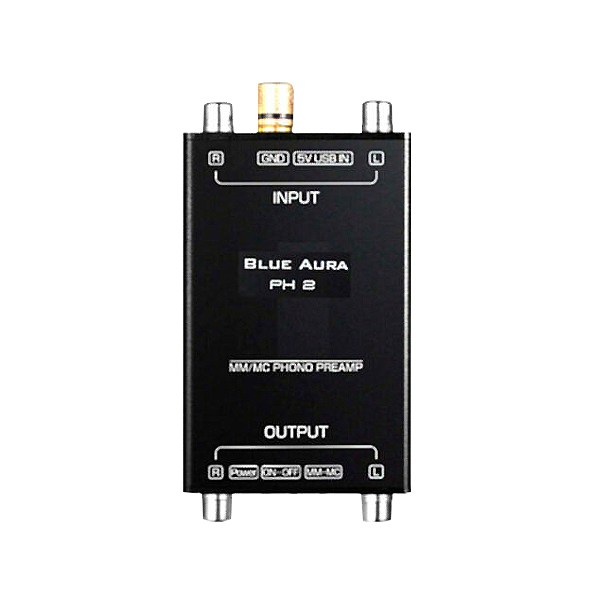

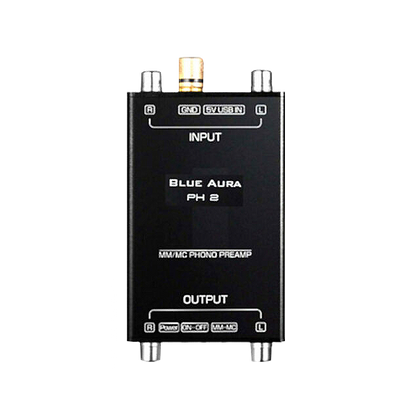

Blue Aura PH2 MM/MC Phonostage
Blue Aura PH2 MM/MC Phonostage
Couldn't load pickup availability
Part Exchange / Trade In Quote?
Part Exchange / Trade In Quote?
The Blackline PH2 is a high performance phono-pre-amplifier that supports both moving coil and moving magnet cartridges. Although some amplifiers have an integral phono stage, PH2 is a dedicated phono pre-amplifier that offers an audible sound upgrade once connected between your Turntable and Amplifier.
PH2 can easily fit into any existing audio system where a phono stage is required.
Even if your existing amplifier has a built in phono stage, PH2 can be connected to Line In and will offer an improved performance as most built in phono stages are not of high quality.

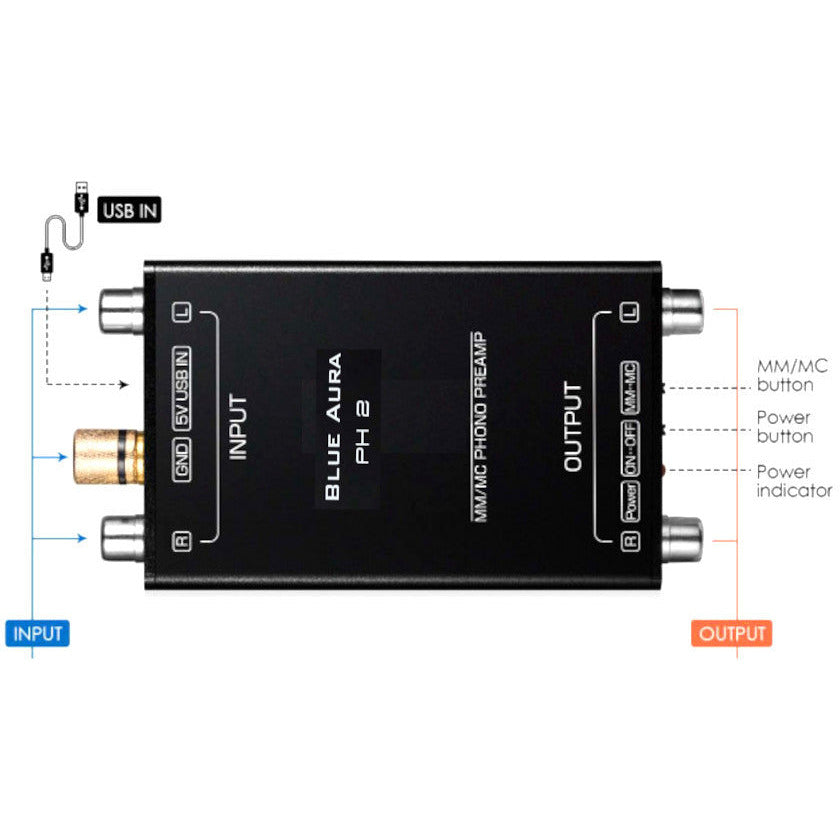

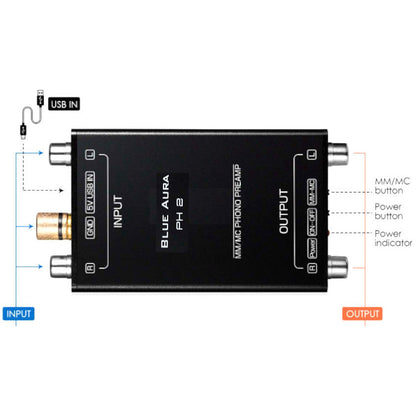

A new addition to our Blackline range, PH2 sits between your amplifier and Turntable and can be switched between moving coil and moving magnet cartridges.
Fundamentally, moving magnet cartridges have a higher level of amplification compared to moving coil type. The phono stage increases the signal level from the turntable cartridge to the amplifier. PH2 will provide a sound improvement over traditional inbuilt phono pre-amplifiers.
Specs
| M/M | M/C | |
| S/N Ratio (A Weighting) | 85 dB | 74 dB |
| Input Impedance | 47K Ω | 1K Ω |
| Output Impedance | 100 Ω | 100 Ω |
| Channel Balance | 2 dB | 2 dB |
| Distortion (5mV input) | <0.015% | <0.015% |
| Gain (1 KHz) | 40 dB | 55 dB |
| RIAA Accuracy | ± 2 dB | ± 2 dB |
| Max Input | 5 mV | 0.5 mV |
| Max Output | 600 mV | 200 mV |
| Sensitivity | 110 | 370 |
Input 5V USB
Dimensions: 95 x 58 x 14mm (L x W x H Net Weight75 g
Colour: Black
