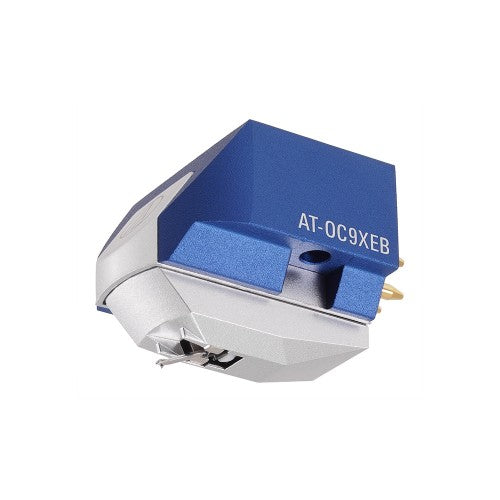

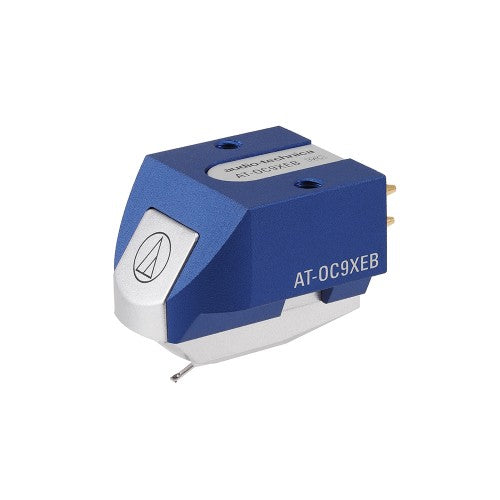

Audio Technica AT-OC9XEB Moving Coil Cartridge

Audio Technica AT-OC9XEB Moving Coil Cartridge

Why Buy From Kronos AV? Here are just a few reasons...
Read More
FREE 5 YEAR WARRANTY INCLUDED FREE 5 year warranty included on this item
Regular price £239.00
Regular price Sale price £239.00
Sale Sold out
VAT included.

Part Exchange / Trade In Quote?

Since its introduction more than 30 years ago, Audio-Technica’s pioneering moving coil OC9 cartridge series has been prized by demanding vinyl listeners and professional critics alike for its musical transparency, expression of sound and precise construction. An excellent affordable introduction to the characteristics that is moving coil.

  • Features bonded Elliptical stylus and aluminium cantilever
  • A neodymium magnet and pure iron yoke provides increased magnetic energy
  • Threaded inserts in the cartridge body enable the cartridge to be mounted on to the headshell or integral tonearm with just two screws – no nuts required
  • Aluminium body minimizes unwanted vibration for reduced resonance and a superior audio reproduction
  • Pure Copper by Ohno Continuous Casting process (PCOCC) is used for the coils to achieve the purest signal possible
Specs
Model AT-OC9XEB
Mounting 1/2” centers / Threaded inserts
Frequency Response 20 - 30,000 Hz
Body Material Aluminium
Channel Separation 25 dB (1 kHz)
Output Channel Balance 1.5 dB (1 kHz)
Output Voltage 0.32 mV (@ 1 kHz, 5 cm/sec)
Vertical Tracking Angle 20 degrees
Vertical Tracking Force Range 1.8 to 2.2 g (standard 2.0 g)
Stylus Shape Elliptical Bonded
Stylus Size 0.3 x 0.7 mil
Stylus Construction Bonded round shank
Cantilever Aluminium pipe
Coil Impedance 12 Ohms (1 kHz)
Coil Inductance 25 μH (1 kHz)
DC Resistance 12 Ohms
Static Compliance 20 x 10 – 6 cm / dyne
Dynamic Compliance 9 x 10 – 6 cm / dyne (100 Hz)
Terminal Pins Brass
Wire Used for Coil PCOCC (Copper by Ohno Continuous Casting process.)
Recommended Load Impedance Min 100 Ohms
Weight 7.6 g
Dimensions 17.3 (H) x 16.8 (W) x 25.7 (L) mm

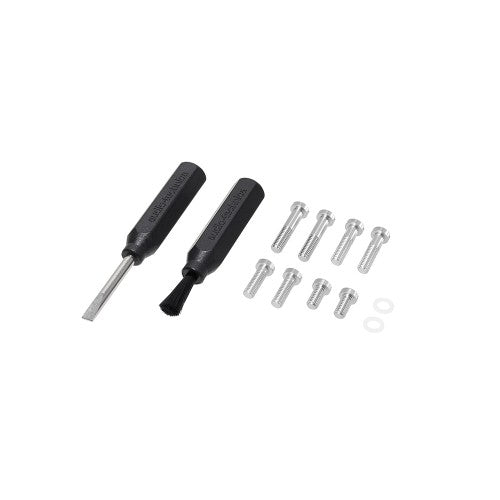

Accessories Included 1 non magnetic screw driver,
1 brush; 2 washers,
4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
1 plastic protector
