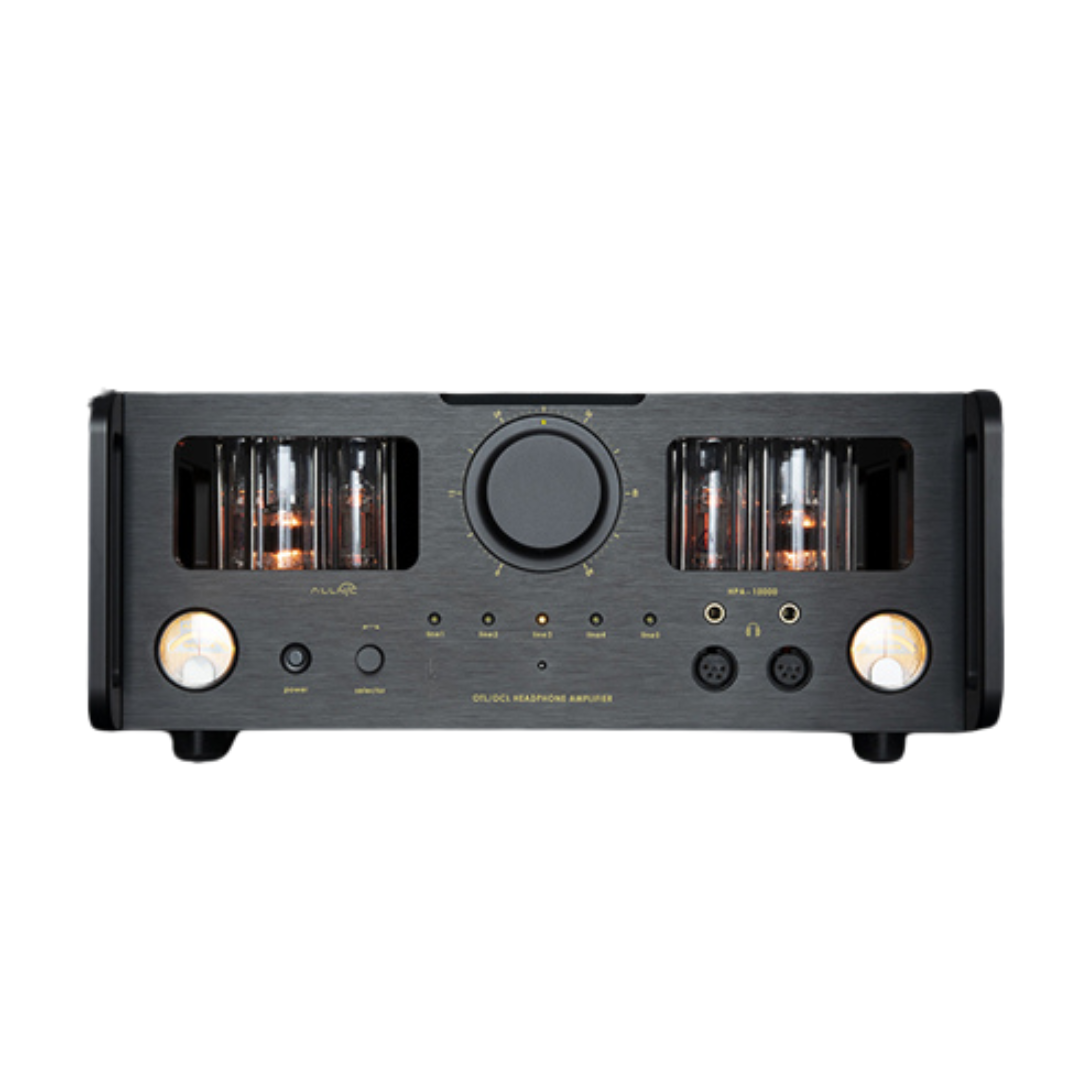

Allnic HPA-10000 Headphone Amplifier
Allnic HPA-10000 Headphone Amplifier
Couldn't load pickup availability
Part Exchange / Trade In Quote?
Part Exchange / Trade In Quote?
The HPA-10000 Features:
● True OTL/OCL (Output Transformer Less and Output Capacitor Less) Circuit. The OTL/OCL circuit eliminates the potential for any coloration or harmful time delay problems caused by transformer and capacitor coupling devices.
● Application of Advanced “Negative/Positive Feedback Cancellation Circuit. The cancellation circuit is the most critical factor for optimal operation of an OTL/OCL amplifier. Allnic has perfected this circuit design.
● High power output. Outputting 10W/50ohm, the HPA-10000 excels at driving low efficiency, planar-magnetic headphones.
● True 61-step “Constant Impedance Attenuator” (CIA). The HPA-10000 uses Allnic’s sophisticated, difficult to make, precision CIA, which we consider superior to any other type.
● Fully vibration-isolated first-stage tubes. The first stage tubes are fully isolated from noise-causing external vibrations by Allnic’s in-house designed and manufactured “liquid rubber” tube damper sockets.
● True OTL/OCL preamp output available.
● Remote controlled volume and input (5) selector.
SPECIFICATIONS FOR:
THE ALLNIC AUDIO HPA-10000 XL STEREO OTL/OCL HEADPHONE AMPLIFIER
| Inputs: | Three (3) pairs Unbalanced (RCA). Two (2) pairs Balanced (XLR) |
| Headphone Output: | Two (2) one-quarter inch (1/4”). Two (2) four-pin Balanced (XLR) |
| Line Preamp Output: | One(1) pair of RCA (+16dB) |
| Frequency Response: | 20Hz ~ 20KHz (±0dB, Flat) |
| Voltage Gain: | +28dB |
| Optimum Headphone Impedance: |
Fifteen (15) to six hundred (600) ohms |
| Output Wattage: | Ten (10) watts |
| Maximum Input Voltage: | Nine (9) volts RMS |
| THD (Total Harmonic Distortion): |
Less than 0.03% (1KHz, Output 1V) |
| S/ N Ratio: | -90db (CCIR, 1KHz) |
| Power Consumption: | 180 Watts |
| Tubes: | ● 7258 X 2– New Old Stock – first gain stage – no equivalents ● E-180CC X 2 – New Old Stock – Second gain stage – approximately electrically (not sonically) equivalent: CV8431, 7062, 5965, 12AV7, 6414, 6829 ● 6C19P X 8 – New Old Stock – equivalent: 6C19PI, 6S19P |
| Fuse: | AC 3A, 250V |
| Dimensions: | 430mm (~17 inches) x 390mm (~15 inches) x 185mm (~7.2 inches) (W x D x H) |
| Weight Unpacked: Packaged: |
15.4 Kg (~33 lbs) 18 Kg (~39 lbs) |
