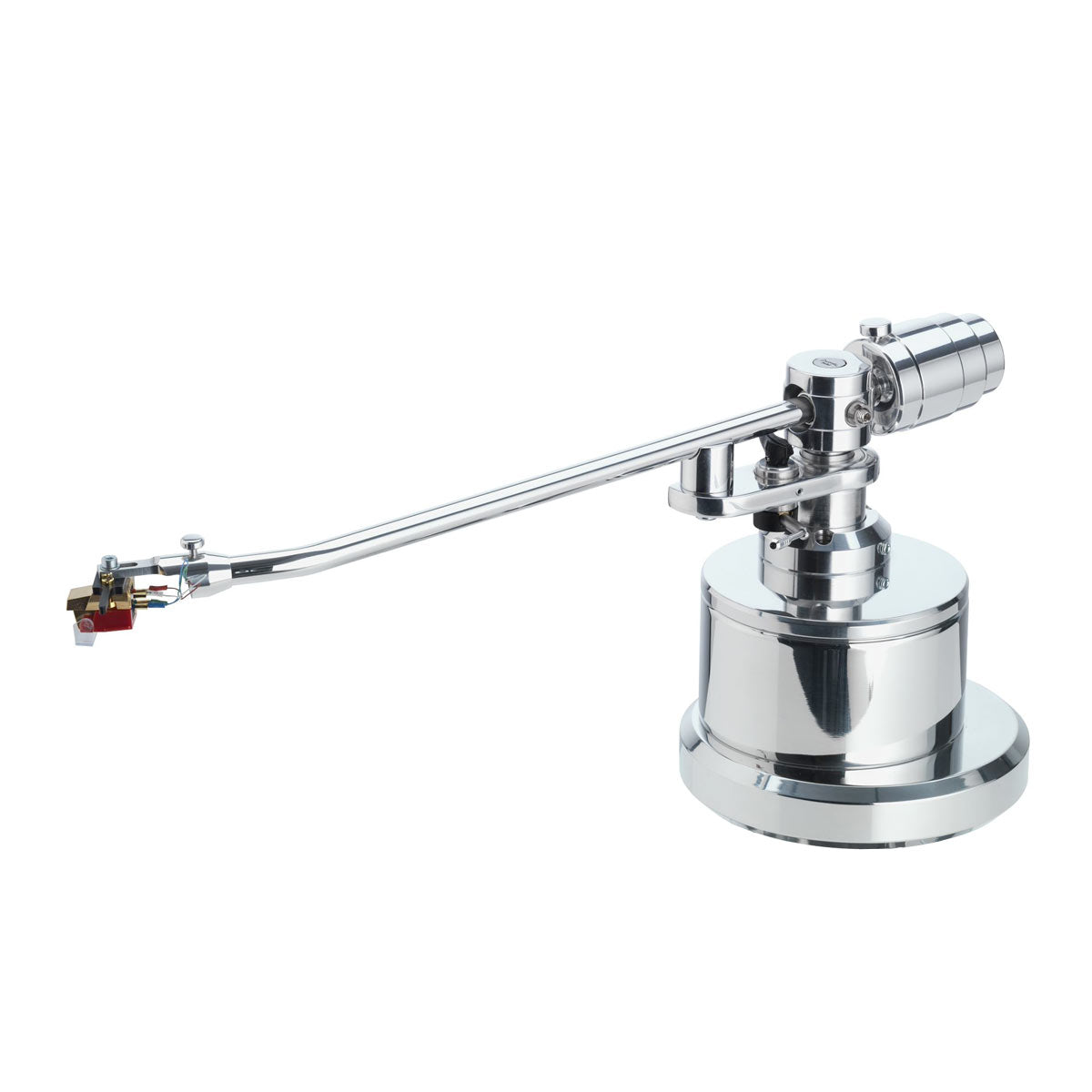

Acoustic Solid 313 12" Tonearm

The Acoustic Solid WTB 313 12" Tonearm: Precision and Elegance

The WTB 313 12" is a high-quality tonearm designed to meet the most demanding standards for sound quality and craftsmanship. Its core features include precision-mounted bearings that provide exceptional stability and accuracy in both horizontal and vertical movements. This ensures a detailed and dynamic reproduction of your vinyl records.

Premium Materials and Construction

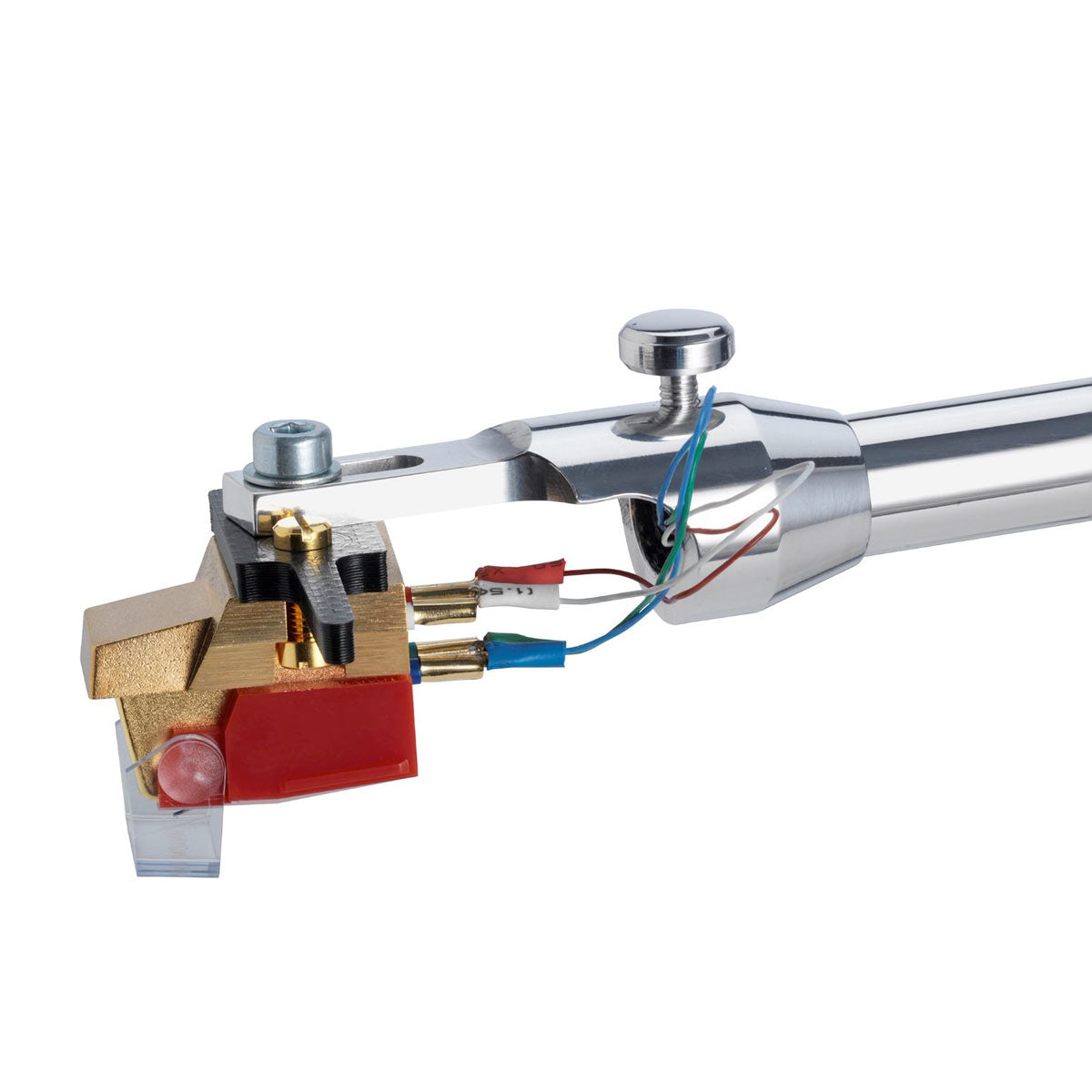

The tonearm tube is crafted from sturdy aircraft-grade aluminum and meticulously polished to a high-gloss finish. The headshell and all other components are also made from this premium material, adding to the tonearm's elegant appearance. The combination of precision and aesthetics makes the WTB 313 12" a beautiful addition to any high-fidelity system.

Key Technical Features

• Precision Bearings: The horizontally and vertically mounted bearings, equipped with Swiss precision steel ball bearings, guarantee precise and smooth movement of the tonearm.
• Fine Adjustments: The bearing play can be finely adjusted both horizontally and vertically to accommodate various cartridges and achieve optimal performance.
• Offset Angle: The 17.3° offset angle ensures accurate tracking and reduces distortion.
• Flexibility: The tonearm can be used with cartridges weighing between 8 and 25 grams.
• Signal Cable: The continuous signal cable with RCA connectors provides a high-quality connection. An XLR cable is available upon request.

Scope of Delivery

The WTB 313 12" tonearm includes all necessary components for installation and use.

The Acoustic Solid WTB 313 12" is an exceptional tonearm that combines precision engineering, premium materials, and elegant design. It's the ideal choice for discerning vinyl enthusiasts who demand the highest levels of sound quality and performance.

Additional Information

• Construction principle: Radial tonearm, horizontally and vertically mounted on Swiss precision steel ball bearings.
• Bearing play: Fine-adjustable both horizontally and vertically.
• Side dampers: Hand-polished high-gloss aircraft-grade aluminum tube, as well as headshell and all attachments.
• Offset angle: 17.3° angular distance between the tonearm axis and the pickup system.
• Pickup weight: 8 – 25g.

• Mounting distance: 287 mm distance between platter axis and tonearm pivot point.
• Effective length: 302.9 mm distance between tonearm pivot point and pickup tip.
• Overhang: 15.9 mm distance between pickup tip and platter axis.
• Signal cable: Continuously assembled with RCA plugs without interruption, XLR possible on request.
• Tonearm mounting hole: 30 mm.
• Arm weight: 330 g (without weight).
• Counterweight: 120g.
• Total weight: 450g.
• Weight: 0.45kg.
• Size: 47 × 37 × 19 cm.
• Material: Aluminum.

Scope of delivery: 1 tonearm WTB 313 12"
