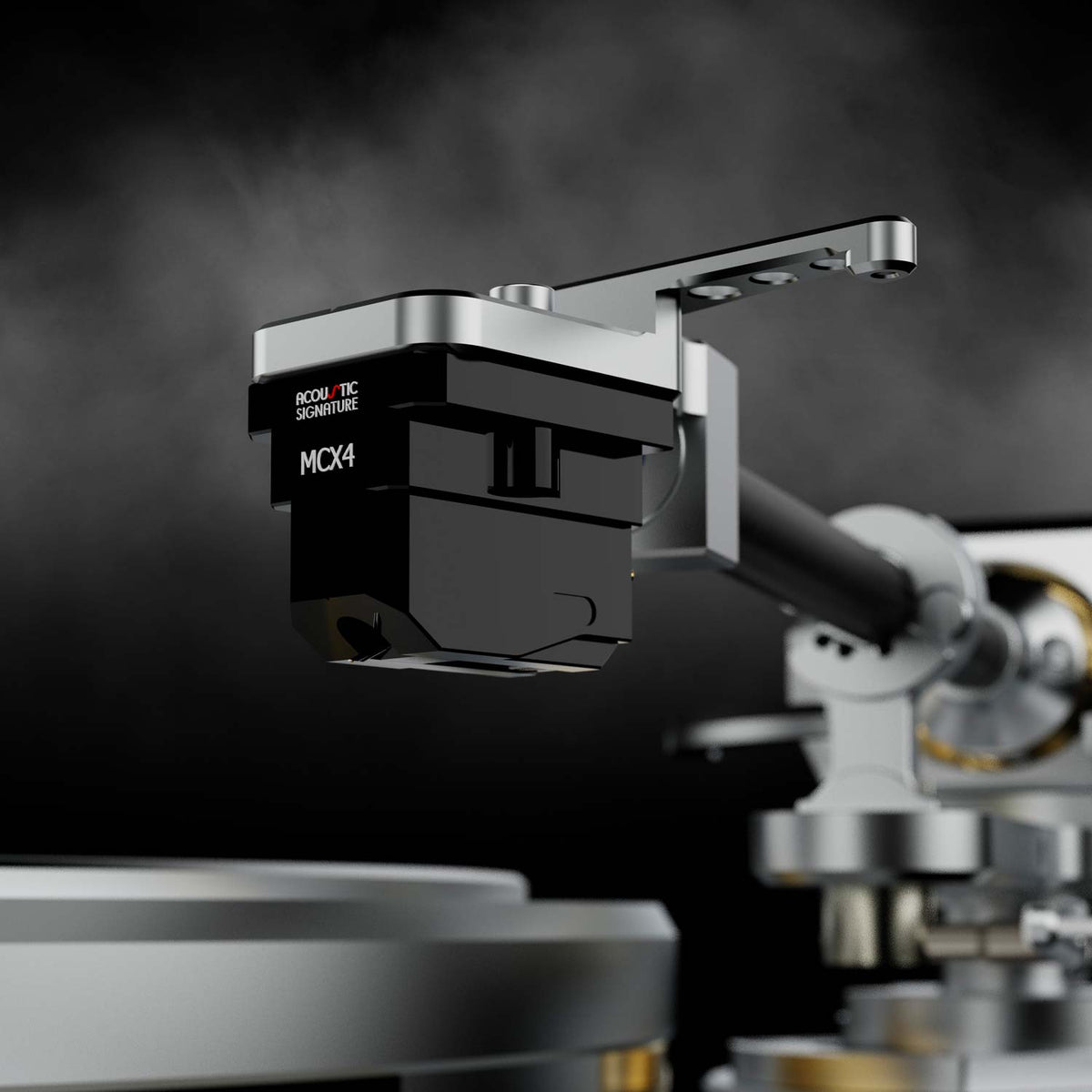

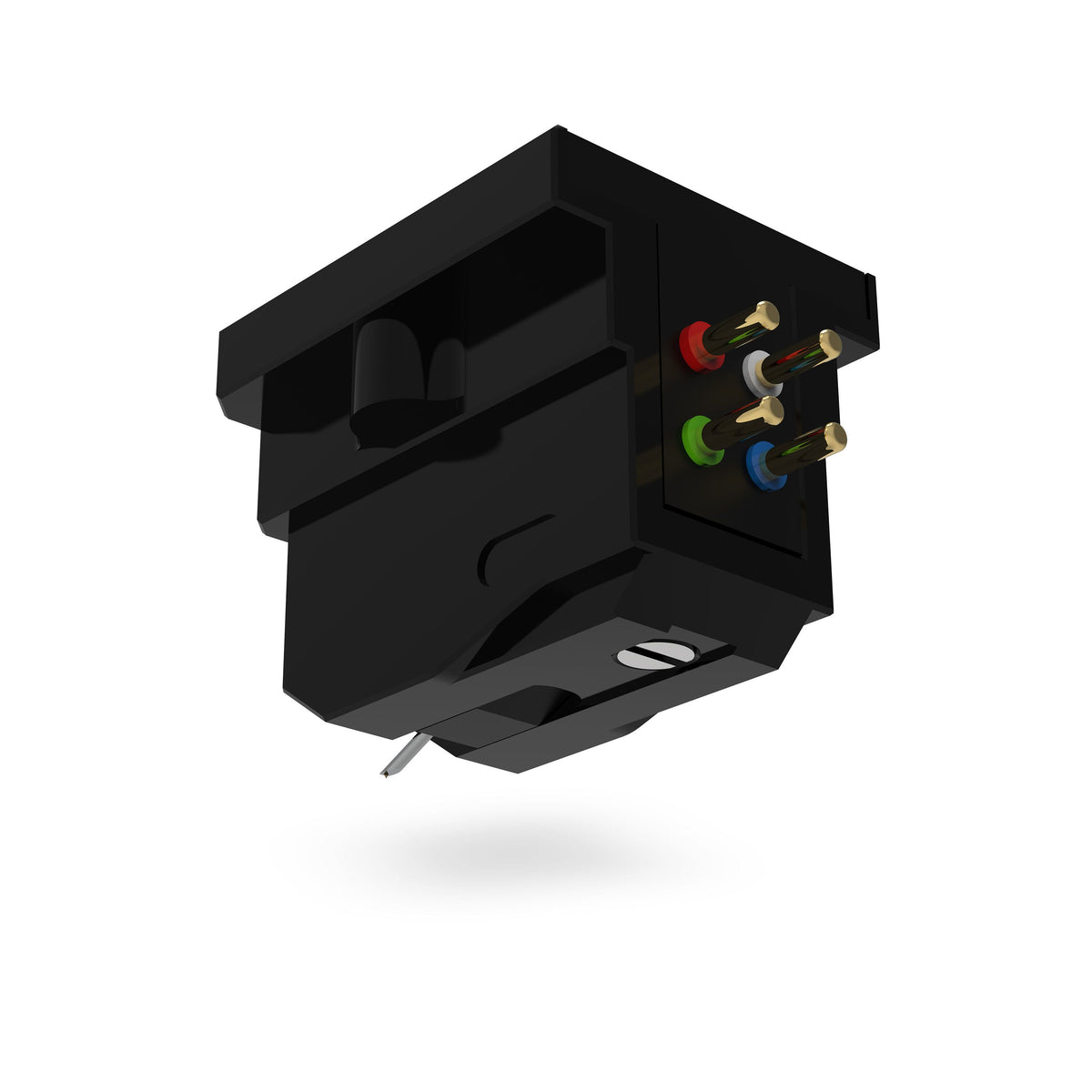

The Acoustic Signature MCX-4 moving-coil cartridge is designed to extract the fine information pressed into a vinyl record. It combines a nude shibata stylus with gold-plated oxygen-free copper coils and a precision-engineered aluminium body.
Stylus and motor design
The Nude Shibata stylus profile is paired with a low-output moving-coil generator and an aluminium chassis shaped for controlled resonance. This cartridge requires a suitable MC phono input or an appropriate step-up solution.
Technical specifications
- Cartridge type: Moving Coil (MC)
- Nominal output: 0.30mV at 1kHz / 5cm per second
- Stylus profile: Nude Shibata
- Coil material: Gold-plated oxygen-free copper
- Weight: 12.6g
- DC resistance: 5Ω
- Recommended tracking force: 2.3g
- Manufacturer recommended load: approximately 100Ω
- Manufacturer quoted tracking force range: 2.1–2.5g
Compatibility and installation
Correct overhang, alignment, anti-skating and tonearm effective mass are important. Check phono-stage gain/loading suitability and follow the supplied manufacturer's manual for setup and care. Kronos AV can advise on matching the MCX-4 with a suitable turntable and tonearm.
