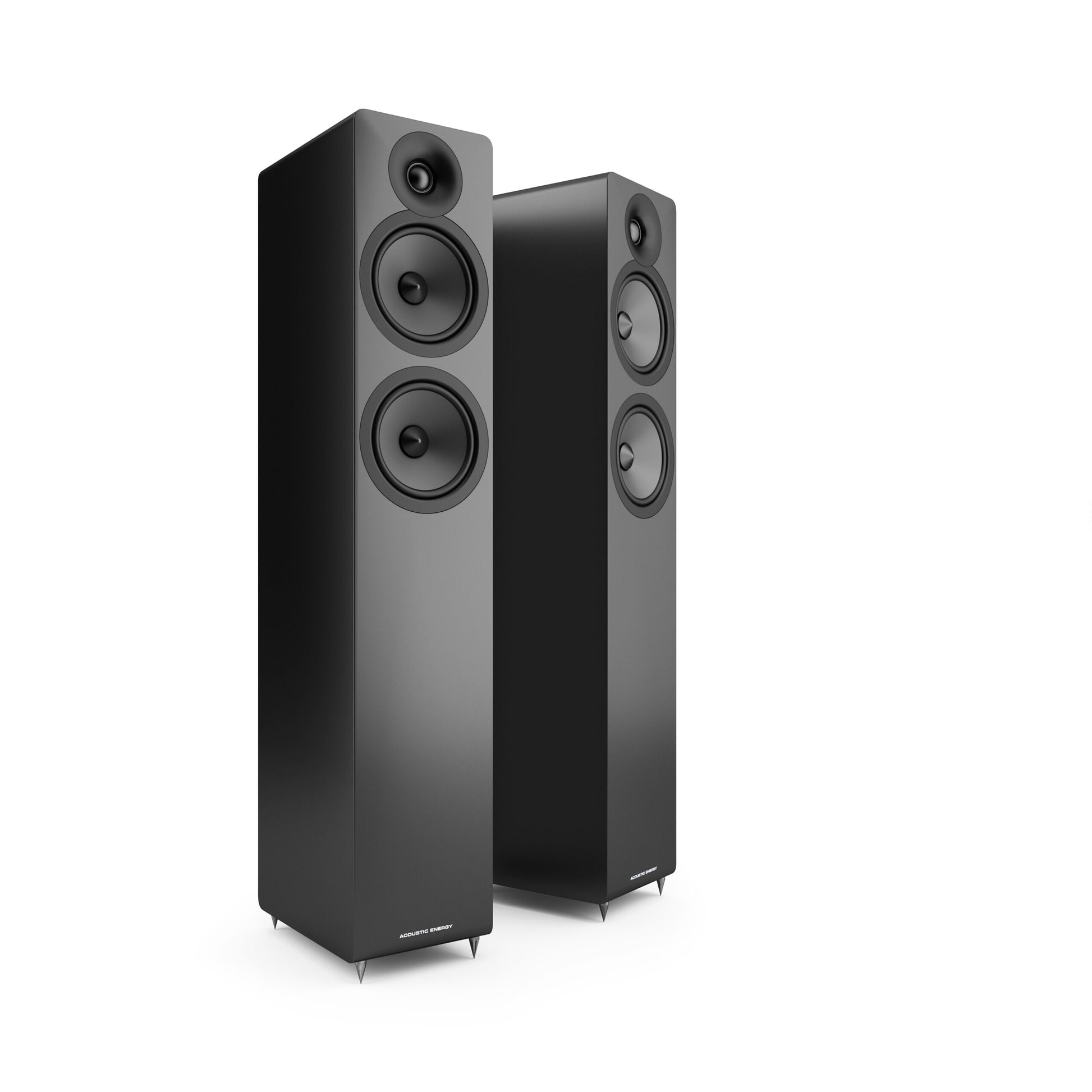

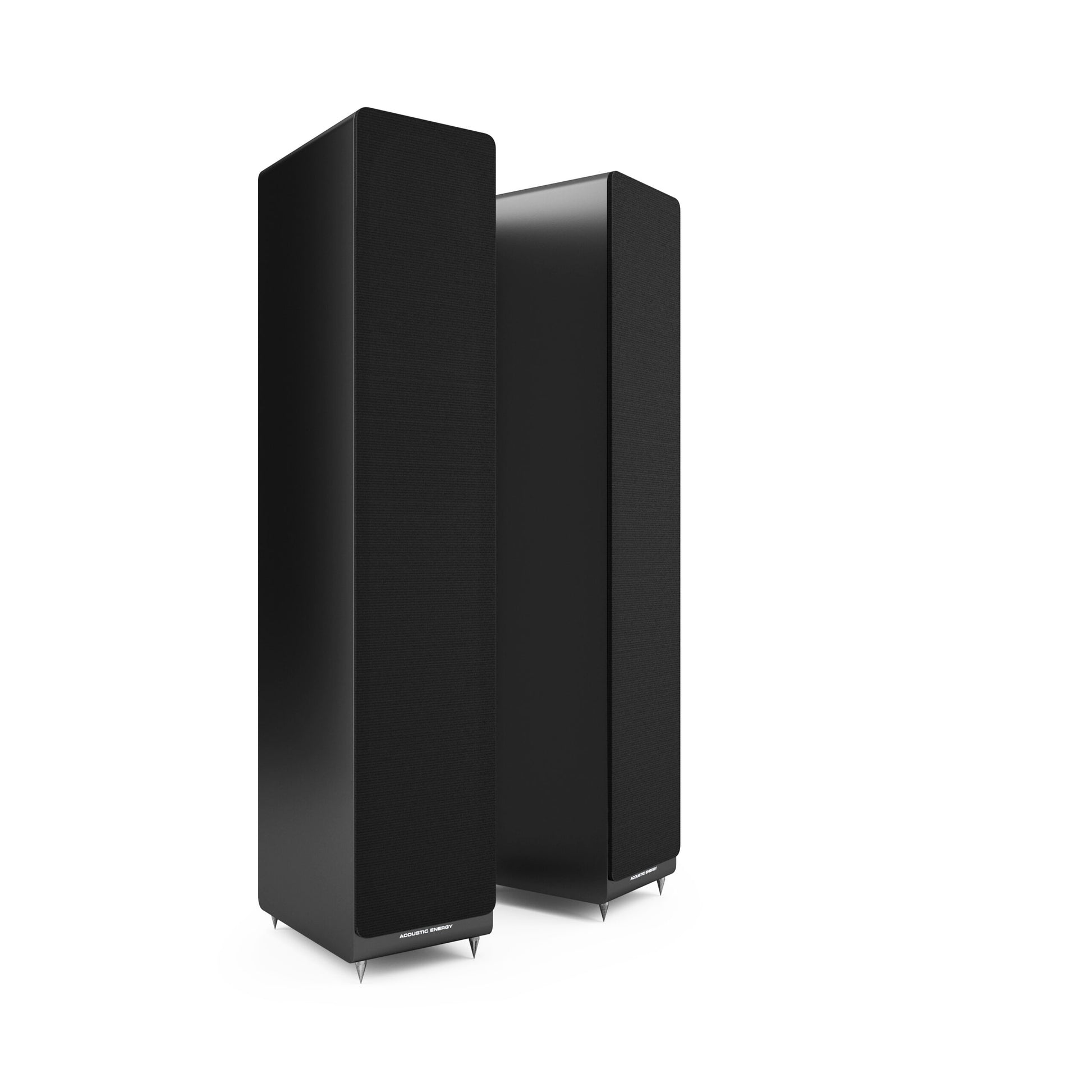

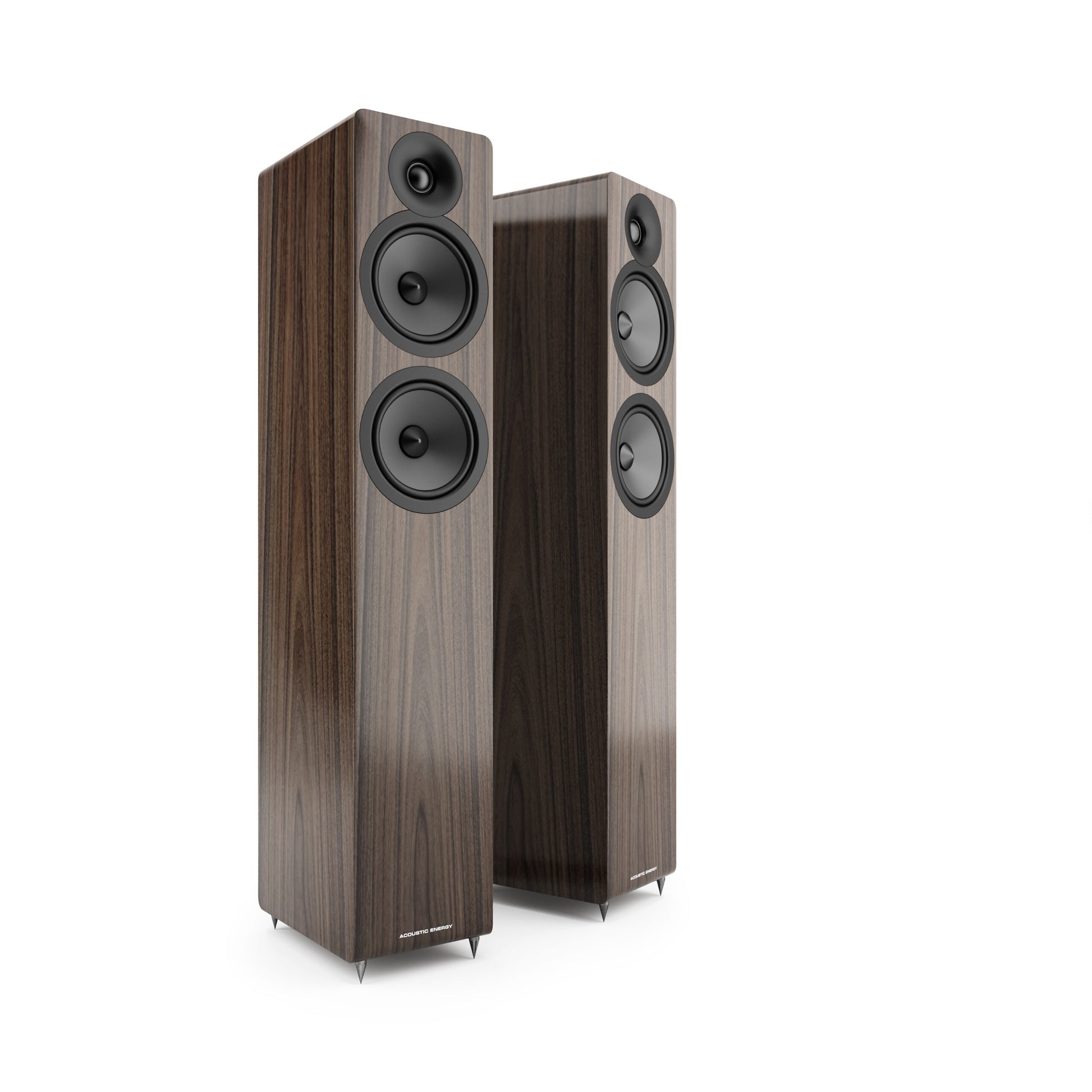

The new AE109 is designed to offer effortless, room filling performance from a slimline floorstanding loudspeaker in much the same way the world acclaimed original AE109 did 20 years ago. To do this, two 4 inch drivers utilising an ultra high force motor system are used in partnership with a 28mm soft dome tweeter. The 2.5 way crossover features a unique topology allowing
integration and power handling previously unachievable from this type of speaker. Particular attention has been paid to the phase and time alignment for the most cohesive performance possible.

Like the AE100 standmount speaker, the driver and crossover are housed within a substantial 18mm MDF cabinet that takes styling cues from the award winning Reference Series. The result is an audio product with clean and uncluttered lines that can still deliver the thrilling and powerful presentation that Acoustic Energy owners have come to expect.

Reviews

Hi-Fi Choice – AE109 – July 2017 – Hi Res

Hi-Fi Choice – AE109 Speaker Feature – September 2017

Hi-Fi World – AE109 – March 2018

Specs

Drive Unit: 4″ paper cone
Tweeter: 1″ dome
Frequency Range: 40Hz -35kHz
Sensitivity: 89dB
Peak SBL: 113dB
Power Handling: 150w
Crossover Frequency: 2.3kHz
Impedance: 4ohms
Design: 2.5 way

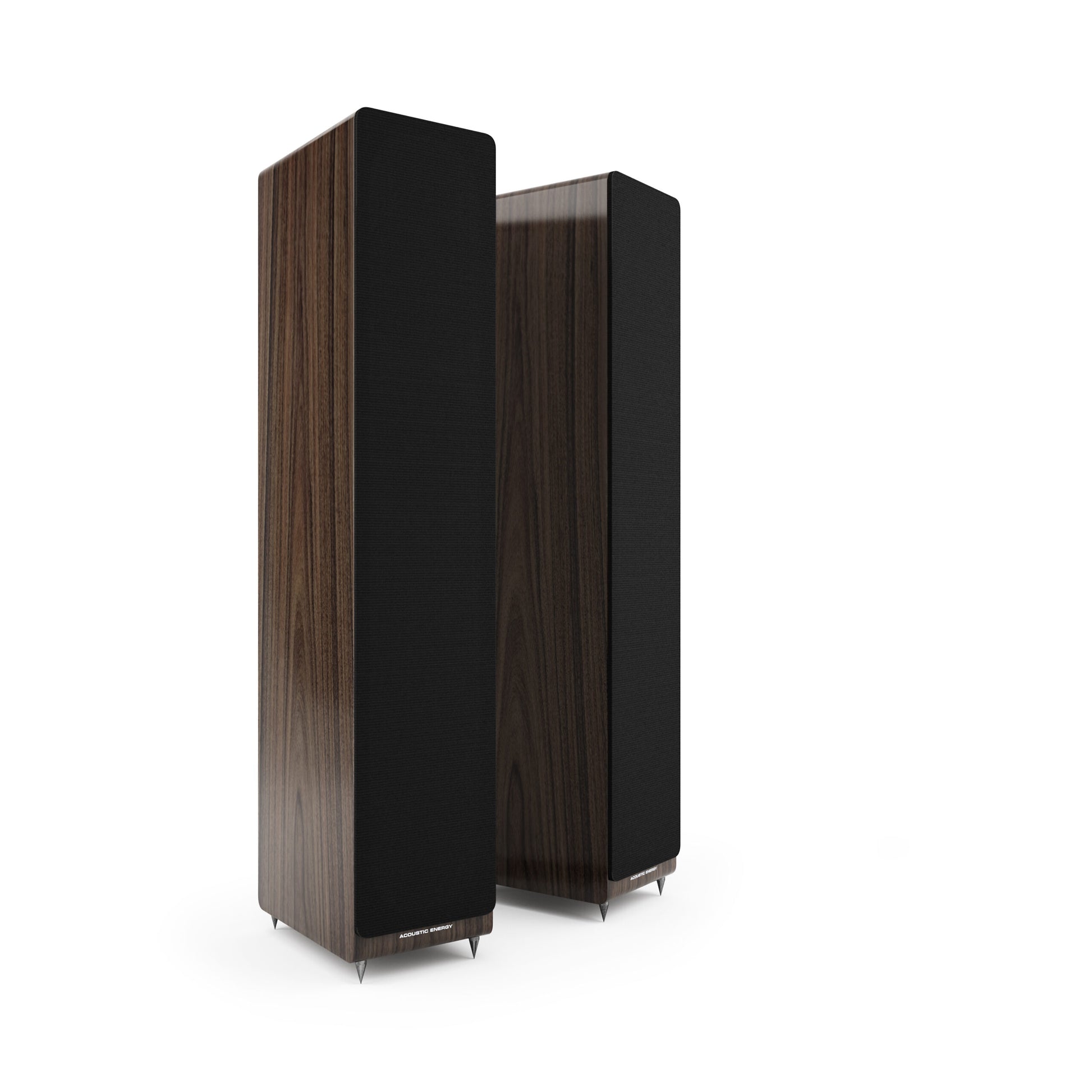

Finishes: Walnut vinyl veneer
Dimensions: 800 x 160 x 240 (HxWxD)
