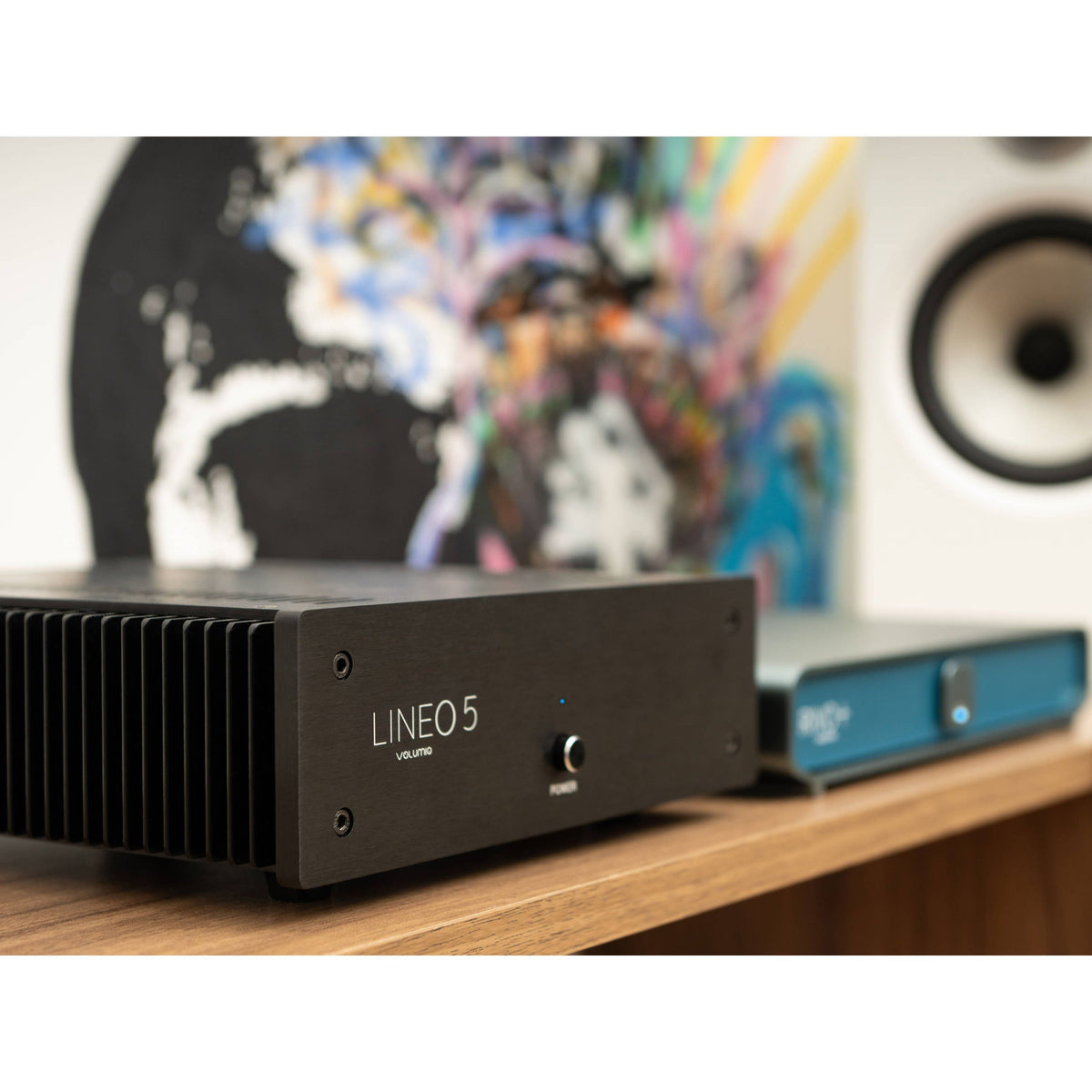

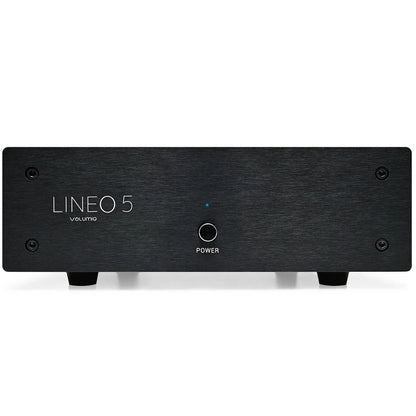

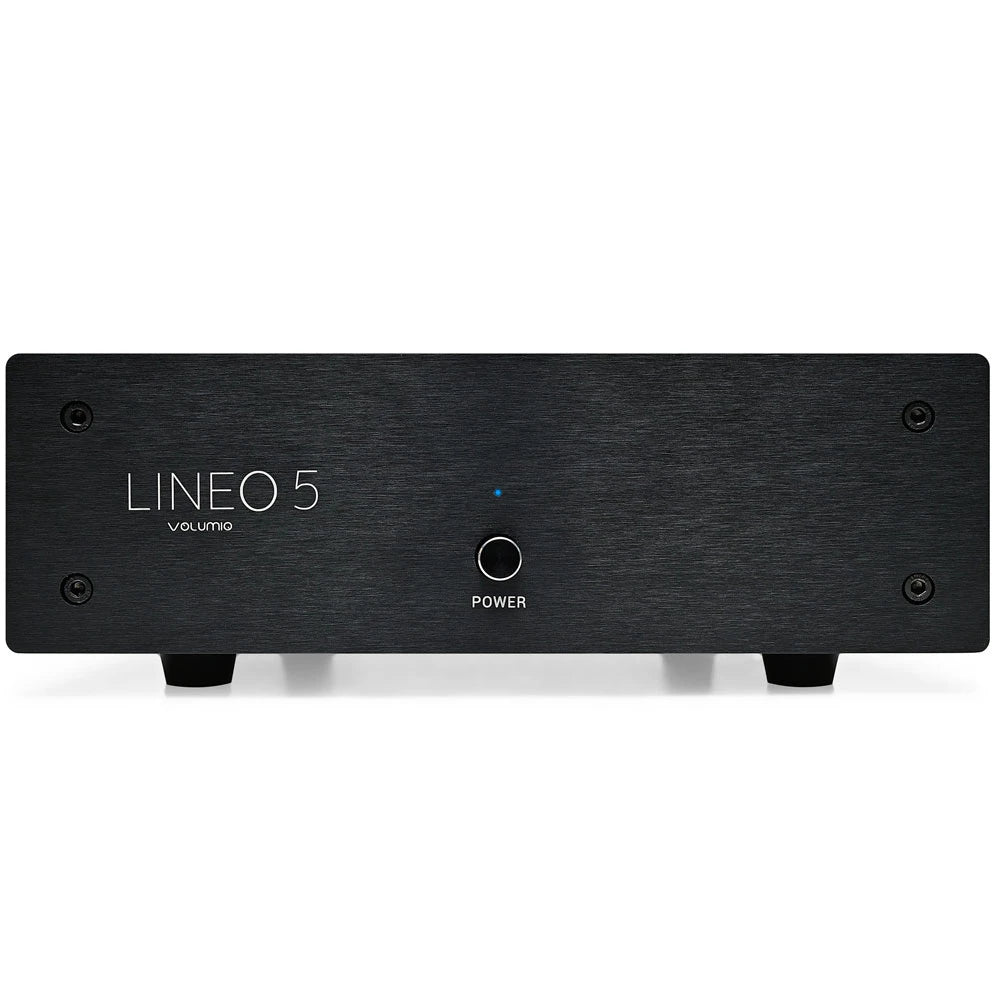

The Lineo5 is designed with an emphasis on honesty and simplicity, featuring a sleek aluminum chassis with side-facing heatsinks provides efficient heat dissipation for dependable operation.
The straightforward, no-nonsense design makes it a valuable addition for audiophiles seeking stability sound clarity and fidelity.
Ensured Stability
Delivering stable, clean power for high-end DACs, headphone amps, and network streamers. Say goodbye to noisy switch-mode power supplies.
Featuring premium transformers, capacitors, and voltage regulators, ensuring reliable performance and durability.
Included in the box
Volumio Lineo 5
4 AC-cable (EU, US, UK, AU/NZ)
1 Bipolar to DC barrel jack cable (barrel jack 5.5mm/2.1mm; output polarity→tip positive)
Hardware specifications
INPUT VOLTAGE: 110V-120V / 60Hz (AC) | 220V-240V / 50Hz (AC)
OUTPUT VOLTAGE: 5 V DC
OUTPUT CURRENT: 5 A (max)
POWER CONSUMPTION: 90 W (max)
TRANSFORMER TYPE: Toroidal
DESIGN: Linear regulation
PROTECTIONS: Easy to access fuse
FILTERING: Reduced ripple and interference

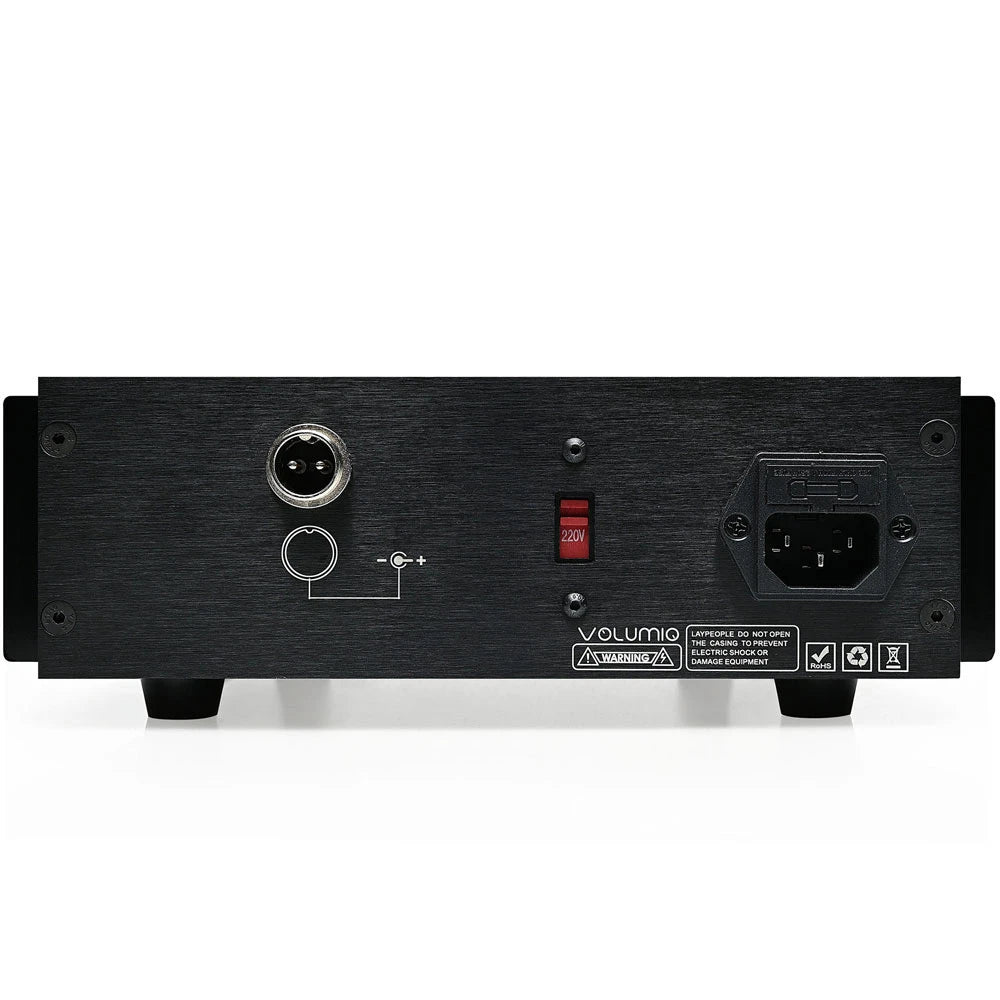

CONNECTORS: GX12 (2 pins)
OUTPUT POWER CORD: GX12 (2 pins) to barrel jack (5.5x2.1mm)
OUTPUT POLARITY: Tip positive
Design
PRODUCT DIMENSIONS: 27 × 22.7 × 7.7 (H) cm
PRODUCT WEIGHT: 4 kg
