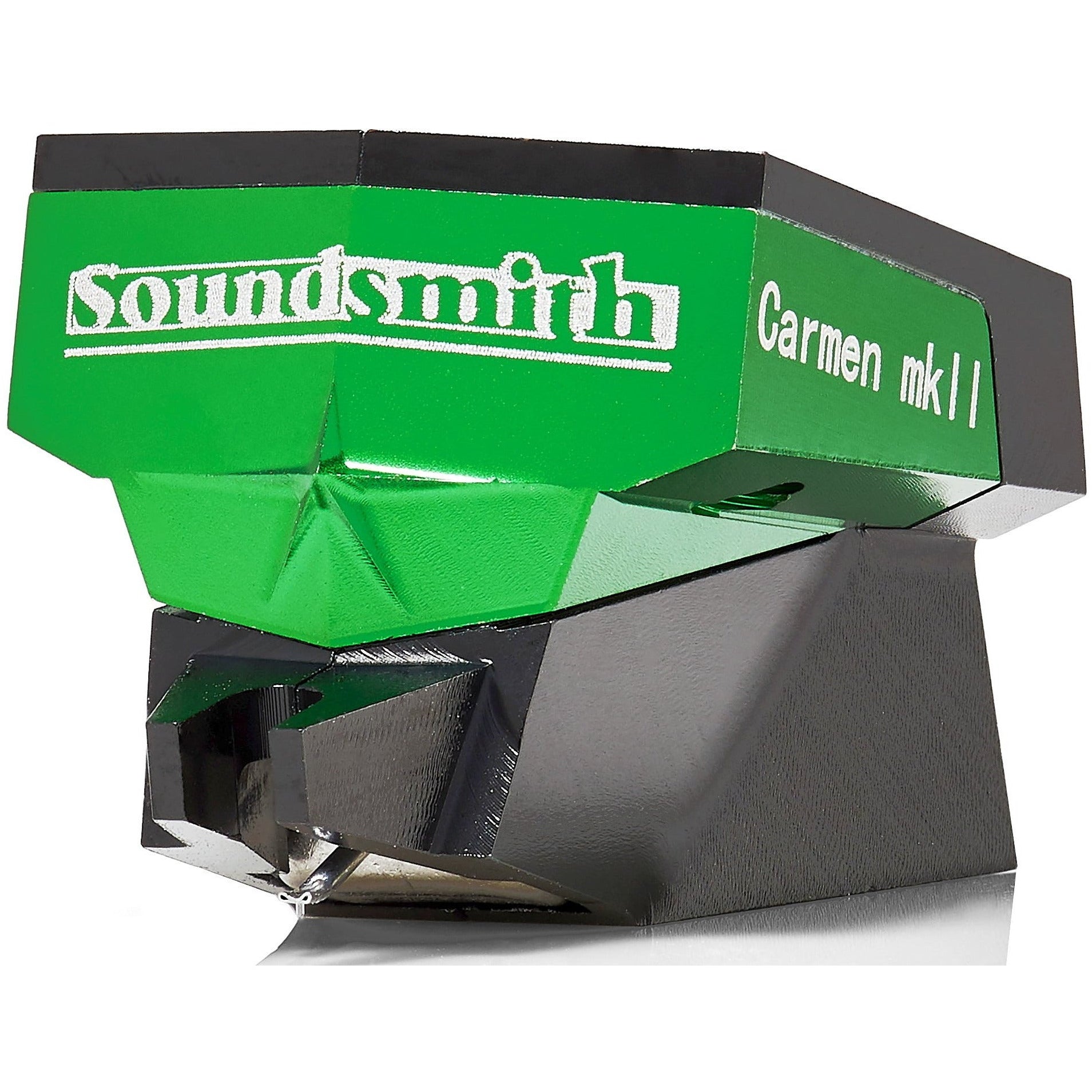

Soundsmith Carmen MKII Cartridge

Soundsmith Carmen MKII Cartridge

BUY WITH CONFIDENCE We are a 3 x Global Award Winning Retailer
Read More
FREE 6 YEAR WARRANTY INCLUDED FREE 6 year warranty included on this item
PLATINUM CLUB MEMBER - JOIN FREE! JOIN OUR PLATINUM CLUB TO GET OFFERS, LATEST NEWS, BUNDLE DEALS AND MORE...
Delivery Information All the details you need to know about shipping your order!
Learn More
Regular price $ 21,391.00
Regular price Sale price $ 21,391.00
Sale Sold out

Part Exchange / Trade In Quote?

Created out of the desire to make a very high performance design at an affordable price, the Carmen mk II was crafted to have unparalleled purity of tone and ultra-smooth presentation. Just slightly lush with a well-developed midrange, the Carmen is surprisingly pleasing and will seduce you into long, late listening sessions. The Carmen features a 2 year warranty to the original owner.



The stylus used is a large part of what makes it special; an ultra-low mass occlusion free nude diamond cut and polished into a true hyper-elliptical shape. The combination of low tip mass and the Fixed Coil design gives the Carmen a tremendous resolution advantage over MC designs selling for more than twice the price. Housed in a handmade solid Ebony case, the Carmen delivers.

Also available in dual-coil mono.

Specs

Type: • Fixed Coil / Moving Iron
Mount: • Standard ½”
Stylus: • Elliptical Nude, 0.12 mm square
Radius of Curvature: • 6 x 17 µm
Cantilever: • Aluminum Alloy
Recommended Tracking Force: • 1.3 - 1.6 g Standard (Medium Compliance)
• 1.0 - 1.2 g (Special Order High Compliance)
Effective Tip Mass: • 0.35 mg
Compliance: • 22 µm/mN (Medium Compliance)
• 28 µm/mN (High Compliance)
Frequence Response: • 15 - 45,000 Hz ± 2.0 dB
Channel Separation @ 1000 Hz: • > 26 dB
• N/A (Mono version)
Channel Separation @ 50 - 15,000 Hz: • > 20 dB
• N/A (Mono version)
Channel Difference: • < 1.6 dB
• < 1.0 dB (Mono version)
Output Voltage @ 5cm/sec: • > 2.12 mV (HIGH)
DC Resistance (DCR): • 680Ω
Coil Inductance per channel: • 190 mH
Suggested Preamp Gain: • 38 - 44 dB
Cartridge Weight: • 9.20 g (ES series)
Recommended Load Resistance: • ≥ 47kΩ
Recommended Load Capacitance: • n/a
