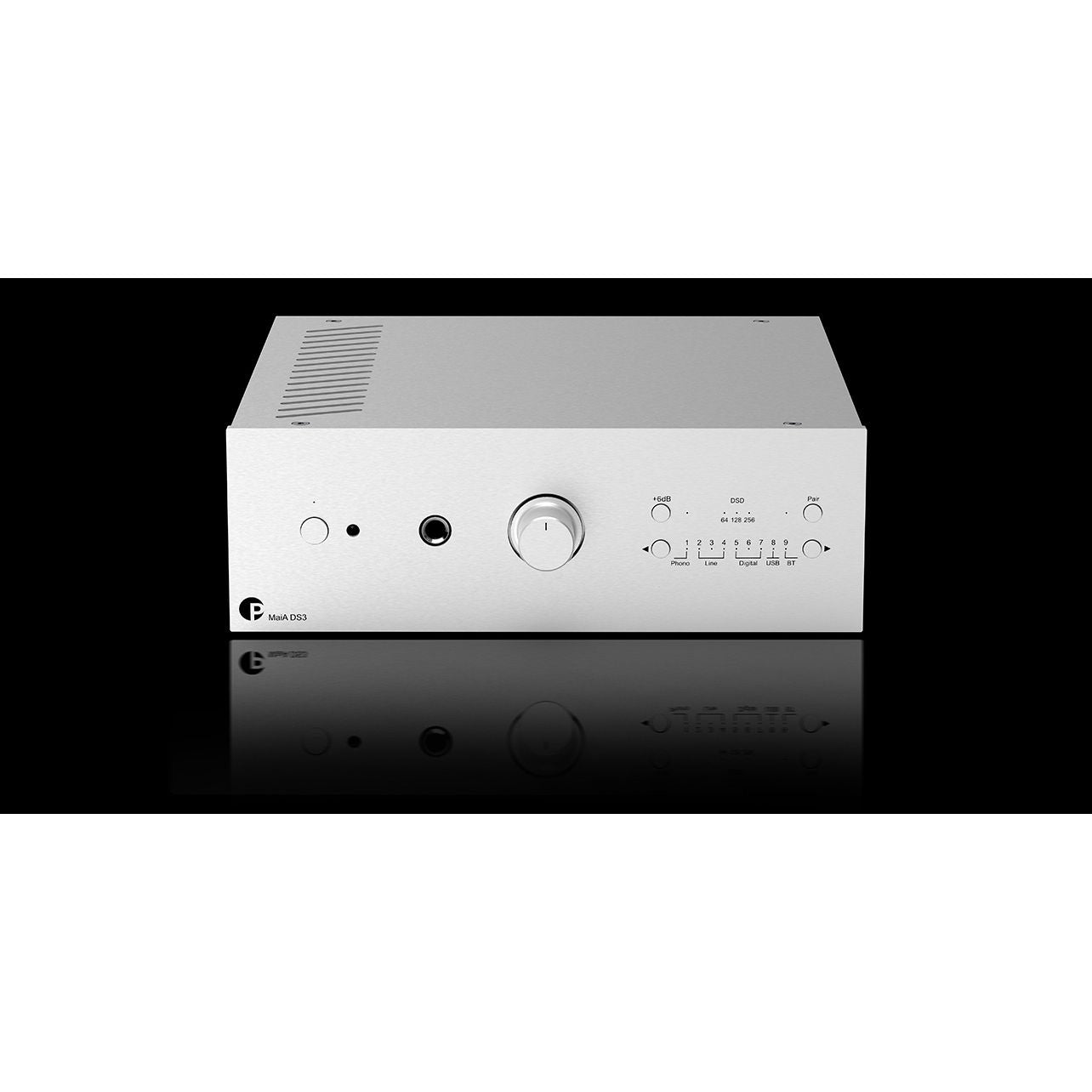

The MaiA DS3 (My audio integrated Amplifier) is a reworked all-in-one compact amplifier solution. It combines both analogue and digital inputs to suit almost any source that you can throw its way.
MaiA DS3
The MaiA DS3 (My audio integrated Amplifier) is a reworked all-in-one compact amplifier solution. It combines both analogue and digital inputs to suit almost any source that you can throw its way. With 140 watts per channel at 4 ohms the MaiA DS3 makes it a breeze to power your favourite speakers.
A Stereo Integrated Amplifier With 9 Inputs

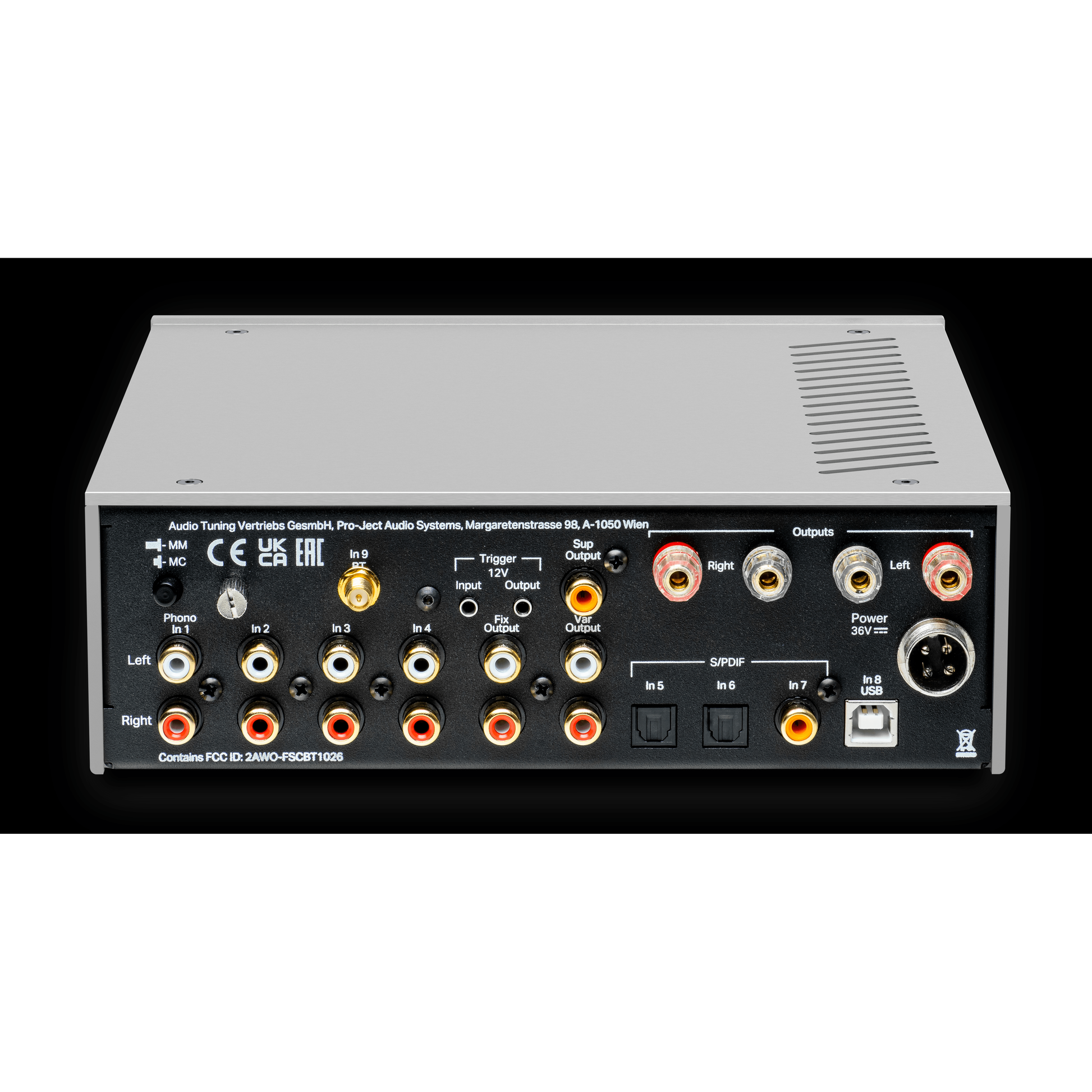

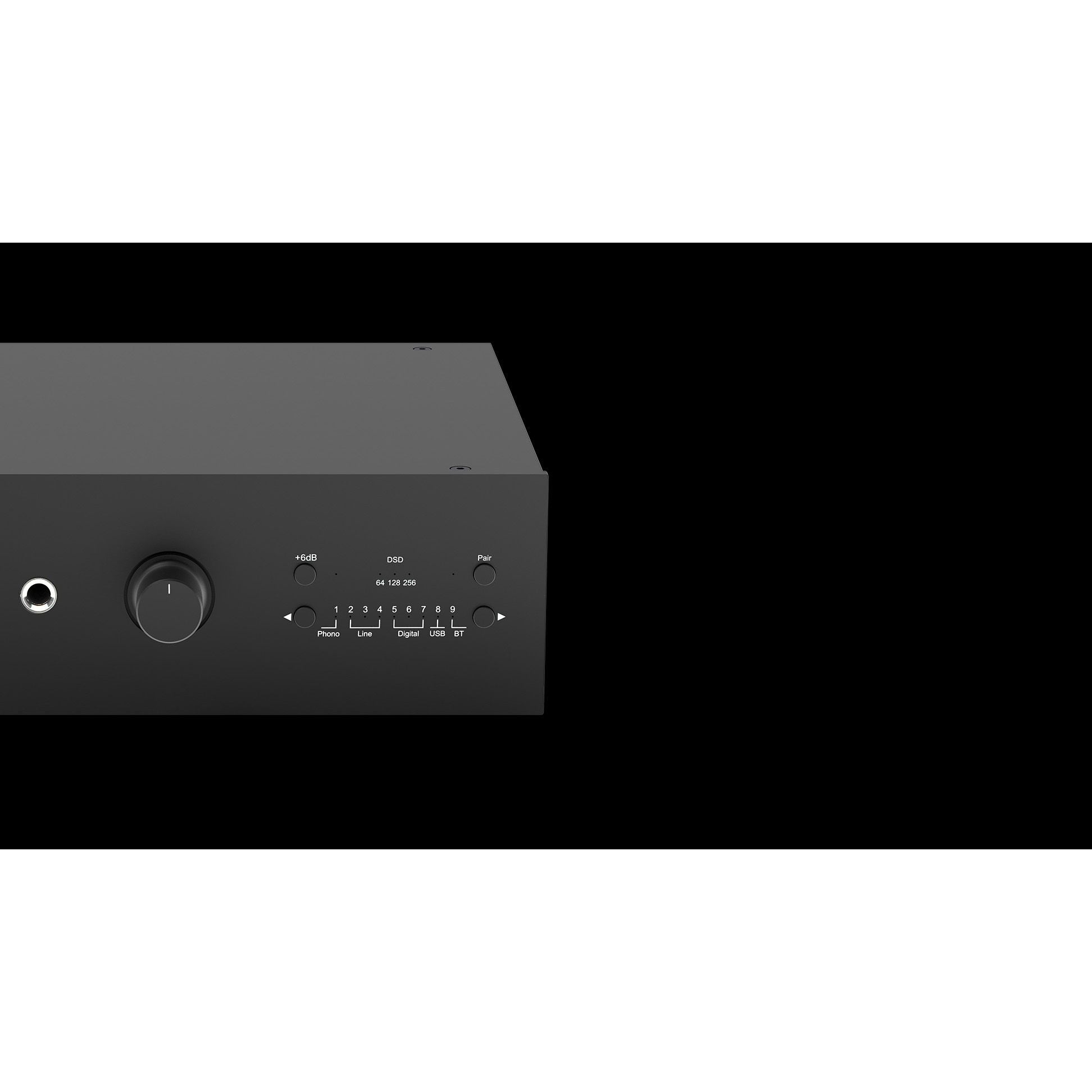

The MaiA DS3 offers nine inputs. Ready for digital or analogue sources, wired or wireless – you’re covered. The phono section can handle MM, MI, or high output MC cartridges. Hook up your tuner or any other analogue device to one of the three line-level RCA inputs. The DAC section has a coax and two optical connections, as well as a USB input.
The Outputs
The variable RCA outputs also allow you to include a subwoofer or another power amplifier in your setup. Use the fixed output to distribute the audio signal to another device unaffected by the volume control to feed an audio recorder, for example.
What's On The Inside
The high definition aptX HD with its new Bluetooth 5.0 chip will allow you convenient high resolution streaming from your smartphone.
Additional Features

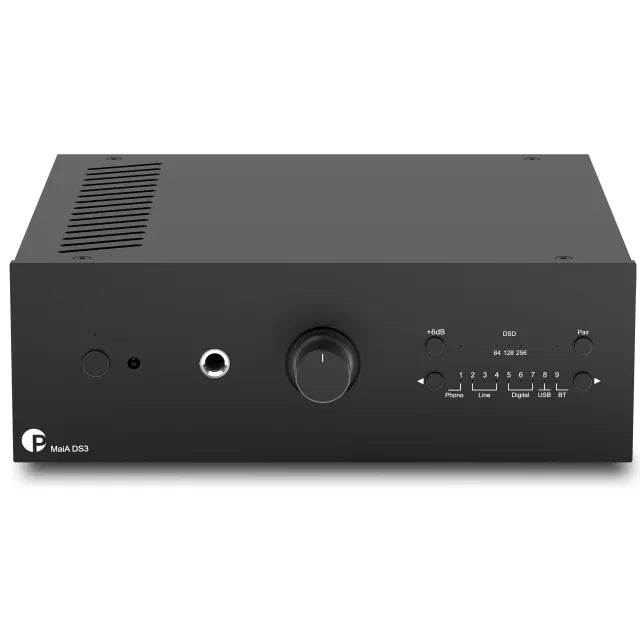

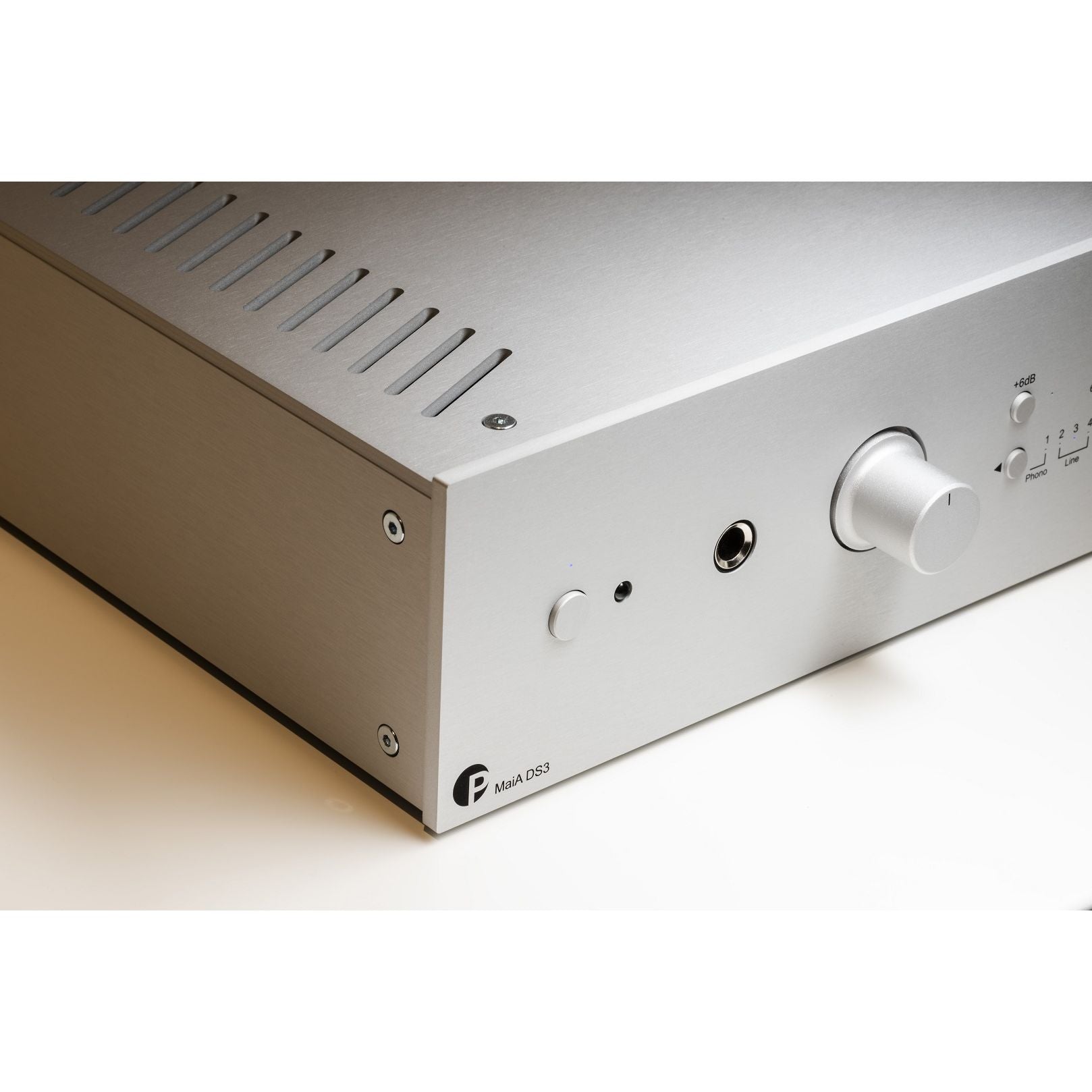

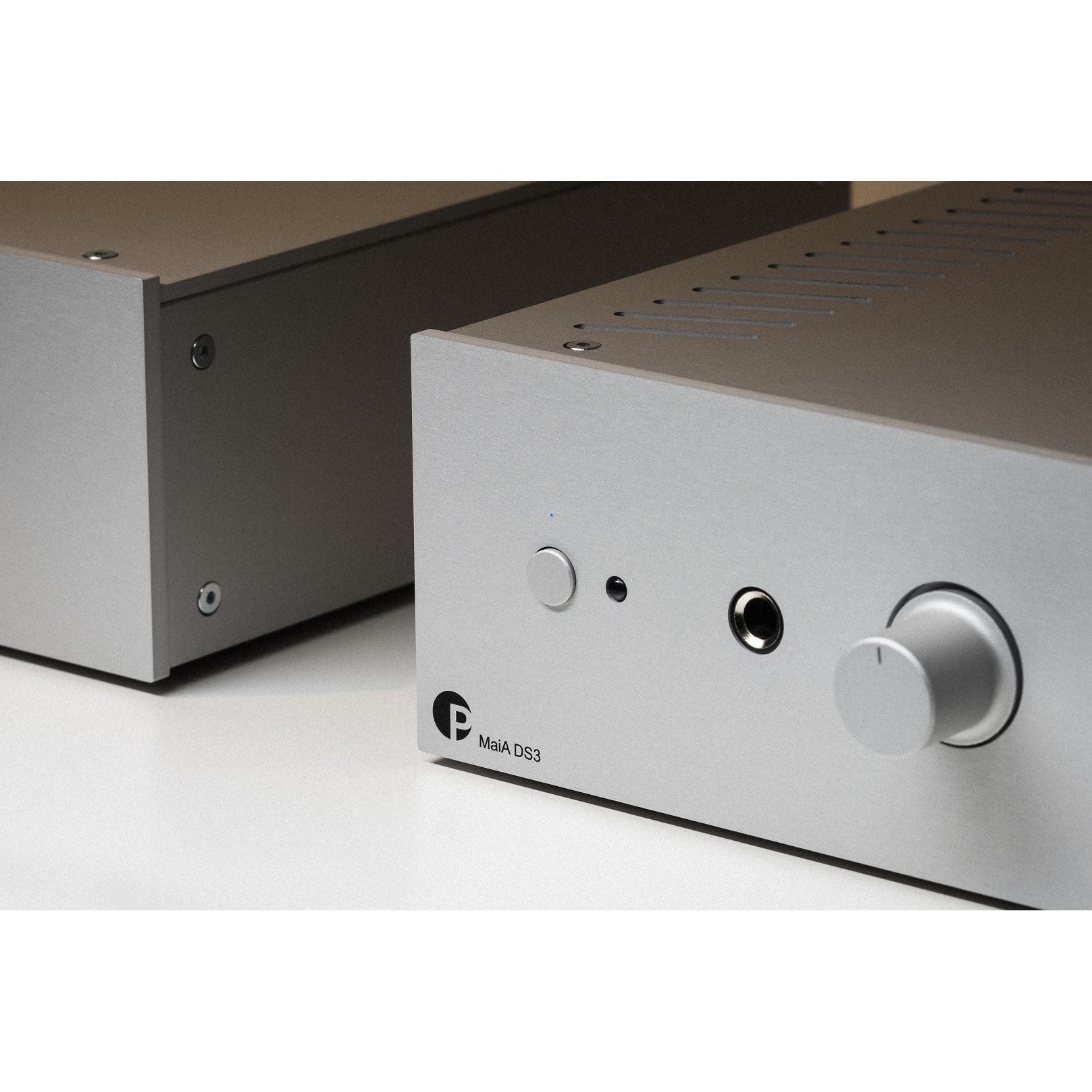

The MaiA DS3 comes in two colours, silver and black. Furthermore, the amplifier comes with a remote control, allowing you to comfortably change the volume with the motor driven potentiometer and switch your input with ease.
Technical Specifications
| Power output: | 2x 80W/140W at 8 ohms/4 ohms (1%THD) |
| Frequency response (20Hz - 20kHz): | <+/- 0,3dB at 20kHz |
| SNR: | 97dB (105 dB - ‚A‘ weighted) at 1kHz |
| THD: | < 0,01% at 10W / 8 ohms |
| Headphone amp output: | 2x 430mW at 32 ohms (1%THD) |
| Line level inputs: | 3 pair RCA (sensitivity: 860 mV) |
| Phono input: | 1 pair RCA (for MM, MI and MC cartridges) |
| Phono input sensitivity: | MM 47k ohms / MC 100 ohms |
| Phono input gain: | MM 40dB / MC 60dB |
| USB input: | USB Audio Class 2 (requires USB 2.0 or higher) |
| PCM sample rates: | up to 192kHz / 24 bit |
| DSD support: | DSD64 , DSD128, DSD256 |
| BT version & codec: | BT 5.0; aptX, aptX HD, A2DP profile |
| Trigger In/Out: | 12V on/off detector |
| Outboard power supply: | 36V/5,5A DC |
| Standby Power consumption: | < 0,5 watts |
| Dimensions WxHxD: | 206 x 71 x 240 (252 with sockets) mm |
| Replacement battery remote control: | 2x AAA 1,5V |
| Weight: | 1850g without power supply |
