Pro-Ject Align It S Alignment Tool

Align it S is one of the easiest yet most effective alignment tools available. With it you can adjust and align your cartridges with ease.

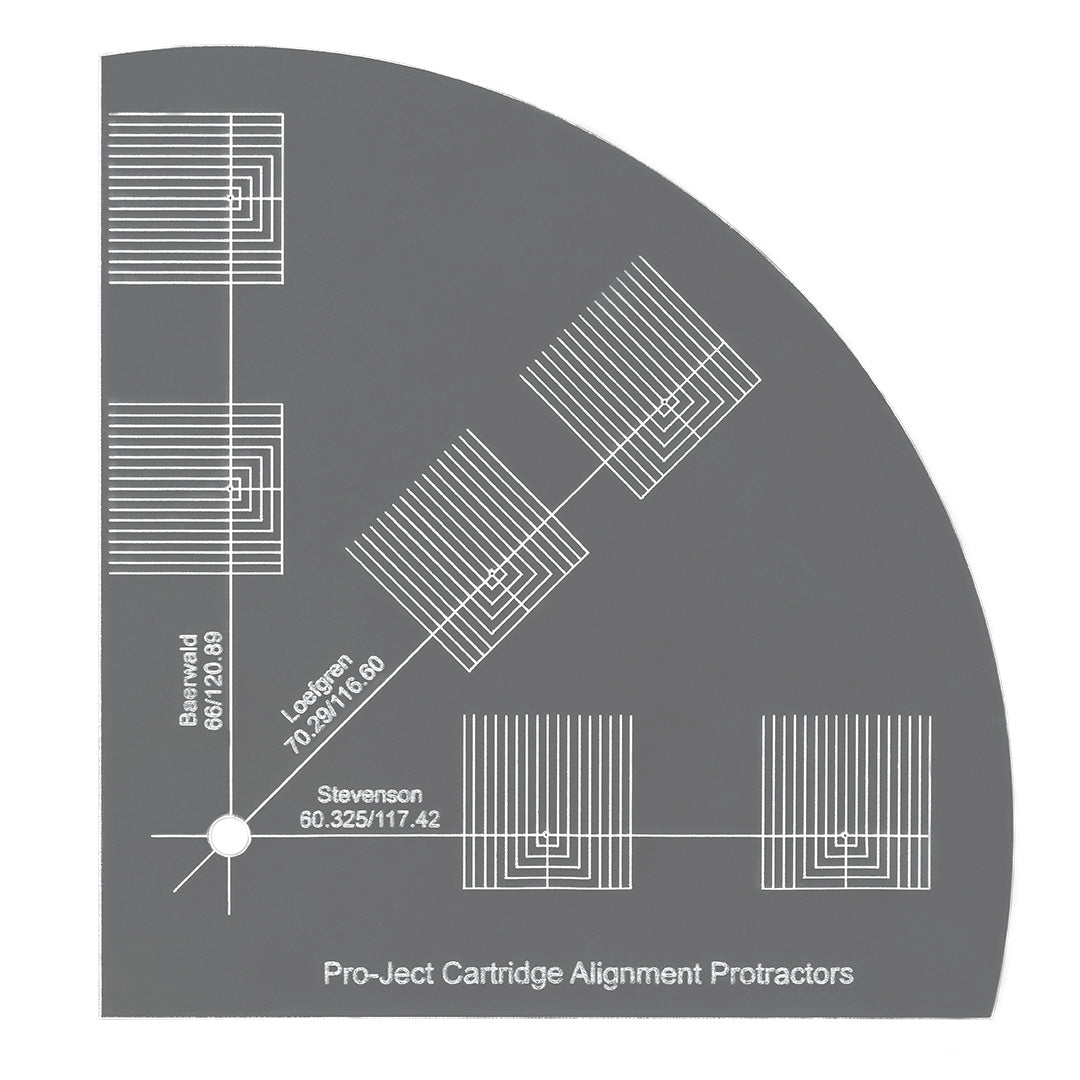

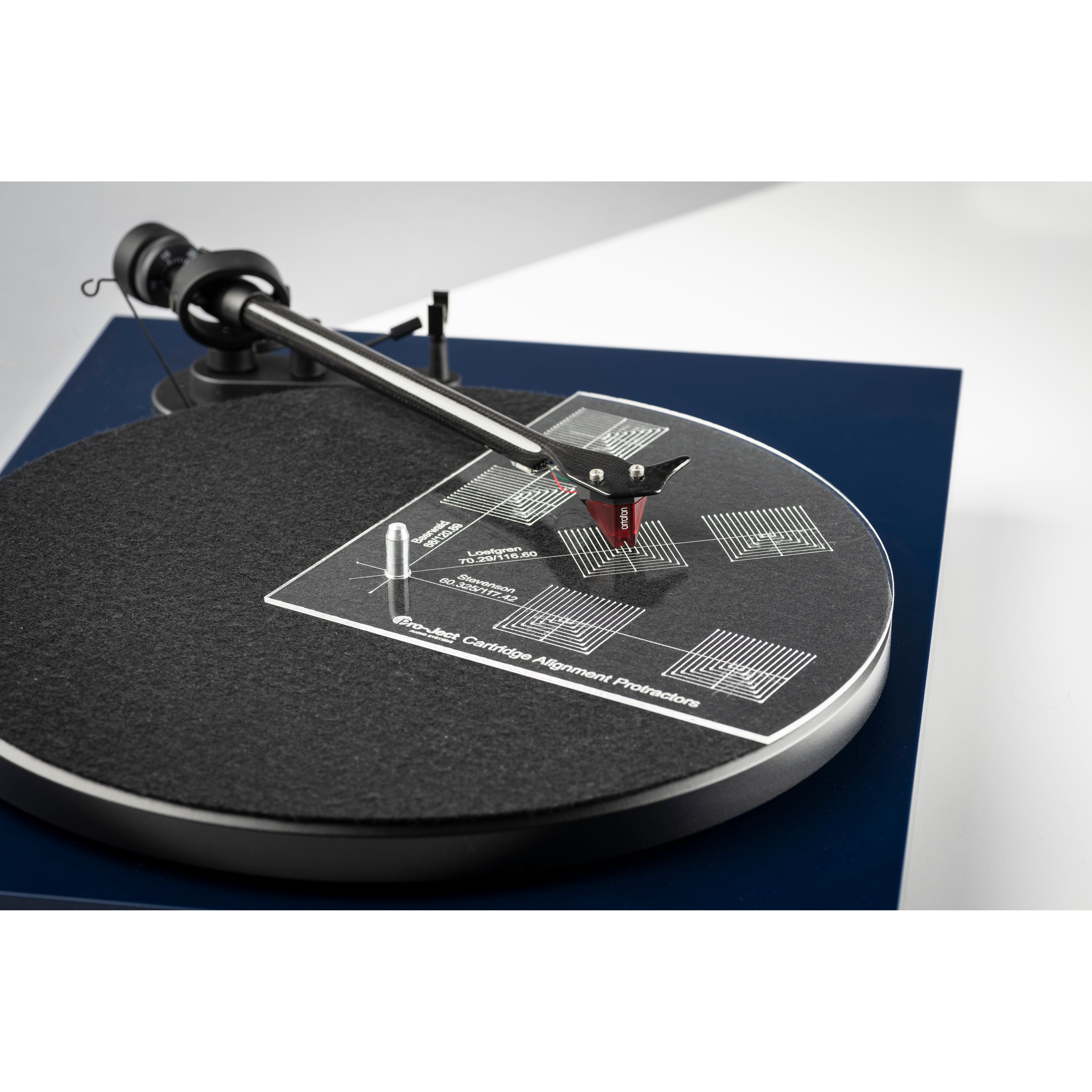

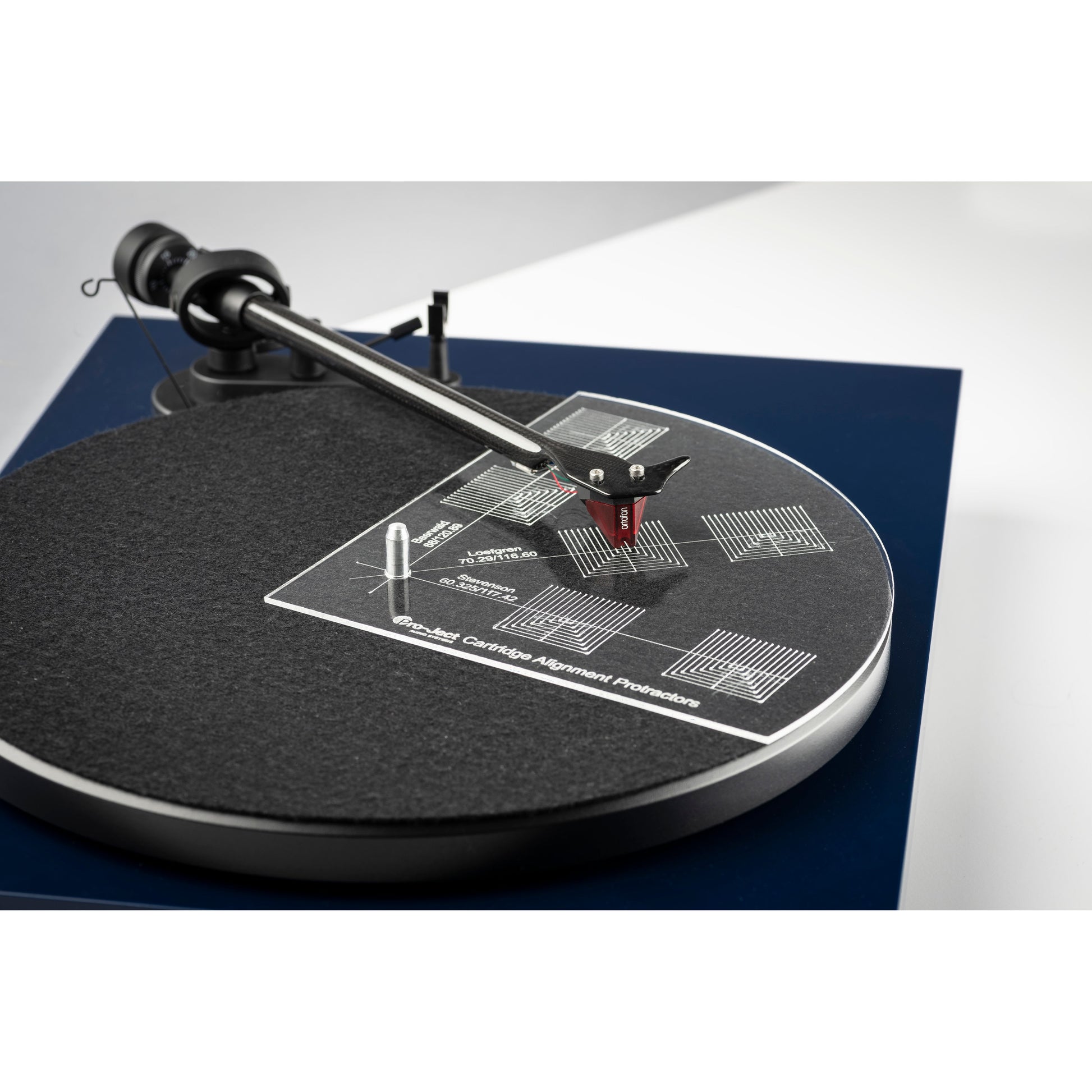

Just put Align it S on your platter and place the arm and cartridge accordingly on the desired protractor. With three available protractors on Align it S you‘re able to adjust all your cartridges.

Align it S is available in clear acryl and is very durable, so no need to worry about breaking it. It is suitable for tonarms with an effective length between eight and twelve inch.

Choose one of the 3 most popular alignment geometries printed on the Align it S. Each geometry has different advantages:

Baerwald

Excellent allrounder that many people choose to start their alignment journey with. Optimises tracking of inner and outer groove with a focus on the middle area of your vinyl record. Works universally well for many musical tastes.

Lofgren B

Maximises tracking in the middle area of your vinyl record, resulting in the lowest average distortion between the null-points of all three alignment curves. The most inner and outer grooves exhibit more tracking error than the middle of your record, which makes Lofgren B great for modern records where all the most important music and songs are in the middle of the record.

Stevenson

Maximises tracking at the start and very end of the record by moving the outer null-point more towards the outside and the inner null-point towards the inside. Great for classical music that finishes in big climactic finales, very long records with 25 minutes or more per side and 45 RPM singles.
