Ortofon

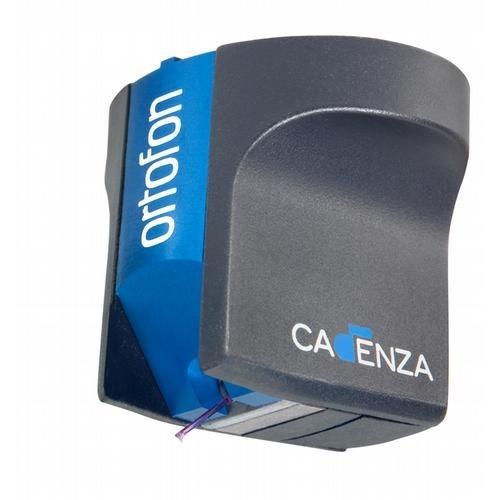

Ortofon Cadenza Blue MC Cartridge

Ortofon Cadenza Blue MC Cartridge

BUY WITH CONFIDENCE We are a 2 x Global Award Winning Retailer
Read More
FREE 5 YEAR WARRANTY INCLUDED FREE 5 year warranty included on this item
Regular price $ 32,702.00
Regular price Sale price $ 32,702.00
Sale Sold out
Scrappage Scheme

Part Exchange / Trade In Quote?

The Blue model is using a Nude FG 70 stylus with a very thin ruby cantilever. The improved winding process of the armature ensures better channel balance. The soundstage of Cadenza Blue is wide and open and grandiose out of the box. Micro dynamic and ambience with be evident when listening to complex compositions. It reaches a very high degree of defination in the perspective, which is very present. It is true to the music with a tremendous clarity.

Technical Data

Output voltage at 1 kHz 5cm/sec - 500 µV

Channel balance - <1.2 dB

Channel separation at 1kHz - >23 dB

Channel separation at 15kHz - >15 dB

Frequency range at -3 dB - 20 Hz - 50 kHz

Frequency response 20 Hz - 20 kHz - +2/-1

Tracking ability at 315 Hz at recommended tracking force * - 80 µm

Compliance, dynamic, lateral - 12 µm/mN

Stylus type - Nude FG 70

Cantilever - Ruby

Stylus tip radius - r/R 6/70

Tracking force range - 2.2 - 2.7g ( 22 - 27 mN )

Tracking force recommended - 2.5g ( 25 mN )

Tracking angle - 20°

Internal impedance, DC resistance - 5 Ohm

Recommended load impedance - 50 - 200 Ohm

Cartridge body material - Stainless steel / Aluminium

Cartridge colour - Blue / Black

Cartridge weight - 10.7g
