EMT JSD Pure Black MC Cartridge
EMT JSD Pure Black MC Cartridge
Regular price
$ 90,262.00
Regular price
Sale price
$ 90,262.00
Unit price
per
Couldn't load pickup availability
Part Exchange / Trade In Quote?
Part Exchange / Trade In Quote?

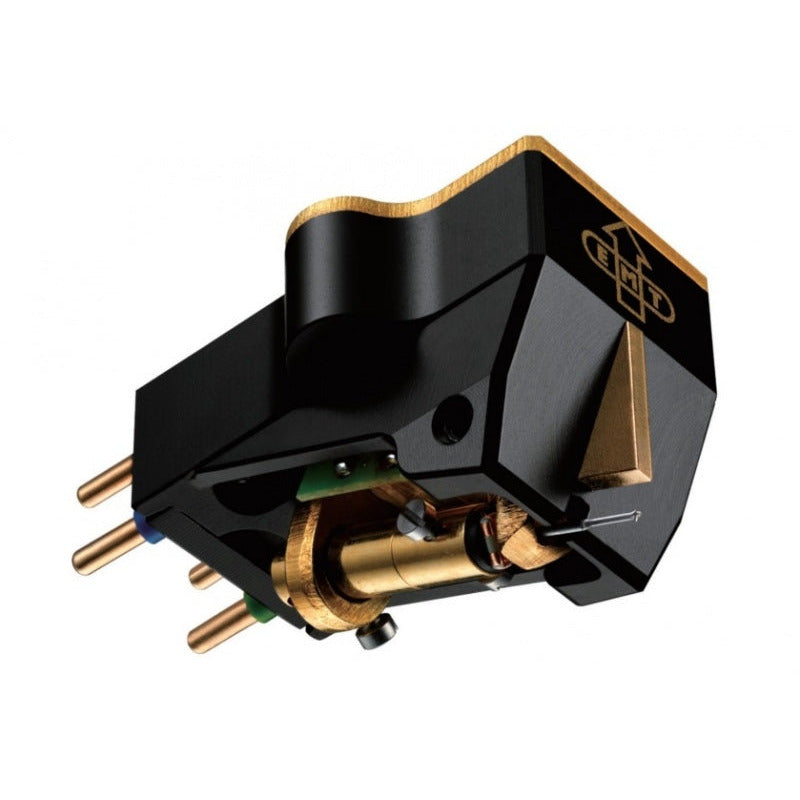

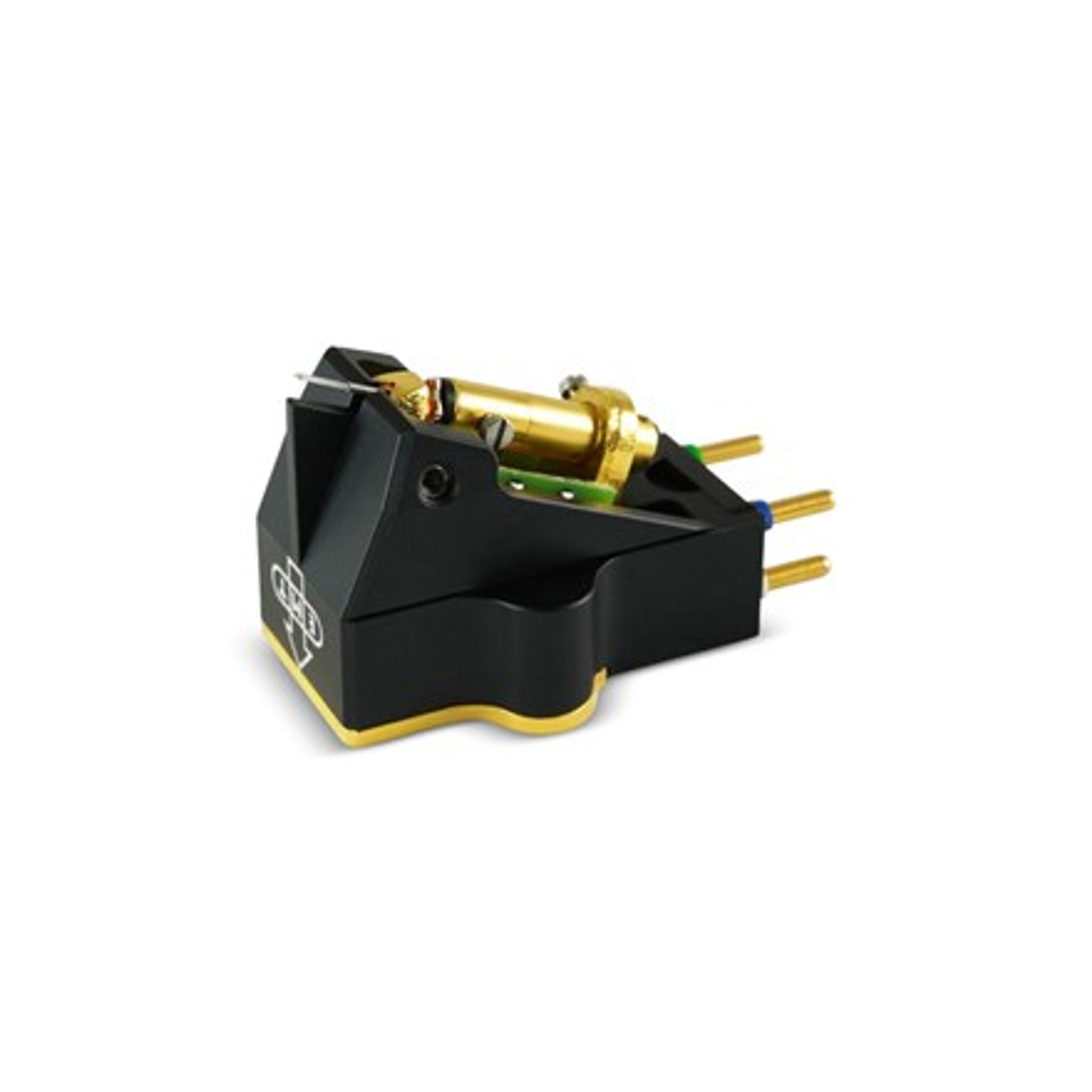

The JSD S75 was developed to celebrate the 75th anniversary of EMT and is featured with a black anodized aluminium body.
All EMT reference-line cartridges feature a multi-facet diamond on sapphire cantilever. Our unique assembling technology makes it possible to tune the individual sound properties of this high-resolution transducer unit to maximum musicality.
SPECS
Diamond: MR HP
Cantilever: Sapphire
Transducer: MC Stereo
Coil Standard: Pure Copper
Coil Option AG: Pure Silver
Magnet: AlNiCo, gold-plated
Body: Aluminium, black anodized
Connection: 1/2" – 4pin
Vertical Tracking Angle: 23°
Weight: 10g
Tracking force: 2.4g
Output voltage: 1.05mV @ 5cm/s
Compliance: 12µm/mN
Frequency response: 20 - 30,000Hz
Impedance: 2 x 24Ω
Recommended load: 200 - 300Ω
Cantilever: Sapphire
Transducer: MC Stereo
Coil Standard: Pure Copper
Coil Option AG: Pure Silver
Magnet: AlNiCo, gold-plated
Body: Aluminium, black anodized
Connection: 1/2" – 4pin
Vertical Tracking Angle: 23°
Weight: 10g
Tracking force: 2.4g
Output voltage: 1.05mV @ 5cm/s
Compliance: 12µm/mN
Frequency response: 20 - 30,000Hz
Impedance: 2 x 24Ω
Recommended load: 200 - 300Ω
