Audio Technica

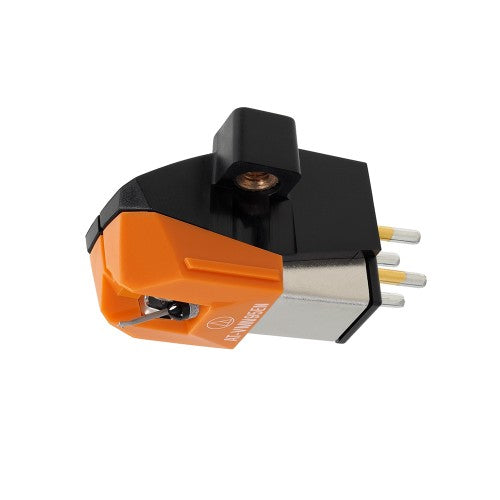

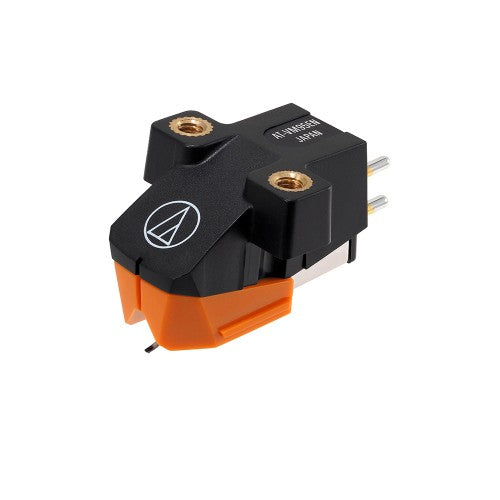

Audio Technica AT-VM95EN MM Cartridge

Audio Technica AT-VM95EN MM Cartridge

BUY WITH CONFIDENCE We are a 2 x Global Award Winning Retailer
Read More
FREE 5 YEAR WARRANTY INCLUDED FREE 5 year warranty included on this item
Regular price $ 2,380.00
Regular price Sale price $ 2,380.00
Sale Sold out

Part Exchange / Trade In Quote?

Availability: 2-3 Days

The AT-VM95EN, features a Nude Elliptical Diamond. The construction of the stylus being a one piece diamond with a round shank inserted in the cantilever creates a lighter and more rigid transmission system than a diamond tip bonded on a round titanium shank such as in the AT-VM95E. Also the use of nude diamond implies a substantial difference in pricing, yet the quality of the reproduction will be immediately noticed, specifically in the fidelity of high frequencies and in the quality of the transient responses.

  • Aluminium cantilever
  • 3.5mV output voltage
  • Compatible body with all VM95 Series stylus assemblies
  • 20 to 23,000Hz frequency response
    VM95 Series - Styli compatibility

    Every cartridge diamond stylus becomes worn after a period of play.

    Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.

    Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.

    The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.



    AT-VMN95C        AT-VMN95E    AT-VMN95EN    AT-VMN95ML



    AT-VMN95SH   AT-VMN95SP

    Features

    Elliptical diamond stylus follows the groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses whilst reducing distortion.

    No use of nuts

    VM95 Series cartridges features two M2.6 threaded inserts allowing the installation of the cartridge onto tonearm or removable headshell without the use of nuts.Each cartridge is provided with one pair of 8mm M2.6 screws, one pair of 11mm M2.6 screws and two plastic washers.

    Specs
    Model AT-VM95EN
    Type VM Stereo Dual Magnet
    Mounting 1/2” centres
    Frequency Response 20 - 23,000 Hz
    Channel Separation 22 dB (1 kHz)
    Output Channel Balance 2.0 dB (1 kHz)
    Output Voltage 3.5 mV (@ 1 kHz, 5 cm/sec)
    Vertical Tracking Angle 23°
    Vertical Tracking Force Range 1.8 - 2.2g (standard 2.0 g)
    Stylus Shape Elliptical
    Stylus Size 0.3 x 0.7 mil
    Stylus Construction Nude Round Shank
    Cantilever Aluminium Pipe
    Coil Impedance 3.3 kΩ (1 kHz)
    Coil Inductance 550 mH (1 kHz)
    DC Resistance 485 Ω
    Static Compliance 20 x 10 – 6 cm / dyne
    Dynamic Compliance 7 x 10 – 6 cm / dyne (100 Hz)
    Wire Used for Coil T.P. Copper
    Recommended Load Impedance 47,000 Ω
    Recommended Load Capacitance 100-200 pF
    Cartridge Weight 6.1g
    Dimensions 17.2 x 18.9 x 28.3 ( H x W x D mm)
    Replacement Stylus AT-VMN95EN
    Accessories Included Two 11 mm installation screws;
    Two 8 mm installation screws;
    Two washers
    Non-magnetic screwdriver
