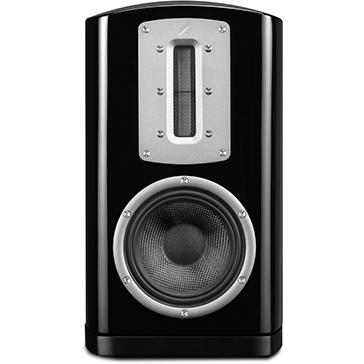

Quad Z-1 Standmount Speakers

QUAD proudly announce Z Series, our new flagship ribbon loudspeaker range. After taking a new approach to ribbon tweeter design using a unique sandwich formation, an exceptionally robust, high power speaker has been engineered, yet with the delicate sound, conventional ribbon speakers are known for. Z Series is housed beautifully curved piano lacquered cabinets, available in black, white and rosewood.

General description	bookshelf
Enclosure type	bass reflex
Transducer complement	2-way
Bass driver	150mm glass fibre
Treble driver	90x12mm true ribbon
AV shield	No
Sensitivity (1W @ 1m)	86db
Recommended amplifier power	40-150w
Peak SPL	102dB
Nominal impedance	8Ω
Minimum impedance	4.6Ω
Frequency response (+/-3dB)	56Hz - 20kHz
Bass extension (-6dB)	48Hz
Crossover frequency	3.4kHz
Cabinet Volume (in litres)	10L
Dimensions	383 x 219 x 283
Weight	6.5kg
