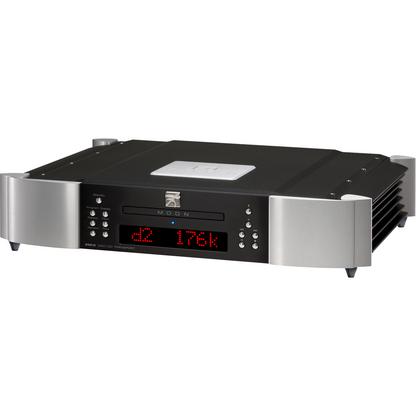

MOON 650D Reference DAC / CD Transport

1 4

MOON 650D Reference DAC / CD Transport

MOON 650D Reference DAC / CD Transport

$ 197,130.00

$ 197,130.00

Sale Sold out

Finish 2Tone Black

Quantity

Part Exchange / Trade In Quote?

Design features

Proprietary CD drive system mounted on our M-Quattro gel-based 4-point floating suspension.
Separate digital and analog power supplies, each with their own toroidal transformer.
Power supply voltage regulation includes i2 DCf (Independent Inductive DC Filtering); 1 inductor for each and every IC in the audio circuit’s signal path – 18 stages in all.
Four (4) digital inputs (AES/EBU, S/PDIF, TosLink and USB) allowing for a connection to virtually any digital source.
Two (2) digital outputs – AES/EBU and S/PDIF.
Fully compatible with 820S external power supply.

In the box

The following accessories should be included inside the box with your DAC/CD Transport:

AC power cable
FRM-3’ remote control with three ‘AAA’ batteries
SimLink™ cable with 1/8” mini plug terminations on each end
Owner’s manual
Warranty and product registration information (USA and Canada only)

Specs

Frequency response (full range)

2Hz - 100kHz +0/-3dB
THD @ 1kHz, 0dBFS (A-weighted)

0.0001%
Intermodulation distortion

0.0001%
Dynamic Range

120dB
Signal-to-noise Ratio

120dB @ full output
Channel Separation

116dB
Intrinsic Jitter

1 picosecond RMS
Analog Output @ 0dBFS

2.0 Volts
Analog output impedance

100Ω
Bit-depth range

16 - 24 bits
Sampling frequency rates

44.1 - 192kHz
Shipping weight

35 lb / 16 kg
Dimensions (width x height x depth)

18.75 x 4.0 x 16.8 in
47.6 x 10.2 x 42.7 cm
