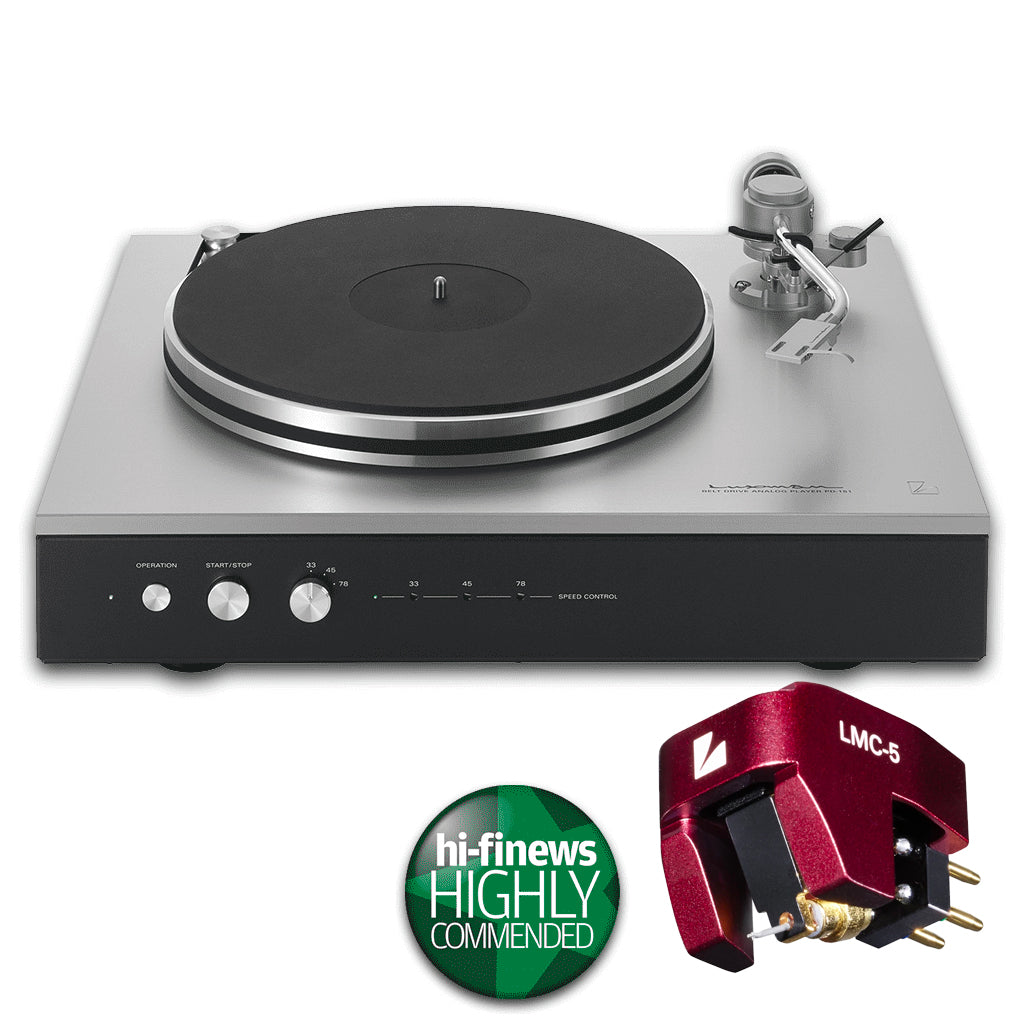

Luxman PD-151 Turntable & LMC5 Cartridge Bundle

Luxman PD-151 Turntable & LMC5 Cartridge Bundle

BUY WITH CONFIDENCE We are a 2 x Global Award Winning Retailer
Read More
FREE 5 YEAR WARRANTY INCLUDED FREE 5 year warranty included on this item
Regular price $ 141,230.00
Regular price Sale price $ 141,230.00
Sale Sold out

Part Exchange / Trade In Quote?

The Luxman PD-151 & LMC5 bundle is the perfect match! With a cartridge which is perfectly suited to the PD-151 you get a simply stunning turntable setup with that classic Luxman sound.

Not only that but you save a massive £500 off RRP when you buy these together.

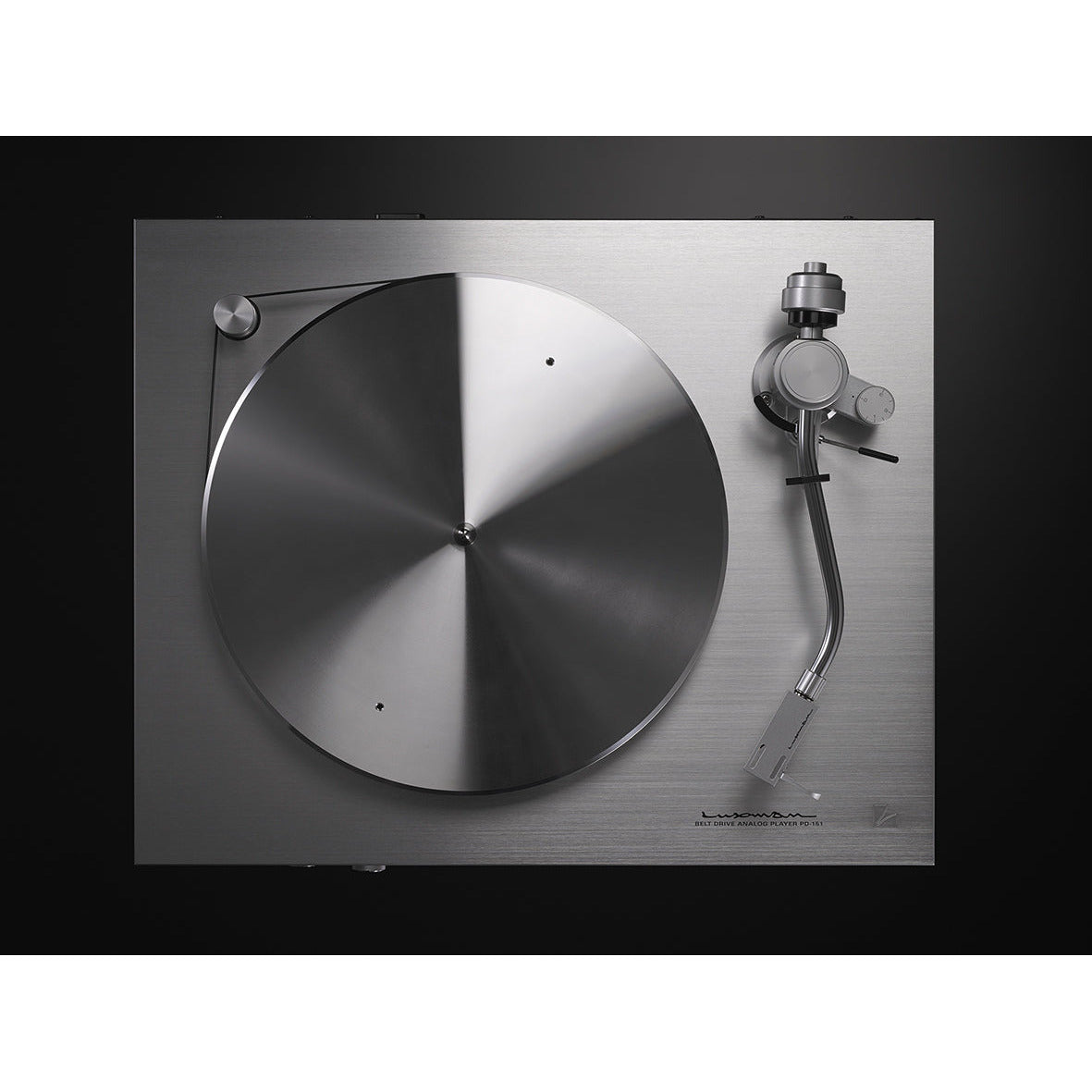

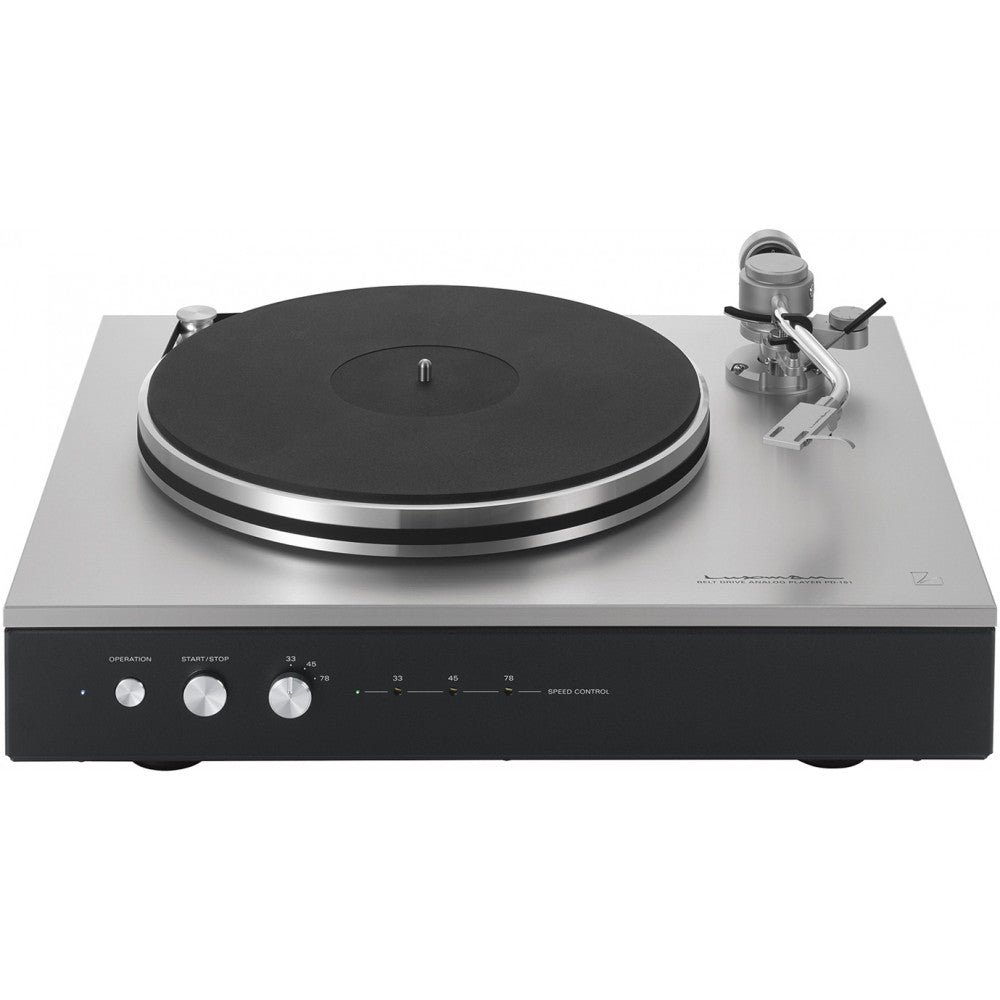

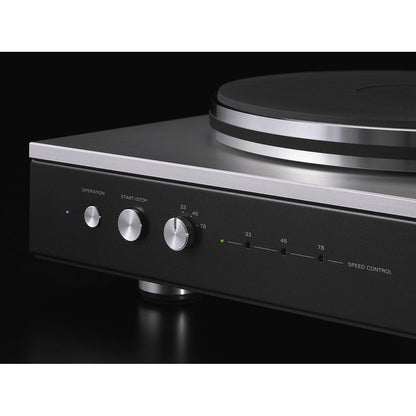

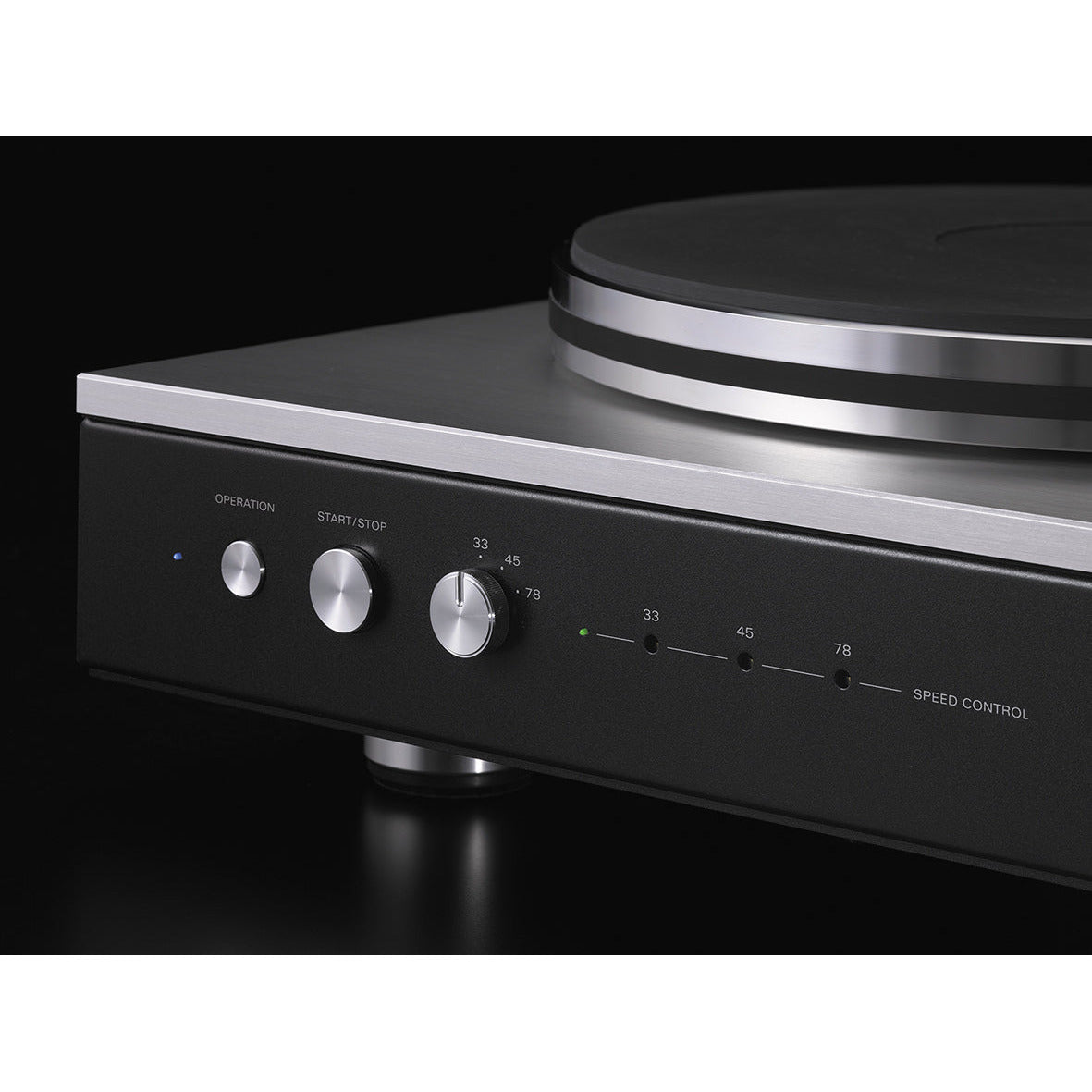

PD-151. Preserving the fragile beauty of analog music reproduction.

Audiophiles love the warmth, organic texture and uncanny beauty of analog music reproduction.But that beauty is notoriously fragile. Even slight variations in platter speed can blur the musical pitch, placing the sound behind an unnatural veil. And when music lovers turn up the volume, the phono cartridge can pick up even subtle chassis vibration and resonance – distortions the cartridge cannot distinguish from the desired tracking of the record groove. At LUXMAN, we understand. And we built that understanding into the PD-151 analog player, a more accessible alternative to our highly regarded PD-171A / AL. From the 10 mm thick aluminum top plate to the high-torque motor, the ultra-wide drive belt and the 4.0 kg platter, every aspect of the PD-151 pursues just one purpose. To do full justice to the ineffable beauty of analog sound.

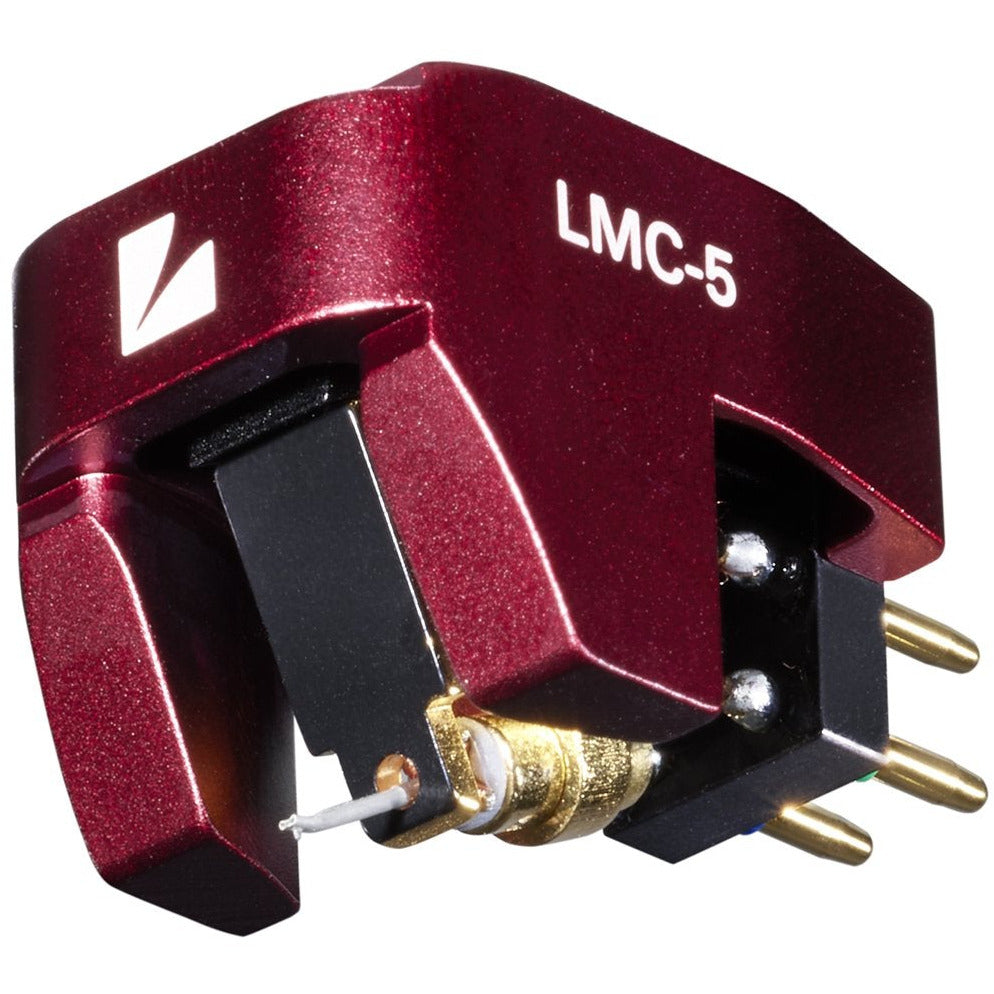

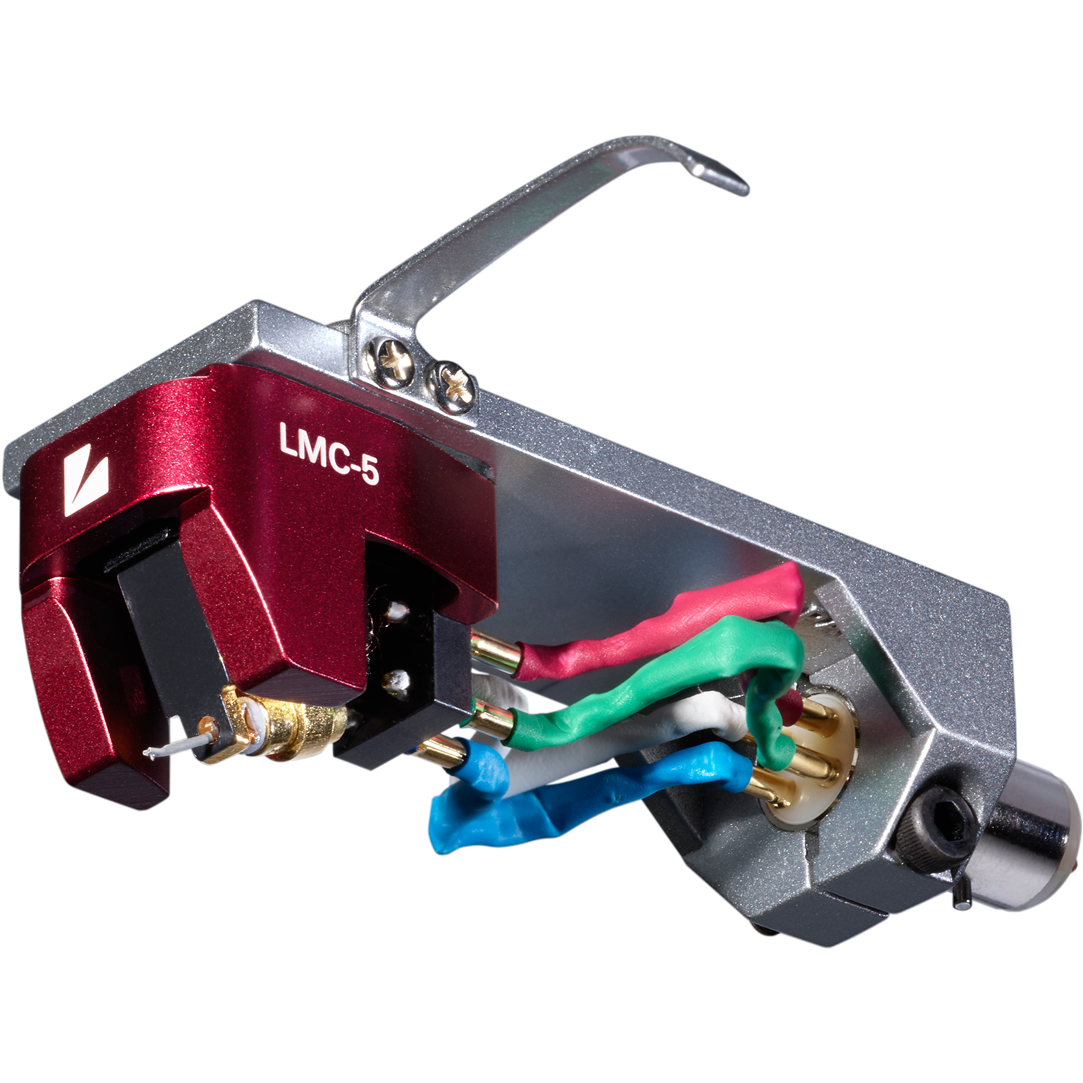

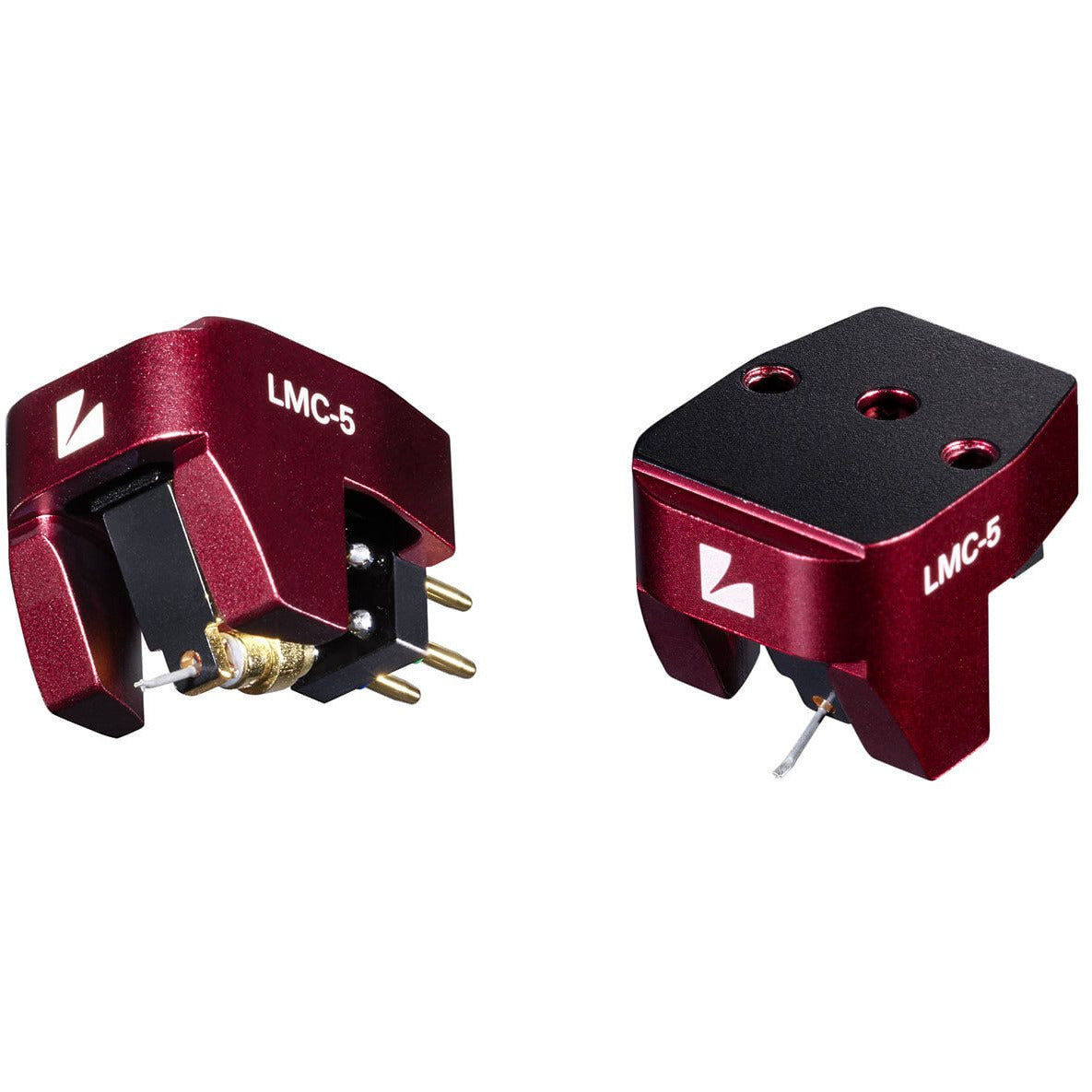

Cartridge Description

First time in 40 years since the launch of LMC-1 in 1981 and LMC-2 in 1982

2. Natural and extensive unified Luxman sound from the input to the output

3. The semi-open body structure helps reduce resonance and the effects of reflected sound

4. Thorough pursuit of ideal sound quality by repeating trial production considering materials and structure of cantilever, stylus, chassis

The SHIBATA needle has less audible noise while delivering full range vinyl reading

The aluminum cantilever has a neutral tone that goes well with the SHIBATA needle

Moving coil (MC) type, reducing the weight of the armature Reduces cross-channel sensitivity with directly wound cross mounted coils, to which the L/R power generation coils are wound symmetrically

The UEW coil wire has a radius of 30μm, the thinnest in the range, and is resistant

Using a single point piano wire (Φ0.08mm) support method for accurate vibrationto breakage while ensuring coil winding direction

Circuit structure with minimal loop area reduces external noise

A stylus unit is regarded as acoustically equivalent to a microphone, so resonance and reflected sound

from around the device should be thoroughly suppressed
Outer walls that protect the stylus and cantilever ensure practicality are placed on both sides

Structural chassis with inverted oval curves to reduce resonance and reflections
A carefully pared down body structure with minimal outer wall weight as a resonance countermeasure

Turntable Specs
Phono motor section
Drive system Belt drive system
Motor Brushless DC motor with PID control
Platter 30cm machined alminum plate
Revolution 33 1/3rpm, 45rpm, 78rpm(3 speeds selectable)
Revolution adjustment range ±6%(each rotation speed adjustable independently)
Wow and flutter 0.04% or less(W.R.M.S.)
Weight(Platter) 4.0kg

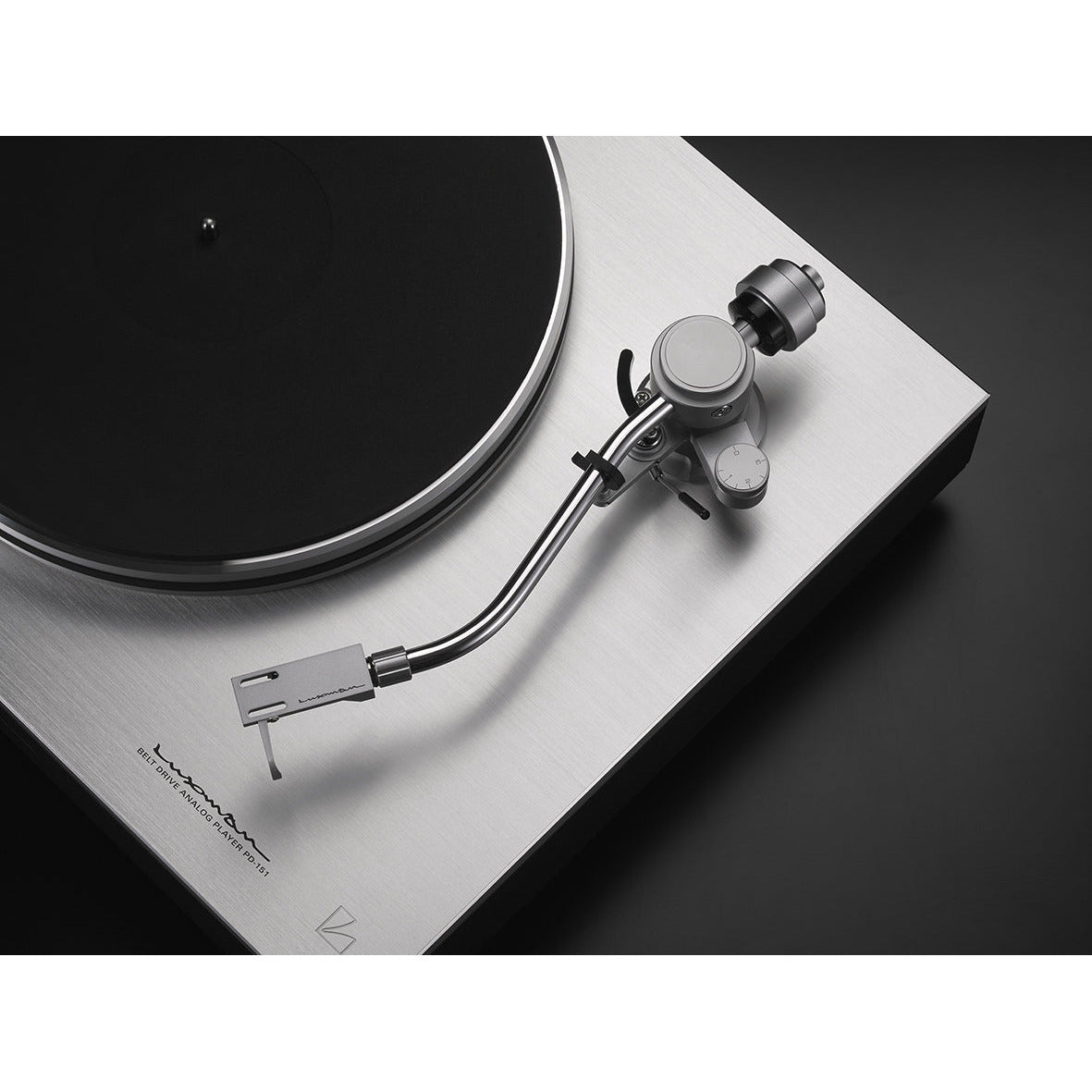

Tone arm section * Cartridge is not included
Type Static balanced, S shaped, universal type
Bearing Single point cross suspension
Effective length 229mm
Overhang 15mm
Tracking error angle +1.9° to -1.1°
Applicable cartridge weight 4 to 12g (including headshell 17 to 25g)
Adjustable height range 38 to 60mm
Anti-skating 0 to 3g

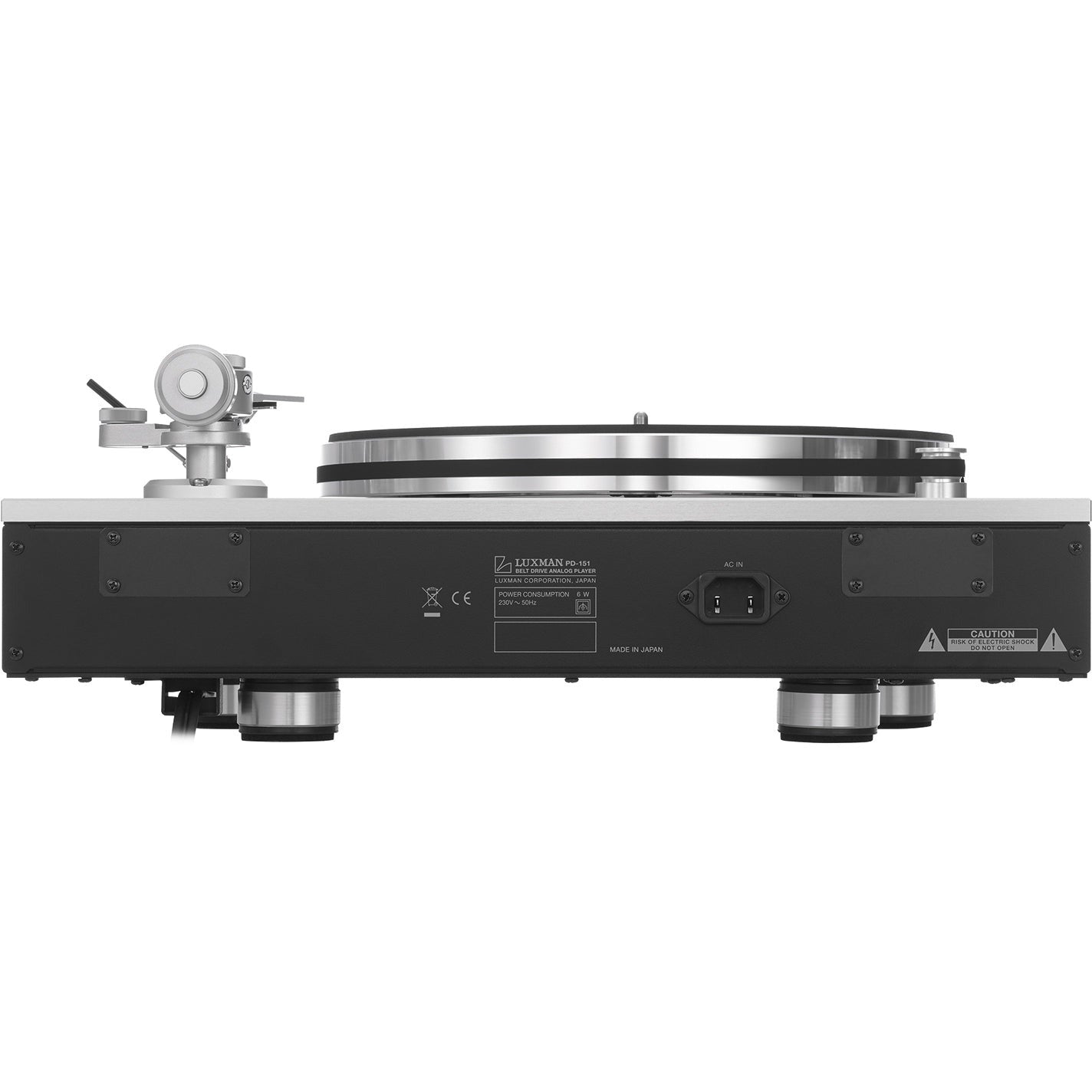

Power source and others * Dust cover is not included
Power source 230V~ 50Hz
Power consumption 6W
Dimensions 465 (W) × 133(up to top face of platter)(H)×
393(D) mm
Net weight 15.7kg (main unit)
Accessories Platter, Headshell, Rubber mat
Rubber belt,Platter mount handle (2pieces)
EP adaptor, Counterweight
Arm adjustment hex wrench set (3types)
Flathead screwdriver for rotation speed adjustment
phono cable (DIN→RCA : already installed on the unit), Power cable
Cartridge Specs


MC (Moving Coil)

Internal impedance

4.7 Ω (1 kHz)

DC resistance

4.7 Ω

Tracking force

2.1 to 2.3 g (2.2 g standard)

Output voltage

0.4 mV (1 kHz, 3.54 cm/sec)

Frequency responce

10 Hz to 35 kHz

Channel separation

28 dB (1 kHz)

Channel balance

0.5 dB (1 kHz)

Recommended load impedance (when head amplifier connected)


Recommended load impedance (when step-up transformer connected)

2.5 to 10 ohms

Coil inductance

9.5 μH (1 kHz)

Dynamic compliance

8×10cm/dyne (100 Hz)


Solid diamond/SHIBATA

Radius of curvature at tip

7×40 μm


Di. 0.5 mm aluminum

Vertical tracking angle


Suspension wire

Di. 0.08 SWP-A


Samarium-cobalt BH20


30 μm UEW

Constituent material of magnetic circuit

Pure iron


Di. 1.2 mm, White: L (+) / Blue: L () / Red: R (+) / Green: R ()


Aluminum A6063

Recommended service temperature range

20 to 27 °C

Threaded hole

M2.6 mm × 2


17.0 (W) × 18.3 (H) × 21.3 (D) mm / 8.5g (terminal excluded)
