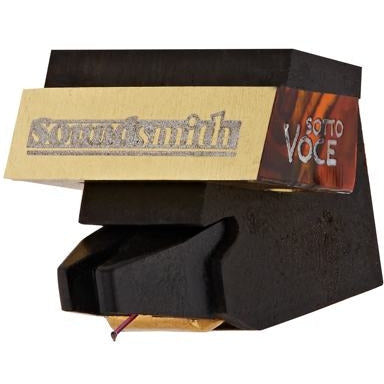

Soundsmith Sotto Voce Medium Output Cartridge
Soundsmith Sotto Voce Medium Output Cartridge
Regular price
€3.634,95
Regular price
Sale price
€3.634,95
Unit price
per
VAT included. (UK/Europe)
Couldn't load pickup availability
Part Exchange / Trade In Quote?
Part Exchange / Trade In Quote?
Each one hand crafted by Peter Ledermann - Made in the USA. The Sotto Voce features a 2 year warranty to the original owner
Medium output, otherwise identical to The Voice. Kudos, accolades and many “Product of the Year” awards. The pinnacle of High Output designs – from Soundsmith – of course. Sotto Voce is our special medium output version.
Specs
| Type: | • Fixed Coil / Moving Iron |
| Mount: | • Standard ½” |
| Stylus: | • Contact Line, Nude, 0.10 mm square Selected |
| Radius of Curvature: | • Optimized Contour Contact Line |
| Cantilever: | • Ruby |
| Recommended Tracking Force: | • 1.3 - 1.6 g Standard (Medium Compliance) • 1.0 - 1.2 g (Special Order High Compliance) |
| Effective Tip Mass: | • 0.30 mg |
| Compliance: | • 22 µm/mN (Medium Compliance) • 28 µm/mN (High Compliance) |
| Frequence Response: | • 20 - 20,000 Hz ± 1.0 dB |
| Channel Separation @ 1000 Hz: | • > 30 dB • N/A (Mono version) |
| Channel Separation @ 50 - 15,000 Hz: | • > 20 dB • N/A (Mono version) |
| Channel Difference: | • < 0.5 dB • < 1.0 dB (Mono version) |
| Output Voltage @ 5cm/sec: | • > 1.10 mV (MEDIUM) |
| DC Resistance (DCR): | • 110Ω |
| Coil Inductance per channel: | • 30 mH |
| Suggested Preamp Gain: | • 48 - 54 dB |
| Cartridge Weight: | • 6.80 g |
| Recommended Load Resistance: | • ≥ 1.5kΩ |
| Recommended Load Capacitance: | • n/a |
