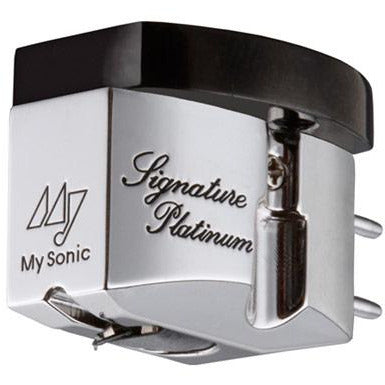

My Sonic Labs Signature Platinum MC Cartridge

Name: My Sonic Labs Signature Platinum MC Cartridge
Brand: My Sonic Labs
SKU: KRO4257467568
Price: 12604.95 EUR
Availability: InStock

€12.604,95

Sale Sold out

VAT included. (UK/Europe)

Product variants

Quantity

Part Exchange / Trade In Quote?

The flagship MSL Signature Platinum cartridge is characterised by it’s very low internal impedance (1.4 ohms) and a high output level of 0.5 mV, which can only be achieved using very strong neodymium magnets in combination with the special spool core material SH-μX developed by MY SONIC LAB. The system design, combined with pure Boron cantilever technology used in most of the market’s top-of-the-line cartridges, has enabled Mr. Matsudaira to leverage his years of experience in transmission, longevity and sound performance. The sound provides pure emotion, outstanding fine-tuning, authority, balance, transparency and freedom which will delight the listener and distinguish this pickup as one of the best on the world market.

Specs

MY SONIC LAB Signature Platinum Ultra-low impedance MC cartridge

Physical

Body: Titanium

Cantilever: Boron.

Stylus: Semi-line contact (3μmx 30μm)

Coils/Core: Magnet: Neodymium magnet with special pure copper core (SH-μX)

Terminal pins: Polished Rhodium-plated

Weight: 10g

Electrical:

Output Voltage: 0.5mV at 1kHz

Internal Impedance: 1.4 ohm (DCR)

Frequency Response: 10 ~ 50kHz

Channel Balance: < 0.5dB (1kHz)

Channel Separation: > 30dB (1kHz)

Dynamic:

Tracking ability: @315Hz at 2g tracking force

Dynamic Compliance: 10 μm / mN

Set Up:

Recommended loading: > 100 ohms

Recommended tracking force: 1.9 ~ 2.2g

Optimum working temperature:
