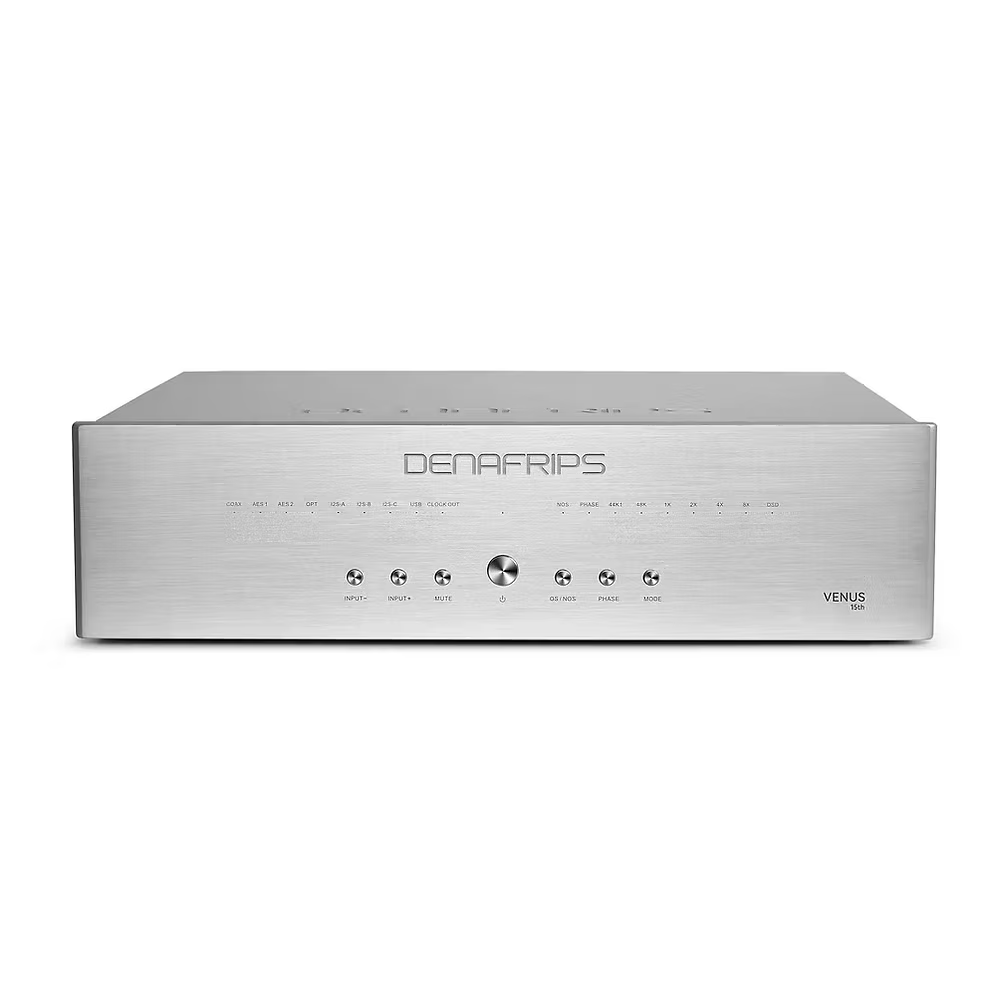

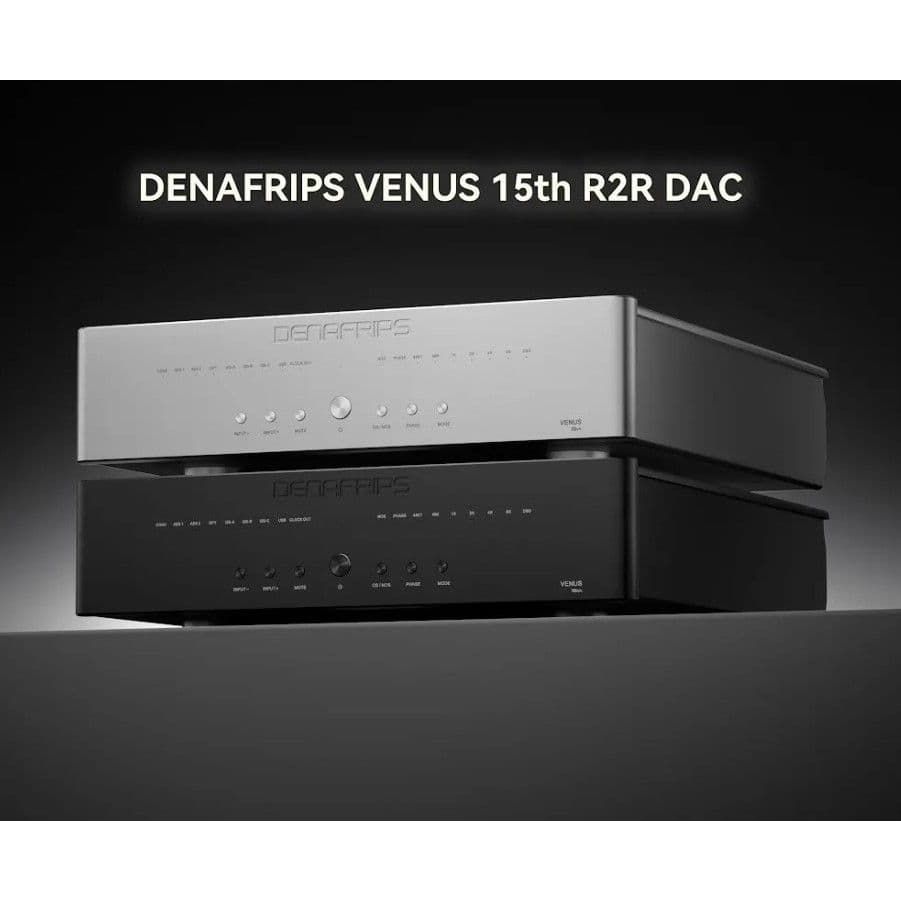

Denafrips Venus 15th R-2R DAC

Denafrips Venus 15th R-2R DAC

BUY WITH CONFIDENCE We are a 4 x Global Award Winning Retailer with 37 years in business
Learn More
FREE 6 YEAR WARRANTY INCLUDED FREE 6 year warranty included on this item
Learn More
Multi-Award Winning Advice Talk to our team to make sure you get your purchase right the first time around.
Contact Us
Delivery Information All the details you need to know about shipping your order!
Learn More
Novuna 0% Finance up to 24 months
PayPal 0% Finance up to 48 months
Klarna 3 x Finance Pay in 3 install.
Regular price €4.714,95
Regular price Sale price €4.714,95
Sale Sold out
VAT included. (UK/Europe)
Finish

Part Exchange / Trade In Quote?

DENAFRIPS VENUS 15th DAC

Featuring a new-generation circuit architecture, enhanced with flagship-level technology, the system achieves deep and accurate sound reproduction.

Exquisite Dnd Minimalist DAC Design

Equipped with a high-precision audio clock output interface, paired with audio devices featuring external clock input, offering audiophiles a more advanced synchronized clock system for enhanced performance.



VENUS 15th And VENUS 12th Transformer Comparison

Terminator-level gold-silver-copper alloy high-power O-type transformer, paired with carefully selected imported filtering capacitors and custom audiophile-grade capacitors, provides the entire system with a stable reliable, and pure power source.

The VENUS 12th uses two 80W single-crystal copper transformers, while the VENUS 15th now uses one 80W and one 250W single-crystal copper transformer, which results in superior sound quality for the VENUS 15th.



High-End Custom Rhodium-Plated Power Terminal

Terminator-level gold-silver-copper alloy high-power O-type transformer, paired with carefully selected imported filtering capacitors and custom audiophile-grade capacitors, provides the entire system with a stable, reliable, and pure power source.

Specifications



R-2R DAC  Proprietary R2R + DSD Architecture
True balanced 26BIT R2R + 6BIT DSD (32 steps FIR Filters)
Matched Precision Thin Film 0.005% R-2R Network Arrays
Highlight  Encapsulated Ultra Low Noise Power Supply
High-end Oven Controlled Crystals OCXO
Total isolation of Digital and R-2R Boards
Adaptive FIFO Buffer and Reclocking
DSD1024, PCM1536 Supports On USB & I²S Input
Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
Licensed Thesycon USB Driver For Windows Platform
Driverless On Mac & Linux
Dual AES/EBU Input Supports
Sharp/Slow Filters Option
I²S Pinout Configuration
I²S DSD Channel Swap Configuration
DSD  DSD64 / 2.8224MHz (DoP) on Coax/AES/Opt Input
DSD1024 / 45.1584MHz * On USB & I²S Input Only
PCM  24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input
1536kHz* On USB & I²S Input

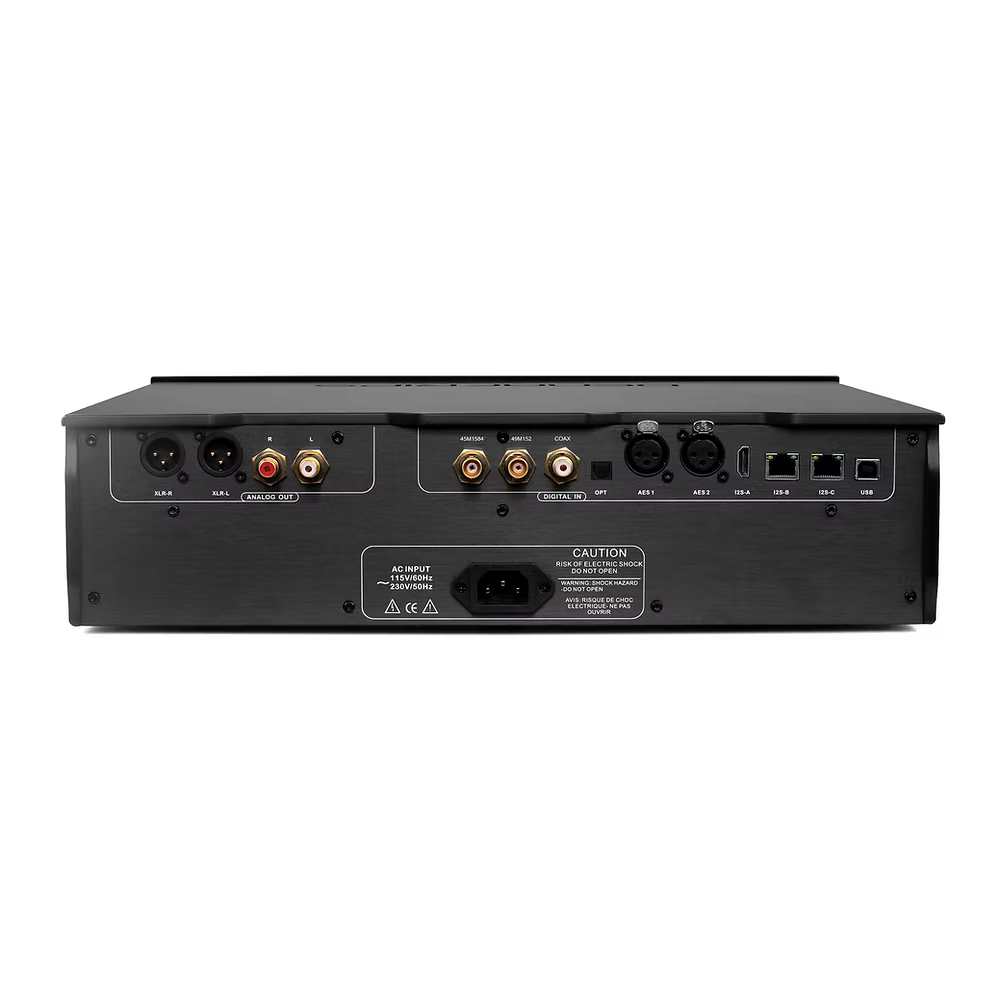

Digital Input  Coax via RCA
TOSLink x 1
AES/EBU x 2 (Dual AES/EBU L/R Channel Input Supported)
USB2.0 Type B
I²S via HDMI LVDS
I²S via RJ45 LVDS
I²S via RJ45 LVCMOS
Analog Output  RCA at 2.2Vrms, 625 Ω
XLR at 4.4Vrms, 1250 Ω
Sampling Mode  Non-Oversampling NOS
Oversampling OS
AC Power Requirement  100-240VAC, 50/60Hz (Worldwide Voltage)
Power Consumption  ≤20W
Frequency Response  20-40KHz -0.2dB
THD+N  0.001%
S/N Ratio  127dB
Dynamic Range  >132dB
Stereo Crosstalk  -110dB
Dimension  430 x 380 x 105 mm(without feet)
Weight  19 Kg
Colour  Silver / Black
