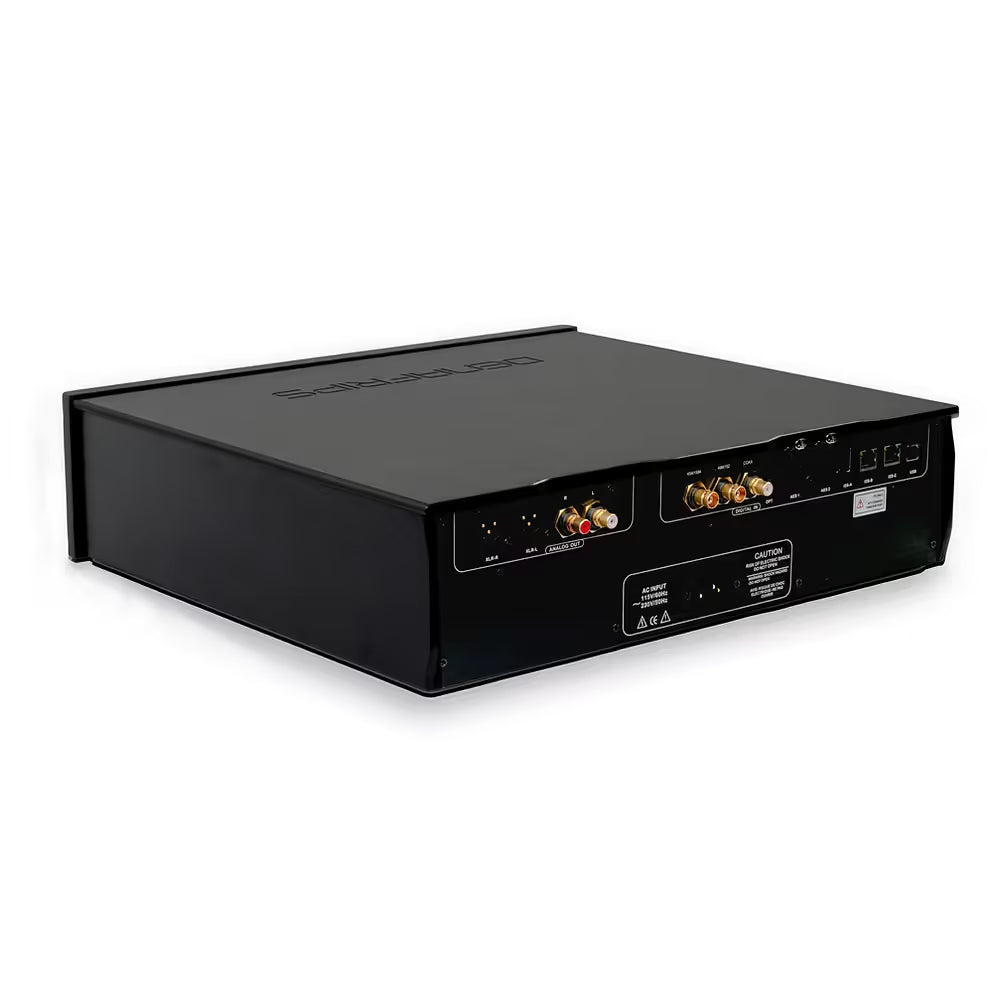

Denafrips Terminator 15th R-2R DAC

DIGITAL / ANALOGUE ISOLATION

The TERMINATOR 15th features complete isolation between the Digital Processing Board and the R-2R ladder network arrays. This design, physically linked by the OCXO module, minimizes noise and enhances the signal-to-noise ratio.

OVEN-CONTROLLED CRYSTAL OSCILLATORS - OCXO

Equipped with dual OCXOs at 45.1584 MHz and 49.152 MHz, the TERMINATOR 15th ensures ultra-low phase noise and exceptional accuracy. These OCXOs are housed in a metal casing and powered by a specially designed, shielded power supply for optimal stability.

ADAPTIVE FIFO BUFFER RECLOCKING

The adaptive FIFO buffer stores digital audio data, which is read using the ultra-low phase noise OCXOs. This data is converted to analog signals by true balanced R-2R ladder network arrays, with high-precision resistors ensuring linearity.

HIGH PRECISION OCXO CLOCK-OUT

The Terminator 15th features a high-precision OCXO clock-out, designed to synchronize with various audio frequencies.

• Audio Frequencies: 44.1 kHz, 48 kHz
• Clock Frequencies: 22.5792 MHz, 24.576 MHz, 45.1584 MHz, 49.152 MHz

Experience unparalleled accuracy and synchronization in your audio setup with the Terminator 15th.

THE FOUNDATION OF SUPERIOR SOUND

A dedicated Linear Power Supply Unit is encased in a robust 1.5mm thick metal alloy enclosure. An additional steel plate divider between the DAC motherboard and the PSU box enhances EMI/EMF shielding.

INNOVATIVE BOX-WITHIN-BOX DESIGN

This design eliminates issues associated with dual-box solutions, highlighting the meticulous design and attention to detail from DENAFRIPS.

PREMIUM COMPONENTS

• Dual O-Core Transformers for Digital and Analogue sections.
• Ultra-Low ESR, Long Endurance Reservoir Capacitors.
• Multi-stage Super Linear Power Supply for ultra-precise, low ripple power delivery.

TTE DENAFRIPS TERMINATOR 15th DAC

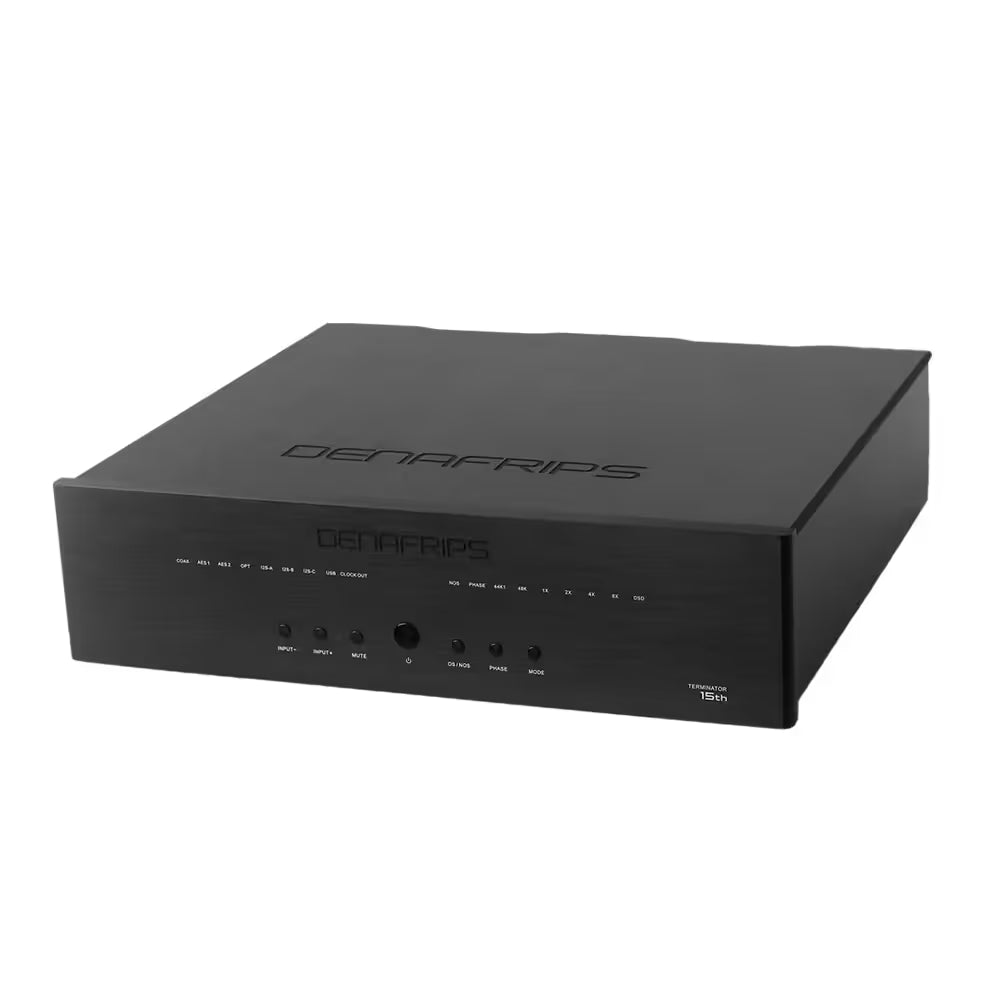

Redefines elegance and performance with its sleek, robust design, meticulously crafted from high-quality brushed aluminum. With its classic dimensions, it integrates seamlessly into any high-end audio setup, exuding an unmistakable premium feel.

DENAFRIPS TERMINATOR 15th DAC: Key Features

• High-Quality Construction: Classic and elegant appearance with a brushed aluminum chassis.
• Sophisticated Design: Crafted from a high-purity gold, silver, and copper alloy, featuring dual O-core AC transformers for clean power and isolated digital/analog sections to reduce noise.
• High Precision OCXO Clock-Out: Equipped with dual oven-controlled crystal oscillators (OCXO) for ultra-low phase noise and high accuracy.
• Adaptive FIFO Buffer Reclocking: Minimizes jitter for precise digital-to-analog conversion.

The new benchmark of Denafrips' flagship DAC. All in the Terminator 15th.
