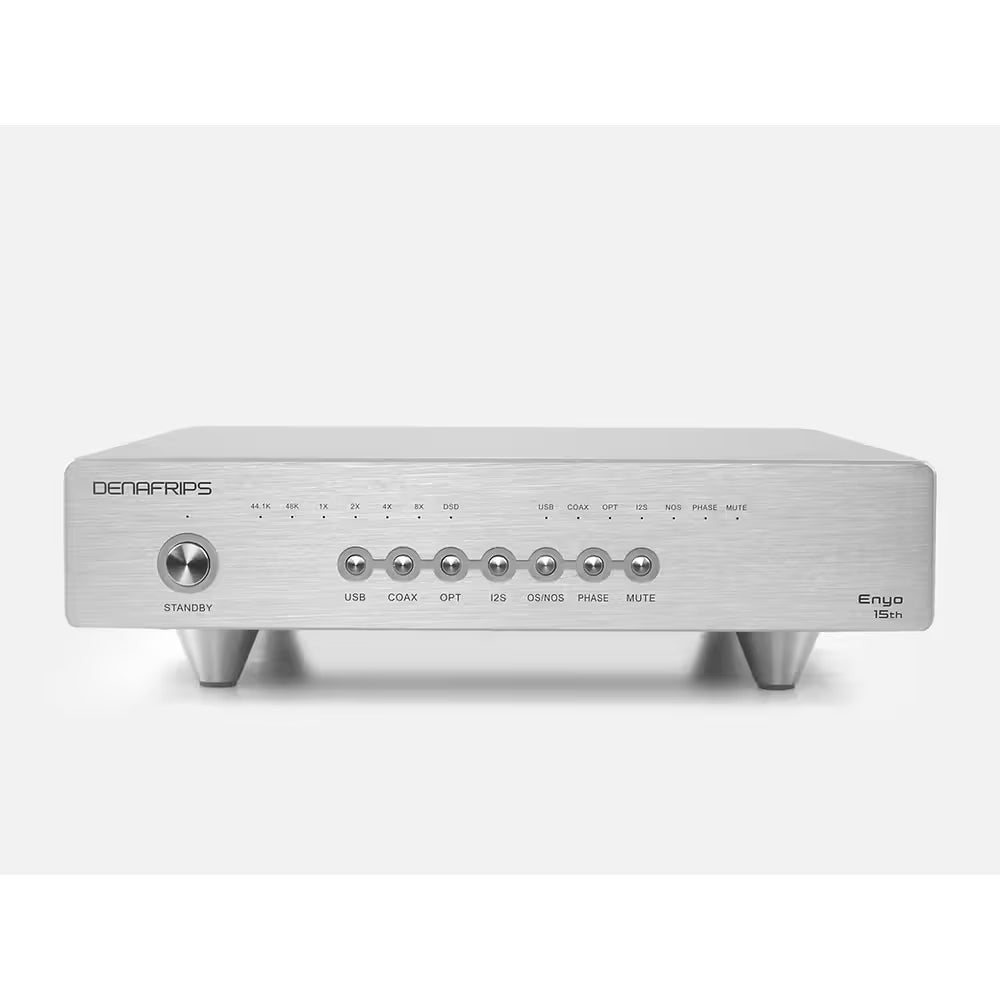

Denafrips Enyo 15th R-2R DAC

In celebration of DENAFRIPS's 15 years of exceptional digital audio expertise, the Enyo 15th Anniversary Edition incorporates highly sought-after features such as I²S input, a redesigned anodised aluminium chassis, and various performance enhancements.

To achieve a decent sounding R-2R DAC, the use of ultra-precise resistors is necessary. The cost of high precision resistors is expensive, each resistor must be stringently measured and matched by machine with human intervention to cross-check. These results in a very high cost in the manufacturing process, hence, R-2R DAC is also a symbol of high-end DAC.

The Enyo 15th employs true balance R-2R DAC design. Each channel is decoded by 4 sets of R-2R network. This design has a very small linear error, high decoding speed, low digital noise, not only to ensure that the audio signal is low distortion, but also to ensure a very low background music noise; allow the listener to enjoy the true music with a dark background.

Specifications

• I²S Input
• True NOS R-2R DAC
• Enhanced Power Supply, UPOCC Copper
• Anodised Aluminium Chassis Silver/Black
• Upgraded 12th Anniv. Firmware v1.8

Technical Highlights

• Proprietary R2R + DSD Architecture
• True balanced 24BIT R2R + 6BIT DSD (32 steps FIR Filters)
• Low Thermal Effect, High Precision Hand-Matched 0.01% Resistors
• Low Noise Power Supply
• FIFO Buffer
• Digital Signal Processing via FPGA
• DSD1024, PCM1536 Supports On USB Input
• Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU
• Licensed Thesycon USB Driver For Windows Platform
• Driverless On Mac & Linux

DSD

• DSD64-DoP On All Input
• DSD1024* On USB Input Only

PCM

• 24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input
• 1536kHz* On USB Input

Sampling Mode: Oversampling OS / Non-Oversampling NOS

Digital Input

• Coax x 1
• TOSLink x 1
• I2S x 1
• USB2.0 Type B

Analogue Output

• RCA at 2.0Vrms, 625 Ω
• XLR at 4.0Vrms, 1250 Ω

Frequency Response: 20-70KHz -3dB

THD+N: 0.004%

S/N Ratio: 115dB

Dynamic Range: >119dB

Stereo Crosstalk: -124dB

AC Power Requirement: 100-240VAC, 50/60Hz (Worldwide Voltage, Manual Selector)

Fuse: T2A/250VAC. 5x20mm 2A Slow Blow

Power Consumption: ≤20W

Dimension: 215W x 230D x 45H mm (Feet +18mm)

Package Dim: 375 x 330 x 115 mm

Package Content: DAC & Power Cord. No remote control.

Weight: 3.5 Kg

Color: Black / Silver
